2003 SUBARU BAJA tow bar

8-30
Connecting a trailer
n Trailer brakes
WARNING
Adequate size trailer brakes are required when the trailer and
its cargo exceed 1,000 lbs (453 kg) total weight. Do not directly connect your trailer ’s hydraulic brake system
to the hydraulic brake system in your vehicle. Direct connectionwould cause the vehicle ’s brake performance to deteriorate and
could lead to an accident.
If your trailer ’s total weight (trailer weight plus its cargo weight)
exceeds 1,000 lbs (453 kg), the trailer is required to be equipped with
its own brake system. Electric brakes or surge brakes are recom-
mended, and must be installed properly. Check that your trailer ’s
brakes conform with Federal, state/province and/or other applicable
regulations. Your SUBARU ’s brake system is not designed to be
tapped into the trailer ’s hydraulic brake system. Please ask your
SUBARU dealer and professional trailer supplier for more information
about the trailer ’s brake system.
n Trailer safety chains
WARNING
Always use safety chains between your vehicle and the trailer.
Towing trailer without safety chains could create a traffic safetyhazard if the trailer separates from the hitch due to coupling dam-age or hitch ball damage.
In case the trailer hitch connector or hitch ball should break or
become disconnected, the trailer could get loose and create a traffic
safety hazard.
For safety, always connect the towing vehicle and trailer with trailer
safety chains. Pass the chains crossing each other under the trailer
tongue to prevent the trailer from dropping onto the ground in case
the trailer tongue should disconnect from the hitch ball. Allow suffi-

Driving tips8-31
–
CONTINUED –
cient slack in the chains taking tight-turn situations into account; how-
ever, be careful not to let them drag on the ground.
For more information about the safety chain connection, refer to the
instructions for your hitch and trailer. nSide mirrors
After hitching a trailer to your vehicle, check that the standard side
mirrors provide a good rearward field of view without significant blindspots. If significant blind spots occur with the vehicle ’s standard side
mirrors, use towing mirrors that conform with Federal, state/province
and/or other applicable regulations.
HB8041BA
n Trailer lights CAUTION
Direct splicing or other improper connection of trailer lights may
damage your vehicle ’s electrical system and cause a malfunction
of your vehicle ’s lighting system.
Connection of trailer lights to your vehicle ’s electrical system requires
modifications to the vehicle ’s lighting circuit to increase its capacity
and accommodate wiring changes. To ensure the trailer lights are
connected properly, please consult your SUBARU dealer. Check for
proper operation of the turn signals, the brake lights and parkinglights each time you hitch up.

8-34
trailer, causing sway. Crosswinds can be due to weather conditions or
the passing of large trucks or buses. If swaying occurs, firmly grip the
steering wheel and slow down immediately but gradually.When passing other vehicles, considerable distance is required
because of the added weight and length caused by attaching the
trailer to your vehicle. Backing up with a trailer is difficult and takes practice. When back-
ing up with a trailer, never accelerate or steer rapidly. When turning
back, grip the bottom of the steering wheel with one hand and turn it
to the left for a left turn, and turn it to the right for a right turn.
Left turn Right turn
OM-H2791
If the ABS warning light illuminates while the vehicle is in motion,
stop towing the trailer and have repairs performed immediately by the
nearest SUBARU dealer. n Driving on grades
Before going down a steep hill, slow down and shift into lower gear
(if necessary, use 1st gear) in order to utilize the engine braking effect
and prevent overheating of your vehicle ’s brakes. Do not make sud-
den downshifts. When driving uphill in hot weather, the air conditioner may turn off
automatically to protect the engine from overheating. When driving uphill in hot weather, pay attention to the water tem-
perature gauge pointer (for all vehicles) and AT OIL TEMP warning
light (for AT vehicles) since the engine and transmission are relatively
prone to overheating under these conditions. If the water temperature

9-22
the radiator. After the pressure has been fully released, remove the
cap by pressing down and turning it.
Towing

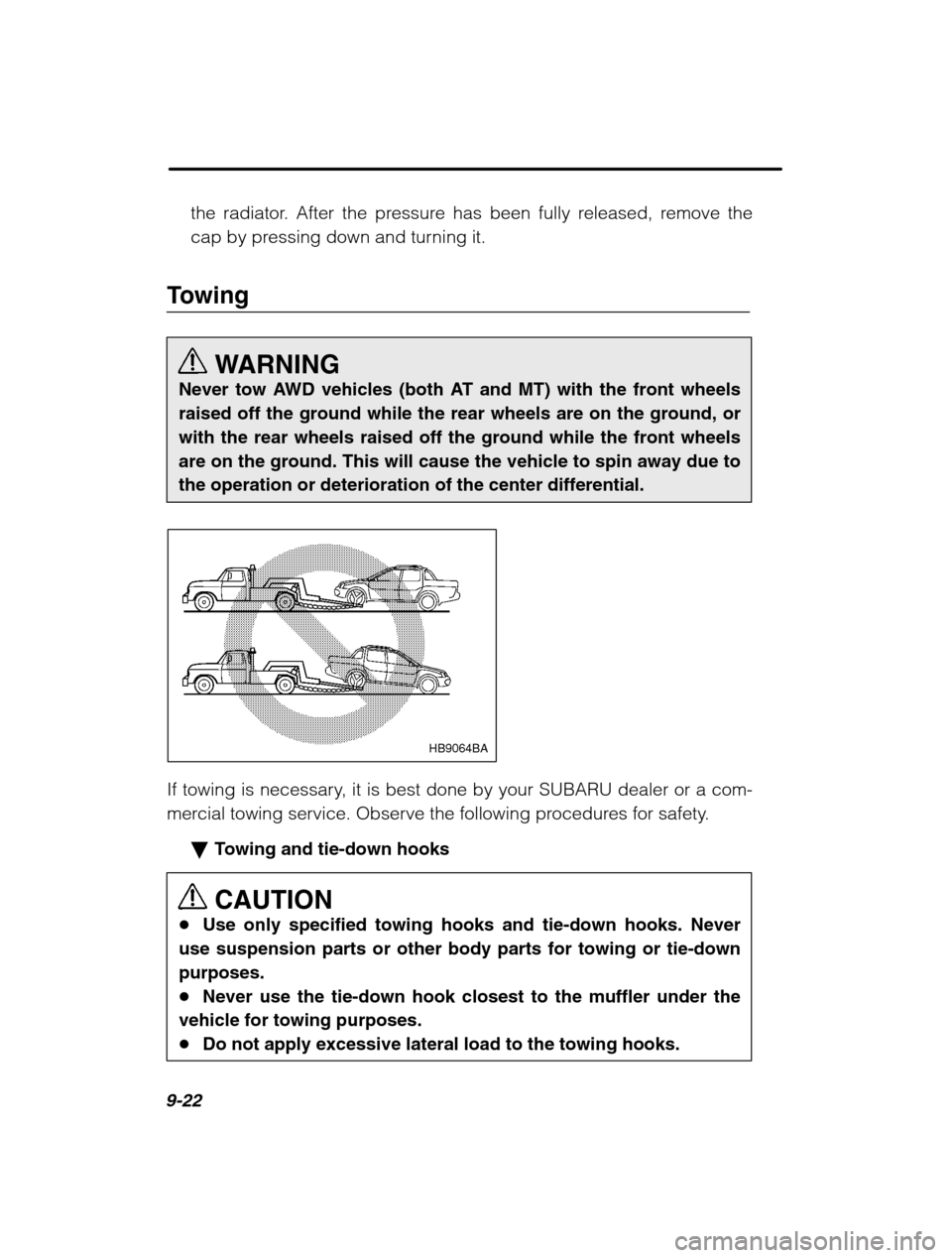

WARNING
Never tow AWD vehicles (both AT and MT) with the front wheelsraised off the ground while the rear wheels are on the ground, orwith the rear wheels raised off the ground while the front wheelsare on the ground. This will cause the vehicle to spin away due tothe operation or deterioration of the center differential.
HB9064BA
If towing is necessary, it is best done by your SUBARU dealer or a com-
mercial towing service. Observe the following procedures for safety.
Towing and tie-down hooks
CAUTION
Use only specified towing hooks and tie-down hooks. Never
use suspension parts or other body parts for towing or tie-downpurposes. Never use the tie-down hook closest to the muffler under the
vehicle for towing purposes. Do not apply excessive lateral load to the towing hooks.

Maintenance and service11-13
–
CONTINUED –
Recommended grade and viscosity under severe driving conditions
If the vehicle is used in desert areas, in areas with very high tempera-
tures, or used for heavy-duty applications such as towing a trailer, use
of oil with the following grade and viscosities is recommended.
API classification SL (or SJ): SAE viscosity No.: 30, 40, 10W-50,
20W-40, 20W-50
Cooling system
WARNING
Never attempt to remove the radiator cap until the engine has
been shut off and has cooled down completely. Since the coolantis under pressure, you may suffer serious burns from a spray ofboiling hot coolant when the cap is removed.
CAUTION
The cooling system has been filled at the factory with a high
quality, corrosion-inhibiting, year-around coolant which providesprotection against freezing down to –33°F ( –36 °C). For adding,
use genuine SUBARU coolant or an equivalent: a mixture of 50%
soft water and 50% ethylene-glycol basis coolant. Use of improp-er coolants may result in corrosion in the cooling system. It is im-portant to maintain protection against freezing and corrosion,even if freezing temperatures are not expected. Never mix differ-ent kinds of coolant. Do not splash the engine coolant over painted parts. The alco-
hol contained in the engine coolant may damage the paint sur-face.
Hose and connections
Your vehicle employs an electric cooling fan which is thermostatically

11-40
Abnormally high tire pressure (tread worn in center)
HSB013AA
Ride comfort is poor. Also, the tire magnifies the effects of road-surface
bumps and dips, possibly resulting in vehicle damage.
If the tire placard shows tire pressures for the vehicle when fully loaded
and for the vehicle when towing a trailer, adjust the tire pressures to the
values that match current loading conditions.

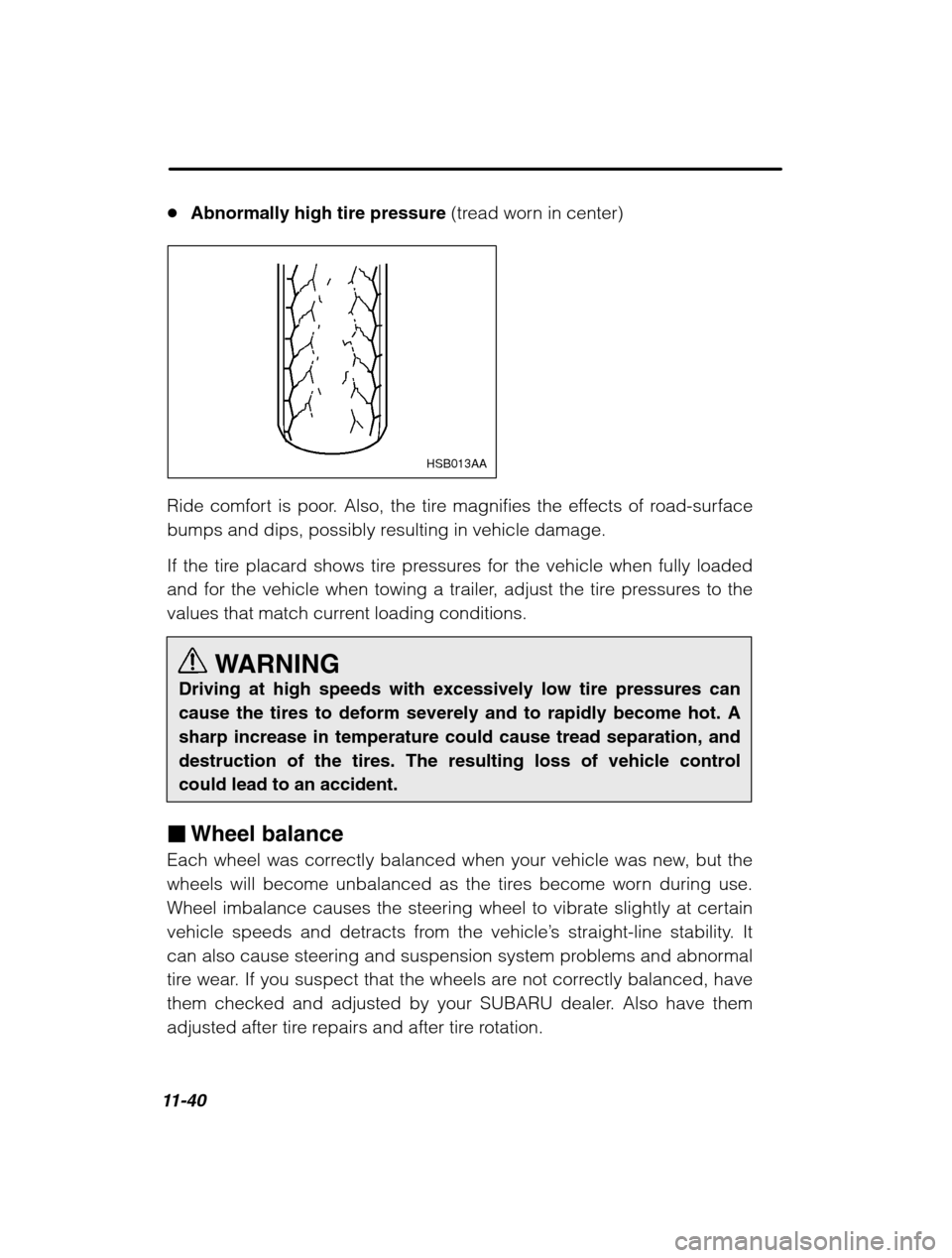

WARNING
Driving at high speeds with excessively low tire pressures can
cause the tires to deform severely and to rapidly become hot. Asharp increase in temperature could cause tread separation, and
destruction of the tires. The resulting loss of vehicle controlcould lead to an accident.
Wheel balance
Each wheel was correctly balanced when your vehicle was new, but the
wheels will become unbalanced as the tires become worn during use.
Wheel imbalance causes the steering wheel to vibrate slightly at certain
vehicle speeds and detracts from the vehicle ’s straight-line stability. It
can also cause steering and suspension system problems and abnormal
tire wear. If you suspect that the wheels are not correctly balanced, have
them checked and adjusted by your SUBARU dealer. Also have them
adjusted after tire repairs and after tire rotation.
