2003 PONTIAC VIBE glove box

2-14
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a tone reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition. If you take the key with you, and you have an
automatic transaxle, it will be locked. And remember to
lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your keys. But what if you have to leave your key?

If possible, park in a busy, well
-lit area.

Put your valuables in a storage area, like your trunk
or glove box.

Be sure to close and lock the storage area.

Close all windows.

Lock all the doors except the driver's.

If your vehicle has a remote keyless entry system,
take the transmitter with you.

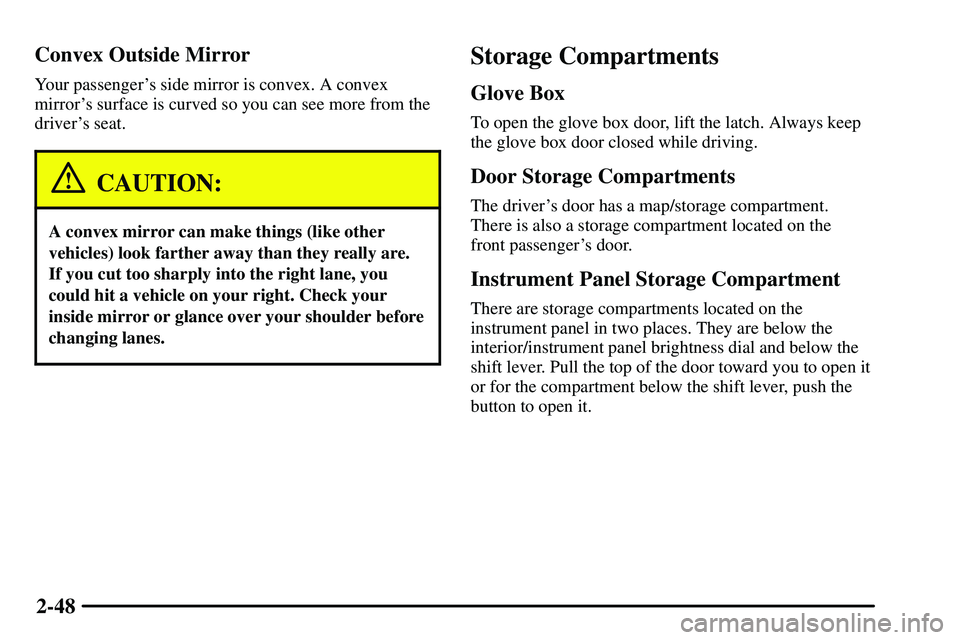

2-48 Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
To open the glove box door, lift the latch. Always keep
the glove box door closed while driving.
Door Storage Compartments
The driver's door has a map/storage compartment.
There is also a storage compartment located on the
front passenger's door.
Instrument Panel Storage Compartment
There are storage compartments located on the
instrument panel in two places. They are below the
interior/instrument panel brightness dial and below the
shift lever. Pull the top of the door toward you to open it
or for the compartment below the shift lever, push the
button to open it.

2-59
The main components of your instrument panel are the following:
A. Air Outlets
B. Instrument Panel Cluster
C. Hazard Warning Flasher Button
D. Audio System
E. Rear Window Defogger Button
F. Front Passenger Safety Belt Reminder Light
G. Comfort Control System
H. Power Remote Control Mirror Button
I. Instrument Panel Brightness Dial
J. Rear Liftglass Release Button
K. Coinholder
L. Content Theft
-Deterrent Security Light
M. Storage CompartmentN. Turn Signal/Multifunction Lever
O. Hood Release
P. Tilt Lever
Q. Horn
R. Cruise Control Lever (Option)
S. Ignition Switch
T. Windshield Wiper Lever
U. Cigarette Lighter
V. Shift Lever
W. Power Outlet
X. Parking Brake
Y. Center Console Storage Area
Z. Glove Box

4-34

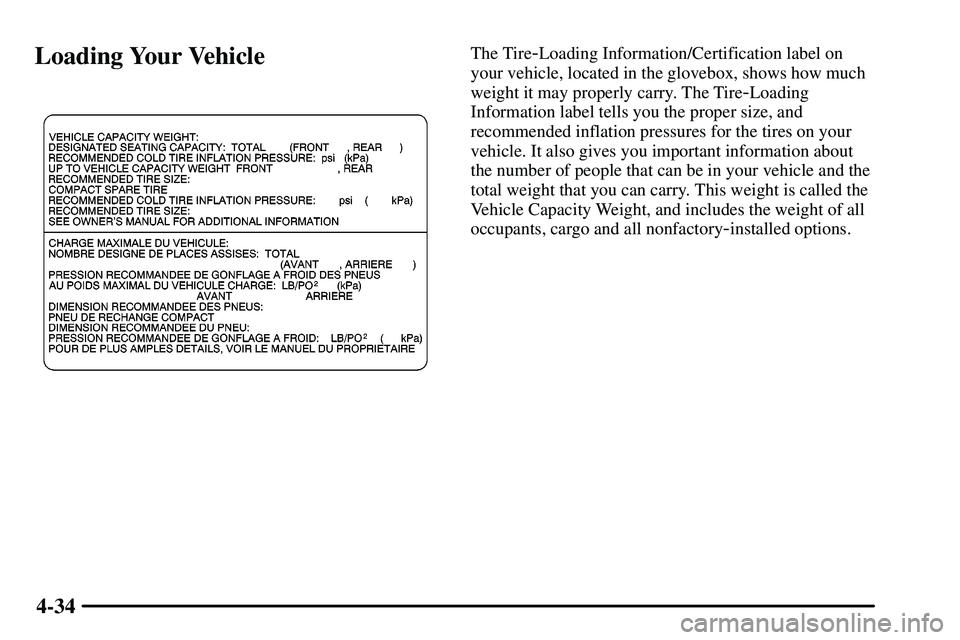

Loading Your VehicleThe Tire-Loading Information/Certification label on
your vehicle, located in the glovebox, shows how much
weight it may properly carry. The Tire
-Loading
Information label tells you the proper size, and
recommended inflation pressures for the tires on your
vehicle. It also gives you important information about
the number of people that can be in your vehicle and the
total weight that you can carry. This weight is called the
Vehicle Capacity Weight, and includes the weight of all
occupants, cargo and all nonfactory
-installed options.

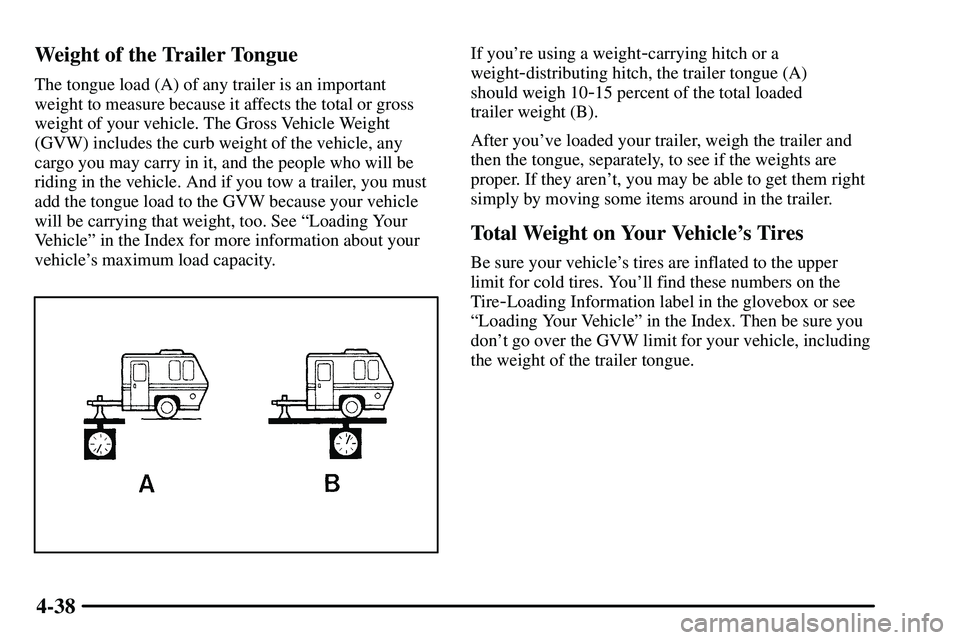

4-38 Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total or gross
weight of your vehicle. The Gross Vehicle Weight
(GVW) includes the curb weight of the vehicle, any
cargo you may carry in it, and the people who will be
riding in the vehicle. And if you tow a trailer, you must
add the tongue load to the GVW because your vehicle
will be carrying that weight, too. See ªLoading Your
Vehicleº in the Index for more information about your
vehicle's maximum load capacity.
If you're using a weight-carrying hitch or a
weight
-distributing hitch, the trailer tongue (A)
should weigh 10
-15 percent of the total loaded
trailer weight (B).
After you've loaded your trailer, weigh the trailer and
then the tongue, separately, to see if the weights are
proper. If they aren't, you may be able to get them right
simply by moving some items around in the trailer.
Total Weight on Your Vehicle's Tires
Be sure your vehicle's tires are inflated to the upper
limit for cold tires. You'll find these numbers on the
Tire
-Loading Information label in the glovebox or see
ªLoading Your Vehicleº in the Index. Then be sure you
don't go over the GVW limit for your vehicle, including
the weight of the trailer tongue.

6-22
Passenger Compartment Air Filter
Passenger compartment air, both outside and
recirculated air, is routed through a passenger
compartment air filter. The filter removes certain
contaminants from the air, including pollen and dust
particles. Reductions in airflow, which may occur more
quickly in dusty areas, indicate that the filter needs to be
replaced early. An air filter is available through your
dealer. For how often to change the air filter, see
ªMaintenance Scheduleº in the Index.
The access panel for the air filter is behind the glove
box. To replace the filter, follow these steps:
1. Lower the glove box door and remove the screw on
the right side of the glovebox with a tool. Slide the
arm of the glovebox off.
2. Push each side of the glovebox in and pull
toward you.
