2003 PONTIAC VIBE engine

Long Trip/Highway Scheduled Maintenance
7-32
60,000 Miles (100 000 km) (Continued)

Replace engine air cleaner filter (or every 24 months, whichever occurs first).
An Emission Control Service.

Inspect fuel tank, cap, cap gasket and lines for damage
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)
Inspect for tappet noise and engine vibration. Adjust valve clearance to factory
specifications if necessary (or every 48 months, whichever occurs first).
An Emission Control Service.
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.

Long Trip/Highway Scheduled Maintenance
7-33

Change automatic transaxle fluid every 60,000 miles (100 000 km) if the
vehicle is mainly driven under one or more of these conditions:
± In heavy city traffic where the outside temperature regularly
reaches 90
F (32
C) or higher.
± In hilly or mountainous terrain.
± When doing frequent trailer towing.
± Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, check the fluid.
See ªRecommended Fluids and Lubricantsº in the Index for the proper
fluid to use.
67,500 Miles (112 500 km)
Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components (or every 12 months, whichever occurs first).
(See footnote #.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)ACTUAL
SERVICED BY:MILEAGE
DATE

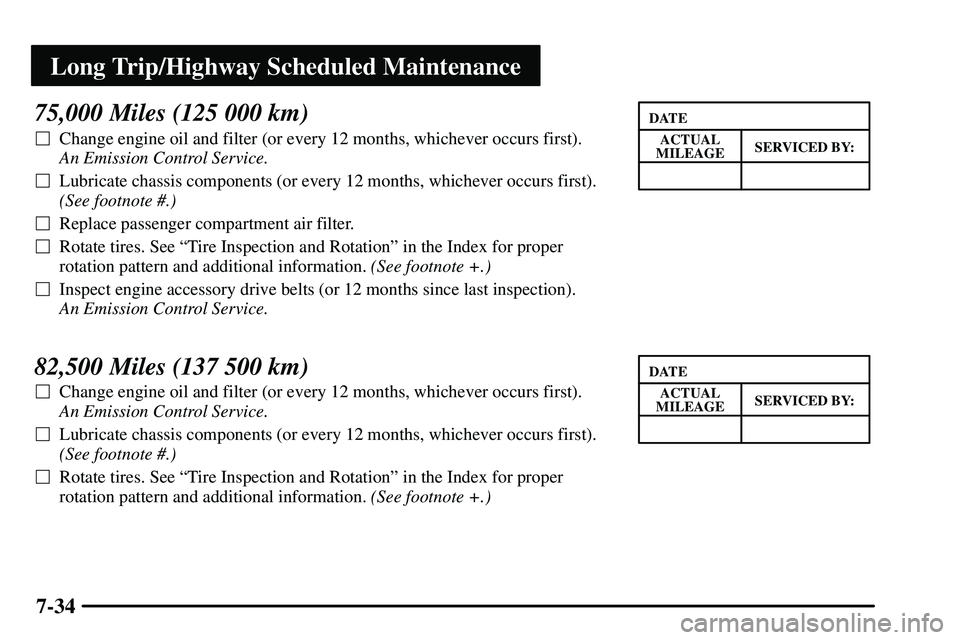

Long Trip/Highway Scheduled Maintenance
7-34
75,000 Miles (125 000 km)

Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.

Lubricate chassis components (or every 12 months, whichever occurs first).
(See footnote #.)

Replace passenger compartment air filter.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)

Inspect engine accessory drive belts (or 12 months since last inspection).
An Emission Control Service.
82,500 Miles (137 500 km)

Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.

Lubricate chassis components (or every 12 months, whichever occurs first).
(See footnote #.)

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

Long Trip/Highway Scheduled Maintenance
7-35
90,000 Miles (150 000 km)

Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.

Lubricate chassis components (or every 12 months, whichever occurs first).
(See footnote #.)

Replace passenger compartment air filter.

Replace engine air cleaner filter.
An Emission Control Service.

Inspect fuel tank, cap, cap gasket and lines for damage or leaks
(or every 24 months, whichever occurs first). Replace parts as needed.
An Emission Control Service. (See footnote
.)
Inspect engine accessory drive belts (or 12 months since last inspection).
An Emission Control Service.
Drain, flush and refill cooling system (or every 24 months, whichever occurs
first). See ªEngine Coolantº in the Index for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and neck. Pressure test cooling
system and pressure cap.
An Emission Control Service. (See footnote
.)
Change manual transaxle fluid every 30,000 miles (50 000 km) only if your
vehicle is used to tow a trailer.
Check automatic transaxle fluid.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.) ACTUAL
SERVICED BY:MILEAGE
DATE

Long Trip/Highway Scheduled Maintenance
7-36
97,500 Miles (162 500 km)

Change engine oil and filter (or every 12 months, whichever occurs first).
An Emission Control Service.

Lubricate chassis components (or every 12 months, whichever occurs first).
(See footnote #.)

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
120,000 Miles (200 000 km)

Replace spark plugs.
An Emission Control Service.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

7-37
Part B: Owner Checks and Services
Listed in this part are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. See ªEngine Oilº in the Index for
further details.Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mixture if necessary. See ªEngine Coolantº in
the Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See ªWindshield Washer Fluidº in the Index
for further details.
Hood Latch Operation Check
Pull the primary hood latch release handle inside the
vehicle. The secondary latch should keep the hood from
opening all the way when the primary latch is released.
Make sure the hood closes firmly. See ªHood Releaseº
in the Index for further details.

7-39 At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Seat Operation Check
Make sure the head restraints stay in position and all
seat latches lock. Check that the recliner holds by
pushing and pulling the seatback while it is reclined.
Body Lubrication Service
Lubricate all hood latch assembly, secondary latch,
pivots, spring anchor, release pawl, hood and body door
hinges, rear compartment and any folding seat hardware.
Part D tells you what to use. More frequent lubrication
may be required when exposed to a corrosive
environment.Starter Switch Check
CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See ªParking Brakeº in the Index if necessary.
Do not use the accelerator pedal, and be ready to turn
off the engine immediately if it starts.
3. On automatic transaxle vehicles, try to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transaxle vehicles, put the shift lever in
NEUTRAL (N), push the clutch down halfway and
try to start the engine. The starter should work only
when the clutch is pushed down all the way to the
floor. If the starter works when the clutch isn't
pushed all the way down, your vehicle needs service.

7-40
Automatic Transaxle Shift Lock Control
System Check
CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. See ªParking Brakeº
in the Index if necessary.
Be ready to apply the regular brake immediately if
the vehicle begins to move.3. With the engine off, turn the key to the ON position,
but don't start the engine. Without applying the
regular brake, try to move the shift lever out of
PARK (P) with normal effort. If the shift lever
moves out of PARK (P), your vehicle needs service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to LOCK in each shift lever position.

With an automatic transaxle, the key should turn to
LOCK only when the shift lever is in PARK (P).

With a manual transaxle, the key should turn to
LOCK only if you push the key in farther, while
turning it towards LOCK.
