2003 PONTIAC VIBE turn signal bulb

2-36
Turn Signal/Multifunction Lever
The turn signal/multifunction lever is located on the left
side of the steering column.
This lever operates the following:

Turn and Lane
-Change Signals

Headlamp High/Low
-Beam Changer

Flash
-to-Pass
For more information on the exterior lamps, see
ªExterior Lampsº later in this section.
Turn and Lane-Change Signals
The turn signal has an upward (for right) and a
downward (for left) position. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return automatically.
To signal a lane change, raise or lower the lever until the
arrow starts to flash. Hold it there until you complete
your lane change. The lever will return by itself when
you release it.
An arrow on the instrument
panel cluster will flash in
the direction of the turn or
lane change.
If you signal a turn or a lane change and notice the
arrow flashing rapidly, a signal bulb may be burned out
and other drivers won't see your turn signal.
If a bulb is burned out, have it replaced to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs and then check
the fuse. See ªFuses and Circuit Breakersº in the Index.

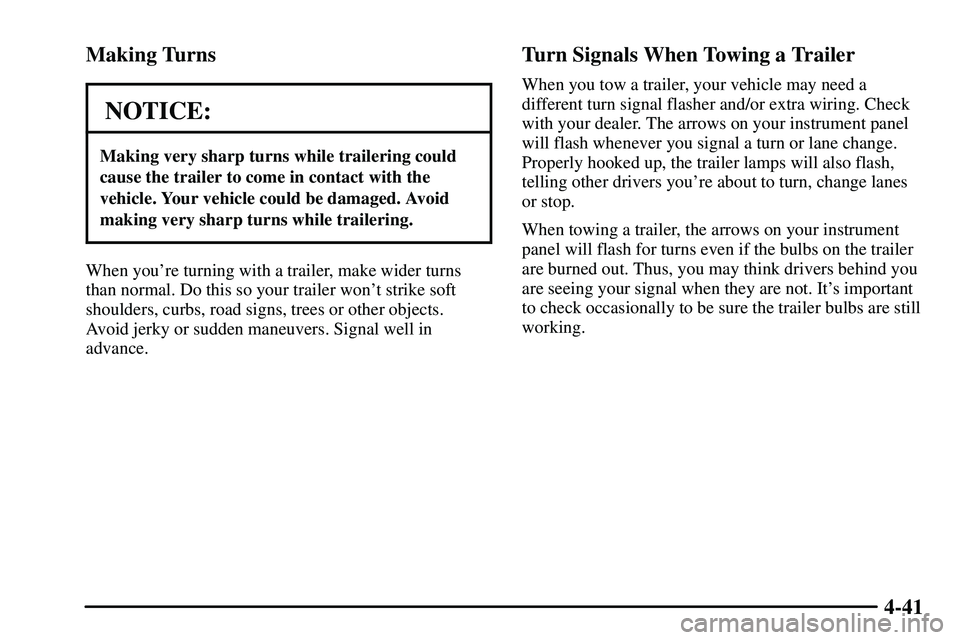

4-41 Making Turns
NOTICE:
Making very sharp turns while trailering could
cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you're turning with a trailer, make wider turns
than normal. Do this so your trailer won't strike soft
shoulders, curbs, road signs, trees or other objects.
Avoid jerky or sudden maneuvers. Signal well in
advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal flasher and/or extra wiring. Check
with your dealer. The arrows on your instrument panel
will flash whenever you signal a turn or lane change.
Properly hooked up, the trailer lamps will also flash,
telling other drivers you're about to turn, change lanes
or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind you
are seeing your signal when they are not. It's important
to check occasionally to be sure the trailer bulbs are still
working.

6-43 Headlamps
A. Headlamp
B. Turn Signal LampTo replace the headlamp bulb, do the following:
1. Open the hood and locate the lamp assembly.

6-45 Front Turn Signal Lamps
To replace the front turn signal lamp bulbs, do the
following:
1. See ªHeadlampsº for location.
2. Locate the turn signal bulb.
3. Turn the bulb socket counterclockwise and pull it out
of the lamp housing.
4. Reverse the steps to install a new bulb.
Rear Combination Lamps
To replace the turn signal and brake lamp bulbs, do the
following:
A. Brake Lamp
B. Turn Signal Lamp

6-76
Replacement Bulbs
Lamps Bulb Number
Headlamp High
-/Low-Beam 9003. . . . . . . . . . . . . . .
Front Turn Signal 1157NA. . . . . . . . . . . . . . . . . . . . . .
Stoplamps/Taillamps 7443. . . . . . . . . . . . . . . . . . . . .
Back
-Up Lamps 7440. . . . . . . . . . . . . . . . . . . . . . . . .
Rear Turn Signal 7440. . . . . . . . . . . . . . . . . . . . . . . .
CHMSL 921. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions.
Cooling System
1.8L Engine (Code 8) 6.9 quarts (6.5 L). . . . . . . . .
1.8L H.O. Engine (Code L) 7.1 quarts (6.7 L). . . . Engine Oil with Filter
1.8L Engine (Code 8) 3.9 quarts (3.7 L). . . . . . . . .
1.8L Engine (Code L) 4.8 quarts (4.4 L). . . . . . . . .
Fuel Tank
With AWD 12.0 gallons (45.0 L). . . . . . . . . . . . . . . .
Without AWD 13.0 gallons (49.0 L). . . . . . . . . . . . .
Automatic Transaxle
1.8L Engine (Code 8) 3.3 quarts (3.1 L). . . . . . . . .
1.8L Engine (Code 8)
with AWD 3.1 quarts (2.9 L). . . . . . . . . . . . . . . . . .
Manual Transaxle
Five-Speed 2.0 quarts (1.9 L). . . . . . . . . . . . . . . . .
Six
-Speed 2.4 quarts (2.3 L). . . . . . . . . . . . . . . . . .
Rear Differential0.5 quarts (0.5 L) . . . . . . . . . . . . .
Transfer Case0.8 quarts (0.8 L) . . . . . . . . . . . . . . . .
All capacities are approximate. When adding, be sure to
fill to the approximate level, as recommended in this
manual. See ªRecommended Fluids and Lubricantsº
in the Index.
