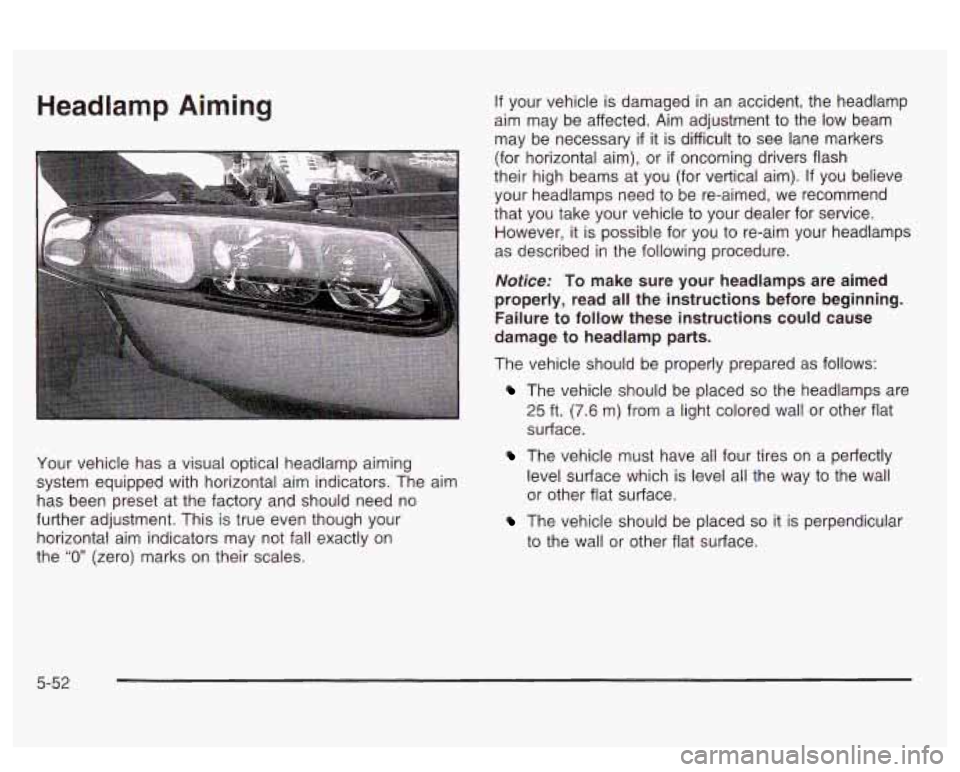

Headlamp Aiming
Your vehicle has a visual optical headlamp aiming
system equipped with horizontal aim indicators. The aim
has been preset at the factory and should need no
further adjustment. This is true even though your
horizontal aim indicators may not fall exactly on
the
“0” (zero) marks on their scales.
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment to the
low beam
may be necessary
if it is difficult to see lane markers
(for horizontal aim), or
if oncoming drivers flash
their high beams at you (for vertical aim).
If you believe
your headlamps need to be re-aimed, we recommend
that you take your vehicle to your dealer for service.
However, it is possible for you to re-aim your headlamps
as described in the following procedure.
Notice: To make sure your headlamps are aimed
properly, read all the instructions before beginning.
Failure
to follow these instructions could cause
damage to headlamp parts.
The vehicle should be properly prepared as follows:
The vehicle should be placed so the headlamps are
25 ft. (7.6 m) from a light colored wall or other flat
surface.
The vehicle must have all four tires on a perfectly
level surface which is level all the way to the wall
or other flat surface.
The vehicle should be placed so it is perpendicular
to the wall or other flat surface.
5-52

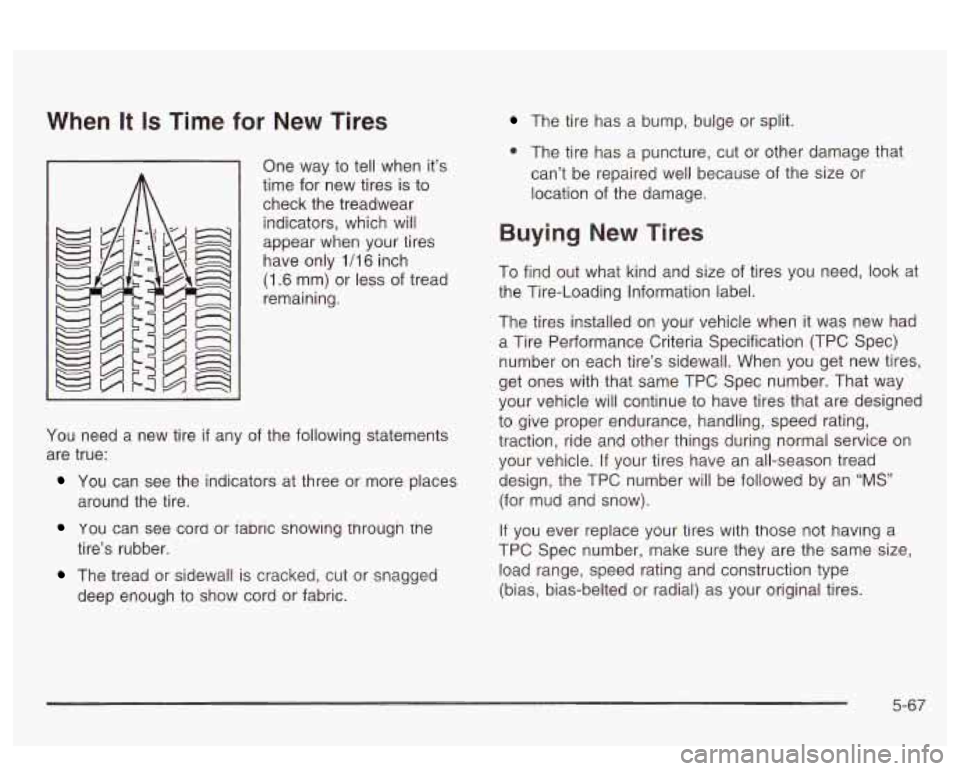

When It Is Time for New Tires
One way to tell when it’s
time for new tires
is to
check the treadwear
indicators, which will
appear when your tires
have only 1/16 inch
(1.6 mm) or less of tread
remaining.
You need a new tire
if any of the following statements
are true:
You can see the indicators at three or more places
YOU can see cord or tabric snowing tnrougn tne
around the tire.
tire’s rubber.
The tread or sidewall is cracked, cut or snagged
deep enough to show cord or fabric.
The tire has a bump, bulge or split.
b The tire has a puncture, cut or other damage that
can’t be repaired well because of the size or
location of the damage.
Buying New Tires
To find out what kind and size of tires you need, look at
the Tire-Loading Information label.
The tires installed on your vehicle when it was new had
a Tire Performance Criteria Specification (TPC Spec)
number on each tire’s sidewall. When you get new tires,
get ones with that same TPC Spec number. That way
your vehicle will continue to have tires that are designed
to give proper endurance, handling, speed rating,
traction, ride and other things during normal service on
your vehicle.
If your tires have an all-season tread
design, the TPC number will be followed by an
“MS”
(for mud and snow).
If you ever replace your tires with those not having a
TPC Spec number, make sure they are the same size,
load range, speed rating and construction type
(bias, bias-belted or radial) as your original tires.
5-67

L
Lamps Exterior
...................................................... 3-1 3
Interior
....................................................... 3-1 6
Lap Belt
........................................................ 1-20
Lap-Shoulder Belt
................................... 1-12, 1-21
Child Restraints
........................................... 1-39
Securing a Child Restraint Designed for the
LATCH System
........................................ 1-41
Leather
......................................................... 5-84
Leaving Your Vehicle With the Engine Running
...... 2-34
Light
Air Bag Readiness
....................................... 3-40
Anti-Lock Brake System Warning
................... 3-43
LATCH System
Leaving
Your Vehicle
....................................... 2-16
Battery Warning
.......................................... 3-41
Brake System Warning
................................. 3-42
Check Gages Warning
............................. 3-51
Check Oil Level
......................... ...... 3-50
Door Ajar
.... .............................. ...... 3-52
Low Traction Active
................. ...... 3-44
Low Washer Fluid Warning
........................... 3-51
Malfunction Indicator
.................................... 3-46
Safety Belt Reminder
................................... 3-39
Security
..................................................... 3-51 Light
(cont.)
Service Vehicle Soon
........ ~ ~ .......... ~ ~ ... 3-53
TCS Warning Light
........................... ... 3-43
Tire Pressure
................................... ... 3-46
Traction Control System (TCS) Warning
...... 3-43
Trunk Ajar
.................................................. 3-52
Loading Your Vehicle
....................................... 4-34
Lockout Protection
.......................................... 2-15
Locks Central Door Unlocking System
..................... 2-11
Delayed Locking
.......................................... 2-12
Door
.......................................................... 2-10
Leaving Your Vehicle
.................................... 2-16
Lockout Protection
....................................... 2-15
Power Door
................................................ 2-11
Programmable Automatic Door Locks
............. 2-13
Long Trip/Highway Definition
.............................. 6-6
Long TripIHighway Intervals
............................... 6-6
Long Trip/Highway Scheduled Maintenance
........ 6-13
Loss of Control
............................................... 4-14
Low Washer Fluid Warning Light ....................... 3-51
Lumbar
Manual Controls
............................................ 1-3
Power Controls
............................................. 1-4
Rear Door
Security Locks
............................. 2-15
Low Traction Active Light
................................. 3-44
8

M
.... 4-11
... 5-101
Magnetic Speed Variable Assist
Steering
....
Maintenance. Normal Replacement Parts ....
Maintenance Schedule
At Each Fuel Fill
......................................... 6-18
At Least Once a Month
................................ 6-18
At Least Once a Year
.................................. 6-1 9
At Least Twice a Year
.................................. 6-19
Brake System Inspection
.............................. 6-23
Engine Cooling System Inspection
................. 6-23
Exhaust System Inspection
........................... 6-22
Fuel System Inspection
................................ 6-22
How This Section is Organized
....................... 6-3
Introduction
.................................................. 6-2
Long Trip/Highway Scheduled Maintenance
..... 6-1 3
Maintenance Requirements
............................. 6-2
Part
A - Scheduled Maintenance Services ......... 6-4
Part B
- Owner Checks and Services ............. 6-18
Part C
- Periodic Maintenance Inspections ...... 6-22
Part D
- Recommended Fluids and Lubricants .... 6-24
Part E
- Maintenance Record ........................ 6-26 Cnlnrrtinn thn Dinkt
CchndltIn .......................... 6-5 “-I””III my L . I” I ..y. IL -”I lWUUlW
Short Trip/City Scheduled Maintenance ............. 6-6
Boot and Seal Inspection
.......................... 6-22
Throttle System Inspection
............................ 6-23
Steering, Suspension
and Front Drive Axle
Using Your
................................................... 6-4 Maintenance
Schedule (cont.)
Your Vehicle and the Environment
................... 6-2
Maintenance When Trailer Towing
..................... 4-42
Making Turns
................................................. 4-40
Malfunction Indicator Light
................................ 3-46
Manual Lumbar Controls
.................................... 1-3
Manual Qperation
........................................... 3-29
Manual Seats
................................................... 1-2
Matching Transmitter(s) to Your Vehicle
............... 2-8
Memory Mirrors
.............................................. 2-48
Memory Seat
................................................. 2-48
Memory Seats
................................................ 3-67
Message DIC Warnings and Messages
........................ 3-60
Mexico, Central America and Caribbean
Islands/Csuntries (Except Puerto Rico
and U.S. Virgin Islands)
...................... .... 7-4
Mirror Operation
................................ ...... 2-38
Mirrors Automatic Dimming Rearview
........................ 2-38
Manual Rearview Mirror
................................ 2-38
Memory
..................................................... 2-48
Outside Convex Mirror
................................. 2-39
Outside Curb View Assist Mirror
.................... 2-39
Outside Heated Mirrors
................................ 2-39
Outside Power Mirrors
.................................. 2-38
Monitor, Systems
............................................ 3-55
9

v
Vehicle Control
........................................................ 4-6
Damage Warnings
........................................... iv
Loading
...................................................... 4-34
Service
Soon Light ...................................... 3-53
Symbols
......................................................... iv
Vehicle Data
.................................................. 3-58
Vehicle Identification
Number (VIN)
............................................. 5-90
Service Parts Identification Label
................... 5-90
DIC
........................................................... 3-62
Memory Seat and Mirrors
......................... 2-48
Vehicle Storage
.......................................... 5-46
Ventilation Adjustment
...................................... 3-32
Vinyl
............................................................. 5-84
Vehicle
Personalization
Visor Vanity Mirror
.......................................... 2-20
Visors 2-20
Voltmeter Gage
.............................................. 3-41
...........................................................
Warning Lights. Gages and Indicators ...... ~ .... 3-34
DIC Warnings and Messages
........................ 3-60
Hazard ?n.larning Flashers ............................... 3-5
Warnings
Other Warning Devices
.................................. 3-6
Safety and Symbols
......................................... III ...
Warnings (cont.) Vehicle Damage
.............................................. iv
Washer Fluid. Low Warning Light
...................... 3-51
Washing Your Vehicle
...................................... 5-85
Weight of the Trailer
........................................ 4-37
What Kind of Engine Oil
to Use ........................ 5-18
What to Do with Used
Oil ................................ 5-21
What
to Use .......................................... 5-27, 5-40
Wheels
Alignment and Tire Balance
.......................... 5-69
Weatherstrip Lubrication
................................... 6-19
Weight of the Trailer Tongue
............................. 4-38
What Kind of Oil to Use
.................................. 5-22
Replacement
............................................... 5-69
When to Add Engine Oil
.................................. 5-17
When to Change Engine Oil
(Vehicles With the GM Oil Life SystemTM)
....... 5-20
When to Change Engine Oil
(Vehicles Without the GM Oil Life SystemTM)
...... 5-20
When to Check
.............................................. 5-21
When to Check Power Steering Fluid
................ 5-40
vvrwrt ‘r’ou Are Fieauy LU ~eavc MILW
Parking on a Hill ......................................... 4-41
When
to Check and Change
............................ 5-23
.... -I ~ 1- I - _. ._ Afr- ..
Where to Put the Restraint ............................... 1-36
Why Safety Belts Work
..................................... 1-8
Window Lock Out
................................... 2-20, 3-65
Windows
....................................................... 2-19
Power
........................................................ 2-20
Windshield and Wiper Blades
........................... 5-86
15
