YOUR BOXER IN DETAIL107
Programming the remote control ☞ Switch off the ignition.
☞ Switch the ignition on again.
☞ Immediately press button A.
☞ Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
Confidential card The confidential card is necessary for any work carried out by a
PEUGEOT dealer on the system. It contains:
-a five digit identification code 1
necessary for the emergency star- ting procedure,
- a code 2for reproduction of your
keys by a PEUGEOT dealer.
These codes are hidden by a film,which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.
Key in ignition A buzzer sounds on opening the dri-
ver's door, if the key has been left in the ignition. Changing the battery of the remote control If the indicator light on the key lights only once, or does not light at allwhen the button is pressed, change
the battery.
To
do this, unclip the casing using a
coin at the ring (CR2032/3 volt battery).If the remote control does not work after the battery has been changed,reinitialise the remote control.

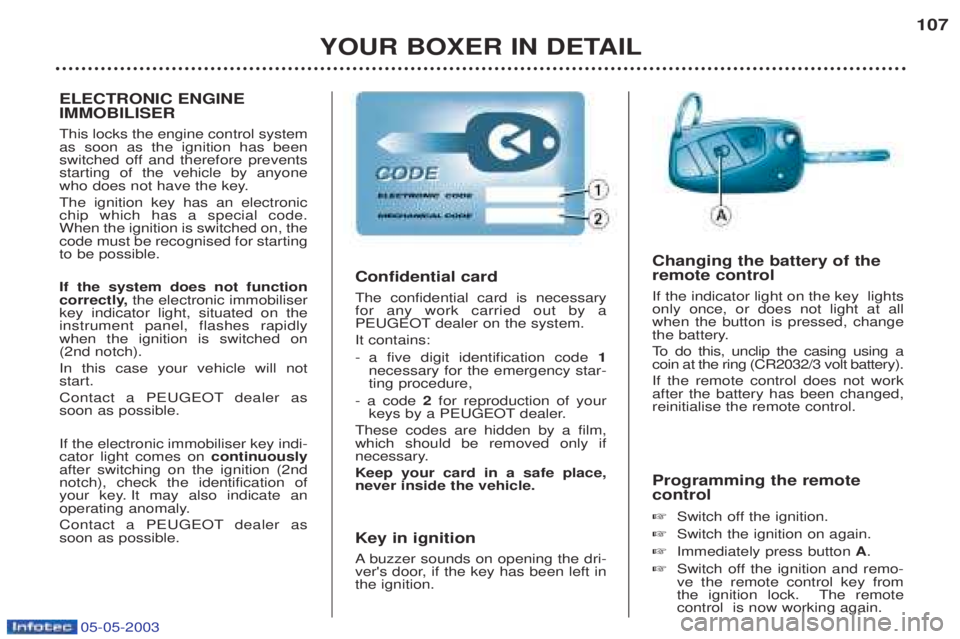

ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function
correctly, the electronic immobiliser
key indicator light, situated on theinstrument panel, flashes rapidlywhen the ignition is switched on(2nd notch). In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible. If the electronic immobiliser key indi- cator light comes on continuously
after switching on the ignition (2ndnotch), check the identification of
your key. It may also indicate an
operating anomaly.
Contact a PEUGEOT dealer as soon as possible.
05-05-2003

05-05-2003
YOUR BOXER IN DETAIL
108
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming .
As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for ashort time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.

05-05-2003

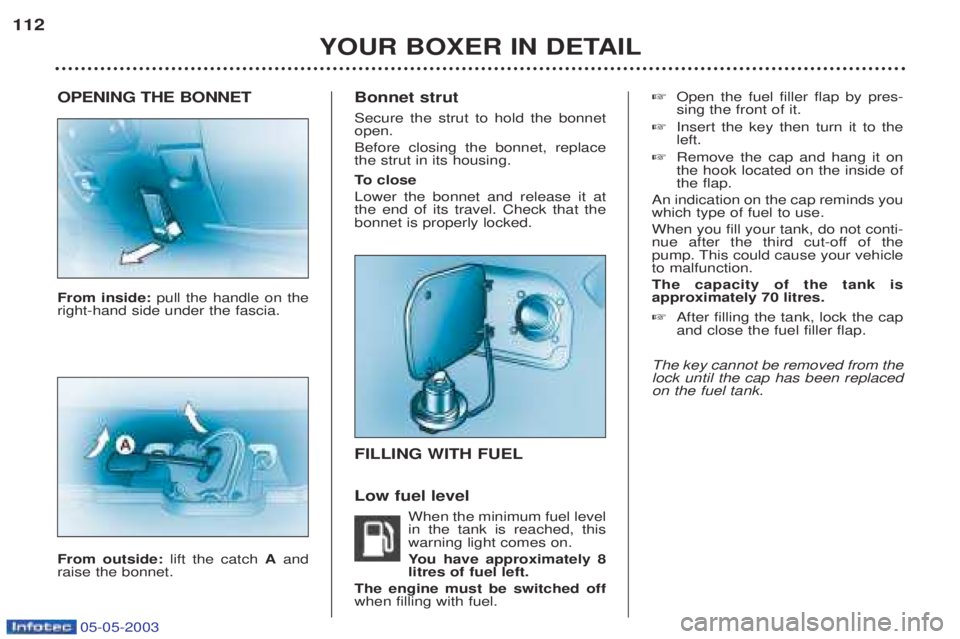

OPENING THE BONNET From inside: pull the handle on the
right-hand side under the fascia. From outside: lift the catch Aand
raise the bonnet. Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To
close
Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. FILLING WITH FUEL Low fuel level
When the minimum fuel level in the tank is reached, thiswarning light comes on. You have approximately 8
litres of fuel left.
The engine must be switched off when filling with fuel. ☞
Open the fuel filler flap by pres-sing the front of it.
☞ Insert the key then turn it to theleft.
☞ Remove the cap and hang it onthe hook located on the inside ofthe flap.
An indication on the cap reminds youwhich type of fuel to use. When you fill your tank, do not conti-
nue after the third cut-off of the
pump. This could cause your vehicleto malfunction. The capacity of the tank is approximately 70 litres. ☞ After filling the tank, lock the cap and close the fuel filler flap.
The key cannot be removed from thelock until the cap has been replacedon the fuel tank.
YOUR BOXER IN DETAIL
112

05-05-2003
W: snow programme.
P ark: to immobilise the vehicle or start the engine ,
with the handbrake on or off.
R everse: to reverse(select this function with the
vehicle stationary, engine at idle). N eutral: to start the engine and to park, with the
handbrake on.
Note: if function N is engaged inadvertently while dri-
ving, allow the engine to return to idle before engaging function Dto accelerate.
D rive: for drivingin automatic mode.
M anual: for drivingin manual mode.
YOUR BOXER IN DETAIL
122
Moving off
With the engine running, to move off from position P:
☞ it is essential to press the
brake pedal to exit position P,
☞ select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
Y ou can also move off from position N:
☞ release the handbrake, with yourfoot on the brake
☞ select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
W ARNING
When the engine is at idle, brakesnot applied, if function R, D or Mis
selected the vehicle moves evenwithout the accelerator being pres-sed. For this reason, do not leave chil- dren unsupervised inside thevehicle, with the engine running. When maintenance operations need to be carried out with the engine run-ning, apply the handbrake and selectposition P.
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX The four speed automaticgearbox offers a choice between the comfort of inte-
gral automatic operation , enhanced by a snowprogramme, or the pleasure of
manual gear changing .
Gear selection gate ☞ Move the lever in the gate to select a function. Once the function is selected, the corresponding indicator light appears on
the instrument panel display.

05-05-2003

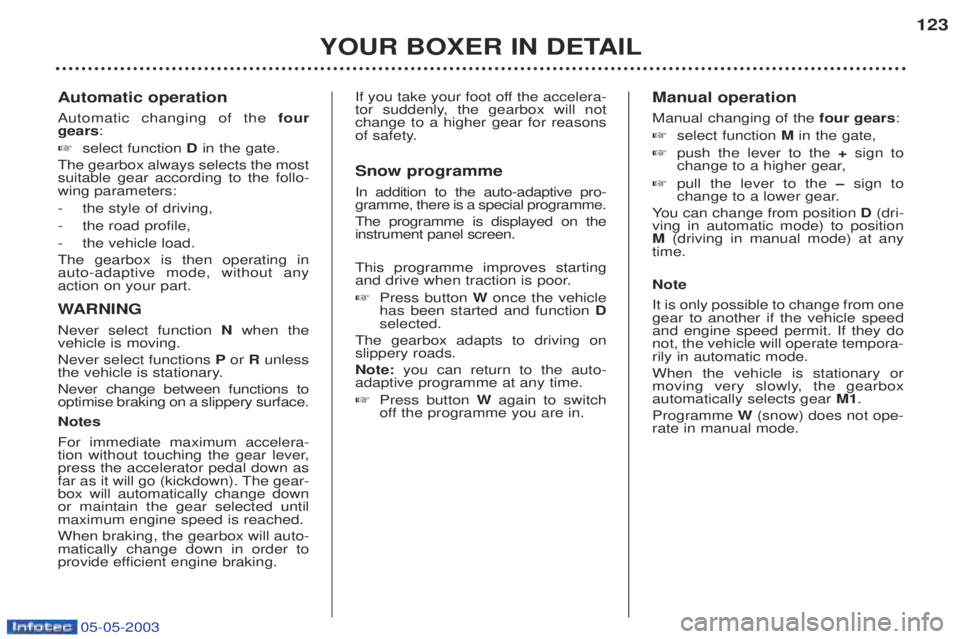

Automatic operation Automatic changing of the four
gears :
☞ select function Din the gate.
The gearbox always selects the most suitable gear according to the follo-wing parameters: - the style of driving,
- the road profile,
- the vehicle load.
The gearbox is then operating in auto-adaptive mode, without anyaction on your part.
W ARNING
Never select function Nwhen the
vehicle is moving. Never select functions Por Runless
the vehicle is stationary.Never change between functions to optimise braking on a slippery surface. Notes For immediate maximum accelera-
tion without touching the gear lever,press the accelerator pedal down as
far as it will go (kickdown). The gear-box will automatically change downor maintain the gear selected untilmaximum engine speed is reached. When braking, the gearbox will auto- matically change down in order to
provide efficient engine braking. If you take your foot off the accelera-
tor suddenly, the gearbox will notchange to a higher gear for reasons
of safety.
Snow programme In addition to the auto-adaptive pro- gramme, there is a special programme. The programme is displayed on the instrument panel screen. This programme improves starting
and drive when traction is poor. ☞ Press button Wonce the vehicle
has been started and function D
selected.
The gearbox adapts to driving on slippery roads. Note: you can return to the auto-
adaptive programme at any time. ☞ Press button Wagain to switch
off the programme you are in. Manual operation Manual changing of the
four gears:
☞ select function Min the gate,
☞ push the lever to the +sign to
change to a higher gear,
☞ pull the lever to the Ðsign to
change to a lower gear.
Y ou can change from position D(dri-
ving in automatic mode) to position M (driving in manual mode) at any
time. Note It is only possible to change from one gear to another if the vehicle speedand engine speed permit. If they donot, the vehicle will operate tempora-rily in automatic mode. When the vehicle is stationary or
moving very slowly, the gearboxautomatically selects gear M1.
Programme W(snow) does not ope-
rate in manual mode.
YOUR BOXER IN DETAIL 123

05-05-2003
Operating abnormality Any operating abnormality is indica- ted by flashing of the Snow warninglight on the instrument panel. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h), keeping within the limit of localspeed restrictions.

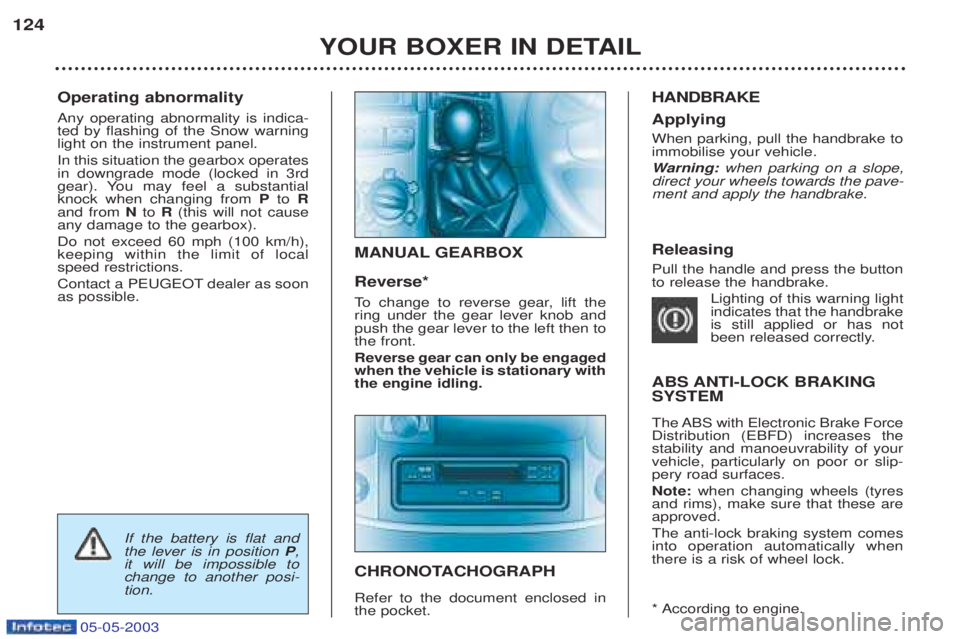

Contact a PEUGEOT dealer as soon as possible. MANUAL GEARBOX Reverse*
To
change to reverse gear, lift the
ring under the gear lever knob and push the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is stationary withthe engine idling. HANDBRAKE Applying When parking, pull the handbrake to immobilise your vehicle. W
arning: when parking on a slope,
direct your wheels towards the pave- ment and apply the handbrake.
Releasing Pull the handle and press the button to release the handbrake. Lighting of this warning lightindicates that the handbrakeis still applied or has not
been released correctly.
CHRONOTACHOGRAPH Refer to the document enclosed in the pocket.
YOUR BOXER IN DETAIL
124
If the battery is flat and the lever is in position
P,
it will be impossible tochange to another posi-tion.
ABS ANTI-LOCK BRAKING SYSTEM
The ABS with Electronic Brake Force Distribution (EBFD) increases thestability and manoeuvrability of yourvehicle, particularly on poor or slip-pery road surfaces. Note: when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
