INSTRUMENTS AND CONTROLS
32

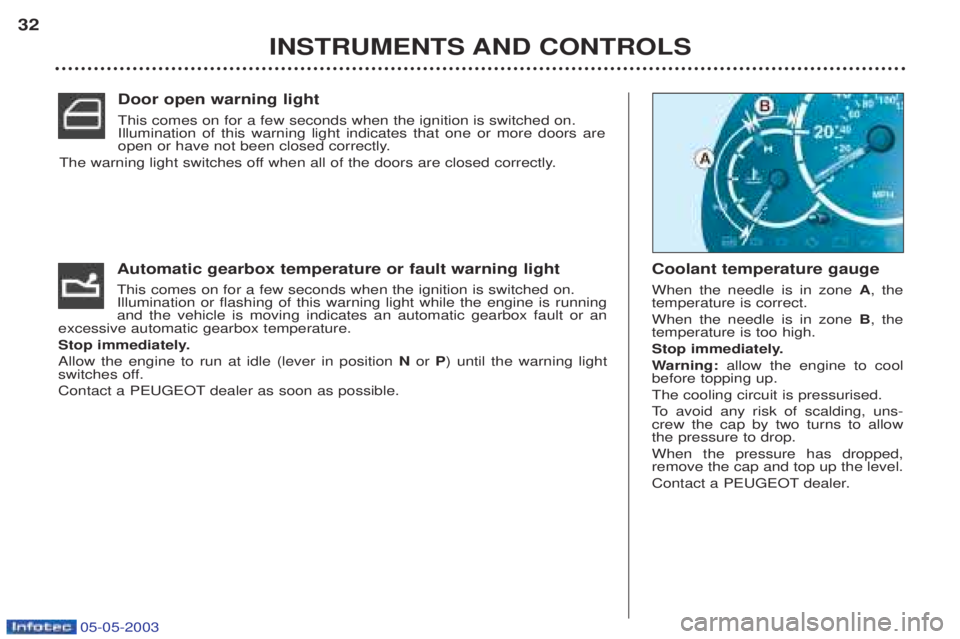

Automatic gearbox temperature or fault warning light This comes on for a few seconds when the ignition is switched on. Illumination or flashing of this warning light while the engine is runningand the vehicle is moving indicates an automatic gearbox fault or an
excessive automatic gearbox temperature.
Stop immediately.Allow the engine to run at idle (lever in position Nor P) until the warning light
switches off.
Contact a PEUGEOT dealer as soon as possible. Door open warning light This comes on for a few seconds when the ignition is switched on. Illumination of this warning light indicates that one or more doors are
open or have not been closed correctly.
The warning light switches off when all of the doors are closed correctly.
Coolant temperature gauge When the needle is in zone A, the
temperature is correct. When the needle is in zone B, the
temperature is too high.
Stop immediately.W arning: allow the engine to cool
before topping up.The cooling circuit is pressurised.
To avoid any risk of scalding, uns-
crew the cap by two turns to allow the pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Page 30 of 180
05-05-2003
INSTRUMENTS AND CONTROLS
32
Automatic gearbox temperature or fault warning light This comes on for a few seconds when the ignition is switched on. Illumination or flashing of this warning light while the engine is runningand the vehicle is moving indicates an automatic gearbox fault or an
excessive automatic gearbox temperature.
Stop immediately.Allow the engine to run at idle (lever in position Nor P) until the warning light
switches off.
Contact a PEUGEOT dealer as soon as possible. Door open warning light This comes on for a few seconds when the ignition is switched on. Illumination of this warning light indicates that one or more doors are
open or have not been closed correctly.
The warning light switches off when all of the doors are closed correctly.
Coolant temperature gauge When the needle is in zone A, the
temperature is correct. When the needle is in zone B, the
temperature is too high.
Stop immediately.W arning: allow the engine to cool
before topping up.The cooling circuit is pressurised.
To avoid any risk of scalding, uns-
crew the cap by two turns to allow the pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Page 31 of 180
05-05-2003
Minimum Check the level with the dipstick and
top it up. The figure shown is onlycorrect if the vehicle has been onlevel ground, with the engine stop-ped, for 10 minutes. Minimum oil level gauge fault Flashing of the segments indicates a fault in the oil level gauge or a lackof oil. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer. Maximum oil level gauge fault Flashing of the squares indicates a fault in the oil level gauge or a sur-plus of oil. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS33

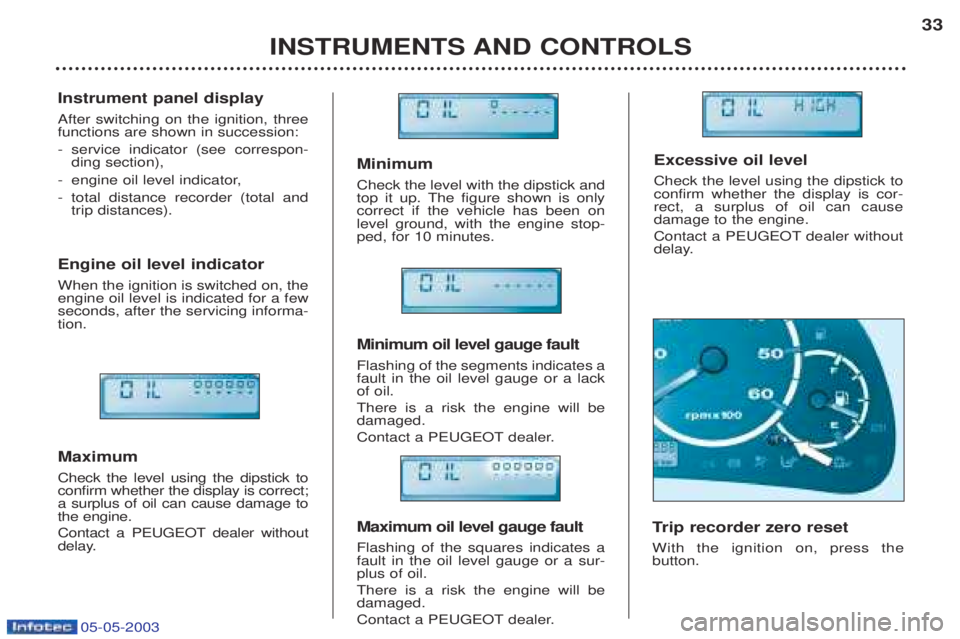

Instrument panel display After switching on the ignition, three functions are shown in succession: -
service indicator (see correspon- ding section),
- engine oil level indicator,
- total distance recorder (total andtrip distances).
Engine oil level indicator When the ignition is switched on, the engine oil level is indicated for a fewseconds, after the servicing informa-tion. Maximum Check the level using the dipstick to confirm whether the display is correct;a surplus of oil can cause damage tothe engine.
Contact a PEUGEOT dealer without
delay. T
rip recorder zero reset
With the ignition on, press the button. Excessive oil level Check the level using the dipstick to confirm whether the display is cor-rect, a surplus of oil can causedamage to the engine.
Contact a PEUGEOT dealer without
delay.
Page 78 of 180
05-05-2003

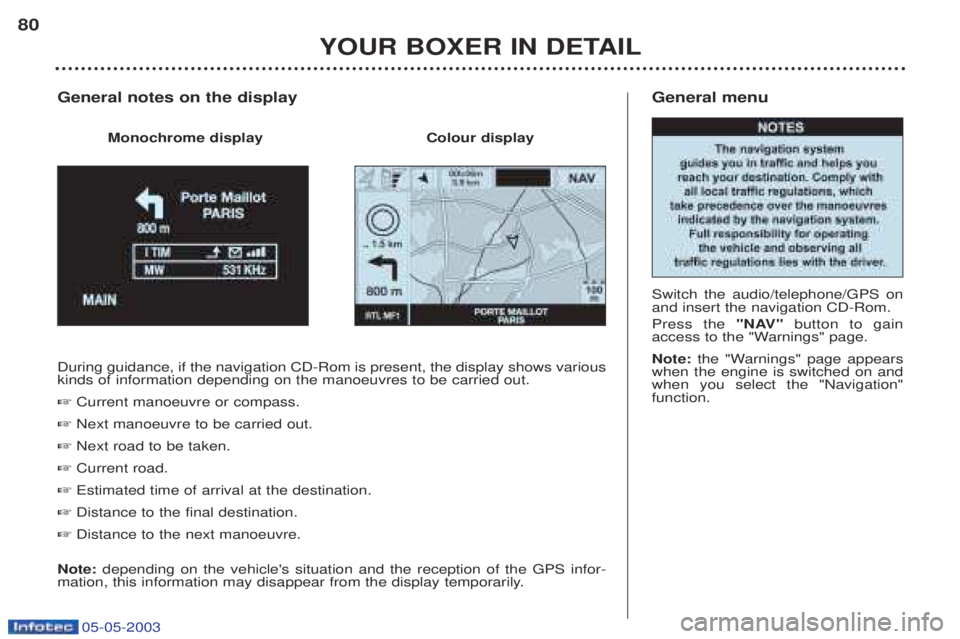

General menu Switch the audio/telephone/GPS on and insert the navigation CD-Rom. Press the "NAV"button to gain
access to the "Warnings" page. Note: the "Warnings" page appears
when the engine is switched on and when you select the "Navigation"function.
YOUR BOXER IN DETAIL
80
During guidance, if the navigation CD-Rom is present, the display shows various kinds of information depending on the manoeuvres to be carried out. ☞
Current manoeuvre or compass.
☞ Next manoeuvre to be carried out.
☞ Next road to be taken.
☞ Current road.
☞ Estimated time of arrival at the destination.
☞ Distance to the final destination.
☞ Distance to the next manoeuvre.
Note: depending on the vehicle's situation and the reception of the GPS infor-
mation, this information may disappear from the display temporarily.
General notes on the display
Monochrome display Colour display
Page 92 of 180
05-05-2003
YOUR BOXER IN DETAIL93

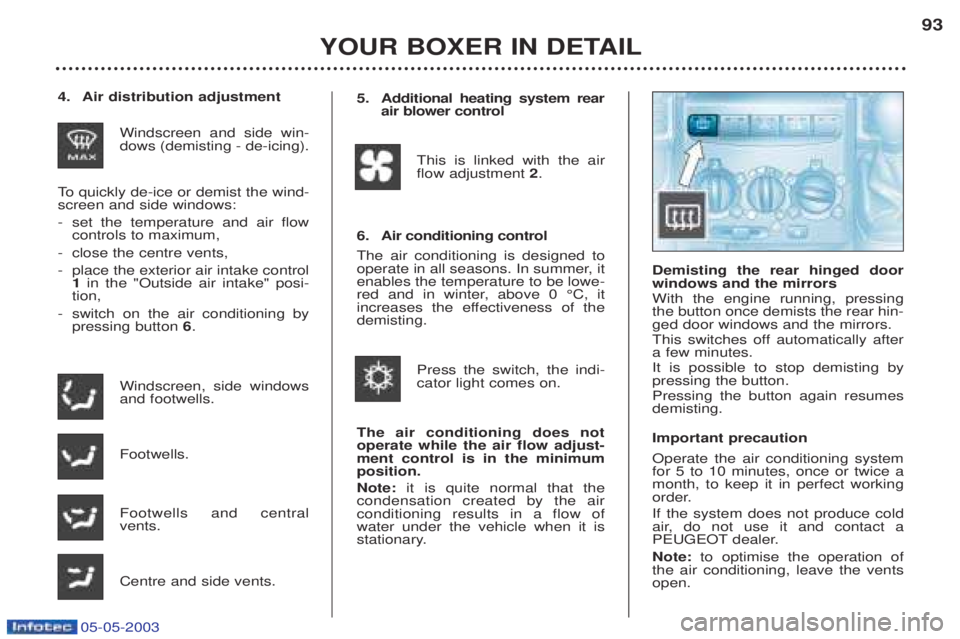

4. Air distribution adjustment
Windscreen and side win- dows (demisting - de-icing).
To quickly de-ice or demist the wind-
screen and side windows:
- set the temperature and air flowcontrols to maximum,
- close the centre vents,
- place the exterior air intake control1 in the "Outside air intake" posi-
tion,
- switch on the air conditioning bypressing button 6.
Windscreen, side windowsand footwells. Footwells. Footwells and central vents. Centre and side vents. Demisting the rear hinged door windows and the mirrors With the engine running, pressing the button once demists the rear hin-ged door windows and the mirrors.
This switches off automatically after a few minutes. It is possible to stop demisting by pressing the button. Pressing the button again resumes demisting. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact a
PEUGEOT dealer. Note:
to optimise the operation of
the air conditioning, leave the vents open. 5. Additional heating system rear air blower control
This is linked with the airflow adjustment 2.
6. Air conditioning control
The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be lowe-
red and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting.
Press the switch, the indi-cator light comes on.
The air conditioning does notoperate while the air flow adjust-ment control is in the minimumposition. Note: it is quite normal that the
condensation created by the air conditioning results in a flow ofwater under the vehicle when it is
stationary.
Page 93 of 180
05-05-2003
YOUR BOXER IN DETAIL
94
PROGRAMMABLE HEATING
(WEBASTO)* The programmable heating is provided to operate with the engine
off. It permits heating of the passen-ger compartment, de-icing of thewindows and pre-heating of thecoolant circuit to provide an optimumoperating temperature when theengine is switched on.

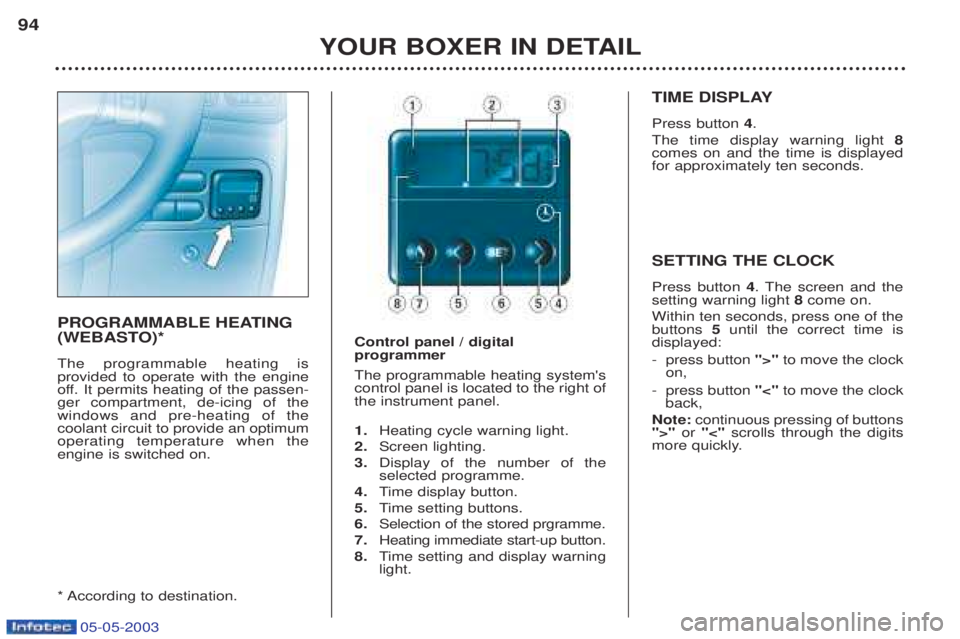

* According to destination. Control panel / digital programmer The programmable heating system's control panel is located to the right ofthe instrument panel. 1.
Heating cycle warning light.
2. Screen lighting.
3. Display of the number of the selected programme.
4. Time display button.
5. Time setting buttons.
6. Selection of the stored prgramme.
7. Heating immediate start-up button.
8. Time setting and display warning
light.
TIME DISPLAY Press button 4.
The time display warning light 8
comes on and the time is displayed for approximately ten seconds. SETTING THE CLOCK Press button 4. The screen and the
setting warning light 8come on.
Within ten seconds, press one of the buttons 5until the correct time is
displayed: - press button ">"to move the clock
on,
- press button "<"to move the clock
back,
Note: continuous pressing of buttons
">" or "<" scrolls through the digits
more quickly.
Page 106 of 180
YOUR BOXER IN DETAIL107
Programming the remote control ☞ Switch off the ignition.
☞ Switch the ignition on again.
☞ Immediately press button A.
☞ Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
Confidential card The confidential card is necessary for any work carried out by a
PEUGEOT dealer on the system. It contains:
-a five digit identification code 1
necessary for the emergency star- ting procedure,
- a code 2for reproduction of your
keys by a PEUGEOT dealer.
These codes are hidden by a film,which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.
Key in ignition A buzzer sounds on opening the dri-
ver's door, if the key has been left in the ignition. Changing the battery of the remote control If the indicator light on the key lights only once, or does not light at allwhen the button is pressed, change
the battery.
To
do this, unclip the casing using a
coin at the ring (CR2032/3 volt battery).If the remote control does not work after the battery has been changed,reinitialise the remote control.

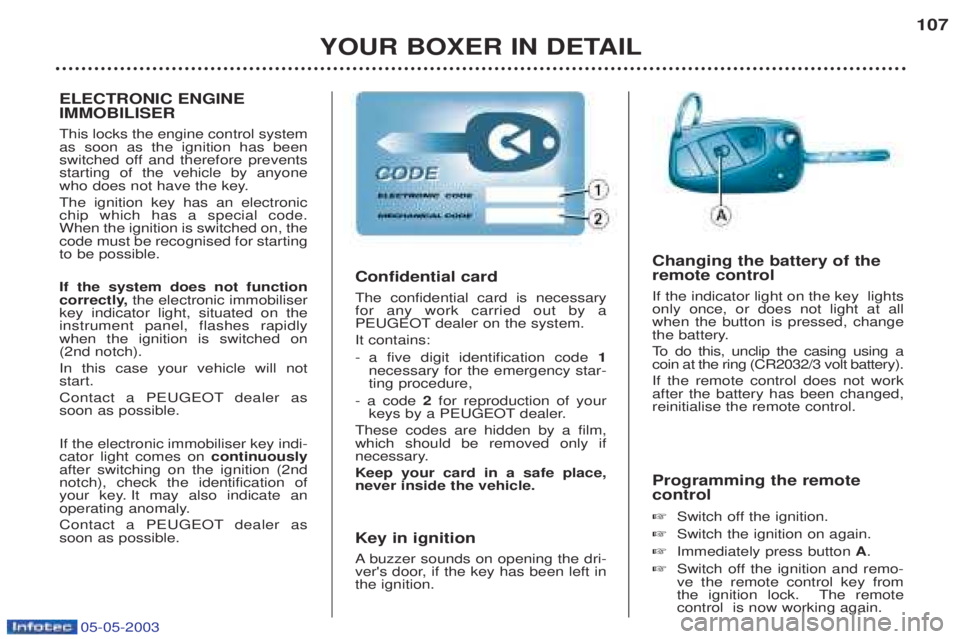

ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function
correctly, the electronic immobiliser
key indicator light, situated on theinstrument panel, flashes rapidlywhen the ignition is switched on(2nd notch). In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible. If the electronic immobiliser key indi- cator light comes on continuously
after switching on the ignition (2ndnotch), check the identification of
your key. It may also indicate an
operating anomaly.
Contact a PEUGEOT dealer as soon as possible.
05-05-2003
Page 107 of 180
05-05-2003
YOUR BOXER IN DETAIL
108
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming .
As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for ashort time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
