2003 Peugeot 406 Owner's Manual

17-02-2003
PTY functionThis allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTY programme: Ð select the PTYfunction,
Ð briefly press button Kor Lto scroll down the list of the various types of pro-
grammes offered.
Ð when the programme of your choice is displayed, keep button Kor Lpressed for two seconds to carry out an automatic
search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the
memory. To do this, press the preselection buttons 1to 6for more
than two seconds. To recall the type of programme stored in the
memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information by a station, which is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTYfunction.
YOUR 406 IN DETAIL 87

17-02-2003
COMPACT DISC Selecting CD player modeAfter inserting a disc, with the printed surface upwards, the player starts automatically.If a disc is already inserted, press button C.
Ejecting a disc Press button E
to eject the disc from the player.
Selecting a track Press button Kto select the next track.
Press button Lto return to the start of the current track or to select the previous
track.
Accelerated playPress the "MAN"button.
Press and hold button Kor Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Buttons Kor Lresume the "track selection" function when the "MAN"button is pressed again.
Shuffle (RDM) When the CD player is selected, keep button Cpressed for two seconds. The tracks will be played in ran-
dom sequence. Pressing button Cagain for two seconds returns you to normal play.
YOUR 406 IN DETAIL
88
The use of copied compact discs may cause malfunctions.

17-02-2003
CD CHANGER Selecting CD changer modePress button D.
Selecting a disc Press buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kto select the next track.
Press button Lto return to the start of the current track or to select the previous
track.
Accelerated playPress the "MAN"button.
Press and hold button Kor Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.Buttons Kor Lresume the "track selection" function when the "MAN"button is pressed again.
Shuffle (RDM) When the CD changer is selected, keep button Dpressed for two seconds. The tracks will be played in random
sequence. Pressing button Dagain for two seconds returns you to normal play.
YOUR 406 IN DETAIL 89

17-02-2003
YOUR 406 IN DETAIL
90
This is located inside the boot on the left hand side. It holds up to 6 discs.
To insert a disc into the changer:
Ð open sliding panel A,
Ð press button Bto eject the cartridge C,
Ð open one of the six compartments of the cartridge by pulling tab D,
Ð insert the disc with the printed face upwards and close the compartment ,
Ð insert the cartridge into the changer,
Ð close the sliding panel A.
CD CHANGER (RM2 and RD3)
The use of copied compact discs can cause malfunctions.

17-02-2003
406 Saloon AUDIO SYSTEM (RM2 and RD3) Presentation
Your 406 saloon is fitted with a JBL Audio Hi-Fi system, designed specifically for the passenger compartment. At the heart of the system, a 240 watt multifunction amplifier (1) (located in the boot) independently controls 10 high acoustic definition speakers. These speakers provide optimal reproduction and distribution of the sound in the vehicle, both in the front and
the rear. The speakers are situated:Ð in the fascia: two Micro Tweeters (3) set into two Mid-Range Speakers (4) for reproduction of the sound in the front.
Ð in the front doors: two Woofers (2)for reproduction of bass frequencies in the front.
Ð on the rear parcel shelf: two Tweeters (5)for reproduction of treble (high frequencies) in the rear are set into two ellipti-
cal speakers (6) , which are adjusted to reproduce a very wide range of bass and ultra-bass frequencies throughout the
whole of the passenger compartment. You will appreciate the clarity and depth and notice that the sound fills the
whole of the vehicle perfectly.
Adjusting in CD modeThe basic functions remain those of the audio set.
There is no need for any further adjustment. However, in order to take
full advantage of your JBL audio system, you are advised to set theAUDIO functions (BASS, TREB, FAD, BAL) to position "0"(zero) and
the Loudness (LOUD)to the "ON"position.
YOUR 406 IN DETAIL 91

17-02-2003
YOUR 406 IN DETAIL
92
406 Estate AUDIO SYSTEM (RM2 and RD3) Presentation
Your 406 estate is fitted with a JBL Audio Hi-Fi system, designed specifically for the passenger compartment.At the heart of the system, a 180 watt multifunction amplifier (1) (located in the boot) independently controls 10 high acoustic definition speakers. These speakers provide optimal reproduction and distribution of the sound in the vehicle, both in the front and
the rear. The speakers are situated:Ð in the fascia: two Micro Tweeters (3) set into two Mid-Range Speakers (4) for reproduction of the sound in the front.
Ð in the front doors: two Woofers (2)for reproduction of bass frequencies in the front.
Ð on the boot pillar: two Micro Tweeters (5)for reproduction of treble (high frequencies), set into two Mid-Range Speakers
(6) giving uniform sound reproduction throughout the whole of the vehicle.
Adjusting in CD modeThe basic functions remain those of the audio set.
There is no need for any further adjustment. However, in order to take
full advantage of your JBL audio system, you are advised to set theAUDIO functions (BASS, TREB, FAD, BAL) to position"0"(zero) and
the Loudness (LOUD)to the "ON"position.

17-02-2003
THE SATELLITE NAVIGATION SYSTEM IntroductionThe satellite navigation system guides you to the destination of your choiceby means of vocal and visual instruc-tions. The heart of the system lies in the use of a map database and GPS (Global
Positioning System). This enablesyour position to be located by meansof several satellites. The satellite navigation system con- sists of the following components:
Ð the remote control,
Ð the display,
Ð the control unit,
Ð the last voice message recall con-trol,
Ð the CD ROM.
Some functions or services
described in this guide may vary depending on the CD ROM version or the country.THE REMOTE CONTROL
There is a storage compartment for the remote control in front of the ashtray. Pointing the remote control at the screen enables the information contained in the various menus to be selected.
Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the Up and Down buttons enable the brightness of the screen to beadjusted.
menu : this button allows access to the main menu. It canbe used at any time.
esc : escape button "Short press": cancels the current operation and returns to the previous screen. "Press for more than 2 seconds": returns to the welcome screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button "Short press": changes between date, navigation, radio and permanent locating.
val : Confirmation button Confirms the function selected.
YOUR 406 IN DETAIL 93

17-02-2003

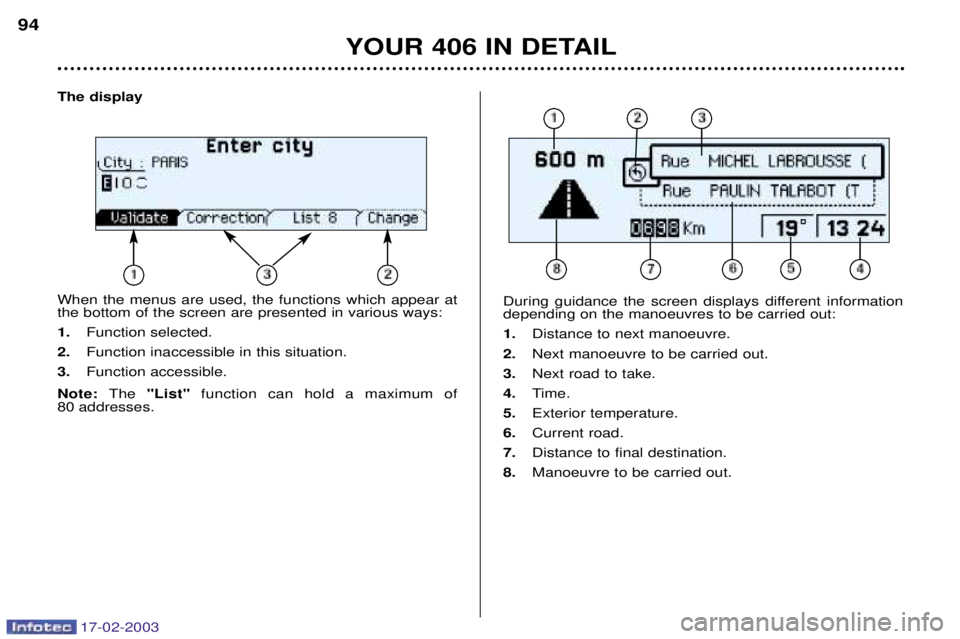

The display When the menus are used, the functions which appear at the bottom of the screen are presented in various ways: 1.Function selected.
2. Function inaccessible in this situation.
3. Function accessible.
Note: The "List" function can hold a maximum of
80 addresses.
During guidance the screen displays different information depending on the manoeuvres to be carried out: 1. Distance to next manoeuvre.
2. Next manoeuvre to be carried out.
3. Next road to take.
4. Time.
5. Exterior temperature.
6. Current road.
7. Distance to final destination.
8. Manoeuvre to be carried out.
