3YOUR 307 SW AT A GLANCE
1 -Speaker (tweeter) location.
2 - Side window demisting vent.
3 - Windscreen demistingvents.
4 - Passenger air bag
5 - Multi-function display.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights switch.
9 - Lights and direction indicators stalk.
10 - Instrument dials.
11 - Steering wheel adjustmentcontrol.
12 - Windscreen wash-wipestalk.
Trip computer stalk.
13 - Driver's air bag.Horn.
14 - Audio remote control stalk. 15 -
Headlamp height adjustment.
16 - Electric mirror controls.Window controls.Rear window lockingcontrol.
17 - Steering lock and ignition.
18 - Cruise control switch.
19 - 12 V accessories socket.
20 - Passenger air bag disarming switch*.
21 - Rubbish container.
22 - Panoramic roof shutter switch.
23 - Can holder.
24 - Handbrake.
25 - Rear footwell heating vent.
26 - Gear lever.
27 - Front ashtray.
28 - Ventilation / air conditioningcontrols. 29 -
CD changer.
30 - RB3, RD3 or RT3 audio equipment.
31 - Central adjustable ventilation and air flowregulation vents.
32 - Side adjustable ventilationand air flow regulation vent.
33 - Fuse box.
34 - Glove box.
35 - Bonnet opening control.
* According to destination

4YOUR 307 SW AT A GLANCE
14-04-2003
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the front doors, the fuelfiller cap, the glove box and thepassenger air bag disarmingswitch. Central locking
From the driver's door, the keys allow you to lock, deadlock orunlock the doors and the tailgateand to fold back the exterior mir-rors. If one of the doors or the boot is open, it is impossible to operatethe central locking; an audiblesignal indicates locking by remo-te control. The remote control performs the same functions at a distance. The remote control key Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Note: a long press on button A,
in addition to deadlocking, auto- matically closes the windows.
Vehicles fitted with deadlocking
Deadlocking renders theinternal and external doorlocking controls inoperative.
Press button Ato deadlock the
vehicle. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Note : a long press on button A
permits automatic closing of the windows, in addition to deadloc-king.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking tonormal locking. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds.
Unlocking Press button Bto unlock the
vehicle. This is confirmed by rapid flashing of the direction indicators. Note : If the vehicle is locked and
unlocking is activated inadver-
tently, the vehicle will lock automa-tically unless a door isopened within 30 seconds.
STARTING
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter.
103

14-04-2003
Safety auto-reverse: When the window is closing and meets an obstacle, it stops and lowers again.
ELECTRIC MIRRORS
10YOUR 307 SW AT A GLANCE
ELECTRIC WINDOWS
1 - Driver"s electric window
2 - Passenger"s electric window.
3 - Rear right electric window.
4 - Rear left electric window.
5 - Disarming the rear window switches. STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT When stationary, pull handle A
to unlock the steering wheel.
 Adjust the height and depth of the steering wheel.
 Lock it by pushing handle Ain
fully.
Manual operation:  Press or pull the switch lightly.
The window stops as soon as the switch is released. Automatic operation:
Press or pull the switch firmly.
One touch completely opens or
closes the window.
11 7
 Slide switch 6to the right or
left to select the correspon-
ding mirror.
 Then move button 7in all four
directions to adjust.
 Return switch 6to the centre
position. When parking the vehicle, themirrors can be folded back
manually, electrically bypulling switch
6rearwards
or automatically on lockingthe vehicle.
11 8120

14-04-2003
YOUR 307 SW IN DETAIL
36
Parameter configuration Monochrome screen B Press button 1for two seconds to
gain access to the settings. Then, each press of this button per- mits scrolling of the various parame-ters.
- language of the information dis- played,
- unit of speed (km or miles),
- unit of temperature (degrees Celsius or Fahrenheit),
- time format (12 or 24 hours),
- hour,
- minute,
- year,
- month,
- day. Pressing button 2enables you to
change the parameter selected. Continue pressing the button for rapidscrolling. After ten seconds without action, the
screen returns to the usual display, themodified data are recorded.
- configuration (see corresponding
section).
- map (see section "Satellite naviga- tion system")
A few definitions Superimposed display: a window appears over the current application for a short while, toannounce a change of status of ano-ther application. Permanent application: main application currently in use, dis-
played in the main screen window. Contextual menu: limited menu associated with the main application currently in use,
displayed in the main screen window.
Colour screen DT General menu Press the
"MENU" button to access
the general menu and select one of
the following applications:
- navigation - guidance (see section "Satellite navigation system"),
- trip computer (see corresponding section),
- directory (see "RT3 audio/telepho- ne" section),
- telematics (see "RT3 audio/tele- phone" section),

14-04-2003
YOUR 307 SW IN DETAIL
36
Parameter configuration Monochrome screen B Press button 1for two seconds to
gain access to the settings. Then, each press of this button per- mits scrolling of the various parame-ters.
- language of the information dis- played,
- unit of speed (km or miles),
- unit of temperature (degrees Celsius or Fahrenheit),
- time format (12 or 24 hours),
- hour,
- minute,
- year,
- month,
- day. Pressing button 2enables you to
change the parameter selected. Continue pressing the button for rapidscrolling. After ten seconds without action, the
screen returns to the usual display, themodified data are recorded.
- configuration (see corresponding
section).
- map (see section "Satellite naviga- tion system")
A few definitions Superimposed display: a window appears over the current application for a short while, toannounce a change of status of ano-ther application. Permanent application: main application currently in use, dis-
played in the main screen window. Contextual menu: limited menu associated with the main application currently in use,
displayed in the main screen window.
Colour screen DT General menu Press the
"MENU" button to access
the general menu and select one of
the following applications:
- navigation - guidance (see section "Satellite navigation system"),
- trip computer (see corresponding section),
- directory (see "RT3 audio/telepho- ne" section),
- telematics (see "RT3 audio/tele- phone" section),

14-04-2003
YOUR 307 SW IN DETAIL
52

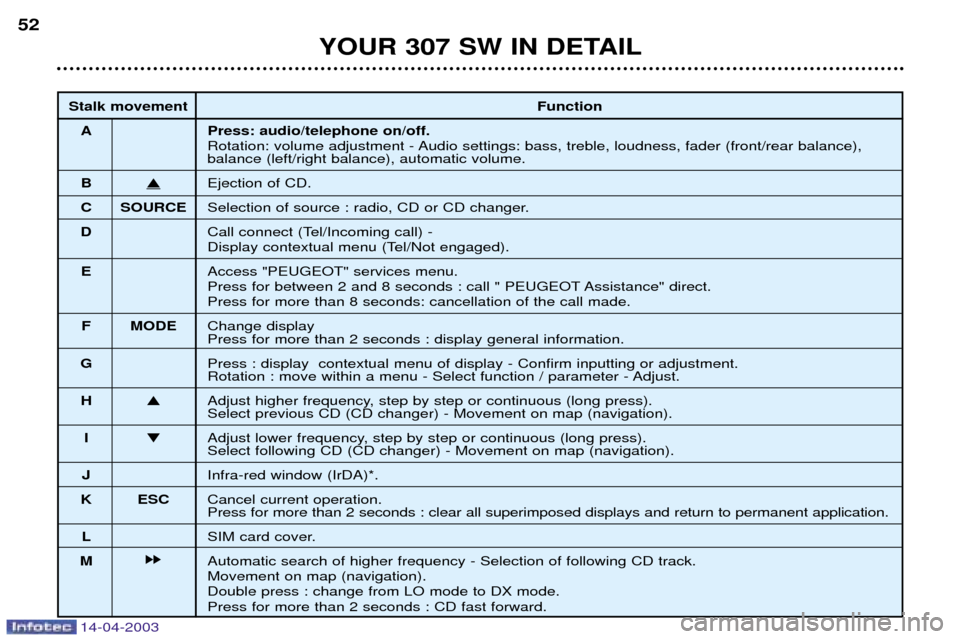

Stalk movement Function
A Press: audio/telephone on/off. Rotation: volume adjustment - Audio settings: bass, treble, loudness, fader (front/rear balance),
balance (left/right balance), automatic volume.
BEjection of CD.
C SOURCE Selection of source : radio, CD or CD changer.
D Call connect (Tel/Incoming call) -
Display contextual menu (Tel/Not engaged).
E Access "PEUGEOT" services menu.
Press for between 2 and 8 seconds : call " PEUGEOT Assistance" direct.
Press for more than 8 seconds: cancellation of the call made.
F MODE Change display
Press for more than 2 seconds : display general information.
G Press : display contextual menu of display - Confirm inputting or adjustment.
Rotation : move within a menu - Select function / parameter - Adjust.
H Adjust higher frequency, step by step or continuous (long press).
Select previous CD (CD changer) - Movement on map (navigation).
I Adjust lower frequency, step by step or continuous (long press).
Select following CD (CD changer) - Movement on map (navigation).
J Infra-red window (IrDA)*.
K ESC Cancel current operation.
Press for more than 2 seconds : clear all superimposed displays and return to permanent application.
LSIM card cover.
M kkAutomatic search of higher frequency - Selection of following CD track. Movement on map (navigation).Double press : change from LO mode to DX mode.Press for more than 2 seconds : CD fast forward.

14-04-2003
YOUR 307 SW IN DETAIL53
Stalk movement Function
N jjAutomatic search of lower frequency - Selection of previous CD track. Movement on map (navigation).Double press : change from LO mode to DX mode.
Press for more than 2 seconds : CD rewind.
O DARK 1st press : display top band (remainder of screen is black) - 2nd press: brightness removed (black screen) - 3rd press: return to normal screen.
Press for more than 5 seconds: reinitialisation of the system.
P MENU Display general menu - Press for more than 2 seconds : display help screen and list of voice
commands.
Q Disconnect.
Press for more than 2 seconds: transfer of the call to the voice mail or to a call diversion number.
R BAND Select FM1, FM2, FMast, AM wavebands.
ASTPress for more than 2 seconds : automatic storing of stations (autostore).
S TA/PTY Traffic information priority on/off
Press for more than 2 seconds: PTY function on/off.
T RDS RDS function on/off.
Press for more than 2 seconds : regional following mode on/off
U AUDIO Display window for adjusting bass, treble, loudness, sound distribution and automatic correction of
volume.
V SOS Press between 2 and 8 seconds : emergency call.
Press for more than 8 seconds: cancellation of the call made.
1 to 6 1 2 3 4 5 6 Select station in memory.
Press more than 2 seconds : store station in memory while listening.
1 to 5 1 2 3 4 5 Selection of CDs in the CD changer.
0 to 9 * #0 1 2 3 4 5Alphanumeric keypad for entering text and telephone numbers.
6 7 8 9 * #
* During the year.

14-04-2003

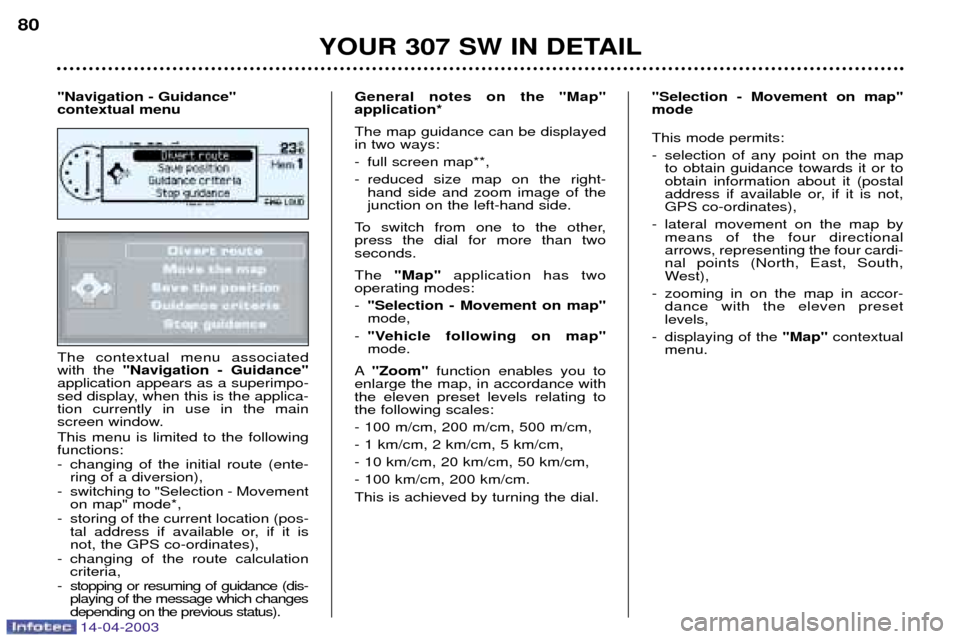

The contextual menu associated with the "Navigation - Guidance"
application appears as a superimpo-
sed display, when this is the applica-tion currently in use in the main
screen window. This menu is limited to the following functions:
- changing of the initial route (ente- ring of a diversion),
- switching to "Selection - Movement on map" mode*,
- storing of the current location (pos- tal address if available or, if it is not, the GPS co-ordinates),
- changing of the route calculation criteria,
- stopping or resuming of guidance (dis- playing of the message which changesdepending on the previous status). General notes on the "Map"application* The map guidance can be displayed in two ways:
- full screen map**,
- reduced size map on the right-
hand side and zoom image of the junction on the left-hand side.
To switch from one to the other,press the dial for more than twoseconds. The "Map" application has two
operating modes: - "Selection - Movement on map" mode,
- "Vehicle following on map"mode.
A "Zoom" function enables you to
enlarge the map, in accordance withthe eleven preset levels relating tothe following scales: - 100 m/cm, 200 m/cm, 500 m/cm,- 1 km/cm, 2 km/cm, 5 km/cm,- 10 km/cm, 20 km/cm, 50 km/cm,- 100 km/cm, 200 km/cm.This is achieved by turning the dial. This mode permits:
- selection of any point on the map
to obtain guidance towards it or to obtain information about it (postal
address if available or, if it is not,GPS co-ordinates),
- lateral movement on the map by means of the four directionalarrows, representing the four cardi-nal points (North, East, South,
West),
- zooming in on the map in accor- dance with the eleven presetlevels,
- displaying of the "Map" contextual
menu.
YOUR 307 SW IN DETAIL
80
"Navigation - Guidance" contextual menu
"Selection - Movement on map"mode
