2003 Peugeot 307 SW rfn

14-04-2003
TECHNICAL DATA
160
3HNFUB 3HNFUE 3HRFNC/IF 3HRFNE
3HNFUC/IF 3HNFUF/IF
Manual Automatic Manual Automatic
(5 speed) (4 speed) (5 speed) (4 speed) PETROL ENGINES
ENGINES
1.6 litre 16V 2 litre 16V
Cubic capacity (cm 3
) 1 587 1 997
Bore x stroke (mm) 78,5 x 82 85 x 88 EU standard maximum power (kW) 80100
Maximum power at engine speed (rpm) 5 8006 000
EU standard maximum torque (Nm)147 190
Maximum torque at engine speed (rpm)4 0004 100
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
OIL CAPACITIES (litres)
Engine (with cartridge replacement) 3 3 4,25 4,25
Gearbox-Final drive 2 - 1,9 -
MODELS: Model codes GEARBOX

14-04-2003
Consumption In accordance with directive 99/100 [In MPG (litres/100km)]
Engine Gearbox Model Circuit Circuit Circuit Emission of
codes Urban Inter-urban Mixed CO 2by
weight (g/km)
1,6 litre 16V Manual 9,9 6,3 7,7 178
1,6 litre 16V Automatic 11,2 6,4 8,3 194
2 litre 16V Manual 3HRFNC/IF 11,5 6,3 8,3 194
2 litre 16V Automatic 3HRFNE 13,1 6,5 8,8 206
2 litre Turbo HDI 90 hpManual3HRHYB 7,1 4,5 5,4 143
2 litre Turbo HDI 110 hpManual3HRHSB 7,2 4,4 5,4 143
TECHNICAL DATA
162
Fuel consumption values correct at time of printing. 3HNFUB
3HNFUC/IF
3HNFUE
3HNFUF/IF

14-04-2003

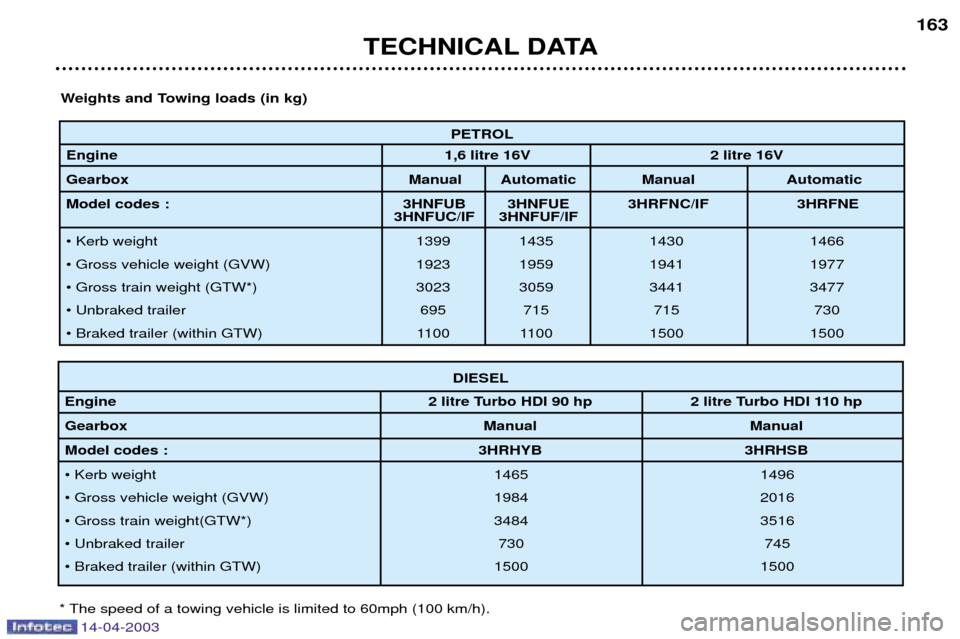

PETROL
Engine 1,6 litre 16V 2 litre 16V
Gearbox Manual Automatic Manual Automatic
Model codes : 3HNFUB 3HNFUE 3HRFNC/IF 3HRFNE 3HNFUC/IF 3HNFUF/IF
¥ Kerb weight 1399 1435 1430 1466
¥ Gross vehicle weight (GVW) 1923 1959 1941 1977
¥ Gross train weight (GTW*) 3023 3059 3441 3477
¥ Unbraked trailer 695 715 715 730
¥ Braked trailer (within GTW) 1100 1100 1500 1500
TECHNICAL DATA 163
Weights and Towing loads (in kg)
* The speed of a towing vehicle is limited to 60mph (100 km/h). DIESEL
Engine 2 litre Turbo HDI 90 hp 2 litre Turbo HDI 110 hp
Gearbox Manual Manual
Model codes : 3HRHYB 3HRHSB
¥ Kerb weight 1465 1496
¥ Gross vehicle weight (GVW) 1984 2016
¥ Gross train weight(GTW*) 3484 3516¥ Unbraked trailer 730 745
¥ Braked trailer (within GTW) 1500 1500
