YOUR 307 SW IN DETAIL97
SUMMARY TABLE FOR FITTING CHILD SEATS In accordance with the European regulation (Directive 2000/3), the table below indicates the options for the installation of child restraints, depending on the weight group and the seat in the vehicle:
U : universal "rear facing" or "forwards facing" child seat.
U (R) : universal child seat with a height adjustable passenger seat; it must be adjusted to between mid and maximum height (in conformity with ¤ 3.3. of appendix 2 of annex XVIII of Directive 2000/3).
According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 13 kg).
L2 : R…MER Prince E1 03301058 Universal (9 to18 kg).
L3 : R…MER Vario E1 03301120 Universal (15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing (c)
E1 03301123 and Universal (birth to 13 kg).
L7 : KIDDY Isofix Forwards facing (c)
E2 030011 Universal (9 to 18 kg).
(a) Group 0: from birth to 10 kg.
(b) Consult the current legislation in your country.
(c) See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings, or failing this with the seat belt. Statutory weight group
Seat Group 0(a)
at 0+ Group 1 Group 2 Group 3
< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger (b)
UU UU
Fixed seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Front passenger (b)
U (R) U (R) U (R) U (R)
Height adjustable seat (R) L1, L6 L2, L7 L3, L4, L5 L4, L5
Side UU UU
Seat off centre and recentred L1, L6 L2, L7 L3, L4, L5 L4, L5
Centrale UU UU
Centre seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Side
Additional seat L1 L2 L3, L4, L5 L4, L5
Side UU UU
2nd row side seat L3, L4, L5 L4, L5
Side UU UU
2nd row centre seat L3, L4, L5 L4, L5
1st row
2nd row
3rd row
14-04-2003
SEAT BELTS Front and 2nd row rear side seat belts The front seats are fitted with pre- tensioners and force limiters whilethe rear seats have force limiters
only.

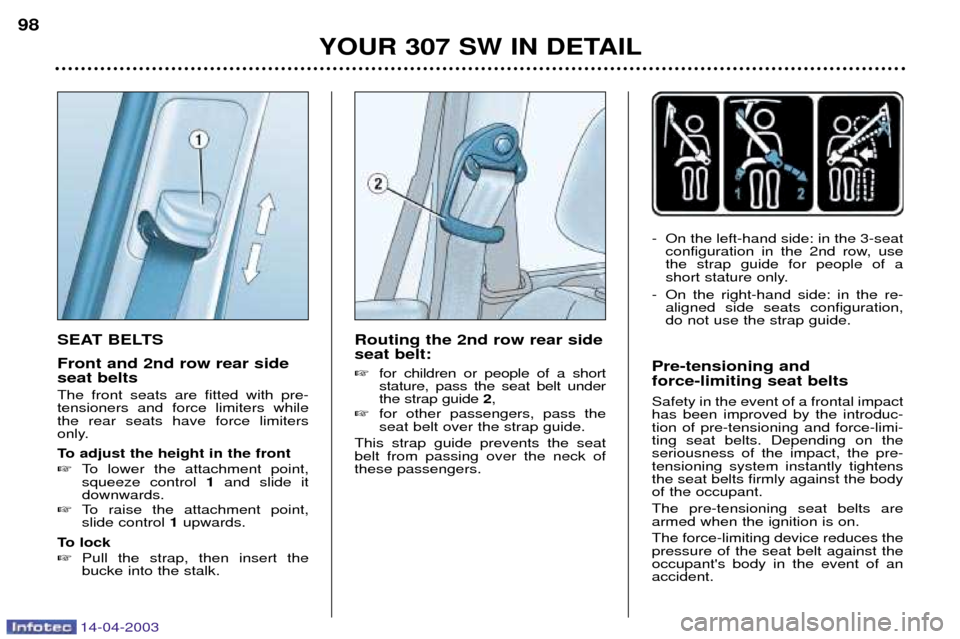

To adjust the height in the front To lower the attachment point, squeeze control 1and slide it
downwards.
To raise the attachment point,slide control 1upwards.
To lock Pull the strap, then insert the bucke into the stalk. Routing the 2nd row rear side seat belt:
for children or people of a short stature, pass the seat belt underthe strap guide 2,
for other passengers, pass theseat belt over the strap guide.
This strap guide prevents the seatbelt from passing over the neck ofthese passengers. - On the left-hand side: in the 3-seat
configuration in the 2nd row, usethe strap guide for people of a
short stature only.
- On the right-hand side: in the re- aligned side seats configuration,do not use the strap guide.
Pre-tensioning and force-limiting seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning and force-limi-ting seat belts. Depending on theseriousness of the impact, the pre-tensioning system instantly tightensthe seat belts firmly against the bodyof the occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against theoccupant's body in the event of anaccident.
YOUR 307 SW IN DETAIL
98
14-04-2003
ADJUSTING THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of theheadlamps is recommended as fol-lows. 0 1 or 2 people in the front seats.
- 3 people.
1 5 or 7 people.
2 5 or 7 people + maximum authori- sed load.
3 Driver + maximum authorisedload.
Initial setting is position 0. HAZARD WARNING LIGHTS Press the button, the direction indi- cators flash. They can operate with the ignition
off. Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of decelera-tion, the hazard warning lights come
on automatically. They switch offautomatically the first time you acce-lerate.
It is also possible to switch them off by pressing the button.
* According to destination.STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
A.
Adjust the height and depth of thesteering wheel, then lock it bypushing handle Adown fully.
HORN Press one of the spokes or the centre of the steering wheel.
