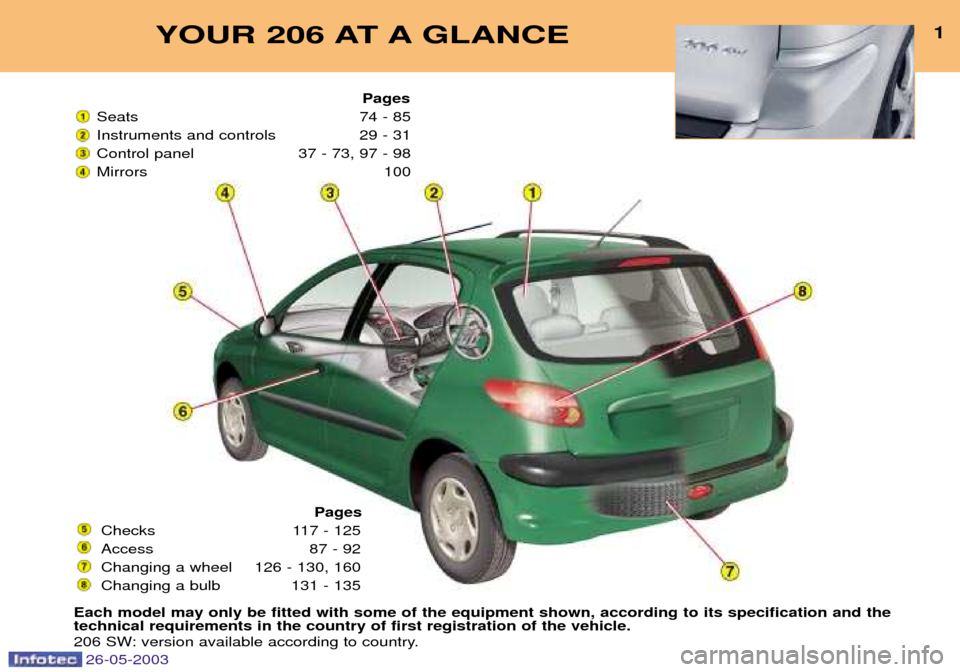

3YOUR 206 AT A GLANCE
1Side window demisting vents
2 Adjustable side vent
3 Passenger air bag
4 Windscreen demisting vents
5 Multifunction display
6 Central locking switch
7 Hazard warning lights switch
8 Instrument dials lighting
rheostat
9 Lights and direction
indicators stalk
10 Steering wheel height
adjustment control
11 Steering lock
12 Windscreen wiper stalk 13
Driver's air bag Horn
14 Audio equipment remote control
15 Headlamp height adjustment
16 Passenger air bag disarmingswitch*
17 Rear window locking switch
18 Dynamic stability control(ESP/ASR) button
19 Storage compartment
20 Fuse box
21 Gear lever
22 Lighter
23 Alarm button 24
Front electric window switches
25 Electric mirrors switch
26 Handbrake
27 Front ashtray
28 Controls for heating,ventilation, air conditioningand heated rear screen andmirrors
29 Audio equipment
30 Adjustable centre vents
31 Glove box
32 Bonnet opening control
* According to destination.

26-05-2003
Windscreen wipers Front2 Fast wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off


Single wipe
Wash-wipe: pull the stalk towards you. Rear
Off Intermittent Wash- wipe wipe
Automatic wipe In the AUTO position, the
windscreen wiper oper- ates automatically andadjusts its speed to theintensity of the rainfall .
Rear fog lamp
(ring B)
Rear fog lamp (rotation of the ringforwards)
Front fog lamps/Rear foglamp (ring C)
Front fog lamps (1 st
rotation of the ring
forwards).
Front fog lamps andrear fog lamp (2 nd
rotation of the ringforwards).
9395
8YOUR 206 AT A GLANCE
STEERING WHEEL CONTROLS Lights Front lights (ring A)
Lights off Side lights
Dipped/ main beamheadlamps Automatic switching on
of lights
Automatic switching on of lights
To activate or deactivate thefunction, place the key in theaccessories position with thelights stalk in position 0and
press the end of the stalk formore than four seconds.

PEUGEOT SERVICING
26
A & C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation1st serviceACIntermediate
DRAIN/REFILL- Engine oil- Bleed fuel filter (diesel)- Oil filter- Fuel filter* (petrol)REPLACE- Fuel filter element (diesel)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if cap is removableLEVEL- Screen wash front/rear (check + top-up)- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top up according to specification)- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Windscreen washer jets- Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)CHECK- Condition of rubber boots and gaiters- Brake pads o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check as per current legislation (petrol)- Smoke opacity (diesel)- Passenger compartment filter (according to specification)o- Visual check of the whole vehicle
SERVICE*- Courtesy vehicle
ROAD TEST
: All driving conditionso: Arduous conditions * According to destination.26-05-2003

26-05-2003
INSTRUMENTS AND CONTROLS29
INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX (saloon and 206 SW)
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
9. Total distance recorder, serviceindicator and engine oil level indicator 10.
Right hand direction indicator
11 . Engine diagnostics warning light
12. Main beam headlamps indicatorlight
13. Handbrake, low brake fluid leveland electronic brake force distri-bution warning light
14. Dipped beam headlamps indica-tor light
15. Battery charge warning light
16. Engine oil pressure and tempera-ture warning light
17. Water in diesel filter warning light
18. Coolant temperature and low levelwarning light 19.
Engine oil temperature indicator
20. Total distance recorder button
21. Central (STOP) warning light
22. Speedometer
23. Coolant temperature indicator
24. Rev counter
25. Lighting-rheostat button
26. Fuel gauge
27. Low fuel level warning light
28. Dynamic stability control (ESP/ASR) warning light
* According to destination.

26-05-2003
INSTRUMENTS AND CONTROLS
30
INSTRUMENT DIALS: PETROL MANUAL GEARBOX (206 GTi 180**)
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicator light
12. Handbrake, low brake fluid leveland electronic brake force distri-bution warning light
13. Dipped beam headlamps indica-tor light
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and low level warning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting-rheostat button
24. Fuel gauge
25. Low fuel level warning light
26. Dynamic stability control (ESP/ASR) warning light
* According to destination.
** During the year, according to destination.

26-05-2003
INSTRUMENTS AND CONTROLS31
INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX (saloon and 206 SW)
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicator light
12. Handbrake, low brake fluid leveland electronic brake force distri- bution warning light
13. Dipped beam headlamps indica- tor light
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and lowlevel warning light
17. Operating programmes 18.
Gear indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting-rheostat button
25. Fuel gauge
26. Low fuel level warning light
27. Dynamic stability control (ESP/ASR) warning light
* According to destination.

26-05-2003
YOUR 206 IN DETAIL93
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights Dipped/main beam headlamps
Automatic switchingon of lights Vehicles fitted with a rear foglamp (ring B)
Rear fog lamp
This only operates with the dipped/main beam headlamps. Note: when the lights are switched
off automatically, the rear fog lamp and the dipped headlamps willremain on (turn the ring backwards
to switch off the rear fog lamp. Thedipped headlamps and side lights
will then be switched off). Vehicles fitted with front foglamps and a rear fog lamp (ring C)
Front fog lamps (first rotation of the ring forwards)
The front fog lamps operate with theside lights and the dipped headlamps. When the main beam headlamps are switched on, the front fog lamps
are switched off. They are switchedon again when the main beam head-
lamps are switched off. Front and rear foglamps (2nd rotation ofthe ring forwards).
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ringbackwards twice in succession. Note: when the lights are switched
off automatically or when the dipped
headlamps are switched off manually,the front fog lamps, the rear foglamp and the side lights will remainon (turn the ring backwards to
switch off the front fog lamps. The
side lights will then be switched off).
Dipped/Main beam change Pull the stalk towards you.Note: with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lights on. Front fog lamps and rear fog lamp Rotate the ring forwards to switch on
and backwards to switch off. Thestatus is confirmed by the indicatorlight on the instrument panel.

26-05-2003
YOUR 206 IN DETAIL
94
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
Ð Place the key in the accessories position (1st notch),
Ð Press the end of the lights stalk for more than four seconds.
The brightness sensor, coupled
with the rain sensor, is locatedin the centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights. Operating check Activation Activation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
Direction indicators (flashers)
Left:downwards.
Right: upwards.
"Follow me home" lighting In poor light or at night, if you leave your vehicle, the side lights anddipped headlamps can be left on forapproximately one minute.
To do this:
Ð place the key in the
STOPposition,
Ð place the lights stalk in the 0 position,
Ð flash the headlamps,
Ð get out of the vehicle and lock it.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.
