3YOUR 206 AT A GLANCE
1Driver's air bag Horn
2 Lights and direction indicators stalk
3 Passenger air bag disarmingswitch*
4 Rear electric windows disarming switch
5 Dynamic stability control(ESP/ASR) button
6 Lighting rheostat for instrument dials
7 Windscreen wiper/wind-screen wash/trip computerstalk
8 Audio equipment remotecontrol
9 Hazard warning lights switch
10 Multifunction display 11
Windscreen demisting vents
12 Side window demisting vents
13 Adjustable side vent
14 Passenger air bag
15 Adjustable centre vents
16 Glove box
17 Audio equipment
18 Control for heating, ventilation, air conditioningand heated rear screen andmirrors
19 Front ashtray
20 Gear lever
21 Lighter 22
Electric mirror controls
23 Heated seats switch
24 Front electric window controls
25 Handbrake
26 Bonnet release
27 Steering lock
28 Fuse box
29 Storage compartment
30 Steering wheel height adjust-ment control
31 Headlamp height adjustment
* According to destination.

26-05-2003
74
9YOUR 206 AT A GLANCE
FRONT SEATS 1-Forwards/backwards adjust- ment.
2- Access to the rear seats (3-door).
3- Seat back angle adjustment.
4- Height adjustment.
5- Heated seats controls.
6- Head restraint height andangle adjustment.
Never travel with the head
restraints removed.
Modifiable passenger seat Access to the storage com- partment:
Ð Push the seat as far back as possible,
Ð Raise then pull the front of the seat to unlock it, then tilt the modifiable seat.

26-05-2003
13
10192
YOUR 206 AT A GLANCE
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the han- dle to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel.OPENING THE BONNET From inside the vehicle:
pull the
handle. From the outside:
lift the catch
and raise the bonnet. Secure the strut to hold the bonnet open. 13

26-05-2003
YOUR 206 IN DETAIL75
6. Head restraint height adjust-
ment (saloon and 206 SW)
To raise the restraint, pull it upwards.
The adjustment is correctwhen the upper edge of thehead restraint is level withthe top of the head.
The head restraint has a framewith notches, which prevent thehead restraint dropping down(this is a safety device in theevent of an impact).
To lower the head restraint, it is necessary to push simultaneously:
Ð the button located on the left guide at the base of the head restraint,
Ð the head restraint downwards.
To remove the head restraint, press the lug.
Never drive with thehead restraints removed;they must be in placeand correctly adjusted. Rear head restraints These have a high position for when they are in use and a lowposition for when they are stored.They are removable.
To lower the head restraints, press the lug.
To remove them, pull upwards as far as the stop then press therelease control.FRONT SEATS
1. Forwards-backwards
adjustment Lift the control and slide the seat forwards or backwards.
2. Access to rear seats (3 door) Pull one of the two handles to fold the seat back and move the seatforwards. On repositioning, theseat returns to its initial position It is impossible to access the rear seats if the front seat is in thereclining position.
3. Seat back angle adjustment Push one of the two handles
towards the rear.
4. Seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat
to lower.
5. Heated seats switch Press the switch. The tempera-
ture is controlled automatically. Press the switch again to stop operation.

26-05-2003
YOUR 206 IN DETAIL75
6. Head restraint height adjust-
ment (saloon and 206 SW)
To raise the restraint, pull it upwards.
The adjustment is correctwhen the upper edge of thehead restraint is level withthe top of the head.
The head restraint has a framewith notches, which prevent thehead restraint dropping down(this is a safety device in theevent of an impact).
To lower the head restraint, it is necessary to push simultaneously:
Ð the button located on the left guide at the base of the head restraint,
Ð the head restraint downwards.
To remove the head restraint, press the lug.
Never drive with thehead restraints removed;they must be in placeand correctly adjusted. Rear head restraints These have a high position for when they are in use and a lowposition for when they are stored.They are removable.
To lower the head restraints, press the lug.
To remove them, pull upwards as far as the stop then press therelease control.FRONT SEATS
1. Forwards-backwards
adjustment Lift the control and slide the seat forwards or backwards.
2. Access to rear seats (3 door) Pull one of the two handles to fold the seat back and move the seatforwards. On repositioning, theseat returns to its initial position It is impossible to access the rear seats if the front seat is in thereclining position.
3. Seat back angle adjustment Push one of the two handles
towards the rear.
4. Seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat
to lower.
5. Heated seats switch Press the switch. The tempera-
ture is controlled automatically. Press the switch again to stop operation.

26-05-2003
YOUR 206 IN DETAIL
86

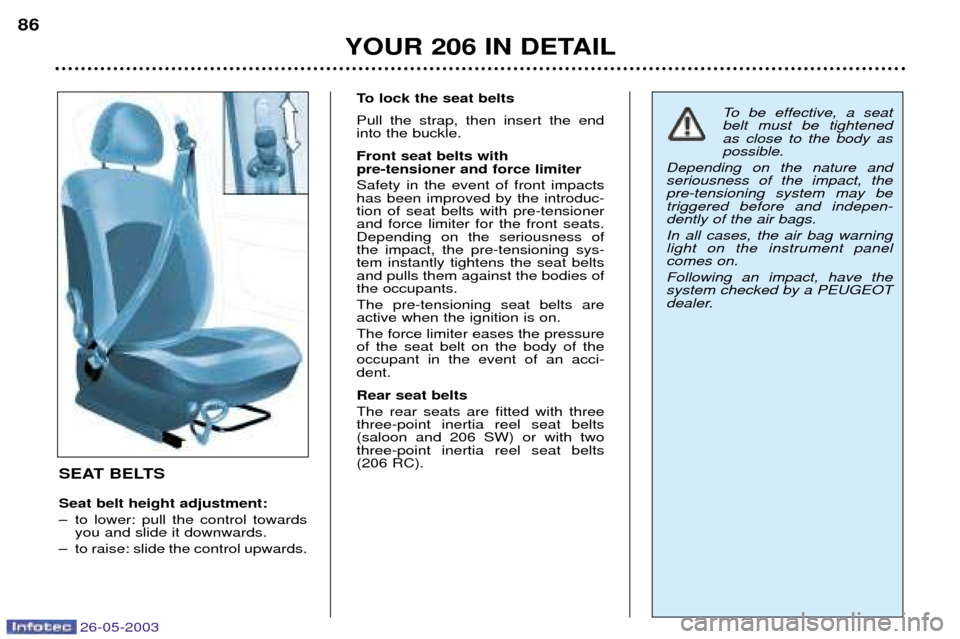

SEAT BELTS Seat belt height adjustment:
Ð to lower: pull the control towardsyou and slide it downwards.
Ð to raise: slide the control upwards. To lock the seat belts Pull the strap, then insert the end into the buckle. Front seat belts with pre-tensioner and force limiter Safety in the event of front impacts has been improved by the introduc-tion of seat belts with pre-tensionerand force limiter for the front seats.Depending on the seriousness ofthe impact, the pre-tensioning sys-tem instantly tightens the seat beltsand pulls them against the bodies ofthe occupants. The pre-tensioning seat belts are active when the ignition is on. The force limiter eases the pressure of the seat belt on the body of theoccupant in the event of an acci-dent. Rear seat belts The rear seats are fitted with three three-point inertia reel seat belts(saloon and 206 SW) or with twothree-point inertia reel seat belts(206 RC).
To be effective, a seat belt must be tightenedas close to the body aspossible.
Depending on the nature andseriousness of the impact, thepre-tensioning system may betriggered before and indepen-dently of the air bags. In all cases, the air bag warning light on the instrument panelcomes on. Following an impact, have the system checked by a PEUGEOT
dealer.

26-05-2003
YOUR 206 IN DETAIL
101
HEADLAMP ADJUSTMENT Depending on the load in your vehi- cle, it is recommended that theheadlamp beam is adjusted. 0-1 or 2 people in the front seats.
Ð- 3 people.
1- 5 people.
2- 5 people + maximum authorised load.
3- Driver + maximum authorisedload.
Initial setting is position 0.STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the handle to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel. HORN
Press one of the spokes orthe centre of the steeringwheel.
