2003 Peugeot 206 SW Dag gearbox

26-05-2003
11 0
YOUR 206 AT A GLANCE14P.Park.
R. Reverse.
N. Neutral.
D. Drive: in this position, all four gears change automatically.
3. Automatic changing of the first three gears only.
2. Automatic changing of the first two gears only.
A. Sport programme.
B. Snow programme.
THE AUTOMATIC AUTOADAPTIVE GEARBOX Starting
To start the engine, place the selector lever in position
Nor P. Press
the brake to change out of position P and when selecting forward or
reverse gear. Position of the selector lever This is shown by an indicator on the instrument panel.

26-05-2003
PEUGEOT SERVICING
26
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation1st serviceACIntermediate
DRAIN/REFILL- Engine oil- Bleed fuel filter (diesel)- Oil filter- Fuel filter* (petrol)REPLACE- Fuel filter element (diesel)- Air filter element- Spark plugs (petrol)- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if cap is removableLEVEL- Screen wash front/rear (check + top-up)- Coolant (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top up according to specification)- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Windscreen washer jets- Condition of wiper blades- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers)CHECK- Condition of rubber boots and gaiters- Brake pads o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel)- Emission control check as per current legislation (petrol)- Smoke opacity (diesel)- Passenger compartment filter (according to specification)o- Visual check of the whole vehicle
SERVICE*- Courtesy vehicle
ROAD TEST
: All driving conditionso: Arduous conditions * According to destination.

26-05-2003
Recommended lubricants The oils which appear in the previous table are suitable for most purposes. The diagram opposite states the optimum range of viscosity dependingon the temperatures at which the oilsare to be used. It is also possible to use "superior quality" synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ quality (for petrol engines), or CD/CFquality (for diesel engines) may beused by following the "ArduousConditions" servicing schedule whichspecifies shorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintain driving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
PEUGEOT SERVICING
28
ONLY ONLY
Manual Gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W80 PR 9736.41 75W80
ONLY
Automatic ATF 4HP20-AL4
Gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Other recommended products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLY protection to minus 35 ¡C

26-05-2003
INSTRUMENTS AND CONTROLS29
INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX (saloon and 206 SW)
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
9. Total distance recorder, serviceindicator and engine oil level indicator 10.
Right hand direction indicator
11 . Engine diagnostics warning light
12. Main beam headlamps indicatorlight
13. Handbrake, low brake fluid leveland electronic brake force distri-bution warning light
14. Dipped beam headlamps indica-tor light
15. Battery charge warning light
16. Engine oil pressure and tempera-ture warning light
17. Water in diesel filter warning light
18. Coolant temperature and low levelwarning light 19.
Engine oil temperature indicator
20. Total distance recorder button
21. Central (STOP) warning light
22. Speedometer
23. Coolant temperature indicator
24. Rev counter
25. Lighting rheostat button
26. Fuel level indicator
27. Low fuel level warning light
28. Dynamic stability control (ESP/ASR) warning light
* According to destination.

26-05-2003
INSTRUMENTS AND CONTROLS
30
INSTRUMENT DIALS: PETROL MANUAL GEARBOX (206 RC**)
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicator light
12. Handbrake, low brake fluid leveland electronic brake force distri-bution warning light
13. Dipped beam headlamps indica-tor light
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and low level warning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat button
24. Fuel level indicator
25. Low fuel level warning light
26. Dynamic stability control (ESP/ASR) warning light
* According to destination.** During the year, according to destination.

26-05-2003
INSTRUMENTS AND CONTROLS31
INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX (saloon and 206 SW)
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicator light
12. Handbrake, low brake fluid leveland electronic brake force distri- bution warning light
13. Dipped beam headlamps indica- tor light
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and lowlevel warning light
17. Operating programmes 18.
Gear indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel level indicator
26. Low fuel level warning light
27. Dynamic stability control (ESP/ASR) warning light
* According to destination.

YOUR 206 IN DETAIL
110

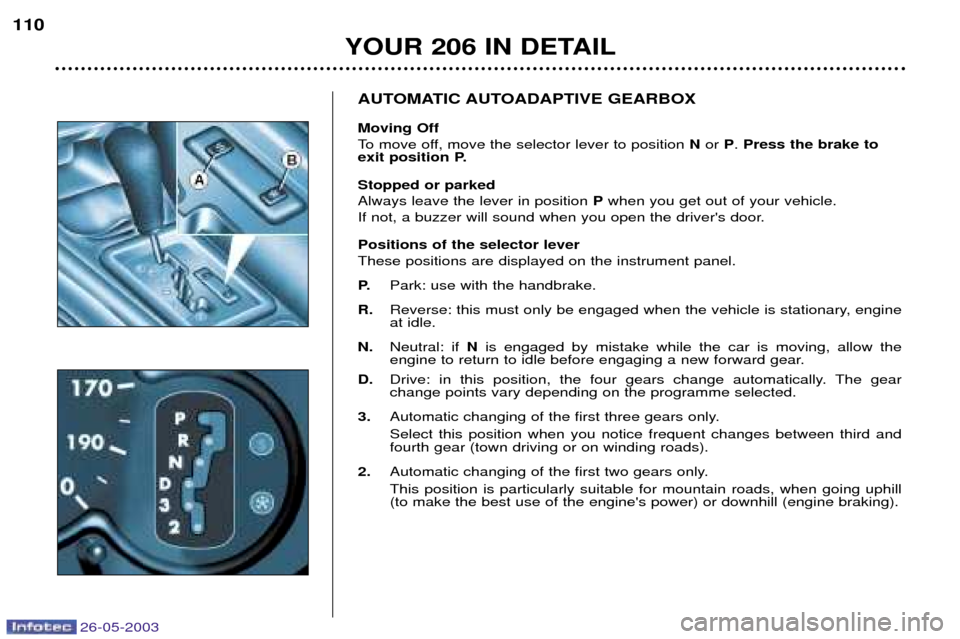

AUTOMATIC AUTOADAPTIVE GEARBOX Moving Off
To move off, move the selector lever to position Nor P. Press the brake to
exit position P. Stopped or parked Always leave the lever in position Pwhen you get out of your vehicle.
If not, a buzzer will sound when you open the driver's door. Positions of the selector lever These positions are displayed on the instrument panel. P. Park: use with the handbrake.
R. Reverse: this must only be engaged when the vehicle is stationary, engine at idle.
N. Neutral: if Nis engaged by mistake while the car is moving, allow the
engine to return to idle before engaging a new forward gear.
D. Drive: in this position, the four gears change automatically. The gearchange points vary depending on the programme selected.
3. Automatic changing of the first three gears only. Select this position when you notice frequent changes between third and fourth gear (town driving or on winding roads).
2. Automatic changing of the first two gears only. This position is particularly suitable for mountain roads, when going uphill (to make the best use of the engine's power) or downhill (engine braking).
26-05-2003

26-05-2003
YOUR 206 IN DETAIL
111
Operating programmes
You have a choice of three operating programmes:
Ð Autoadaptive (normal)
Ð Sport
Ð SnowOne press on button Aor Bwill
select Sport or Snow respectively. The selection is displayed on theinstrument panel. Pressing the but-ton a second time will return to theautoadaptive (normal) programme. Autoadaptive programme (normal)Gear changes are carried out on the basis of various parameters, suchas:
Ð driving style,
Ð road characteristics,
Ð vehicle load.The gearbox selects the most suit- able programme from those in thememory for the current driving con-ditions. Sport programme The Sport programme automatically favours more dynamic driving. Snow Programme In position
D, the Snow programme
provides smooth driving suited to slippery roads in order to improve
traction and stability. Starting is in2nd gear and changing down is at
low engine speeds. Special operating features
Ð During prolonged braking, the gearbox changes down automati-
cally, so as to provide efficientengine braking.
Ð If you take your foot off the accel- erator suddenly (when you aretaken by surprise, for example),the gearbox will not change up, so
as to improve safety.
Ð When the engine is cold, the gear- box automatically selects a spe-cial programme that enables theengine to reach its ideal tempera-ture more quickly in order todecrease pollution.
Kickdown For immediate maximum accelera-
tion without touching the gear lever,press the accelerator pedal down as

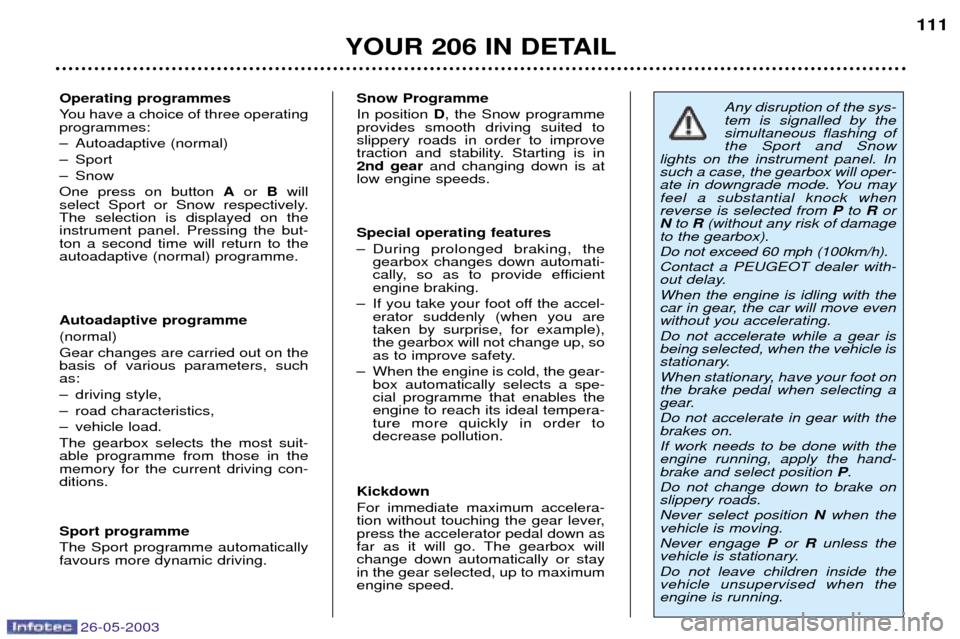

far as it will go. The gearbox willchange down automatically or stayin the gear selected, up to maximumengine speed.Any disruption of the sys- tem is signalled by thesimultaneous flashing ofthe Sport and Snow
lights on the instrument panel. Insuch a case, the gearbox will oper-
ate in downgrade mode. You mayfeel a substantial knock whenreverse is selected from Pto Ror
N to R(without any risk of damage
to the gearbox). Do not exceed 60 mph (100km/h).Contact a PEUGEOT dealer with-
out delay. When the engine is idling with the
car in gear, the car will move evenwithout you accelerating. Do not accelerate while a gear is being selected, when the vehicle is
stationary.
When stationary, have your foot on the brake pedal when selecting a
gear. Do not accelerate in gear with the brakes on. If work needs to be done with the engine running, apply the hand-brake and select position P.
Do not change down to brake onslippery roads. Never select position Nwhen the
vehicle is moving.Never engage Por Runless the
vehicle is stationary.Do not leave children inside the vehicle unsupervised when theengine is running.
