Page 55 of 131
30-06-2003
YOUR 206 CC IN DETAIL
54

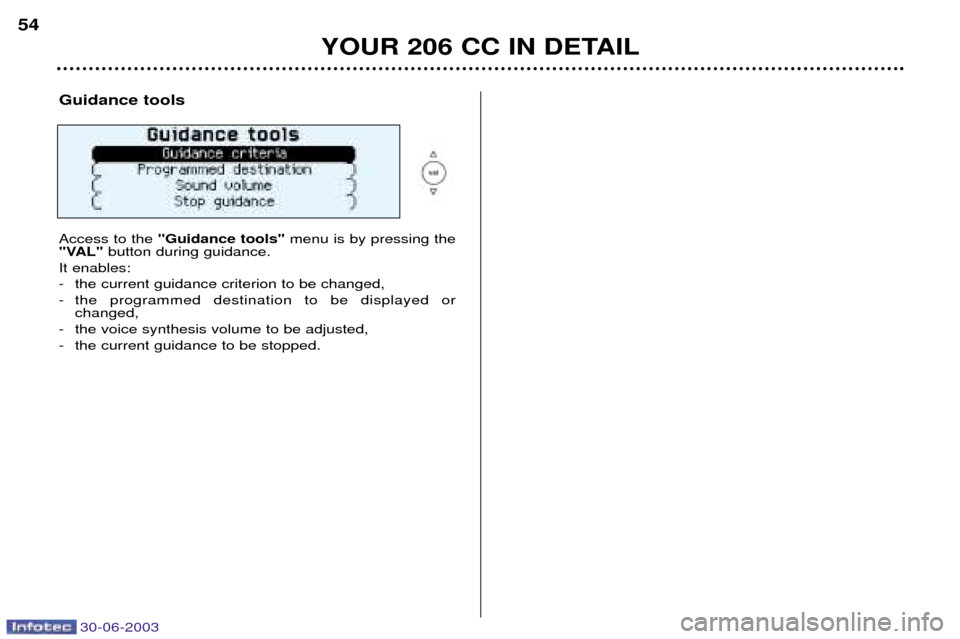

Guidance tools Access to the "Guidance tools" menu is by pressing the
"VAL" button during guidance.
It enables:
- the current guidance criterion to be changed,
- the programmed destination to be displayed or changed,
- the voice synthesis volume to be adjusted,
- the current guidance to be stopped.
Page 62 of 131
30-06-2003
YOUR 206 CC IN DETAIL
62
2.

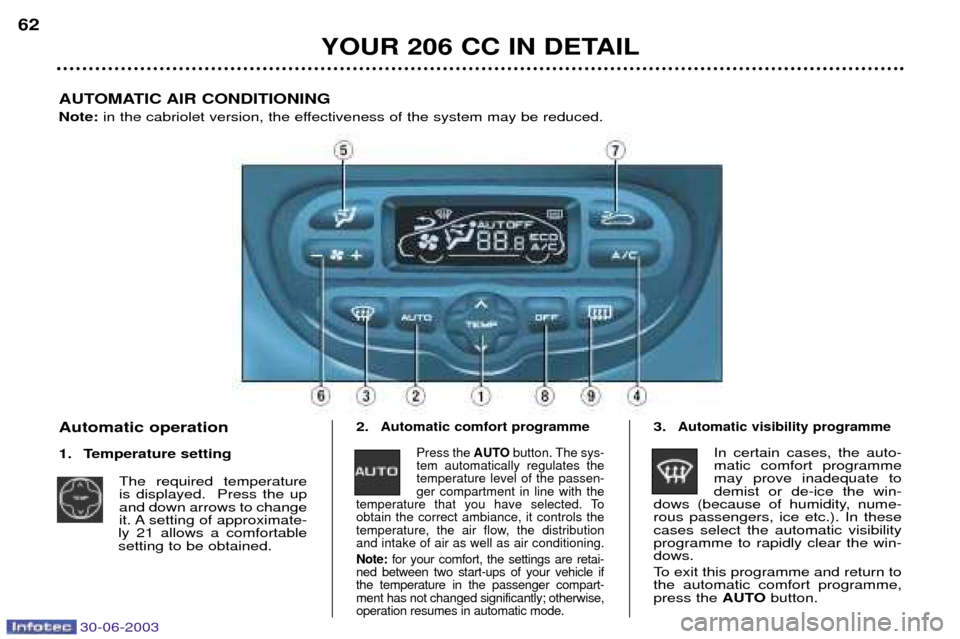

Automatic comfort programme
Press the AUTObutton. The sys-
tem automatically regulates the temperature level of the passen-ger compartment in line with the
temperature that you have selected. Toobtain the correct ambiance, it controls the
temperature, the air flow, the distributionand intake of air as well as air conditioning. Note: for your comfort, the settings are retai-
ned between two start-ups of your vehicle if the temperature in the passenger compart-ment has not changed significantly; otherwise,operation resumes in automatic mode.
3.Automatic visibility programme
In certain cases, the auto- matic comfort programmemay prove inadequate todemist or de-ice the win-
dows (because of humidity, nume-rous passengers, ice etc.). In thesecases select the automatic visibilityprogramme to rapidly clear the win-dows.
To exit this programme and return to the automatic comfort programme,press the AUTObutton.
Automatic operation
1. Temperature setting
The required temperature is displayed. Press the upand down arrows to change
it. A setting of approximate-
ly 21 allows a comfortablesetting to be obtained.
AUTOMATIC AIR CONDITIONING Note: in the cabriolet version, the effectiveness of the system may be reduced.
Page 63 of 131
30-06-2003
YOUR 206 CC IN DETAIL63
5.
Air distribution
Successive presses of this button allow the air flow tobe directed alternately to:
- the windscreen (demisting or de-icing),
- the windscreen and the footwells,
- the footwells,
- the central and side vents and the footwells,
- the central and side vents.
7. Air intake
Press this button to recycle
the interior air. Recircula-
tion, shown on the display,prevents the entry of
unpleasant odours and fumes fromthe outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake. Note: To prevent condensation on
the inside of the vehicle in cold or
wet weather, you are advised toavoid using this mode.
4. Air conditioning
Press this button to stop
the air conditioning. TheECOsymbol lights up.
Press again to return to
automatic operation of the air condi-tioning. The A/Csymbol is dis-
played. 8. Switching the system off
TheOFF button enables
the entire system to be
switched off.
Temperature-related comfort is nolonger guaranteed. Pressing the OFF, AUTO or visibili-
ty button again reactivates the sys-
tem with the values set before it was
switched off.
9. De-icing the rear window and the mirrors
Press this button to de-ice the rear screen and the mir-
rors. The de-icing system
switches off automatically.It is possible to stop the de-
icing before it switches off automati-cally by pressing the button again. Note: this function is disarmed when
the roof is stored in the boot. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish you can make a different
choice from the one offered by the
system, by changing a setting. Theother functions will still be managed
automatically. Press the
AUTObut-
ton to return to completely automaticoperation.
6. Air flowThe air flow may beincreased or reducedby pressing the but-tons +or -respec-
tively.
Notes The condensation created by the air conditioning causes a normal flow ofwater under the vehicle when
stationary.
To prevent condensation on the insi- de of the vehicle in cold or wet wea-
ther, you are advised to avoid usingthe ECO mode.
Page 71 of 131
30-06-2003
YOUR 206 CC IN DETAIL
72
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message
''Remote
control battery low'' on the multi-
function display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to
independent-
ly operate the locks on the doors,
the tailgate (opening), the fuel filler cap, the steering lock, the glove boxand the passenger air bag disarmingcontrol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors.
Unlocking the boot is possible
only by using the boot key. If one of the doors is open, the cen- tral locking does not work. The remote control This fulfils the same functions as the
key, at a distance. Locking Pressing button
Alocks the vehicle
by remote control. This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors. This is shown by the rapid flashingof the direction indicators. Notes: if the vehicle is locked and
the unlocking control is pressed inadvertently without the doorsbeing opened within 30 seconds, the
vehicle will lock again automatically.
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy light
comes on and the direction indi- cators flash for a few seconds.Programming the remote control Switch off the ignition.
Switch the ignition on again.
Press button Aimmediately.
Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.
Page 79 of 131
30-06-2003
Direction indicators (flashers)Left:downwards.
Right: upwards. YOUR 206 CC IN DETAIL
79AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:
In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Press the end of the lights stalk for more than four seconds. Operating check Activation Acivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily dis-
armed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
The brightness sensor, coupled
with the rain sensor, is located inthe centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights.
Page 80 of 131
30-06-2003
Direction indicators (flashers)Left:downwards.
Right: upwards. YOUR 206 CC IN DETAIL
79AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:
In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Press the end of the lights stalk for more than four seconds. Operating check Activation Acivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily dis-
armed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
The brightness sensor, coupled
with the rain sensor, is located inthe centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights.
Page 82 of 131
30-06-2003
YOUR 206 CC IN DETAIL81

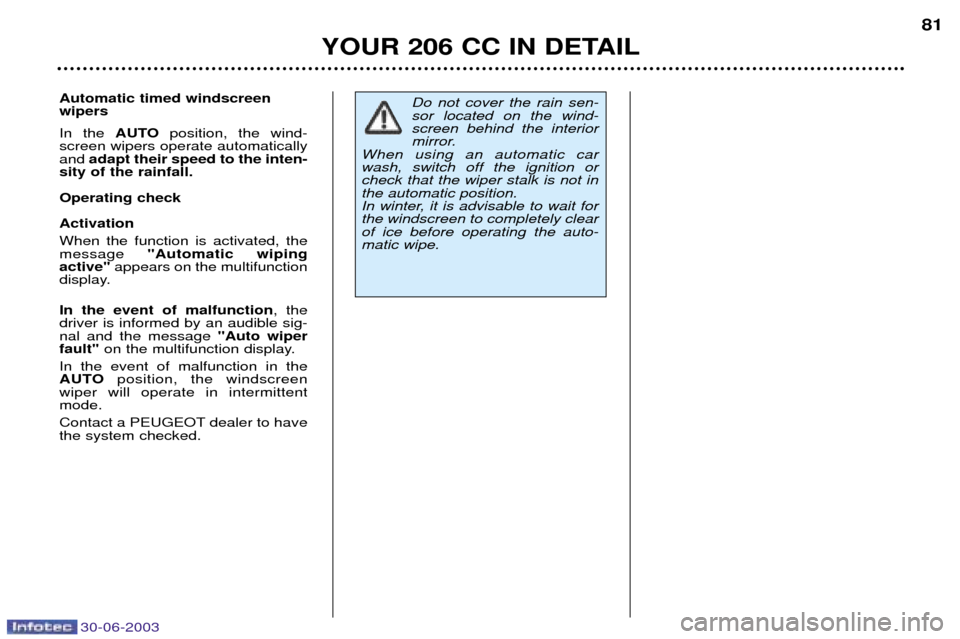

Do not cover the rain sen- sor located on the wind-screen behind the interior
mirror.
When using an automatic carwash, switch off the ignition orcheck that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait forthe windscreen to completely clearof ice before operating the auto-matic wipe.
Automatic timed windscreenwipers In the
AUTOposition, the wind-
screen wipers operate automatically and adapt their speed to the inten-
sity of the rainfall. Operating checkActivation When the function is activated, the message "Automatic wiping
active" appears on the multifunction
display. In the event of malfunction , the
driver is informed by an audible sig- nal and the message "Auto wiper
fault" on the multifunction display.
In the event of malfunction in the
AUTO position, the windscreen
wiper will operate in intermittentmode.
Contact a PEUGEOT dealer to have the system checked.
Page 83 of 131
30-06-2003
YOUR 206 CC IN DETAIL
82

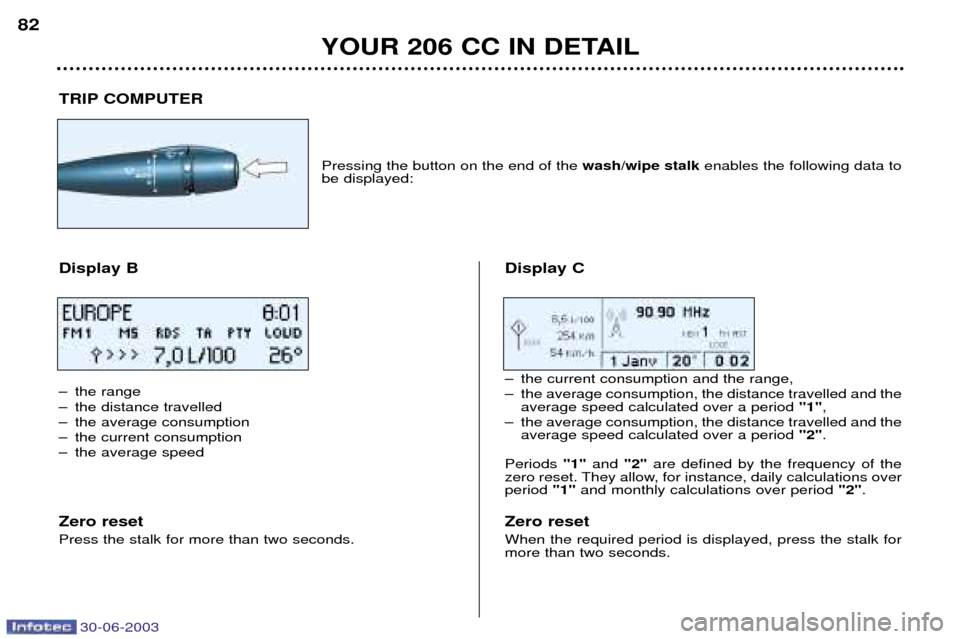

TRIP COMPUTER
Pressing the button on the end of the wash/wipe stalkenables the following data to
be displayed:
Display B
Ð the range
Ð the distance travelled
Ð the average consumption
Ð the current consumption
Ð the average speed Zero reset Press the stalk for more than two seconds. Display C
Ð the current consumption and the range,
Ð the average consumption, the distance travelled and the
average speed calculated over a period "1",
Ð the average consumption, the distance travelled and the average speed calculated over a period "2".
Periods "1"and "2"are defined by the frequency of the
zero reset. They allow, for instance, daily calculations over period "1"and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.
