2003 OLDSMOBILE AURORA key

At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts.
If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag
system does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace
blade inserts that appear worn or damaged or that
streak or miss areas of the windshield.
Also see
“Windshield Wiper and Wiper Blades” under Cleaning
the Outside
of Your Vehicle on page 5-85.
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be
required. See
Part D: Recommended Fluids and
Lubricants on page
6- 15.
Automatic Transaxle Check
Check the transaxle fluid level; add if needed. See
Automatic Transaxle Fluid on page 5-22. A fluid loss
may indicate a problem. Check the system and repair if
needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Body Lubrication Service
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood, rear
compartment, glove box door, console door and any
folding seat hardware. Part
D tells you what to use. More
frequent lubrication may be required when exposed to
a corrosive environment.
6-1 0
ProCarManuals.com

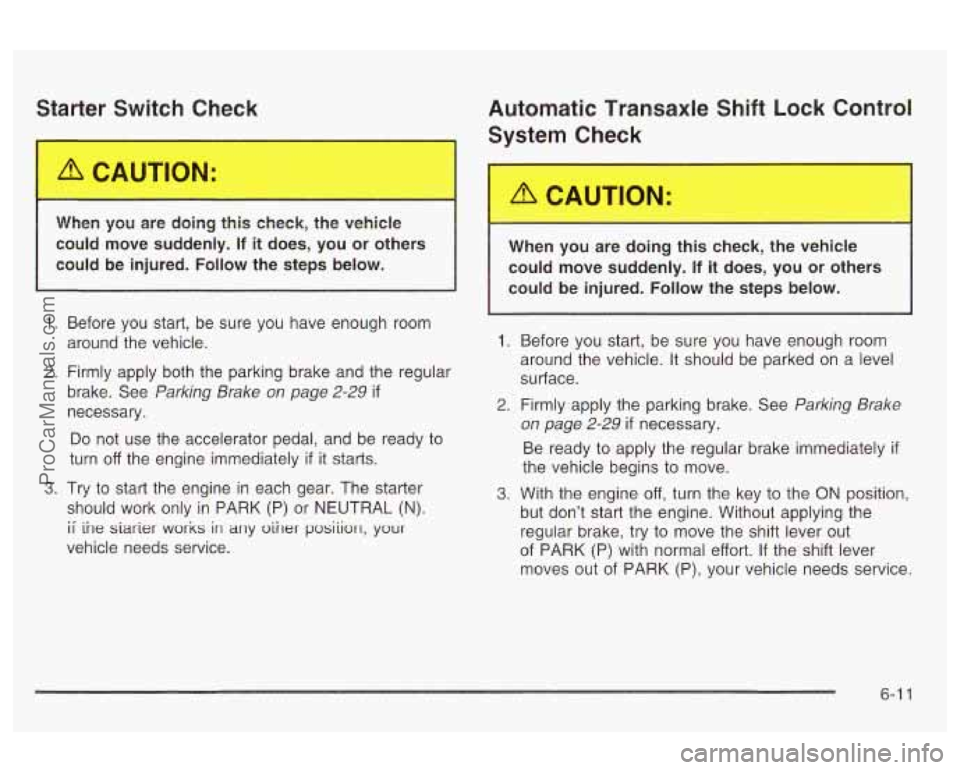

Starter Switch Cher':
When you are doing this check, the vehicle
could move suddenly.
If it does, you or others
could be injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See
Parking Brake on page 2-29 if
necessary.
Do not use the accelerator pedal, and be ready to
turn
off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK (P) or NEUTRAL (N).
ii ihe siarier works in any oiiler pvsiiivrl, your
vehicle needs service.
Automatic Transaxle Shift Lock Control
!- stem Check
When you are doing this check, the vehicle
could move suddenly.
If it does, you or others
could be injured.
Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. See Parking Brake
on
page 2-29 if necessary.
Be ready to apply the regular brake immediately
if
the vehicle begins to move.
but don't start the engine. Without applying the
regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle needs service.
3. With the engine off, turn the key to the ON position,
6-1 1
ProCarManuals.com

Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to OFF in each shift lever position.
The key should turn to OFF only when the shift lever
The key should come out only in OFF.
is in
PARK (P).
Parking Brake and Automatic Transaxle
Park
‘n’ “lech-ism Check
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move. Park
on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake’s holding ability: With
the engine running and transaxle in NEUTRAL
(N), slowly remove foot pressure from the regular
brake pedal.
Do this until the vehicle is held by the
parking brake only.
ability: With the engine running, shift to PARK (P).
Then release the parking brake followed by the
regular brake.
To check the PARK (P) mechanism’s holding
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-1 2
ProCarManuals.com

Instrument Panel Cluster
.............. .... .... ........... 3-31
Overview
..................................... ......... 3-2
Instrument Panel Brightness
........... ........... 3-17
Interior Lamps
............................................. 3-17
Interior Plastic Components
.............................. 5-83
Jump Starting
................................................. 5-44
Key Lock Cylinders Service
.............................. 6-10
Keyless Entry System
....................................... 2-5
Key Reminder Warning
.................................... 2-24
Keys
............................................................... 2-3
L
Lamps Exterior
................................... ....... 3-14
Interior
....................................................... 3-1 7
Lap-§boulder Belt ................................... 1-14, 1-22
Child Restraints
........................................... 1-40
Securing a Child Restraint Designed for the
LATCH System
........................................ 1-42
Leather
......................................................... 5-83
LATCH System Leaving
Your Vehicle
....................................... 2-14
Leaving Your Vehicle With the Engine Running
...... 2-31
Light
Air Bag Readiness
....................................... 3-34
Anti-Lock Brake System Warning
................... 3-36
Battery Warning
.......................................... 3-35
Brake System Warning
................................. 3-35
Cruise Control
............................................. 3-43
Malfunction Indicator
.................................... 3-39
Oil Pressure
............................................... 3-42
Safety Belt Reminder
................................... 3-33
TCS Warning Light
...................................... 3-37
Traction Control System Active
...................... 3-38
Traction Control System (TCS) Warning
.......... 3-37
Lighted Visor Vanity Mirror
............................... 2-18
Loading Your Vehicle
....................................... 4-34
Lockout Protection
.......................................... 2-14
Locks Central Door Unlocking System
..................... 2-11
Delayed Locking
.......................................... 2-11
Door
.......................................................... 2-10
Leaving Your Vehicle
.................................... 2-14
Lockout Protection
....................................... 2-14
Power Door
................................................ 2-11
Programmable Automatic Door Locks
............. 2-12
Rear Door Security Locks
............................. 2-13
Loss of Control
................... ................ 4-15
Lumbar Manual Controls
.......... ............ .. 1-3
Power Controls
............................................. 1-4
a
ProCarManuals.com

Navigation System ...................................... 3-69
Normal Maintenance Replacement Parts
........... 5-101
New Vehicle
Break-In
...................................... 2-23
0
Odometer ...................................................... 3-32
Off-Road Recovery
.......................................... 4-1 3
Oil Engine
....................................................... 5-1 5
Pressure Light
............................................. 3-42
Oil Life
.......................................................... 3-48
Older Children, Restraints
................................ 1-28
Onstar@ System
........................................ 2-39
Onstar@ Personal Calling
................................. 2-40
Onstar@ Services
............................................ 2-39
Onstar@ Virtual Advisor
.................................... 2-40
Other Warning Devices
...................................... 3-5
Outlet Adjustment
............................................ 3-27
Outside Convex Mirror
............................................. 2-38
Curb View Assist Mirror
................................ 2-37
Heated Mirrors
............................................ 2-38
Power Mirrors
............................................. 2-37 Outside
Curb View Assist Mirror
........................ 3-58
Overheated Engine Protection Operating Mode
... 5-28
Overriding Lock Delay
..................................... 2-12
Owners, Canadian
.............. ......................... II
Owner’s Information .................................... 7-10
Parade Dimming
............................................. 3-19
Park (P) Shifting Into
............................................ 2-30
Shifting Out
of .................................... 2-32
Parking Brake
........................................................ 2-29
Over Things That Burn
................................. 2-32
Parking Brake and Automatic Transaxle Park (P)
Mechanism Check
....................................... 6-12
Parking on Hills
.............................................. 4-42
Part
A - Scheduled Maintenance Services ............ 6-4
Part B
- Owner Checks and Services .................. 6-9
Part C
- Periodic Maintenance Inspections .......... 6-13
Part D
- Recommended Fluids and Lubricants ....... 6-15
Part E
- Maintenance Record ........................... 6-16
Passenger Temperature Control
........................ 3-27
Passing
................................................. 4-13, 4-41
PASS-Key@
Ill ................................................ 2-21
PASS-Key@
I II Operation .......... ................. 2-21
10
ProCarManuals.com

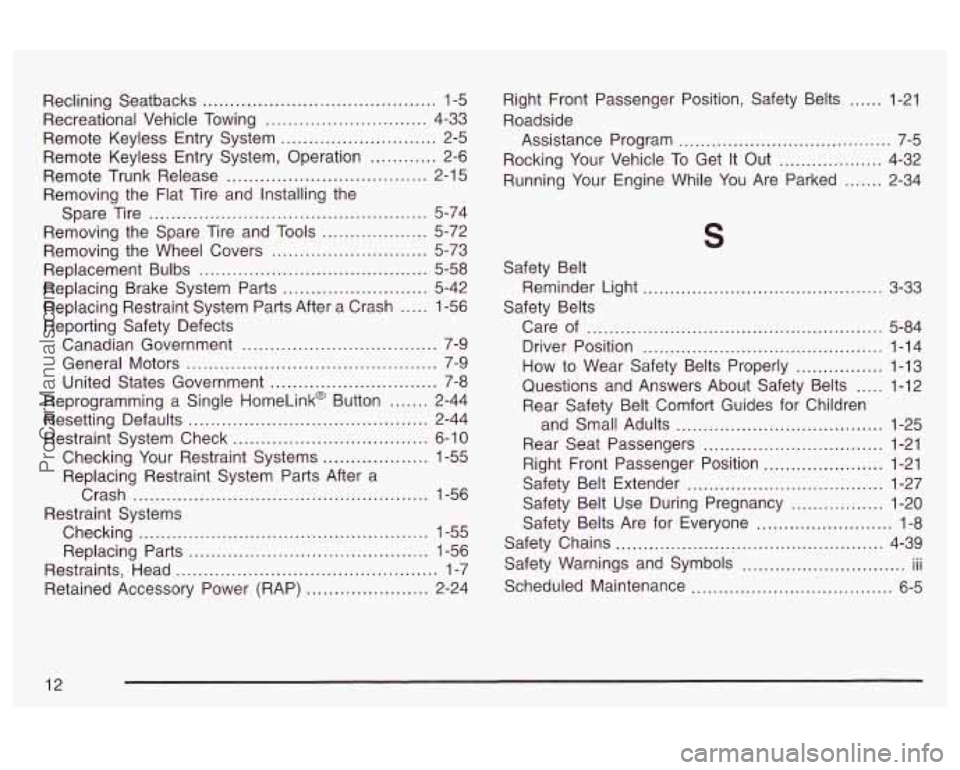

Reclining Seatbacks .......................................... 1-5
Remote Keyless Entry System
............................ 2-5
Remote Keyless Entry System, Operation ............ 2-6
Remote Trunk Release
.................................... 2-1 5
Removing the Flat Tire and Installing the
Spare Tire
.................................................. 5-74
Removing the Spare Tire and Tools
................... 5-72
Replacement Bulbs
......................................... 5-58
Replacing Brake System Parts
.......................... 5-42
Replacing Restraint System Parts After a Crash
..... 1-56
Reporting Safety Defects
Canadian Government
................................... 7-9
General Motors
............................................. 7-9
United States Government
.............................. 7-8
Reprogramming a Single HomeLink@ Button
....... 2-44
Resetting Defaults
........................................... 2-44
Restraint System Check
................................... 6-10
Checking Your Restraint Systems
................... 1-55
Replacing Restraint System Parts After a
Crash
..................................................... 1 -56
Checking
.................................................... 1-55
Replacing Parts
........................................... 1-56
Restraints, Head
............................................... 1-7
Retained Accessory Power (RAP)
...................... 2-24
Recreational
Vehicle Towing
............................. 4-33
Removing the Wheel Covers
............................ 5-73
Restraint Systems Right Front
Passenger Position. Safety Belts
...... 1-21
Roadside Assistance Program
....................................... 7-5
Rocking Your Vehicle To Get It Out
................... 4-32
Running Your Engine While You Are Parked
....... 2-34
S
Safety Belt
Safety Belts Reminder
Light
............................................ 3-33
Care of
.................................................. 5-84
Driver Position
............................................ 1-14
Questions and Answers About Safety Belts
..... 1-12
Rear Safety Belt Comfort Guides for Children
and Small Adults
...................................... 1-25
Rear Seat Passengers
................................. 1-21
Right Front Passenger Position
...................... 1-21
Safety Belt Extender
.................................... 1-27
Safety Belt Use During Pregnancy
................. 1-20
Safety Belts Are for Everyone
......................... 1-8
Safety Chains
................................................. 4-39
Safety Warnings and Symbols
.............................. iii
Scheduled Maintenance ..................................... 6-5
How
to Wear Safety Belts Properly
................ 1-13
12
ProCarManuals.com

T
Tachometer ............................. ........ 3-33
Taillamps Turn Signal, Stoplamps and Back-up Lamps
.... 5-58
TCS Active Light
............................................. 3-38
TCS Warning Light
.......................................... 3-37
Testing the Alarm
............................................ 2-20
Theater Dimming
............................................ 3-1 9
Theft-Deterrent Systems
.................... .... 2-19
PASS-Key@
Ill Operation ... .... .... 2-21
Throttle System Inspection
............................... 6-14
Theft-Deterrent,
Radio
.................. .... 3-73
PASS-Key@
Ill .......................... .... 2-21
Universal Theft-Deterrent
.............................. 2-1 9
Tilt Wheel ........................................................ 3-5
Tire Inflation Check
........................................... 6-9
Tires
..................................................... 5-60, 5-86
Buying New Tires
........................................ 5-66
Chains
....................................................... 5-70
Changing a Flat Tire
.................................... 5-71
Check Tire Pressure System
......................... 5-62
If a Tire Goes Flat ....................................... 5-70
Inflation
-- Tire Pressure ............................... 5-60
Inspection and Rotation ................................ 5-63
Uniform Tire Quality Grading
......................... 5-67
Compact Spare Tire
..................................... 5-81 Tires (cont.)
Wheel Alignment and Tire Balance
..... ..... 5-68
Wheel Replacement
......................... ..... 5-68
When It
Is Time for New Tires .................. 5-65
To Use the Engine Coolant Heater
................ 2-25
Top of the Instrument Panel
............................. 5-83
Top Strap
...................................................... 1-38
Top Strap Anchor Location
............................... 1-39
Torque Lock
................................................... 2-31
Total Weight on Your Vehicle’s Tires
.................. 4-39
Towing Recreational Vehicle
..... ..... 4-33
Towing a Trailer
...................... ..... 4-36
Your Vehicle
.............................. ......... 4-33
Control System Active Light
...................... 3-38
Control System (TCS)
.................................... 4-8
Control System Warning Light
....................... 3-37
Trailer Brakes
................................................. 4-40
Trailer Wiring Harness
..................................... 4-40
Transaxle Fluid, Automatic
...................... ............. 5-22
Transaxle Operation, Automatic
......................... 2-26
Transmission, Transaxle, Transfer Case Unit Repair Manual
............................................ 7-10
Transportation Options
........ ................... 7-7
Traction
14
ProCarManuals.com
