2003 NISSAN MURANO technical specifications

CHANGING ENGINE OIL1. Park the vehicle on a level surface and apply
the parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn the engine off andwait more than 10
minutes.
4. Place a large drain pan under the drain plug.
5. Remove the oil filler cap.6. Remove the drain plug with a wrench and
completely drain the oil.
If oil filter is to be changed, remove and
replace it at this time. See later in “Engine oil”
for changing engine oil filter.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.

Waste oil must be disposed of properly.

Check your local regulations.
7. Clean and re-install the drain plug with a new
washer. Securely tighten the drain plug with a
wrench.
Drain plug tightening torque:
22 to 29 ft-lb
(29 to 39 N⋅m)
Do not use excessive force.
8. Refill engine with recommended oil and in-
stall the cap securely.
CAUTION
Never pull out the oil level gauge while
filling engine oil.
See “Capacities and recommended
fuel/lubricants” in the “9. Technical and con-
sumer information” section for drain and refill
capacity. The drain and refill capacity de-
pends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine the
proper amount of oil in the engine.
9. Start the engine.
Check for leakage around the drain plug.
Correct as required.
10.Turn the engine off andwait more than 10
minutes. Check the oil level with the dip-
stick. Add engine oil if necessary.
11.Dispose of waste oil properly.
WARNING

Prolonged and repeated contact with
SDI0974
8-10
Maintenance and do-it-yourself


03.1.28/Z50-D/V5.0


9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-3
Engine oil and oil filter recommendation.................... 9-5
Recommended SAE viscosity number ....................... 9-6
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-6
Specifications.......................................................................... 9-7
Engine ................................................................................. 9-7
Wheels and tires .............................................................. 9-9
Dimensions and weights ................................................ 9-9
When traveling or registering your vehicle in another
country.................................................................................... 9-10
Vehicle identification ........................................................... 9-10
Vehicle identification number (VIN) plate ................ 9-10
Vehicle identification number (Chassis number) ... 9-10
Engine serial number .................................................... 9-11
F.M.V.S.S. certification label ....................................... 9-11
Emission control information label ............................ 9-11
Tire placard ..................................................................... 9-12
Air conditioner specification label ............................. 9-12Installing front license plate .............................................. 9-13
Vehicle loading information ............................................... 9-14
Terms ................................................................................ 9-14
Determining vehicle load capacity ............................ 9-14
Loading tips .................................................................... 9-15
Payload weight capacity .............................................. 9-15
Measurement of weights ............................................. 9-15
Towing a trailer .................................................................... 9-16
Maximum load limits ...................................................... 9-16
Towing load/specification chart ................................. 9-18
Towing safety.................................................................. 9-18
Uniform tire quality grading............................................... 9-21
Emission control system warranty ................................... 9-22
Reporting safety defects (US only) ................................ 9-22
Readiness for inspection/maintenance (I/M) test (US
only) ........................................................................................ 9-22
Owner’s Manual/Service Manual order
information .......................................................................... 9-24
In the event of a collision ............................................ 9-24


03.1.28/Z50-D/V5.0


The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended
specifications US
measureImp
measureLiter
Fuel 21-5/8 gal 18 gal 82 Unleaded gasoline with an octane rating of at least 87 AKI (RON 91)*1
Engine oil*6
Drain and refill
With oil filter change 4-1/4 qt 3-1/2 qt 4.0
API Certification Mark*2, *3

API grade SG/SH, Energy ConservingI&IIorAPIgradeSJorSL,Energy
Conserving*2, *3

ILSAC grade GF-I, GF-II & GF-III*2, *3 Without oil filter change 3-7/8 qt 3-1/4 qt 3.7
Cooling system
With reservoir 9-3/4 qt 8-1/8 qt 9.2
Genuine NISSAN anti-freeze coolant or equivalent
Reservoir 7/8 qt 3/5 qt 0.8
Differential gear oil — — — API GL-5, Viscosity SAE 80W-90*4
CVT fluid — — — Genuine Nissan CVT Fluid NS-2*5
Transfer fluid — — — API GL-5, Viscosity SAE 80W-90
Power steering fluid
Refill to the proper oil level according to the instructions in
the “8. Maintenance and do-it-yourself” section.Genuine Nissan PSF or equivalent*7
Brake fluidGenuine Nissan Brake Fluid*8 or equivalent DOT 3 (US FMVSS No. 116)
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*9
Air conditioning system lubricants — — —Nissan A/C System Oil
Type S or exact equivalent
*1: For additional information, see later in this paragraph for fuel recommendation.
*2: For additional information, see later in this paragraph for engine oil and oil filter recommendation.
*3: For additional information, see later in this paragraph for recommended SAE viscosity number.
*4: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0°C (32°F).
*5:Use only Genuine Nissan CVT Fluid NS-2. Using transmission fluid other than Genuine Nissan CVT Fluid NS-2 will damage the CVT transmission, which
is not covered by the Nissan new vehicle limited warranty.
*6: For additional information, see “Engine oil” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*7: For Canada, Nissan Automatic Transmission fluid (ATF), DEXRON
TMIII/MERCON
TMor equivalent ATF may also be used.
*8: Available in mainland US through your NISSAN dealer.
*9: For additional information, see “Vehicle identification” in this section for air conditioner specification label.
CAPACITIES AND
RECOMMENDED
FUEL/LUBRICANTS9-2
Technical and consumer information


03.1.28/Z50-D/V5.0


Contact your NISSAN dealer when servicing
your air conditioning system.
ENGINE
Model VQ35DE
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore x Stroke in (mm) 3.760 x 3.205 (95.5 x 81.4)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order 1-2-3-4-5-6*
Idle speed rpm
See the emission control label on
the underside of the hood. Ignition timing (B.T.D.C.) degree/rpm
CO percentage at idle speed [No air] %
Spark plugStandard PLFR5A-11
Service option PLFR4A-11, PLFR6A-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
SPECIFICATIONS
Technical and consumer information
9-7


03.1.28/Z50-D/V5.0


When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded engine gaso-
line. Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(Chassis number)The number is stamped under the passenger’s
seat as shown.
STI0334
STI0335
WHENTRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION9-10
Technical and consumer information


03.1.28/Z50-D/V5.0


plus the total trailer load. Towing loads greater
than these or using improper towing equipment
could adversely affect vehicle handling, braking
and performance.
The ability of your vehicle to tow a trailer is not
only related to the maximum trailer loads, but
also the places you plan to tow. Tow weights
appropriate for level highway driving may have to
be reduced on very steep grades or in low
traction situations (for example, on slippery boat
ramps).
Temperature conditions also can affect towing.
For example, towing a heavy trailer in high
outside temperatures on graded roads can af-
fect engine performance and cause overheating.
The transmission high fluid temperature protec-
tion mode, which helps reduce the chance of
transmission damage, could activate and auto-
matically decrease engine power. Vehicle speed
may decrease to 40 to 50 MPH (65 to 80 km/h)
under high load. Plan your trip carefully to ac-
count for trailer and vehicle load, weather, and
road conditions.

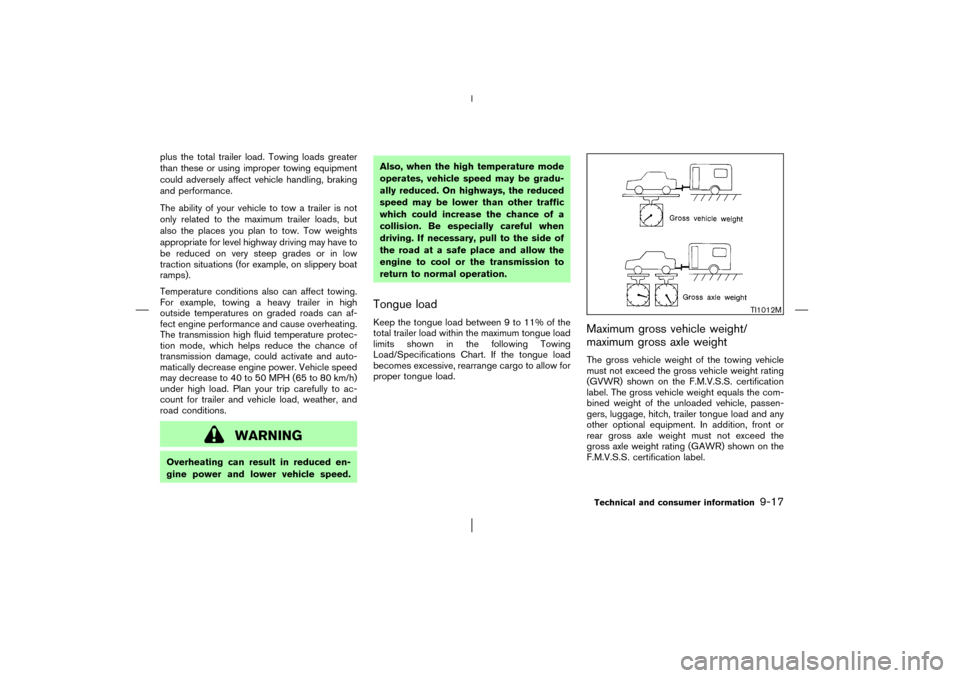

WARNING
Overheating can result in reduced en-
gine power and lower vehicle speed.Also, when the high temperature mode
operates, vehicle speed may be gradu-
ally reduced. On highways, the reduced
speed may be lower than other traffic
which could increase the chance of a
collision. Be especially careful when
driving. If necessary, pull to the side of
the road at a safe place and allow the
engine to cool or the transmission to
return to normal operation.
Tongue loadKeep the tongue load between 9 to 11% of the
total trailer load within the maximum tongue load
limits shown in the following Towing
Load/Specifications Chart. If the tongue load
becomes excessive, rearrange cargo to allow for
proper tongue load.
Maximum gross vehicle weight/
maximum gross axle weightThe gross vehicle weight of the towing vehicle
must not exceed the gross vehicle weight rating
(GVWR) shown on the F.M.V.S.S. certification
label. The gross vehicle weight equals the com-
bined weight of the unloaded vehicle, passen-
gers, luggage, hitch, trailer tongue load and any
other optional equipment. In addition, front or
rear gross axle weight must not exceed the
gross axle weight rating (GAWR) shown on the
F.M.V.S.S. certification label.
TI1012M
Technical and consumer information
9-17


03.1.28/Z50-D/V5.0

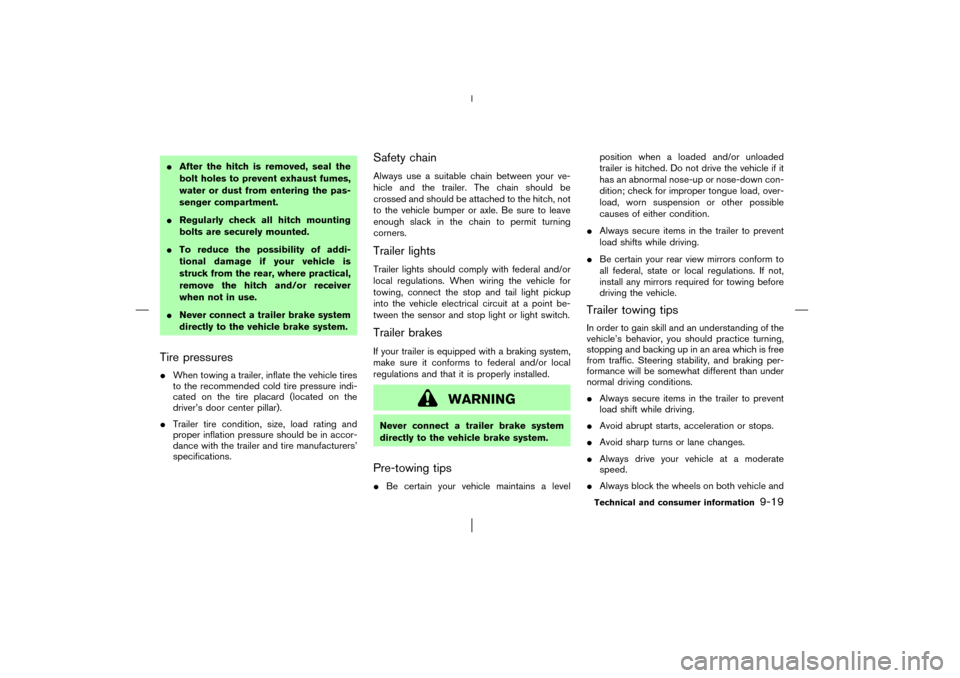

After the hitch is removed, seal the
bolt holes to prevent exhaust fumes,
water or dust from entering the pas-
senger compartment.

Regularly check all hitch mounting
bolts are securely mounted.

To reduce the possibility of addi-
tional damage if your vehicle is
struck from the rear, where practical,
remove the hitch and/or receiver
when not in use.

Never connect a trailer brake system
directly to the vehicle brake system.Tire pressures
When towing a trailer, inflate the vehicle tires
to the recommended cold tire pressure indi-
cated on the tire placard (located on the
driver’s door center pillar).

Trailer tire condition, size, load rating and
proper inflation pressure should be in accor-
dance with the trailer and tire manufacturers’
specifications.
Safety chainAlways use a suitable chain between your ve-
hicle and the trailer. The chain should be
crossed and should be attached to the hitch, not
to the vehicle bumper or axle. Be sure to leave
enough slack in the chain to permit turning
corners.Trailer lightsTrailer lights should comply with federal and/or
local regulations. When wiring the vehicle for
towing, connect the stop and tail light pickup
into the vehicle electrical circuit at a point be-
tween the sensor and stop light or light switch.Trailer brakesIf your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
WARNING
Never connect a trailer brake system
directly to the vehicle brake system.Pre-towing tips
Be certain your vehicle maintains a levelposition when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down con-
dition; check for improper tongue load, over-
load, worn suspension or other possible
causes of either condition.

Always secure items in the trailer to prevent
load shifts while driving.

Be certain your rear view mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
Trailer towing tipsIn order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability, and braking per-
formance will be somewhat different than under
normal driving conditions.

Always secure items in the trailer to prevent
load shift while driving.

Avoid abrupt starts, acceleration or stops.

Avoid sharp turns or lane changes.

Always drive your vehicle at a moderate
speed.

Always block the wheels on both vehicle andTechnical and consumer information
9-19


03.1.28/Z50-D/V5.0
