2003 MERCEDES-BENZ SL500 roof

61 Safety and Security
Occupant safety
Roll barThe roll bar raises automatically in an acci-
dent or in a critical driving situation. You
can also raise and lower the roll bar manu-
ally using the buttons provided.
The buttons for the roll bar are on the cen-
ter console under the roof switch.
1Lower roll bar
2Raise roll bar
The roll bar can be moved manually when
the ignition is turned on.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When scrapping the emergency tensioning
device, our safety instructions must be fol-
lowed. These are available at your autho-
rized Mercedes-Benz Center.!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.
Warning!
G
This vehicle is a two occupant vehicle. The
rear storage area is not intended for use by
occupants and is not equipped for properly
seating or restraining occupants. Thus this
area should never be used by any persons.
Before operating the roll bar switch make
sure that the roll bar’s path is clear and no
persons are injured by the moving roll bar
due to inattention. Raising or lowering of the
roll bar could injure someone inadvertently
occupying the rear storage area.
For your own safety we recommend to drive
with the roll bar raised if the outside temper-
ature is below +5°F (-15°C).!If the outside temperature falls below
+5°F (-15°C), the roll bar must be
raised manually using the buttons pro-
vided to avoid damaging the hydraulics.
iWhen the roll bar is raised automatical-
ly, you will hear a ratcheting sound.

159 Controls in detail
Retractable hardtop
Retractable hardtop
Opening and closing the retractable hardtop
For safety reasons, the retractable hardtop
can only be opened and closed when the
vehicle is standing still.Warning!
G
Before operating the switch for the retract-
able hardtop, make sure that no persons are
injured by the moving parts (retractable
roof, roof frame, and trunk lid) due to inat-
tention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
tractable hardtop switch. This immediately
interrupts the raising or lowering procedure.
You then can operate the hardtop switch to
raise or lower the hardtop away from the
danger zone.
Warning!
G
When leaving the vehicle, always remove the
key from starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you,
and lock your vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment can cause an accident
and/or serious personal injury.
!Never sit or place heavy objects on the
rear shelf. Doing so could cause dam-
age to the retractable hardtop and the
rear shelf.
!When opening and closing the retract-
able roof, make sure that

there is sufficient clearance for the
hardtop to move up and the trunk
lid to move back


the luggage cover is extended and
closed


the trunk lid is closed


no roof luggage carrier is installed


the outside temperature is above
+5°F (–15°C)
Otherwise the roof and trunk of the ve-
hicle could be damaged.

160 Controls in detailRetractable hardtopLuggage cover

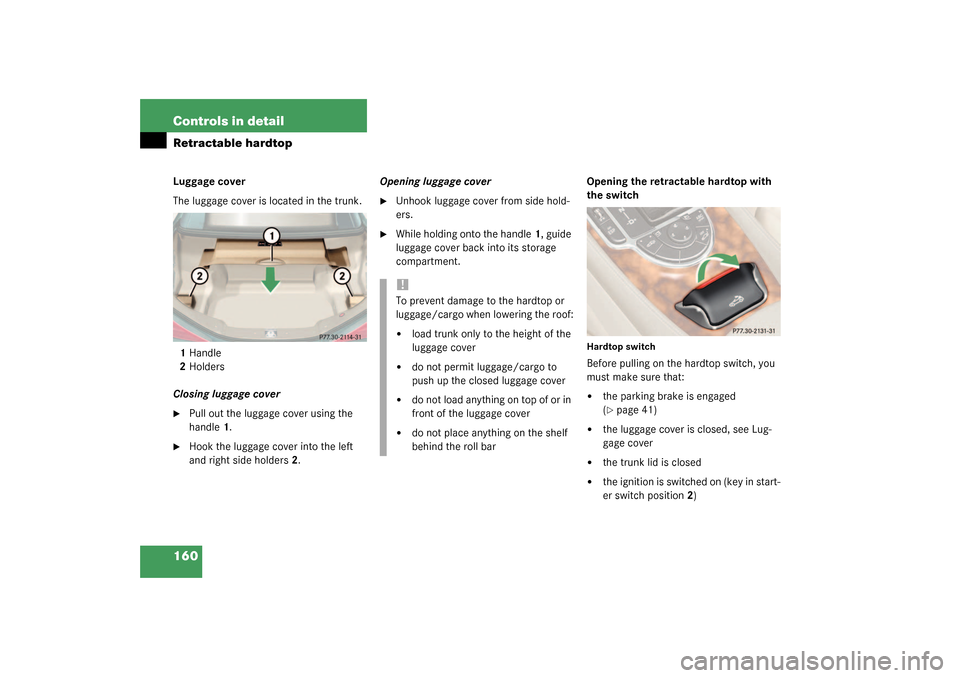

The luggage cover is located in the trunk.
1Handle
2Holders
Closing luggage cover
Pull out the luggage cover using the
handle1.

Hook the luggage cover into the left
and right side holders2.Opening luggage cover

Unhook luggage cover from side hold-
ers.

While holding onto the handle1, guide
luggage cover back into its storage
compartment. Opening the retractable hardtop with
the switch
Hardtop switchBefore pulling on the hardtop switch, you
must make sure that:

the parking brake is engaged
(page 41)


the luggage cover is closed, see Lug-
gage cover


the trunk lid is closed


the ignition is switched on (key in start-
er switch position2)
!To prevent damage to the hardtop or
luggage/cargo when lowering the roof:

load trunk only to the height of the
luggage cover


do not permit luggage/cargo to
push up the closed luggage cover


do not load anything on top of or in
front of the luggage cover


do not place anything on the shelf
behind the roll bar

161 Controls in detail
Retractable hardtop

Pull up on the hardtop switch as indi-
cated by the arrow until the hardtop is
completely lowered into its trunk stor-
age compartment and the indicator
lamp in the hardtop switch goes out.
The multifunction display will briefly
show the message
Hardtop open
.Closing the retractable hardtop with
the switch
Before pressing the hardtop switch, you
must make sure that:


the parking brake is engaged
(page 41)


the luggage cover is closed
(page 160)


the trunk lid is closed


the ignition is switched on (key in start-
er switch position2)

Press the hardtop switch as indicated
by the arrow until the hardtop is com-
pletely closed and locked and the indi-
cator lamp in the hardtop switch goes
out.
The multifunction display will briefly
show the message
Hardtop closed
.
iBe sure that the roof is dry before you
open it. Otherwise water may enter the
trunk interior.
Warning!
G
If the retractable hardtop is not fully opened
or closed, a warning will sound after 15 sec-
onds, pressure in the hardtop’s hydraulic
system will drop and the hardtop will lower.
Be sure to keep the hardtop switch pulled or
pressed until the hardtop is fully opened or
closed. The hydraulic pump will then shut
off.
To prevent possible accidents, drive the ve-
hicle only with the hardtop either completely
closed and locked, or fully lowered into its
storage compartment.

163 Controls in detail
Retractable hardtop
Opening the retractable hardtop with
the key

Aim the transmitter eye at the door
handle.

Press and hold button
Œ
until the
retractable hardtop is completely
open.
The seat ventilation switches on. The
rear side windows open. In the tachom-
eter display you will see the message
Hardtop open
.
Warning!
G
If the retractable hardtop does not com-
pletely open or close, the roof hydraulics will
lose pressure and the retractable hardtop is
lowered

after approximately seven minutes
when the ignition is switched on


after approximately 15 seconds when
the ignition is switched off
Shortly before the hardtop is lowered, a
warning will sound and the hardtop switch
lamp will blink. In the speedometer display
you will see
K
, in the tachometer display
you will see the message
being lowered!


Properly lock the retractable hardtop
(page 162) before continuing to drive
Warning!
G
Before operating the switch for the retract-
able hardtop make sure that no persons are
injured by the moving parts (retractable
roof, roof frame, and trunk lid) due to inat-
tention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
spective button on the SmartKey. This im-
mediately interrupts the raising or lowering
procedure. You then can operate
Œ
or
‹
to raise or lower the hardtop away
from the danger zone.

164 Controls in detailRetractable hardtopClosing the retractable hardtop with
the key
Aim the transmitter eye at the door
handle.

Press and hold button
‹
until the
retractable hardtop is completely
closed.
The retractable hardtop and the side
windows close. In the tachometer dis-
play you will see the message Hardtop
closed
.Problems when operating the retract-
able hardtop
Indicator lamp in the retractable hard-
top switch is blinking
Several problems may cause the indicator
lamp in the hardtop switch to blink when
activated:


The luggage cover in the trunk is not
closed.
Close the luggage cover in the
trunk.


The trunk lid is open.
Close the trunk lid.


The battery voltage is too low.
Start engine and let run while acti-
vating switch.


The hardtop drive system has shut it-
self down. For safety reasons, no more
than five consecutive attempts may be
made to raise or lower the hardtop.
After about ten minutes you may
again attempt to open or close the
retractable hardtop again.
If the indicator lamp in the retractable
hardtop switch blinks when starting off or
while driving and you hear a warning sound
for a maximum of 10 seconds, the retract-
able hardtop is not locked.

Properly lock the retractable hardtop
(page 162) before continuing to
drive.
If the indicator lamp continues to blink af-
ter you have carried out the above actions,
there is a malfunction.

Have the retractable hardtop system
checked at an authorized
Mercedes-Benz Center.
Warning!
G
If the retractable hardtop does not com-
pletely open or close a warning sounds and
the retractable hardtop switch blinks. In the
speedometer display you will see
K
, in
the tachometer display you will see the mes-
sage
being lowered!
. After about
15 seconds the roof hydraulics lose pres-
sure.
Properly lock the retractable hardtop
(
page 162) before continuing to drive.

166 Controls in detailRetractable hardtop2Close the fastening straps
Guide the fastening straps around the
top of the roll bar and close the buck-
les.

Tighten the fastening straps if neces-
sary.

Lower the roll bar.

Fold the upper section of the wind
screen up towards the head restraints
until it stops.Removing

Fold the upper section of the wind
screen back down.

Raise the roll bar slightly (
page 61).
1Release button

Undo the buckles on the upper section
of the roll bar by pressing the release
button1.

Lower the roll bar. Make sure that the
fastening straps do not get caught.

Pull the wind screen out towards the
front of the vehicle. Be careful not to
damage interior trim with the guide
tabs.

Place the wind screen back into the
bag.
Sunshade for panorama roof*
The sunshade protects you from excessive
sunlight coming in through the panorama
roof.Warning!
G
Do not operate the sunshade while driving.
Adjusting the sunshade while driving could
cause the driver to lose control of the vehi-
cle.

199 Controls in detail
Useful features
Lowering the hardtop
The hardtop can only be lowered when the
luggage cover is closed and the trunk lid is
completely opened.
Close the luggage cover.

Press button3.
The hardtop lowers. Button3 is dimly
lit.
Electrical outlet
An electrical outlet is located on the right
side of the trunk.
Turn the key in the starter switch to
position1 or2.

Flip up cover and insert electrical plug
(cigar lighter type).
Telephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.
!Only close the trunk if the roof is com-
pletely lowered. Otherwise you could
damage the hardtop.
If you begin to close the trunk lid before
the hardtop is completely lowered, the
button3 will blink and a warning will
sound.
iThe electrical outlet can be used to ac-
commodate electrical consumers (e.g.
air pump, auxiliary lamps) up to a max-
imum of 180 W.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.
