2003 MERCEDES-BENZ SL500 Power steering

ContentsControls in detail............................... 79
Locking and unlocking ......................... 80
Keys ............................................... 80
KEYLESS-GO card*......................... 84
Opening the doors from the inside . 89
Opening the trunk from the inside.. 89
Trunk lid emergency release .......... 90
Closing the trunk lid ....................... 91
Automatic central locking .............. 91
Locking and unlocking
from the inside ............................... 92
Seats.................................................... 93
Lumbar support .............................. 93
Multicontour backrest* .................. 93
Moving the seats forward and
backward........................................ 95
Seat ventilation* ............................ 96
Seat heater..................................... 97
Memory function.................................. 99
Storing positions into memory ..... 100
Recalling positions from memory . 100
Storing parking position ............... 100
Lighting .............................................. 102
Exterior lamp switch ..................... 102
Combination switch...................... 104Hazard warning flasher ................ 105
Interior lighting............................. 106
Courtesy lighting .......................... 107
Instrument cluster ............................. 108
Instrument cluster illumination .... 108
Coolant temperature gauge ......... 108
Trip odometer .............................. 109
Tachometer .................................. 109
Outside temperature indicator ..... 109
Control system .................................. 110
Multifunction display .................... 110
Multifunction steering wheel ........ 111
Menus .......................................... 113
Standard display menu ................ 115
AUDIO menu ................................ 115
NAVI menu ................................... 117
Distronic* menu........................... 117
Malfunction memory menu .......... 118
Settings menu .............................. 119
Trip computer menu ..................... 131
TEL menu* ................................... 133
Automatic transmission ..................... 137
One-touch gearshifting................. 138
Gear ranges.................................. 139
Gear selector lever position ......... 140
Program mode selector switch..... 141Accelerator position ..................... 142
Steering wheel gearshift control
(Speedshift) and manual shift program
SL 55 AMG................................... 142
Emergency operation (Limp Home
Mode) .......................................... 144
Good visibility .................................... 145
Rear view mirror .......................... 145
Headlamp cleaning system .......... 146
Rear window defroster ................. 146
Sun visors .................................... 146
Automatic climate control ................. 147
Setting the temperature............... 149
Adjusting air volume .................... 150
Adjusting air distribution .............. 151
Maximum cooling MAXCOOL ....... 151
Defrosting .................................... 151
Air recirculation mode.................. 152
Rear window defroster ................. 153
Residual heat and ventilation ....... 154
Deactivating the automatic climate
control system ............................. 154
Air conditioning ............................ 155
Ventilated storage compartments 156
Power windows.................................. 157
Opening and closing the windows 157

Contents
Retractable hardtop........................... 159
Opening and closing the retractable
hardtop ........................................ 159
Driving systems ................................. 168
Cruise control .............................. 168
Distronic* .................................... 171
Active Body Control (ABC) ........... 183
Parktronic system* ...................... 186
Useful features .................................. 190
Interior storage spaces ................ 190
Ashtray......................................... 196
Cigarette lighter ........................... 197
Heated steering wheel* (Canada
only–model SL 500) ..................... 197
Easy-Pack load assist in the trunk 198
Electrical outlet ............................ 199
Telephone* .................................. 199
Tele Aid ........................................ 200
Garage door opener ..................... 208Operation......................................... 213
The first 1000 miles (1500 km) ......... 214
Driving instructions............................ 215
Drive sensibly – save fuel............. 215
Drinking and driving ..................... 215Pedals ........................................... 215

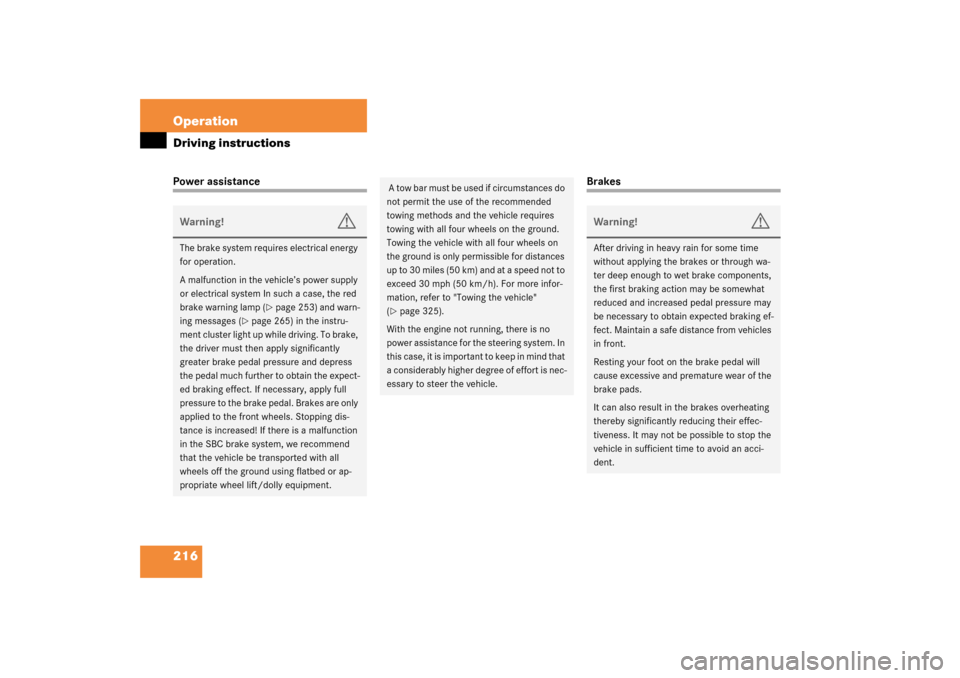

Power assistance .......................... 216
Brakes........................................... 216
Driving off ..................................... 218
Parking.......................................... 218
Tires .............................................. 219
Hydroplaning................................. 219
Tire traction .................................. 220
Tire speed rating ........................... 220
Winter driving instructions ............ 221
Standing water.............................. 222
Passenger compartment ............... 222
Driving abroad .............................. 222
Control and operation of radio trans-
mitters .......................................... 222
Catalytic converter........................ 223
Emission control ........................... 224
Coolant temperature..................... 224
At the gas station ............................... 225
Check regularly and before a
long trip ........................................ 226Engine compartment .......................... 227
Hood ............................................. 227
Engine oil ...................................... 228
Transmission fluid level ................ 230
Oil level in the ABC system ........... 230
Coolant ......................................... 230
Battery .......................................... 232
Windshield washer system and
headlamp cleaning system ........... 233
Tires and wheels ................................ 234
Important guidelines ..................... 234
Life of tires ................................... 235
Direction of rotation ..................... 235
Checking tire inflation pressure .... 235
Rotating wheels ............................ 238
Winter driving ..................................... 239
Winter tires ................................... 239
Block heater (Canada only) ........... 240
Snow chains ................................. 240
Maintenance ...................................... 241
Clearing the service indicator ....... 241
Service term exceeded ................. 241
Calling up the service indicator .... 242
Resetting the service indicator ..... 242
Vehicle care ....................................... 243
Cleaning and care of the vehicle ... 243

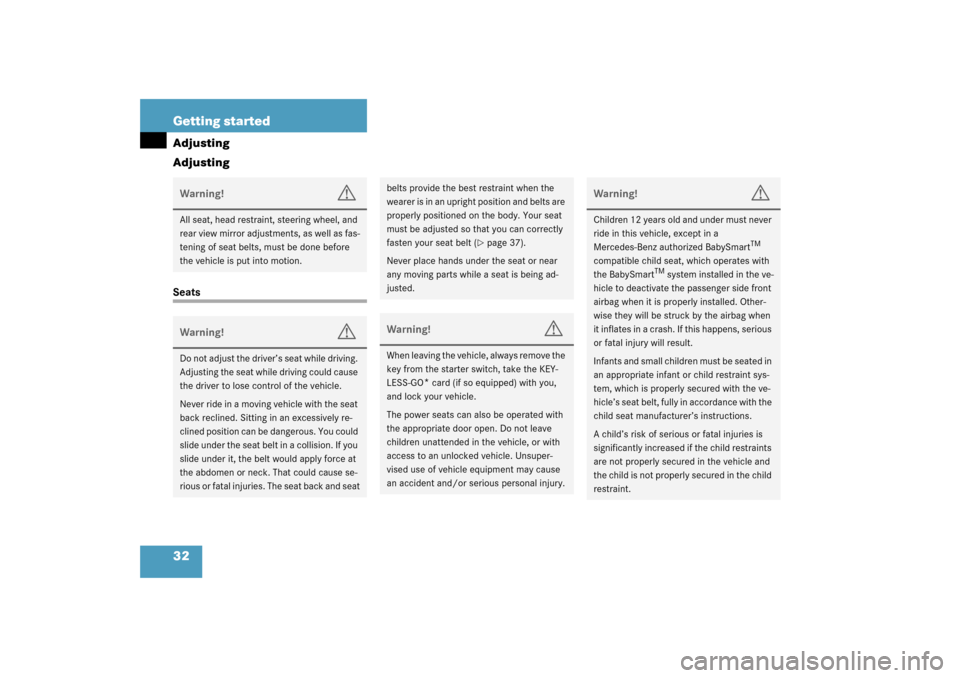

32 Getting startedAdjusting
AdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck. That could cause se-
rious or fatal injuries. The seat back and seat
belts provide the best restraint when the
wearer is in an upright position and belts are
properly positioned on the body. Your seat
must be adjusted so that you can correctly
fasten your seat belt (
page 37).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you,
and lock your vehicle.
The power seats can also be operated with
the appropriate door open. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Warning!
G
Children 12 years old and under must never
ride in this vehicle, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
Infants and small children must be seated in
an appropriate infant or child restraint sys-
tem, which is properly secured with the ve-
hicle’s seat belt, fully in accordance with the
child seat manufacturer’s instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.

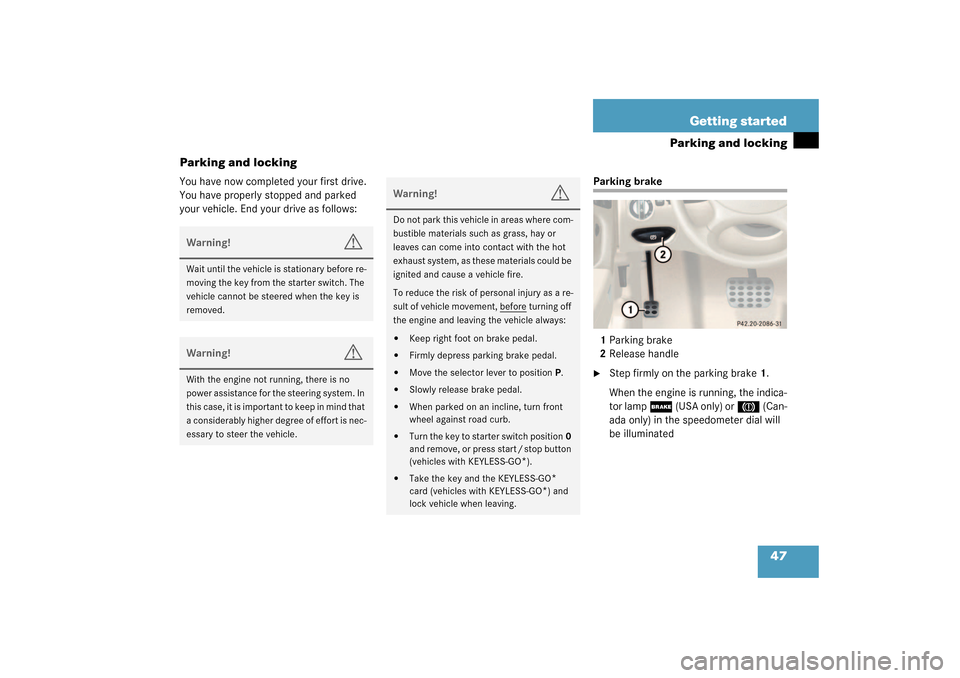

47 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows:
Parking brake
1Parking brake
2Release handle
Step firmly on the parking brake1.
When the engine is running, the indica-
tor lamp
;
(USA only) or
3
(Can-
ada only) in the speedometer dial will
be illuminated
Warning!
G
Wait until the vehicle is stationary before re-
moving the key from the starter switch. The
vehicle cannot be steered when the key is
removed.Warning!
G
With the engine not running, there is no
power assistance for the steering system. In
this case, it is important to keep in mind that
a considerably higher degree of effort is nec-
essary to steer the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before
turning off
the engine and leaving the vehicle always:


Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the selector lever to positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel against road curb.


Turn the key to starter switch position0
and remove, or press start / stop button
(vehicles with KEYLESS-GO
*).


Take the key and the KEYLESS-GO
*
card (vehicles with KEYLESS-GO
*) and
lock vehicle when leaving.

171 Controls in detail
Driving systems
Distronic*
When activated, the Distronic adaptive
cruise control system increases the driving
convenience afforded by the cruise control
during travel on expressways and other
major roads.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at a preset
distance.


If there is no vehicle directly ahead of
you, Distronic will function in the same
way as cruise control (
page 168).
Warning!
G
Distronic adaptive cruise control is no sub-
stitute for active driving involvement. It does
not react to stationary objects, nor recog-
nize or predict the curvature and lane layout
or the movement of vehicles ahead. Distron-
ic can only apply a maximum of 20% of the
vehicle’s braking power.
It is the driver’s responsibility at all times to
be attentive to road, weather and traffic con-
ditions and to provide the steering, braking
and other driving inputs necessary to retain
control of the vehicle.Warning!
G
Distronic is a convenience system, its speed
adjustment reduction capability is intended
to make cruise control more effective and
usable when traffic speeds vary. It is not
however, intended to, nor does it, replace
the need for extreme care. The responsibili-
ty for the vehicle speed and the distance to
the vehicle ahead, including most impor-
tantly brake operation to assure safe stop-
ping distance, always rests with the driver.
Distronic cannot take street and traffic con-
ditions into account.
Warning!
G
Distronic requires familiarity with its opera-
tional characteristics. We strongly recom-
mend that you review the following
information carefully before operating the
system.iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:

This device may not cause harmful
interference, and


this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

216 OperationDriving instructionsPower assistance
Brakes
Warning!
G
The brake system requires electrical energy
for operation.
A malfunction in the vehicle’s power supply
or electrical system In such a case, the red
brake warning lamp (
page 253) and warn-
ing messages (
page 265) in the instru-
ment cluster light up while driving. To brake,
the driver must then apply significantly
greater brake pedal pressure and depress
the pedal much further to obtain the expect-
ed braking effect. If necessary, apply full
pressure to the brake pedal. Brakes are only
applied to the front wheels. Stopping dis-
tance is increased! If there is a malfunction
in the SBC brake system, we recommend
that the vehicle be transported with all
wheels off the ground using flatbed or ap-
propriate wheel lift/dolly equipment.
A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, refer to "Towing the vehicle"
(page 325).
With the engine not running, there is no
power assistance for the steering system. In
this case, it is important to keep in mind that
a considerably higher degree of effort is nec-
essary to steer the vehicle.
Warning!
G
After driving in heavy rain for some time
without applying the brakes or through wa-
ter deep enough to wet brake components,
the first braking action may be somewhat
reduced and increased pedal pressure may
be necessary to obtain expected braking ef-
fect. Maintain a safe distance from vehicles
in front.
Resting your foot on the brake pedal will
cause excessive and premature wear of the
brake pads.
It can also result in the brakes overheating
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an acci-
dent.

261 Practical hints
What to do if …
Left display
Right display
Possible cause
Possible solution
ESP
Defective!
Visit workshop!
The ESP is deactivated because of
a malfunction or an interrupted
power supply. The SBC brake sys-
tem is still functioning normally.
The ABS may still be operational.

With the vehicle stationary, turn the steering
wheel completely to the left and then to the
right to synchronize the ESP.
If the ESP message does not go out:

Continue driving with added caution.

Visit an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases the
risk of accident.
Display defective
Visit workshop!
ESP or the ESP display is malfunc-
tioning.

Continue driving with added caution.

Visit an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases the
risk of accident.

326 Practical hintsTowing the vehicleWarning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the SBC brake
system


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain that the key is in
starter switch position2.
If the key is left in the starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move key from starter switch and reinsert.
iTo signal turns while being towed with
the hazard warning flasher in use, turn
key in starter switch to position2 and
activate the combination switch for the
left or right turn signal in the usual
manner – only the selected turn signal
will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.
Warning!
G
The brake system requires electrical power
to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its
limp-home (emergency operation) mode. To
brake, the driver must then apply signifi-
cantly greater brake pedal pressure and de-
press the pedal much further to obtain the
expected braking effect. If necessary, apply
full pressure to the brake pedal. Brakes are
only applied to the front wheels. Stopping
distance is increased! Adapt your driving
style accordingly. SBC brake system
(page 72).
With the engine not running, there is no
power assistance for the steering system. In
this case, it is important to keep in mind that
a considerably higher degree of effort is nec-
essary to steer the vehicle. Adapt your driv-
ing accordingly.
