2003 MERCEDES-BENZ S CLASS key

93 Controls in detail
Locking and unlocking
Checking vehicle lock status
If you cannot remember whether you have
locked the vehicle, you can check the lock
status using the KEYLESS-GO card.
Briefly press programming button1.
The indicator lamp for “Driver’s door”2
or “Central unlock”3 lights up in red or
green.
Vehicle lock status:
Red: Vehicle is locked
Green: Vehicle is unlockedLocking the vehicle
1Trunk lock button

Press the lock button at door
(page 53) or trunk1.Closing the side windows and
sliding/pop-up roof

Press and hold lock button at the door
(page 53) until the side windows and
the sliding/pop-up roof are closed.
iWhen the vehicle is unlocked and the
anti-theft alarm system is switched off,
the turn signals illuminate briefly. If it is
dark, the locator lighting also switches
on (
page 122).
When the vehicle is locked and the an-
ti-theft alarm system is activated, the
turn signals flash three times.
Warning!
G
When closing the windows and the slid-
ing/pop-up roof, be sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
If potential danger exists, proceed as fol-
lows:

Release the lock button.


Pull on the door handle and hold firmly.
The side windows and the slid-
ing/pop-up roof will open for as long as
the door handle is held but the door is
not opened.

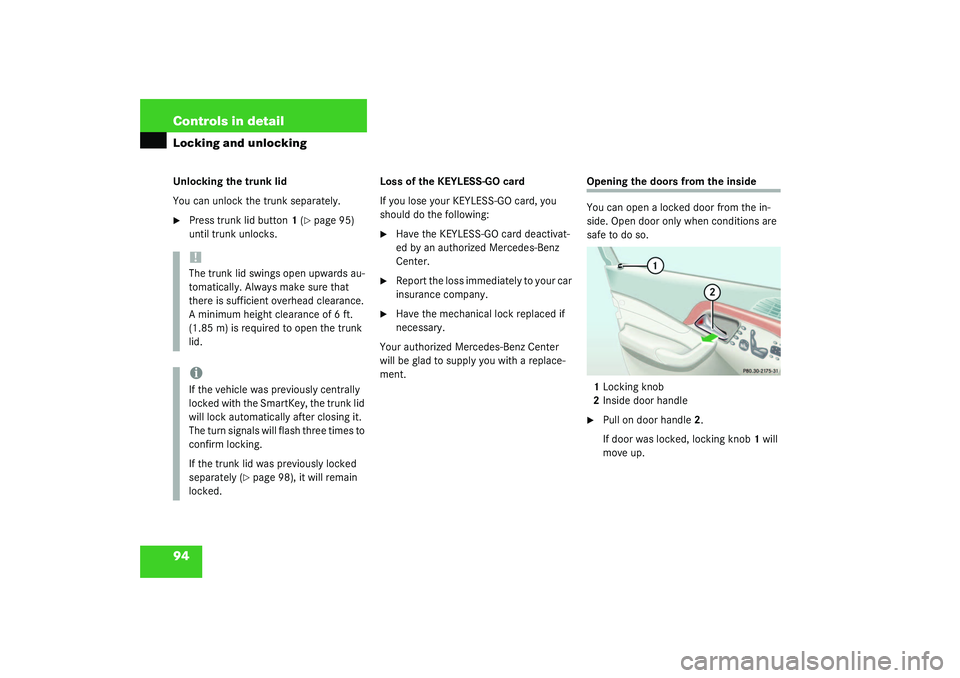

94 Controls in detailLocking and unlockingUnlocking the trunk lid
You can unlock the trunk separately.
Press trunk lid button1 (
page 95)
until trunk unlocks.Loss of the KEYLESS-GO card
If you lose your KEYLESS-GO card, you
should do the following:

Have the KEYLESS-GO card deactivat-
ed by an authorized Mercedes-Benz
Center.

Report the loss immediately to your car
insurance company.

Have the mechanical lock replaced if
necessary.
Your authorized Mercedes-Benz Center
will be glad to supply you with a replace-
ment.
Opening the doors from the inside
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
1Locking knob
2Inside door handle
Pull on door handle2.
If door was locked, locking knob1 will
move up.
!The trunk lid swings open upwards au-
tomatically. Always make sure that
there is sufficient overhead clearance.
A minimum height clearance of 6 ft.
(1.85 m) is required to open the trunk
lid.iIf the vehicle was previously centrally
locked with the SmartKey, the trunk lid
will lock automatically after closing it.
The turn signals will flash three times to
confirm locking.
If the trunk lid was previously locked
separately (
page 98), it will remain
locked.

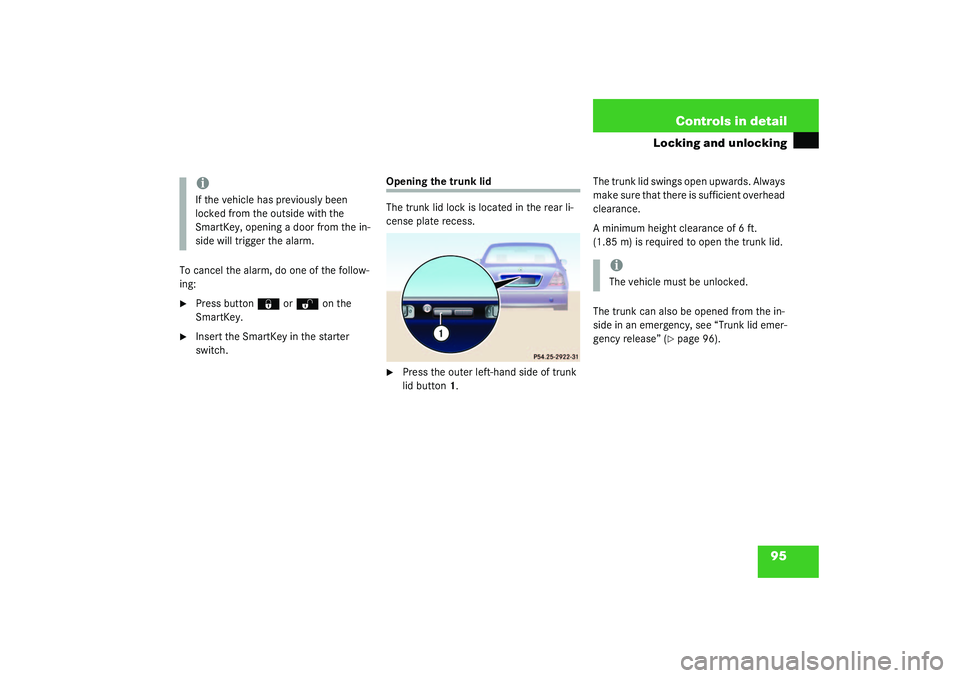

95 Controls in detail
Locking and unlocking
To cancel the alarm, do one of the follow-
ing:
Press button
‹
or
Œ
on the
SmartKey.

Insert the SmartKey in the starter
switch.
Opening the trunk lid
The trunk lid lock is located in the rear li-
cense plate recess.
Press the outer left-hand side of trunk
lid button1.The trunk lid swings open upwards. Always
make sure that there is sufficient overhead
clearance.
A minimum height clearance of 6 ft.
(1.85 m) is required to open the trunk lid.
The trunk can also be opened from the in-
side in an emergency, see “Trunk lid emer-
gency release” (
page 96).
iIf the vehicle has previously been
locked from the outside with the
SmartKey, opening a door from the in-
side will trigger the alarm.
iThe vehicle must be unlocked.

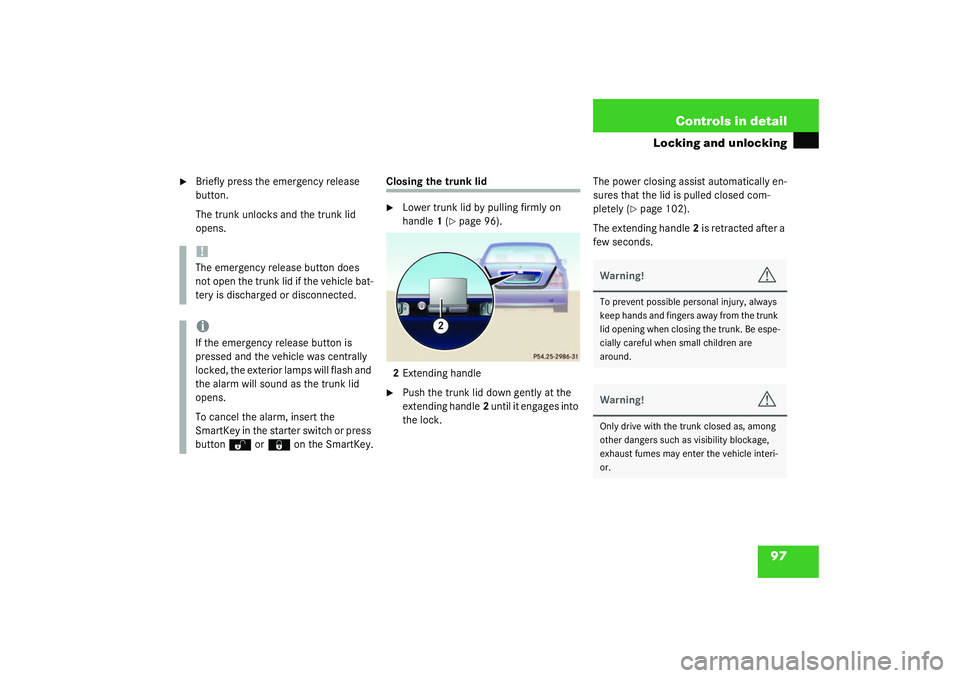

97 Controls in detail
Locking and unlocking

Briefly press the emergency release
button.
The trunk unlocks and the trunk lid
opens.
Closing the trunk lid
Lower trunk lid by pulling firmly on
handle1 (
page 96).
2Extending handle

Push the trunk lid down gently at the
extending handle2 until it engages into
the lock.The power closing assist automatically en-
sures that the lid is pulled closed com-
pletely (
page 102).
The extending handle2 is retracted after a
few seconds.
!The emergency release button does
not open the trunk lid if the vehicle bat-
tery is discharged or disconnected.iIf the emergency release button is
pressed and the vehicle was centrally
locked, the exterior lamps will flash and
the alarm will sound as the trunk lid
opens.
To cancel the alarm, insert the
SmartKey in the starter switch or press
button
Œ
or
‹
on the SmartKey.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
lid opening when closing the trunk. Be espe-
cially careful when small children are
around.Warning!
G
Only drive with the trunk closed as, among
other dangers such as visibility blockage,
exhaust fumes may enter the vehicle interi-
or.

98 Controls in detailLocking and unlocking
Separately locking the trunk
1Locked
2Unlocked
Close the trunk lid (
page 97)

Pull the mechanical key out of the
SmartKey (
page 326).

Insert the mechanical key into the
trunk lid lock.

Turn the mechanical key completely to
the right to position 1.
The trunk remains locked even when the
vehicle is centrally unlocked.
Separately unlocking the trunk
Turn the mechanical key completely to
the left to position 2.
You can now open the trunk.
A minimum height of 6 ft. (1.85 m) is re-
quired to open the trunk lid.
iTo prevent an inadvertent lockout, do
not place the SmartKey in the trunk.
Vehicles with KEYLESS-GO*: To pre-
vent a possible inadvertent lockout, the
trunk lid will open automatically if a
KEYLESS-GO card is recognized in the
area of the rear shelf or inside the
trunk.
iYou can only cancel the separate trunk
locking mode by means of the mechan-
ical key.

100 Controls in detailLocking and unlockingTrunk lid closing switch in trunk
1Trunk lid closing switch
Press closing switch1.
The trunk lid closes automatically.
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high) in the upper motion
sequence, the closing procedure is
stopped and the trunk re-opens slightly.Closing and locking the trunk with
KEYLESS-GO*
On vehicles with trunk lid opening/closing
system and KEYLESS-GO, you can close
the trunk lid and lock the vehicle simulta-
neously.
1Trunk lid closing switch
2KEYLESS-GO switch

Make sure that you have the SmartKey
and the KEYLESS-GO card with you.
Warning!
G
Monitor the closing procedure carefully to
ensure that no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
press the remote trunk lid switch (on driv-
er’s door control panel), the trunk lid closing
switch1, or the
Š
button on the
SmartKey.
iDo not place the SmartKey in the open
trunk. You may lock yourself out.
Vehicles with KEYLESS-GO*: To pre-
vent a possible inadvertent lockout, the
trunk lid will open automatically if a
KEYLESS-GO card is recognized in the
area of the rear shelf or inside the
trunk.

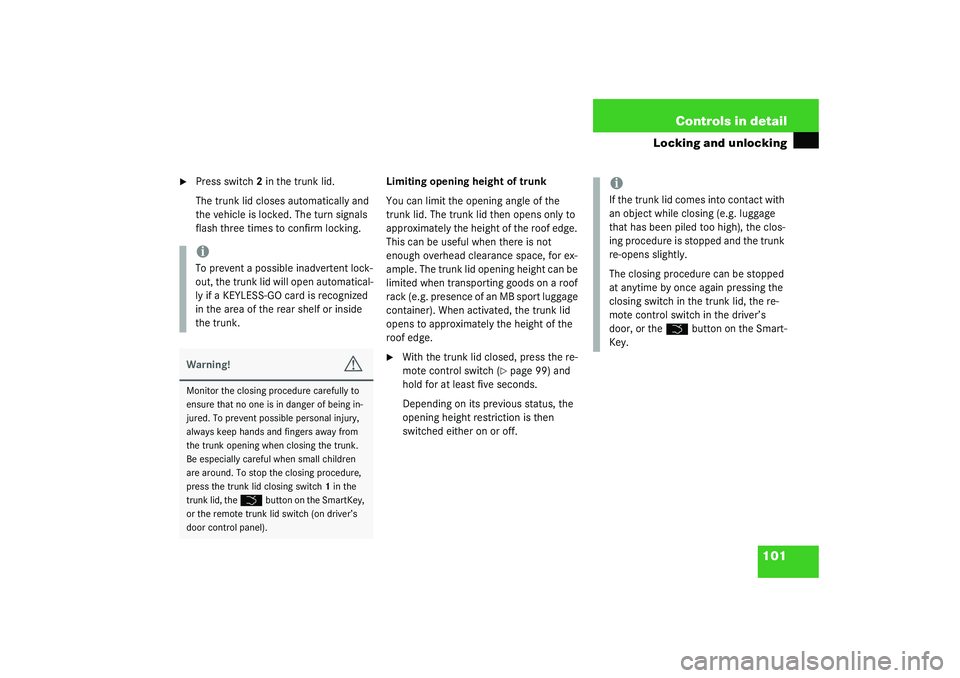

101 Controls in detail
Locking and unlocking

Press switch2 in the trunk lid.
The trunk lid closes automatically and
the vehicle is locked. The turn signals
flash three times to confirm locking.Limiting opening height of trunk
You can limit the opening angle of the
trunk lid. The trunk lid then opens only to
approximately the height of the roof edge.
This can be useful when there is not
enough overhead clearance space, for ex-
ample. The trunk lid opening height can be
limited when transporting goods on a roof
rack (e.g. presence of an MB sport luggage
container). When activated, the trunk lid
opens to approximately the height of the
roof edge.

With the trunk lid closed, press the re-
mote control switch (
page 99) and
hold for at least five seconds.
Depending on its previous status, the
opening height restriction is then
switched either on or off.
iTo prevent a possible inadvertent lock-
out, the trunk lid will open automatical-
ly if a KEYLESS-GO card is recognized
in the area of the rear shelf or inside
the trunk.Warning!
G
Monitor the closing procedure carefully to
ensure that no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
press the trunk lid closing switch1 in the
trunk lid, the
Š
button on the SmartKey,
or the remote trunk lid switch (on driver’s
door control panel).
iIf the trunk lid comes into contact with
an object while closing (e.g. luggage
that has been piled too high), the clos-
ing procedure is stopped and the trunk
re-opens slightly.
The closing procedure can be stopped
at anytime by once again pressing the
closing switch in the trunk lid, the re-
mote control switch in the driver’s
door, or the
Š
button on the Smart-
Key.

103 Controls in detail
Locking and unlocking
Locking and unlocking from the inside
You can lock or unlock the doors and the
trunk from inside using the central locking
switch. This can be useful, for example, if
you want to lock the vehicle before starting
to drive.
The fuel filler flap cannot be locked or un-
locked with the central locking switch.The switches are located in the center con-
sole.
Central locking/unlocking switches1Locking
2Unlocking
Locking
Press central locking switch1.
If both doors are closed, the vehicle
locks.Unlocking

Press central unlocking switch2.
The vehicle unlocks.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
KEYLESS-GO* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment may cause an accident
and/or serious personal injury.
iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
If the vehicle was previously centrally
locked with the SmartKey or the
KEYLESS-GO* card (if so equipped) it
will not unlock using the central locking
switch.
If the vehicle was previously locked
with the central locking switch:

While in the global remote control
mode, the vehicle is unlocked com-
pletely when a door is opened from
the inside.


While in the selective remote con-
trol mode, only the door opened
from inside is unlocked.
