254 OperationDriving instructions
Tires
Tread wear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and be-
come visible at a tread depth of approxi-
mately
1⁄16 in (1.5 mm), at which point the
tire is considered worn and should be re-
placed.The tread wear indicator appears as a solid
band across the tread.
Specified tire pressures must be main-
tained. This applies particularly if the tires
are subjected to high loads (e.g. high
speeds, heavy loads, high ambient temper-
atures).
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the selector lever to positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
KEYLESS-GO* start/stop button (vehi-
cles with KEYLESS-GO*).


Take the SmartKey or the KEYLESS-GO
*
card (if so equipped) with you and lock
vehicle when leaving.
Warning!
G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
ti o n t o an a re a wh ic h i s a s a fe dis ta n c e f ro m
the road.
Inspect the tires and the vehicle underbody
for possible damage. If the vehicle or tires
appear unsafe, have it towed to the nearest
Mercedes-Benz Center or tire dealer for re-
pairs.
Warning!
G
Do not allow your tires to wear down too far.
As tread depth approaches
1⁄16 in (1.5 mm),
the adhesion properties on a wet road are
sharply reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.

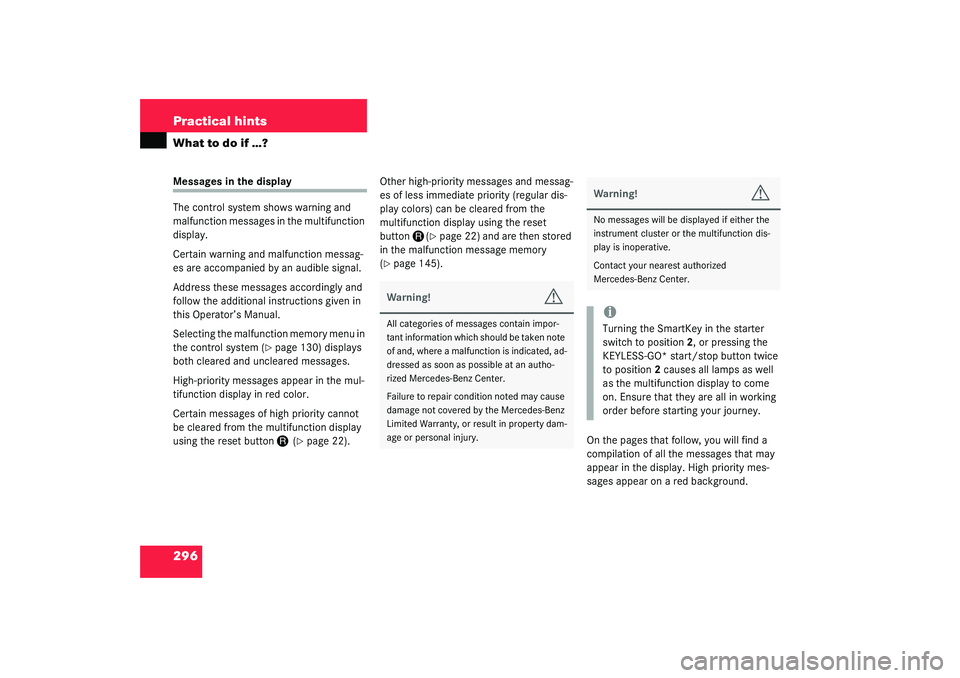

296 Practical hintsWhat to do if …?Messages in the display
The control system shows warning and
malfunction messages in the multifunction
display.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the malfunction memory menu in
the control system (
page 130) displays
both cleared and uncleared messages.
High-priority messages appear in the mul-
tifunction display in red color.
Certain messages of high priority cannot
be cleared from the multifunction display
using the reset buttonJ
(page 22).Other high-priority messages and messag-
es of less immediate priority (regular dis-
play colors) can be cleared from the
multifunction display using the reset
button
J
(page 22) and are then stored
in the malfunction message memory
(
page 145).
On the pages that follow, you will find a
compilation of all the messages that may
appear in the display. High priority mes-
sages appear on a red background.Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.
Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
Contact your nearest authorized
Mercedes-Benz Center.iTurning the SmartKey in the starter
switch to position2, or pressing the
KEYLESS-GO* start/stop button twice
to position2 causes all lamps as well
as the multifunction display to come
on. Ensure that they are all in working
order before starting your journey.

307 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
G
DISPLAY MALFUNCTION
VISIT WORKSHOP!
The instrument cluster display is malfunc-
tioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Center as soon as possible.
DISTRONIC
EXTERNAL INTERFERENCE
REACTIVATE!
Distronic* is switched off and is temporari-
ly unavailable.

Try activating Distronic* again later.
CLEAN SENSOR!
SEE OPERATOR'S MAN.
Distronic* is switched off because the Dis-
tronic* cover in the radiator grille is dirty.

Clean the Distronic* cover in the ra-
diator grille (
page 285).

Restart the vehicle.
VISIT WORKSHOP!
Distronic* is malfunctioning or the display
is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
J
DOOR OPEN!
You are attempting to drive with one or
more doors open.

Close the doors.
P
SHIFT
TO P
You have turned off the engine with the
KEYLESS-GO* start/stop button and
opened the driver’s door.

Place the selector lever in positionP.
?
VISIT WORKSHOP!
There may be a malfunction in the:

Fuel injection system


Ignition system


Exhaust system


Fuel system

Visit an authorized Mercedes-Benz
Center as soon as possible.

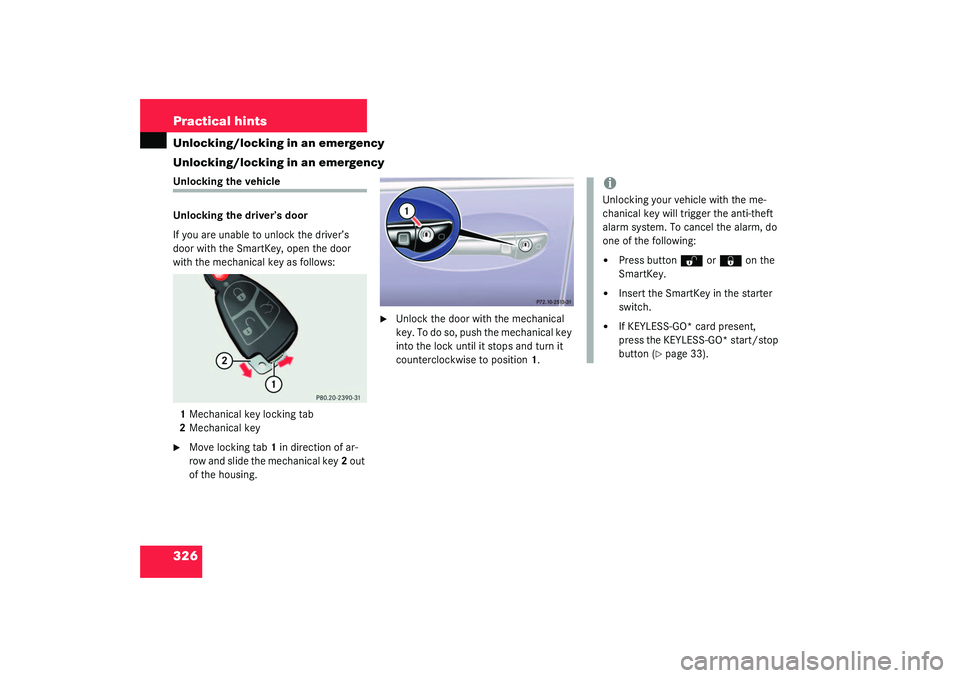

326 Practical hintsUnlocking/locking in an emergency
Unlocking/locking in an emergencyUnlocking the vehicle
Unlocking the driver’s door
If you are unable to unlock the driver’s
door with the SmartKey, open the door
with the mechanical key as follows:
1Mechanical key locking tab
2Mechanical key
Move locking tab1 in direction of ar-
row and slide the mechanical key2 out
of the housing.

Unlock the door with the mechanical
key. To do so, push the mechanical key
into the lock until it stops and turn it
counterclockwise to position1.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button
Œ
or
‹
on the
SmartKey.


Insert the SmartKey in the starter
switch.


If KEYLESS-GO* card present,
press the KEYLESS-GO* start/stop
button (
page 33).

327 Practical hints
Unlocking/locking in an emergency
Unlocking the trunk
If you are unable to unlock the trunk with
the SmartKey, open the trunk with the me-
chanical key as follows:Trunk lock
Insert the mechanical key into the
trunk lid lock.

Turn the mechanical key counterclock-
wise to position1.

Press button2.
The trunk lid swings open.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey or the KEYLESS-GO* card,
lock it with the mechanical key as follows:
Close the passenger doors and the
trunk lid.

Press the central locking switch in the
center console (
page 103).

Check to see whether the locking knob
on the passenger door is still visible. If
necessary push it down manually.

Lock the driver’s door with the me-
chanical key.

Lock the trunk lid if necessary with the
mechanical key (
page 326).
!The trunk lid swings open upwards au-
tomatically. Always make sure that
there is sufficient overhead clearance.
A minimum height clearance of 6 ft.
(1.85 m) is required to open the trunk
lid.iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button
Œ
or
‹
on the
SmartKey.


Insert the SmartKey in the starter
switch.


If KEYLESS-GO* card present,
press the start/stop button
(page 33).

344 Practical hintsBattery
Battery
The battery is located on the right side of
the trunk under the battery cover.
1Battery cover
Pull on the outer, right-hand side of
cover1 and remove it in the direction
of the arrow.
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Service Booklet for mainte-
nance intervals or contact your autho-
rized Mercedes-Benz Center for further
information.Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch and
pressing the KEYLESS-GO* start/stop
button (if so equipped) on the selector
lever will have no effect


the selector lever will remain locked in
positionP

351 Practical hints
Towing the vehicle
Installing towing eye bolt
1Cover on right side of front bumper2Cover on right side of rear bumper
Removing cover

Press mark on cover in direction of ar-
row.

Lift cover off to reveal threaded hole for
towing eye bolt.
Installing towing eye bolt

Take towing eye bolt and wheel wrench
out of trunk (
page 322).

Screw towing eye bolt clockwise into
its stop and tighten with wheel wrench.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button (if so equipped) in
position2, the vehicle doors lock if the
left front wheel as well as the right rear
wheel are turning at vehicle speeds of
approximately 9 mph (15 km/h) or
more.
Switch off the tow-away alarm
(page 84).
To prevent the vehicle doors from lock-
ing, deactivate the automatic central
locking (
page 102).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to vehicle chassis,
frame or suspension parts.
iThe selector lever will remain locked in
positionP and the SmartKey will not
turn in the starter switch if the battery
is disconnected or discharged. See
notes on the battery (
page 344) or
on jump starting (
page 347).

355 Practical hintsFuses
1Fuse box cover, front passenger side
2Slide
Opening
Push both slides2 to the
Œ
symbol.

Remove cover1.Closing

Replace cover1 and press it down by
hand.

Push both slides 2 to the
‹
symbol.
Emergency engine shut-down
If the engine can no longer be stopped us-
ing the SmartKey or the KEYLESS-GO*
start/stop button, the engine can be
turned off by withdrawing two fuses.
For easy removal of fuses, use the fuse
extractor (supplied with vehicle tool kit) to
pull out the fuses marked on the fuse chart
as "ENGINE EMERGENCY STOP".
The fuse chart is also located in the vehicle
tool kit (
page 322).
!The cover must fit properly and the
slide must be positioned at the
‹

symbol, as moisture or dirt may impair
the functionality of the fuses.
