2003 MERCEDES-BENZ S CLASS technical data

357 Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions
Weights
Fuels, coolants, lubricants etc.
Consumer information

358 Technical dataSpare parts serviceThe “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts serviceAll authorized Mercedes-Benz Centers
maintain a stock of original spare parts re-
quired for maintenance and repair work. In
addition, strategically located parts distri-
bution centers provide quick and reliable
parts service.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Mercedes-Benz original spare parts are
subjected to stringent quality inspections.
Each part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare
parts should be installed.
!The use of non-genuine parts and ac-
cessories not authorized by
Mercedes-Benz could damage the vehi-
cle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

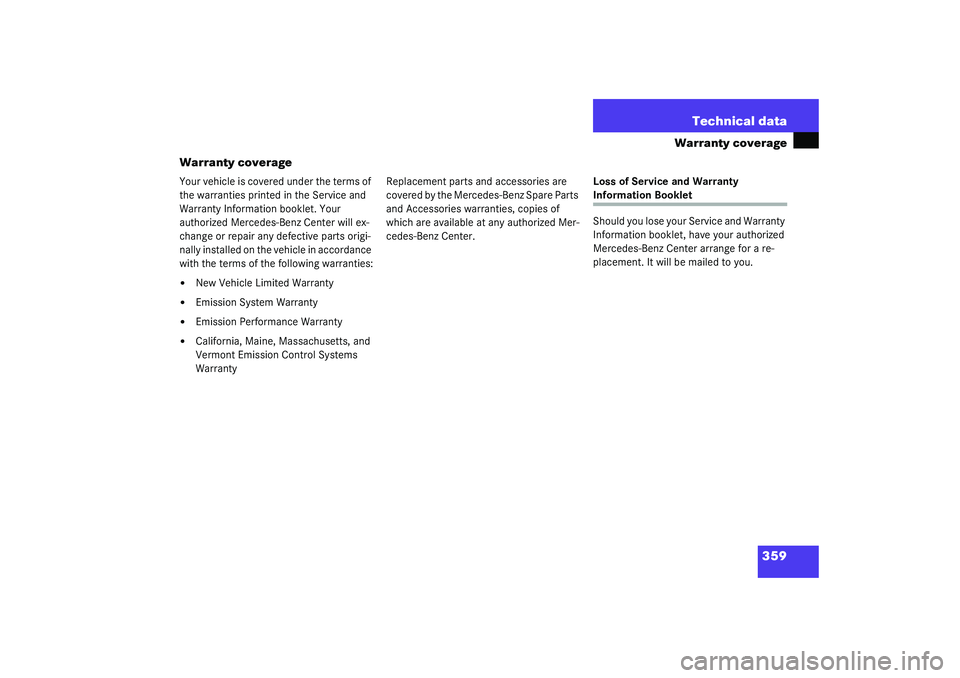

359 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed on the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any authorized Mer-
cedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

360 Technical dataIdentification labels
Identification labels1Certification label
(below driver’s door latch)2Vehicle Identification Number (VIN)
(below right rear passenger seat)3Engine number (engraved on engine)
4VIN, visible (lower edge of windshield)
5Emission control label
6Information label, California version
Vacuum line routing for emission con-
trol system
When ordering spare parts, please specify
vehicle identification and engine numbers.

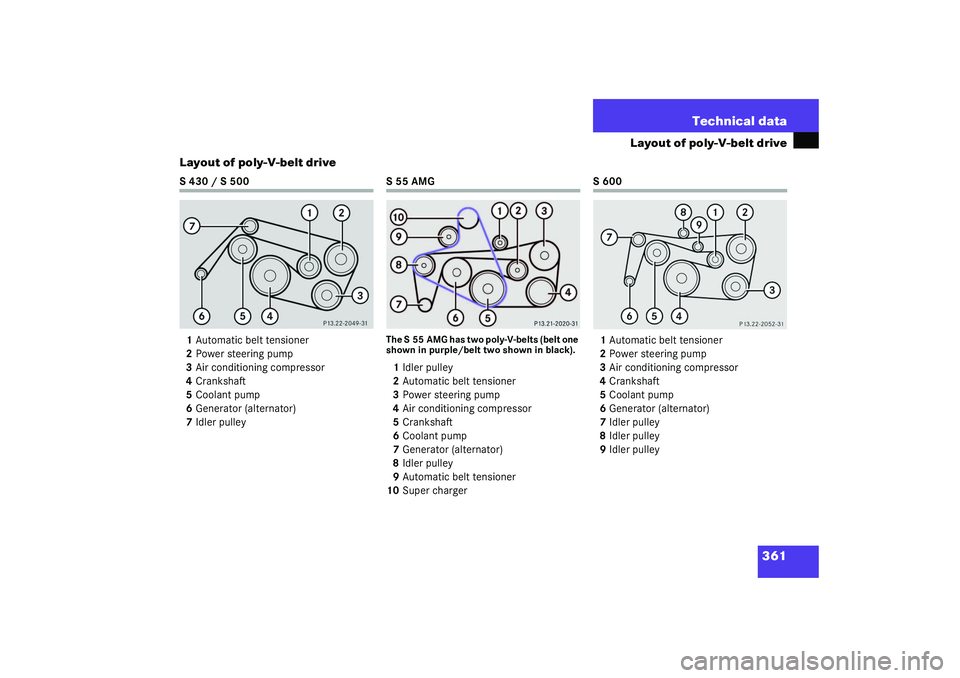

361 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
S 430 / S 500
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
S55AMGThe S 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black). 1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
10Super charger
S600
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
8Idler pulley
9Idler pulley

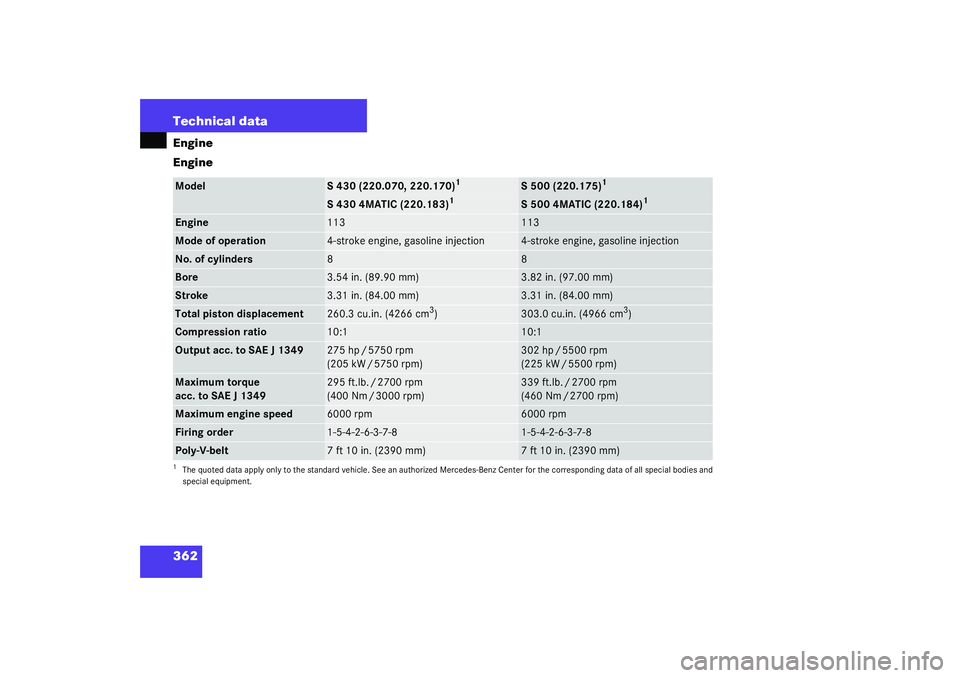

362 Technical dataEngine
EngineModel
S 430 (220.070, 220.170)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and
special equipment.
S 500 (220.175)
1
S 430 4MATIC (220.183)
1
S 500 4MATIC (220.184)
1
Engine
113
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
8
Bore
3.54 in. (89.90 mm)
3.82 in. (97.00 mm)
Stroke
3.31 in. (84.00 mm)
3.31 in. (84.00 mm)
Total piston displacement
260.3 cu.in. (4266 cm
3)
303.0 cu.in. (4966 cm
3)
Compression ratio
10:1
10:1
Output acc. to SAE J 1349
275 hp / 5750 rpm
(205 kW / 5750 rpm)
302 hp / 5500 rpm
(225 kW / 5500 rpm)
Maximum torque
acc. to SAE J 1349
295 ft.lb. / 2700 rpm
(400 Nm / 3000 rpm)
339 ft.lb. / 2700 rpm
(460 Nm / 2700 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
7 ft 10 in. (2390 mm)
7 ft 10 in. (2390 mm)

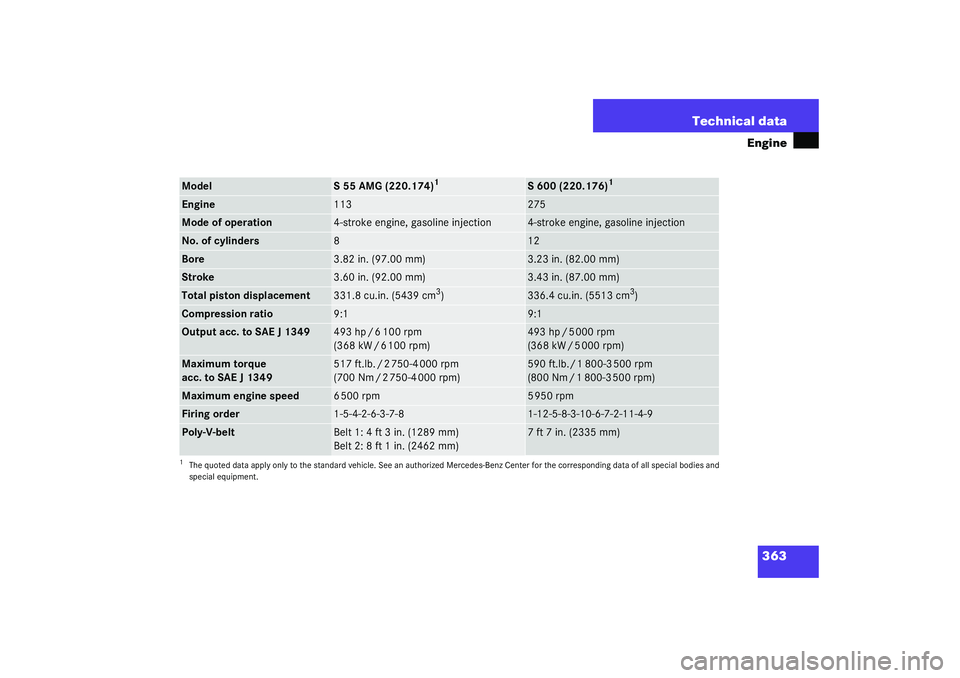

363 Technical data
Engine
Model
S 55 AMG (220.174)
1
S 600 (220.176)
1
Engine
113
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.82 in. (97.00 mm)
3.23 in. (82.00 mm)
Stroke
3.60 in. (92.00 mm)
3.43 in. (87.00 mm)
Total piston displacement
331.8cu.in. (5439cm
3)
336.4 cu.in. (5513 cm
3)
Compression ratio
9:1
9:1
Output acc. to SAE J 1349
493 hp / 6 100 rpm
(368 kW / 6 100 rpm)
493 hp / 5 000 rpm
(368 kW / 5 000 rpm)
Maximum torque
acc. to SAE J 1349
517 ft.lb. / 2 750-4 000 rpm
(700 Nm / 2 750-4 000 rpm)
590 ft.lb./ 1 800-3 500 rpm
(800 Nm / 1 800-3 500 rpm)
Maximum engine speed
6500 rpm
5 950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
Belt 1: 4 ft 3 in. (1289 mm)
Belt 2: 8 ft 1 in. (2462 mm)
7 ft 7 in. (2335 mm)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and
special equipment.

364 Technical dataRims and tires
Rims and tiresUse only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as:

Poor handling characteristics


Increased noise


Increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle can be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er cap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.
