2003 MERCEDES-BENZ S-Class Comand Manual

41 Audio
Radio operation

42 AudioCD operation

CD operation
r
Quick reference
TELNAVFM/AM
CDSVC
MNO
ABCJKL GHI
DEF
2
1
3
5
4
6
TUV PQRS
WXYZ8
7
9
0
P82.85-9346-31US
6
7
9
15 14 13 12 11
15
810
324
CD2
BEST OF SOUL
2:07 min
CD Select
SettingsSound
CD Naming Scan
Track 2
- SEEKSEEK +
DEL BACK MAP
DETR RPT INFO DISP MUTE
OPR Z+
Z-
PWR

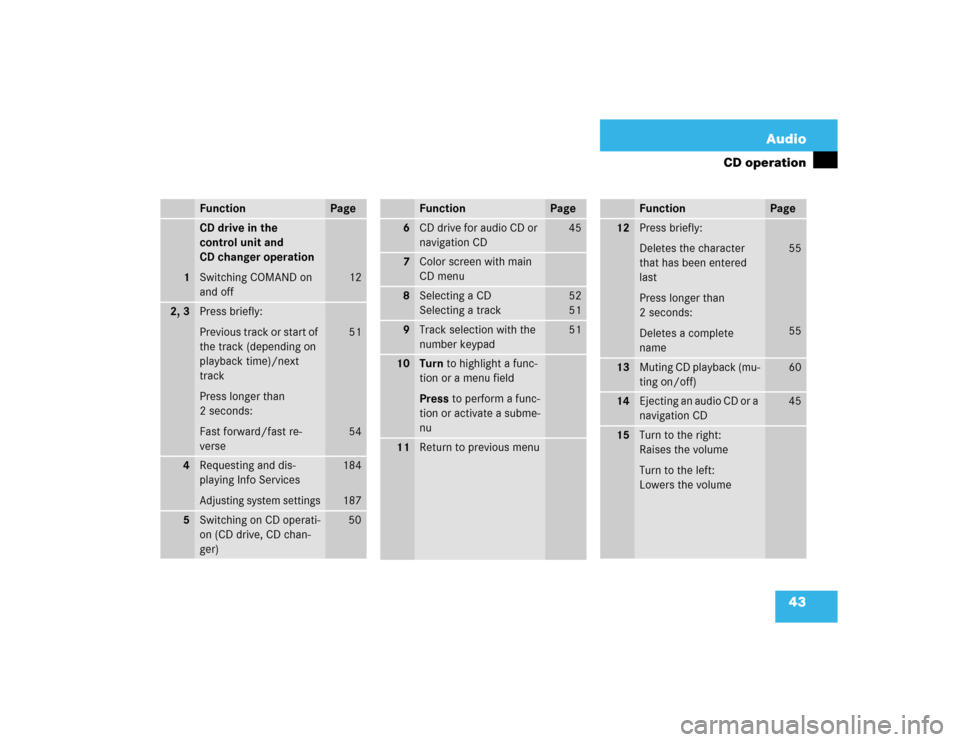

43 Audio
CD operation
Function
Page
1
CD drive in the
control unit and
CD changer operation
Switching COMAND on
and off
12
2, 3
Press briefly:
Previous track or start of
the track (depending on
playback time)/next
track
Press longer than
2 seconds:
Fast forward/fast re-
verse
51
54
4
Requesting and dis-
playing Info ServicesAdjusting system settings
184
187
5
Switching on CD operati-
on (CD drive, CD chan-
ger)
50
6
CD drive for audio CD or
navigation CD
45
7
Color screen with main
CD menu
8
Selecting a CD
Selecting a track
52
5 1
9
Track selection with the
number keypad
51
10
Turn to highlight a func-
tion or a menu field
Press to perform a func-
tion or activate a subme-
nu
11
Return to previous menuFunction
Page
12
Press briefly:
Deletes the character
that has been entered
last
Press longer than
2 seconds:
Deletes a complete
name
55
55
13
Muting CD playback (mu-
ting on/off)
60
14
Ejecting an audio CD or a
navigation CD
45
15
Turn to the right:
Raises the volume
Turn to the left:
Lowers the volumeFunction
Page

44 AudioCD operation
CD playback locations are
the CD drive in the COMAND operating
unit
You can play audio CDs or read data
from the navigation CD.

the CD changer with 6 magazine slots.
The status line in the main CD menu
(
page 50) indicates which component is
being used for CD playback.Tips on caring for your CDs

Only touch the CD on the sides.

Avoid touching the CD surface with
your fingers.

Clean the CD with a dry, lint-free cloth.
Wipe them from the inside to the outer
edge. Never wipe the CD in a circular
motion.

Do not use rubbing alcohol or solvents
to clean the CDs.

Do not expose the CDs to heat or direct
sunlight.

Do not write or put stickers on CD.
General information on CD operationWarning
G
The CD drive and CD changer are Class 1 la-
ser products. There is a danger of invisible
laser radiation when you open or damage
the cover.
Do not remove the cover. The CD drive and
the CD changer do not contain any parts
which can be serviced by the user. For safe-
ty reasons, have any necessary service work
performed by an authorized Mercedes-Benz
Center.
!Use only CDs with a diameter of 12 cm,
do not use 8-cm CDs.
An 8-cm CD adapter may cause damage
to the CD changer and should not be
used.
iYou can name a CD (
page 55). This
name then will appear on the display du-
ring CD playback.

45 Audio
CD operation
Loading a CD into the CD drive
See picture (
page 42) for drive location.

Press q to eject any CD if necessa-
ry.

Insert a CD as illustrated with the label
facing up into 6 until it is automatical-
ly pulled in.Changing the navigation CD
(
page 119)Loading CDs in the changer
The CD changer is located on the left side
of the cargo compartment (model 215) or
in the glove box (model 220). It can acco-
modate up to 6 CDs.

Open the sliding door by pushing in the
direction of the arrow above. Push the
door completely open until it locks in
the open position.
!After the navigation CD has been chan-
ged, the message “Program is being loa-
ded. Please wait.” and a progress
indicator are displayed. This indicates
that COMAND is currently loading the
program stored on the navigation CD.
Do not interrupt the loading process.
Do not eject the navigation CD until the
loading process has been completed.
P82.85-7235-31

46 AudioCD operation
Press the green eject button.
The magazine will slide upwards.

Pull the disk tray forward until it stops.
P82.85-7236-31
iYou can also slide out the magazine if
COMAND is switched off.
However, the eject button will not func-
tion if the battery is not connected or
drained.
iDo not attempt to remove the tray from
the magazine.
P82.85-7237-31

47 Audio
CD operation

Place a CD in the tray. The CD should
be inserted with the label side up.1Arrow tip on the rack wall

Push the CD tray into the magazine
completely.

Slide the magazine into the CD changer
until it clicks into place (listen for the
click).

Press the button 3 to close the maga-
zine compartment.
P82.85-7238-31
P82.85-7239-31
1
iMake sure that 1 is pointing in the di-
rection of the arrow 2.
P82.85-9057-31
2
3

48 AudioCD operationMenu overview
CD2
BEST OF SOUL
2:07 min
P82.85-9347-31US
1
34
56
2
14
25
36
0
0
0
0 0
ABCDEFGHIJKL NO
PQRSTUVWXYZ
_1234567890,.
:‘/ BEST OF SOUL_
M
CD Select
SettingsSound
CD Naming Scan
Track 2
CD Sound
Treble
Fader
Balance Bass
Reset
Other Options
CD2 Settings
Magazine Mix
Track Repeat
Track Mix
CD Repeat
CDs Scan StandardCD Select
BEST OF SOUL, Track 2
CD2 Naming
Delete Names
