2003 MERCEDES-BENZ ML320 remote control

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside
the USA or Canada......................... 13
Where to find it .................................... 15
Symbols ............................................... 16
Operating safety .................................. 17
Proper use of the vehicle ............... 17
Problems with your vehicle .................. 18
Reporting safety defects...................... 19
Reporting safety defects ................ 19
At a glance.......................................... 21
Cockpit ................................................. 22
Instrument cluster ................................ 24
Center console ..................................... 27
Upper part ...................................... 27
Lower part ...................................... 28
Overhead control panel ........................ 29Getting started................................... 31
Unlocking ............................................. 32
Remote control with folding key ..... 32
Adjusting .............................................. 34
Seats............................................... 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts.................. 40
Starting the engine ......................... 44
Switching on headlamps ................. 46
Turn signals..................................... 47
Windshield wipers ........................... 47
Rear window wiper.......................... 48
Problems while driving .................... 49Parking and locking .............................. 50
Parking brake ................................. 50
Switching off headlamps................. 51
Turning off engine ........................... 51
Safety and Security........................... 53
Occupant safety ................................... 54
Airbags ........................................... 55
Seat belts ....................................... 60
Children in the vehicle .................... 63
Blocking of rear door
window operation ........................... 69
Panic alarm .......................................... 70
Activating........................................ 70
Deactivating.................................... 70
Driving and safety systems .................. 71
ABS ................................................. 71
BAS ................................................. 73
4-ETS .............................................. 73
EBP ................................................. 74
ESP ................................................. 75
Anti-theft systems ................................ 78
Immobilizer ..................................... 78
Anti-theft alarm............................... 78

Contents
Tow-away alarm,
glass breakage sensor.................... 79
Controls in detail............................... 83
Locking and unlocking ......................... 84
Remote control with folding key ..... 84
Opening the doors
from the inside ............................... 86
Opening the liftgate........................ 87
Closing the liftgate ......................... 88
Automatic central locking .............. 89
Locking and unlocking
from the inside ............................... 90
Seats.................................................... 91
Seat heater*................................... 91
Removing and installing
head restraints ............................... 92
Rear seats ...................................... 93
Third row seats* ............................. 96
Memory function*................................ 99
Storing positions in memory ........ 100
Recalling positions from memory . 100
Exterior rear view mirror parking
position (passenger side) ............. 100Lighting.............................................. 102
Combination switch ..................... 102
Fog lamps .................................... 105
Hazard warning flasher ................ 106
Interior lighting............................. 107
Instrument cluster ............................. 110
Instrument cluster illumination .... 110
Coolant temperature gauge ......... 111
Display in the speedometer ......... 111
Resetting trip odometer ............... 112
Tachometer .................................. 112
Outside temperature indicator ..... 112
Setting the clock .......................... 112
Automatic transmission ..................... 113
One-touch gearshifting................. 113
Gear ranges.................................. 114
Gear selector lever position ......... 115
Accelerator position ..................... 117
Towing a trailer ............................ 117
Emergency operation (Limp Home
Mode)........................................... 117
Transmission control –
LOW RANGE mode............................. 118
Switching on LOW RANGE mode .. 118
Switching off LOW RANGE mode . 118Good visibility .................................... 119
Rear view mirror .......................... 119
Headlamp cleaning system* ........ 121
Windshield wipers ........................ 122
Rear window wiper....................... 123
Sun visor ...................................... 123
Automatic climate control ................. 124
Automatic mode .......................... 126
Adjusting air volume and air
distribution manually ................... 127
Defrosting .................................... 128
Air recirculation mode.................. 128
Air conditioning ............................ 129
Residual heat and ventilation ....... 130
Rear window defroster ................. 131
Rear passenger compartment
ventilation and rear automatic
climate control ............................. 131
Front and rear air outlets ............. 132
Power windows.................................. 134
Opening and closing the side
windows ....................................... 134
Rear quarter windows* ................ 136
Sliding/pop-up roof* ......................... 137
Opening and closing the
sliding/pop-up roof ...................... 137

32 Getting startedUnlockingThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.

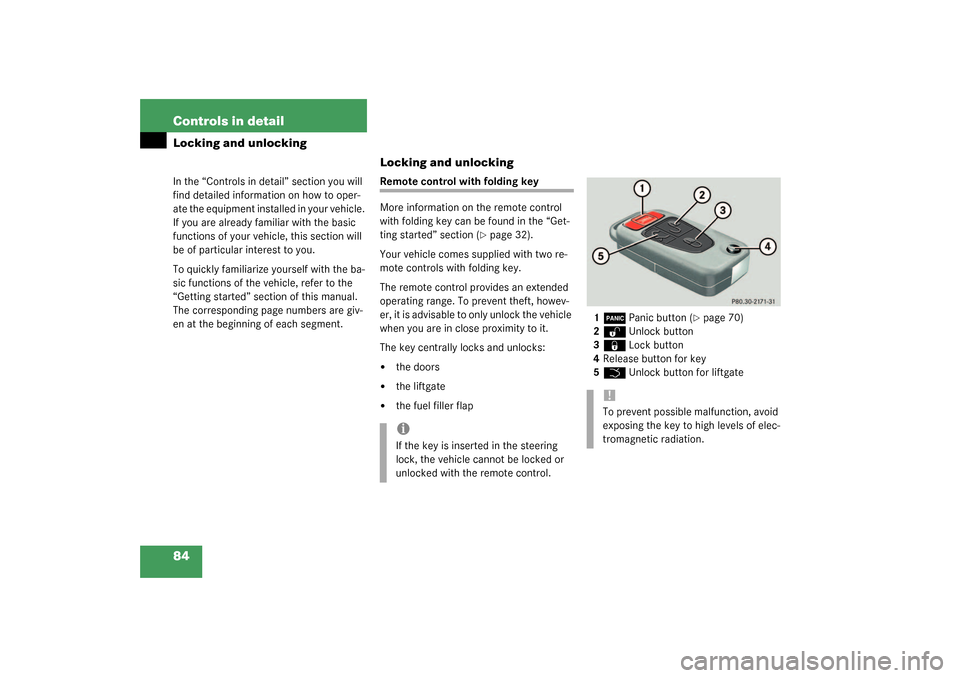

UnlockingRemote control with folding keyRemote control with folding key1Â
Panic button (
page 70)
2
Œ
Unlock button
3
‹
Lock button
4Release button for key
5
Š
Unlock button for liftgate

Press unlock button
Œ
on the re-
mote control.
The indicator lamps light up for a short
time. The locking knobs in the doors
move up.

Press release button4 on the remote
control.
The key folds out.

Get in the vehicle and insert the key in
the steering lock (
page 33).
More information can be found in the
“Controls in detail” section (
page 84).

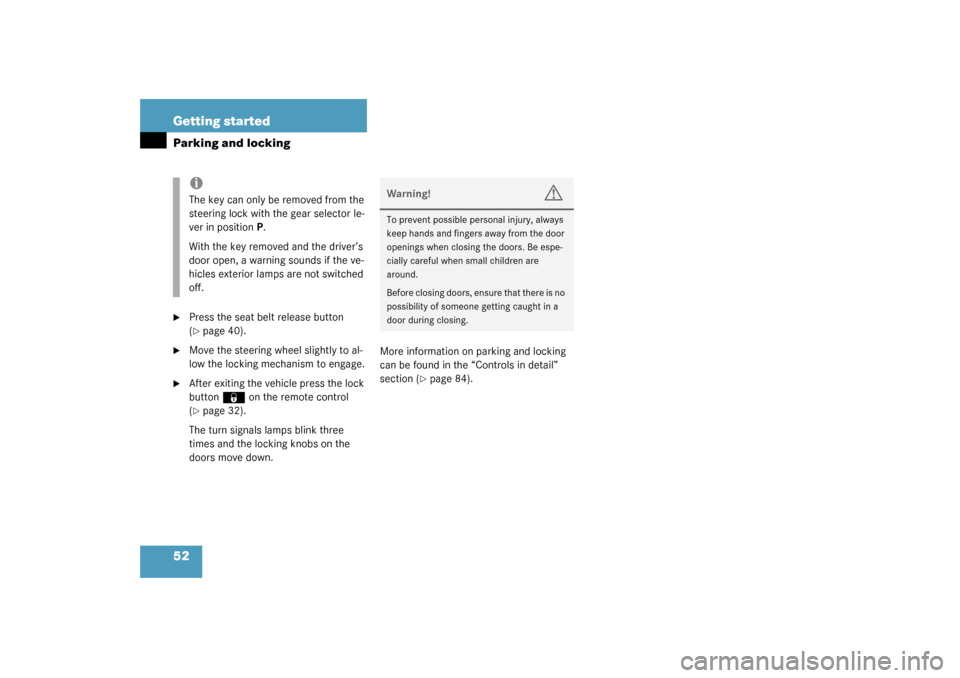

52 Getting startedParking and locking
Press the seat belt release button
(page 40).

Move the steering wheel slightly to al-
low the locking mechanism to engage.

After exiting the vehicle press the lock
button
‹
on the remote control
(
page 32).
The turn signals lamps blink three
times and the locking knobs on the
doors move down.More information on parking and locking
can be found in the “Controls in detail”
section (
page 84).
iThe key can only be removed from the
steering lock with the gear selector le-
ver in positionP.
With the key removed and the driver’s
door open, a warning sounds if the ve-
hicles exterior lamps are not switched
off.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, ensure that there is no
possibility of someone getting caught in a
door during closing.

78 Safety and SecurityAnti-theft systems
Anti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
Removing the key from the steering lock
activates the immobilizer.
Deactivating
Switch on the ignition by turning the key in
the steering lock to position2.
Anti-theft alarm
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone:

opens a door


opens the liftgate


opens the hood
The alarm will stay on even if the activating
element (a door, for example) is immedi-
ately closed.
The alarm system will also be triggered
when


someone attempts to raise the vehicle


unlocking and opening the driver’s
door with the mechanical key Arming the alarm system
The alarm system is armed after locking
the vehicle with the remote control. The
turn signal lamps blink three times to indi-
cate that the alarm system is activated. A
red lamp in the center console will blink af-
ter approximately 10 seconds when the
alarm system is completely armed
(
page 27).
iIn case the engine cannot be started
(vehicle’s battery is in order), the sys-
tem is not operational. Contact an au-
thorized Mercedes-Benz Light Truck
Center or call 1-800-FOR-MERCedes
(in the USA), or 1-800-387-0100 (in
Canada).
iIf the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem (
page 159) provided Tele Aid
service was subscribed to and properly
activated.

79 Safety and Security
Anti-theft systems
Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the remote con-
trol. The turn signal lamps blink once to in-
dicate that the alarm system is
deactivated.
Canceling the alarm
To cancel the alarm:
Switch on the ignition by turning the
key in the steering lock to position2.
or

Press the
Œ
or
‹
button on the
remote control.
The alarm is cancelled.Tow-away alarm, glass breakage
sensor
The tow-away alarm and the glass break-
age sensor are part of the anti-theft alarm
system.
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone:

attempts to raise the vehicle


breaks a window and reaches into the
passenger compartment
iIf the turn signal lamps do not blink
three times, the tow-away - glass-
breackage sensor is malfunctioning or
one of the following elements may not
be properly closed:

a door


the liftgate


the hood
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally again after approximately 40 sec-
onds if one of the doors or the liftgate
is not opened.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem (
page 159) provided Tele Aid
service was subscribed to and properly
activated.

84 Controls in detailLocking and unlockingIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed in your vehicle.
If you are already familiar with the basic
functions of your vehicle, this section will
be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
Locking and unlockingRemote control with folding key
More information on the remote control
with folding key can be found in the “Get-
ting started” section (
page 32).
Your vehicle comes supplied with two re-
mote controls with folding key.
The remote control provides an extended
operating range. To prevent theft, howev-
e r , i t i s a d v i s a b l e t o o n l y u n l o ck t he v e h i cl e
when you are in close proximity to it.
The key centrally locks and unlocks:


the doors


the liftgate


the fuel filler flap1
Â
Panic button (
page 70)
2
Œ
Unlock button
3
‹
Lock button
4Release button for key
5
Š
Unlock button for liftgate
iIf the key is inserted in the steering
lock, the vehicle cannot be locked or
unlocked with the remote control.
!To prevent possible malfunction, avoid
exposing the key to high levels of elec-
tromagnetic radiation.

85 Controls in detail
Locking and unlocking
Unlocking
Unlocking the driver’s door and fuel
filler flap
Press button
Œ
once.
All turn signal lamps blink once to indi-
cate that the driver’s door and the fuel
filler flap are unlocked.Global unlocking

Press button
Œ
twice.
All turn signal lamps blink once to indi-
cate that all doors, fuel filler flap and
liftgate are unlocked.
Unlocking the liftgate

Press button
Š
.
Only the liftgate unlocks.
Locking

Press button
‹
once
All turn signal lamps blink three times
to indicate that all doors, the liftgate
and the fuel filler flap are unlocked.
iUnlocking the vehicle with the remote
control deactivates the anti-theft
alarm.
The vehicle will lock again automatical-
ly and reactivate the anti-theft system
within approximately 40 seconds of un-
locking if neither door nor liftgate is
opened.
iLocking the vehicle with the remote
control activates the anti-theft alarm.
iIf the turn signal lamps do not blink
three times, one of the following ele-
ments may not be properly closed:

a door


the liftgate


the hood
Close the respective element and lock
the vehicle again.
Warning!
G
When leaving the vehicle, always remove the
key from the steering lock, and lock your ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
