2003 MERCEDES-BENZ G55AMG technical data

309 Technical data

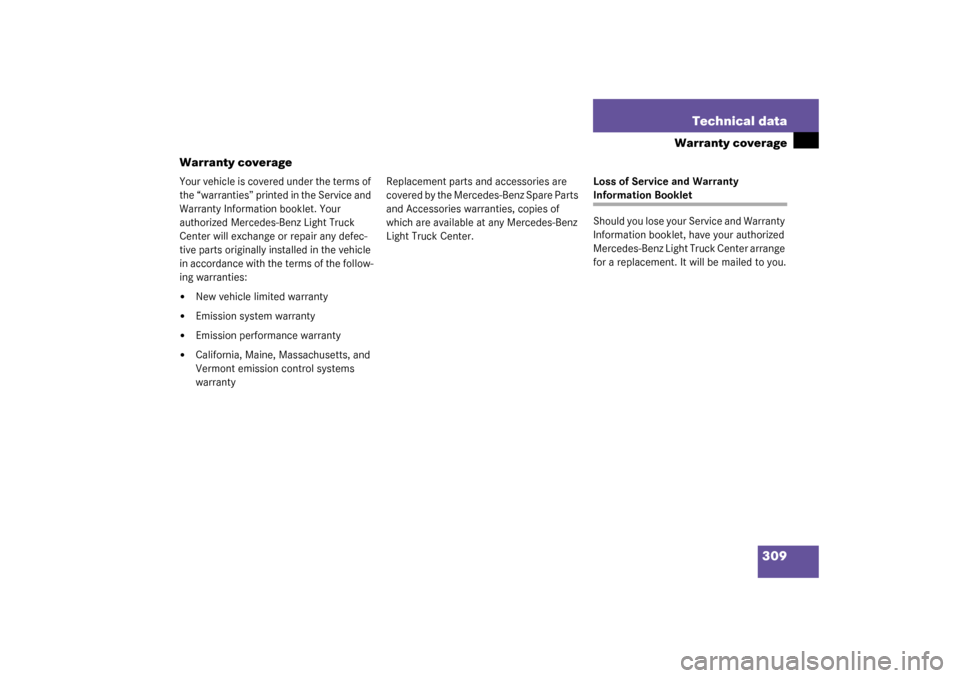

Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Light Truck
Center will exchange or repair any defec-
tive parts originally installed in the vehicle
in accordance with the terms of the follow-
ing warranties:

New vehicle limited warranty


Emission system warranty


Emission performance warranty


California, Maine, Massachusetts, and
Vermont emission control systems
warrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Light Truck Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have your authorized
Mercedes-Benz Light Truck Center arrange
for a replacement. It will be mailed to you.

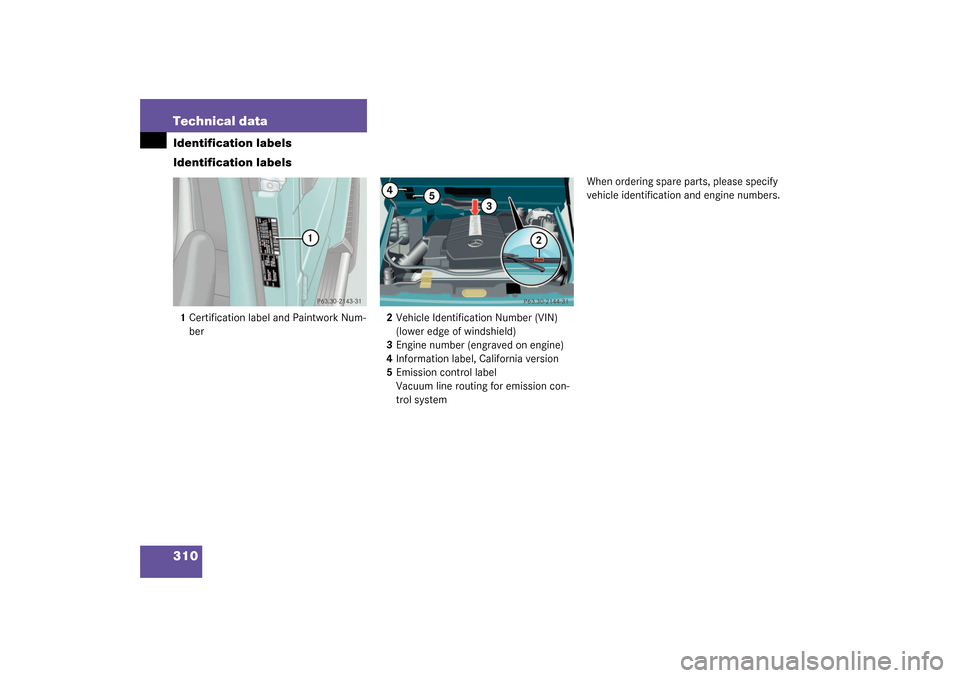

310 Technical dataIdentification labels
Identification labels1Certification label and Paintwork Num-
ber2Vehicle Identification Number (VIN)
(lower edge of windshield)
3Engine number (engraved on engine)
4Information label, California version
5Emission control label
Vacuum line routing for emission con-
trol systemWhen ordering spare parts, please specify
vehicle identification and engine numbers.

311 Technical data

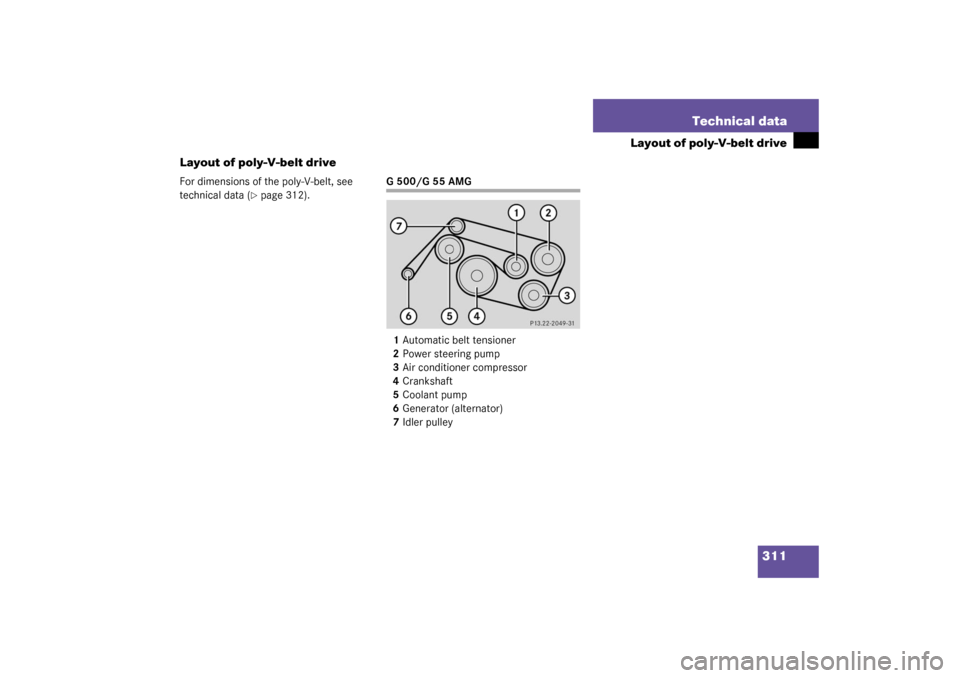

Layout of poly-V-belt drive
Layout of poly-V-belt drive
For dimensions of the poly-V-belt, see
technical data (
page 312).
G500/G55AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioner compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

312 Technical dataEngine
Engine
G 500 (463.249
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Light Truck Center for the corresponding data of all special bodies and special
equipment.
G55AMG (463.246
1)
Engine
113
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
8
Bore
3.82 in (97.00 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.60 in (92.00 mm)
Total piston displacement
303.0 cu.in. (4966 cm
3)
331.8 cu.in. (5439 cm
3)
Compression ratio
10:1
10.5:1
Output acc. to SAE J 1349
292 hp / 5500 rpm
(218 kW / 5500 rpm)
349 hp / 5500 rpm
(260 kW / 5500 rpm)
Maximum torque acc. to SAE J 1349
336ft.lb/2800rpm
(454 Nm / 2800 rpm)
387ft.lb/2600rpm
(525 Nm / 2600 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
7ft 10in (2390mm)
7ft 10in (2390mm)

313 Technical data
Rims and tires
Rims and tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Tires and Spare wheel
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
under load that could cause them to
come into contact with the vehicle
body or axle parts. Damage to the tires
or the vehicle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Light Truck Center. A
tire inflation pressure table is located
on the fuel filler cap of the vehicle. The
tire pressure should be checked regu-
larly and should only be adjusted on
cold tires. Follow tire manufacturer’s
maintenance recommendation includ-
ed with vehicle.
G500
G55AMG
Rims (light alloy)
7½ Jx18 H2 ET43
9½ Jx18 EH2 ET50
Wheel offset
1.69 in (43 mm)
1.97 in (50 mm)
All season tires (radial-ply tires)
265/60 R18 110V
285/55 R18 113V

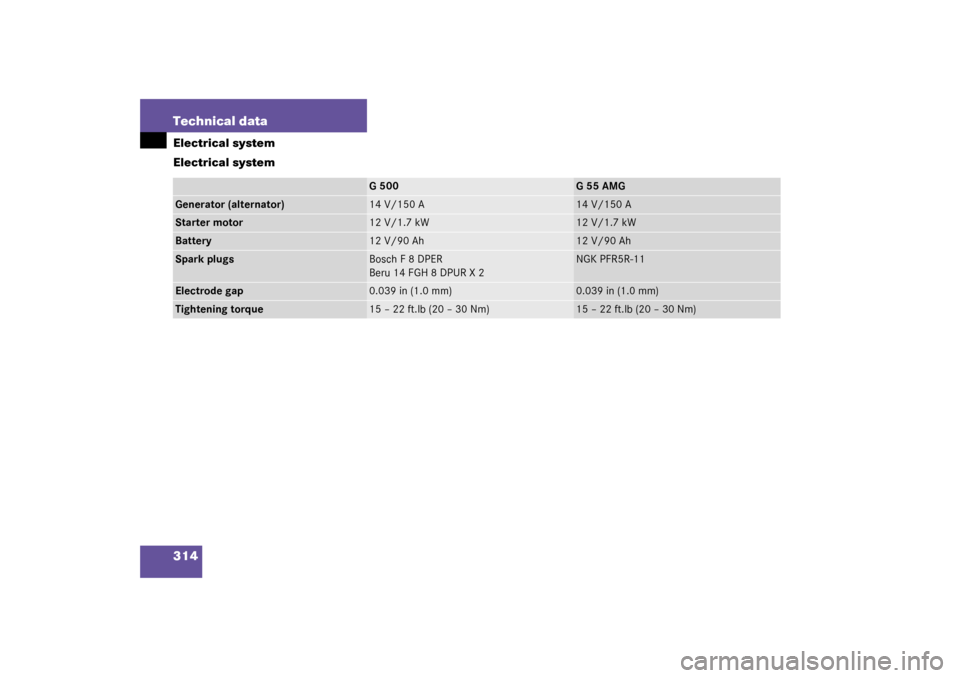

314 Technical dataElectrical system
Electrical system
G500
G55AMG
Generator (alternator)
14 V/150 A
14 V/150 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/90 Ah
12 V/90 Ah
Spark plugs
Bosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK PFR5R-11
Electrode gap
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)

315 Technical data
Main dimensions, vehicle weights and ratings
Main dimensions, vehicle weights and ratings
Main dimensionsVehicle weights and ratings
G500
G55AMG
Overall vehicle length
(inc. spare wheel)
185.6 in (4715 mm)
185.6 in (4715 mm)
Overall vehicle width
71.3 in (1811 mm)
73.4 in (1864 mm)
Overall vehicle height
77.8 in (1977 mm)
77.8 in (1977 mm)
Wheel base
112.2 in (2850 mm)
112.2 in (2850 mm)
Ground clearance
8.3 in (211 mm)
8.3 in (211 mm)
Turning radius
523.6 in (13.3 m)
523.6 in (13.3 m)
Track, front and rear
59.6 in (1515 mm)
59.1 in (1501 mm)
G500
G55AMG
Gross Vehicle Weight Rating
1
1GVWR is the maximum permissible vehicle weight. Gross Vehicle Weight (GVW) comprises weight of vehicle including fuel, tools, spare wheel, installed accessories,
passengers, cargo and trailer tongue. It must never exceed the GVWR.
6615 lbs. (3000 kg)
6615 lbs. (3000 kg)
Gross Axle Weight Rating, front
2
2GAWR is the maximum permissible axle weight.
3110 lbs. (1410 kg)
3110 lbs. (1410 kg)
Gross Axle Weight Rating, rear
2
3965 lbs. (1800 kg)
3965 lbs. (1800 kg)

316 Technical dataFuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.Capacities
Vehicle components and their respective
lubricants must match.Therefore use only brands tested and rec-
ommended by Mercedes-Benz.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Light Truck Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
G500
G55AMG
8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
Recommended engine oils
Automatic transmission
9.0 US qt (8.5 l)
MB Automatic Transmission Fluid
1
1MB part no. 001 989 21 03 10Transfer case
2.96 US qt (2.8 l)
MB part no. A 001 989 28 03 10
Differential lock mechanism
0.47 - 0.63 US qt
(0.45 - 0.6 l)
Brake fluid DOT 3+4, SAE J1703
Front axle
1.5 US qt (1.4 l)
Hypoid gear oil SAE 90, 85 W 90
Rear axle
1.9 US qt (1.8 l)
Hypoid gear oil SAE 90, 85 W 90
Power steering
approx. 1.06 US qt (1.0 l)
MB Power Steering Fluid, or
approved Dextron III ATF
Front wheel hubs
approx. 1.5 oz (43 g) each
High temperature roller bearing grease
Brake system
approx. 0.53 US qt (0.5 l)
MB Brake Fluid (DOT 4+)
Fuel tank
including a reserve of
25.4 US gal (96.0 l)
5.3 US gal (20.0 l)
Premium unleaded gasoline:
Posted Octane 91
(average of 96 RON / 86 MON)
