280 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement


Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Light Truck Center.


Have the LEDs for the following lamps
replaced by an authorized Mer-
cedes-Benz Light Truck Center.

The additional turn signals in the ex-
terior rear view mirrors


The high mounted brake lamp
Lamp
Type
7
High mounted brake
lamp
LED
8
Turn signal lamp
PY 21 W
Brake lamp
P 21 W
Tail, parking and
standing lamps
R 5 W
9
Backup lamp
P 21 W
10
License plate lamps
C 5 W
11
Side marker lamp
T 4 W
12
Rear fog lamp
P 21 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
iHave the headlamp settings checked
regularly by a Mercedes-Benz Light
Truck Center.
Do not turn the headlamp adjusting
screws. If the adjusting screws are
turned, the headlamp setting must be
checked by a Mercedes-Benz Light
Truck Center.

281 Practical hints
Replacing bulbs
Replacing bulbs for front lamps

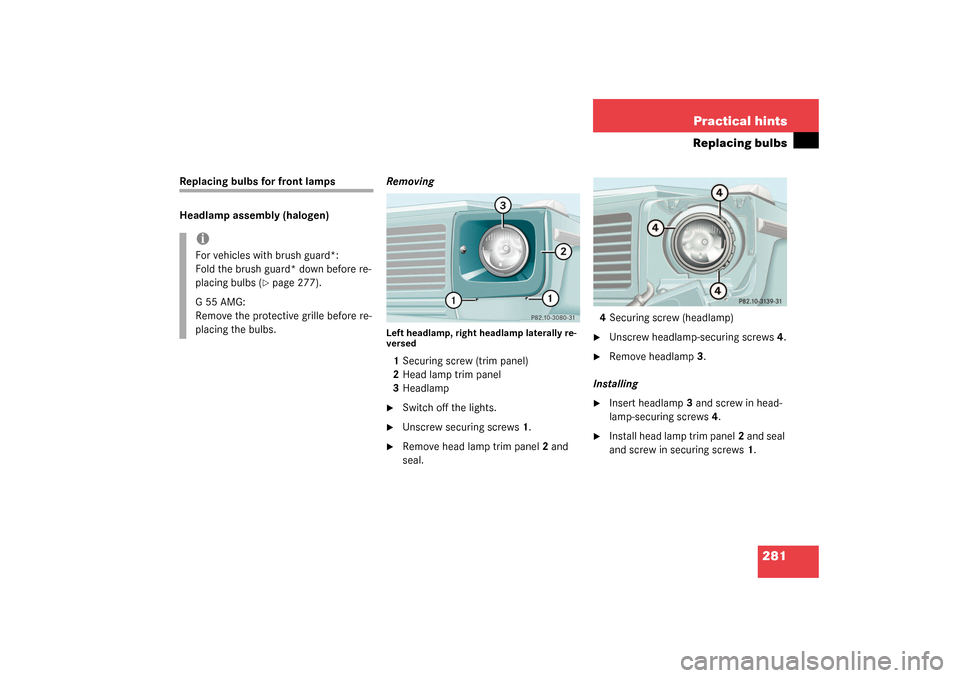

Headlamp assembly (halogen)Removing
Left headlamp, right headlamp laterally re-
versed1Securing screw (trim panel)
2Head lamp trim panel
3Headlamp
Switch off the lights.

Unscrew securing screws1.

Remove head lamp trim panel2 and
seal.4Securing screw (headlamp)

Unscrew headlamp-securing screws4.

Remove headlamp3.
Installing

Insert headlamp3 and screw in head-
lamp-securing screws4.

Install head lamp trim panel2 and seal
and screw in securing screws1.
iFor vehicles with brush guard*:
Fold the brush guard* down before re-
placing bulbs (
page 277).
G55AMG:
Remove the protective grille before re-
placing the bulbs.

317 Technical data
Fuels, coolants, lubricants etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines. Therefore, use
only engine oils recommended by
Mercedes-Benz. Information on recom-
mended brands is available in the Factory
Approved Service Products pamphlet, or at
your authorized Mercedes-Benz Light
Truck Center.
Please follow FSS and Service Booklet rec-
ommendations for scheduled oil changes.
F ai lu re to d o s o could res ul t in engi ne da m -
age not covered by the Mercedes-Benz
Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may be harmful to the engine opera-
tion.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air condition-
ing system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil, otherwise damage to the
system will occur.
Model
Capacity
Fuels, coolants, lubricants etc.
Cooling system
approx. 12.7 US qt (12.0 l)
MB Anticorrosion/Antifreeze
Air conditioning system
R-134a refrigerant and
special PAG lubricant oil (never R-12)
Windshield/rear window washer system
and headlamp cleaning system
approx. 7.9 US qt (7.5 l)
MB Windshield Washer Concentrate
and water
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent / antifreeze for temperatures below freezing. Follow suggested mixing ratios (
page 321).

321 Technical data
Fuels, coolants, lubricants etc.
Windshield/rear window washer sys-tem and headlamp cleaning system
The windshield washer reservoir is located
in the engine compartment on the front
passenger side. It holds approximately 5.3
US qt (5.0 l). The headlamp cleaning sys-
tem is also supplied from the windshield
washer reservoir.
Refill the reservoir with MB Windshield
Washer Concentrate “S” to and water
(or concentrate and commercially
available premixed windshield washer
solvent / antifreeze, depending on am-
bient temperatures) (
page 321).Washer fluid mixing ratio
For temperatures above freezing use
MB Windshield Washer Concentrate “S”
and water:


1 part “S” to 100 parts water
[40 ml “S” to 1 gallon (4 liters) water]
For temperatures below freezing use
MB Windshield Washer Concentrate “S”
and commercially available premixed
windshield washer solvent / antifreeze:


1 part “S” to 100 parts solvent
[40 ml “S” to 1 gallon (4 liters) solvent]
Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may burn.
You can be seriously burned.

331 Index
A
ABS 25, 71, 325
LOW RANGE mode 72
Malfunction indicator lamp 240
Messages in display 247
Warning lamp 240
Accelerator position, automatic
transmission 139
Accident
In case of 49
Activating
Air conditioning (cooling) 157
Air recirculation mode 154
Anti-theft alarm system 79
Central locking (control system) 128
Defrost 154
Easy-entry/exit feature 128
ESP 78
Exterior headlamps 46
Exterior lamps 101
Exterior rear view mirror parking
position 148
Hazard warning flasher 104
Headlamps 46
High beams 103
Ignition 33Rear fog lamp 101
Rear window defroster 155
Seat heater, front 95
Seat heater, rear 96
Windshield wipers 47
Adding
Coolant 221
Engine oil 220
Additional turn signals 279
Adjusting 34
Air distribution 153
Air volume 153
Backrest tilt 36
Exterior rear view mirror 38
Head restraint height 36
Head restraint tilt 36
Inside rear view mirror 38
Instrument cluster illumination 108
Mirrors 38
Multicontour seat* 94
Seat cushion length 94
Seat cushion tilt 36
Seat fore and aft adjustment 35
Seat height 36
Seats 34
Steering column height 37Steering column length 37
Steering wheel 37
Air conditioning (cooling)
Turning off 157
Turning on 157
Air conditioning refrigerant 317
Air distribution
Adjusting 153
Air pressure see Tire inflation pressure
Air recirculation mode 154
Activating 154
Deactivating 154
Air volume
Adjusting 153
AIRBAG OFF indicator lamp 244
Airbags 55
BabySmart
TM airbag deactivation
system 325
BabySmartTM deactivation system 65
Front 59
Safety guidelines 58
Alarm
Audible 70, 80
Canceling 80
Visual 79

332 IndexAlarm system
Anti-theft 79
Anticorrosion/antifreeze 320
Antiglare
Automatic 147
Antilock brake system (ABS) 325
Anti-theft alarm system
Arming 79
Canceling alarm 80
Disarming 80
Anti-theft systems 79
Anti-theft alarm system 79
Tow-away alarm 80
Aquaplaning see Hydroplaning 200
Armrest
Storage compartment below 177
Storage compartment in front of 177
Ashtrays 179
At the gas station 214
ATF (automatic transmission fluid) 220
AUDIO menu 116
Selecting radio station 117
Automatic antiglare for
rear view mirror 147Automatic central locking
Activating/deactivating (control
system) 128
Automatic climate control
Deactivating 157
Automatic headlamp mode 101
Automatic lighting control
Activating 104
Deactivating 105
Automatic locking when driving 89
Automatic transmission 135
Accelerator position 139
Emergency operation
(Limp Home Mode) 140
Fluid level 220
Gear ranges 137
Gear selector lever position 138
Gear shifting malfunctions 140
Kickdown 139
Manual shifting 136
One-touch gearshifting 136
Selector lever position 135
Transmission fluid 220B
BabySmart
TM
Airbag deactivation system 65
Compatible child seats 65, 325
Self-test 66
BabySmart
TM airbag deactivation
system 325
Backup lamp
Replacing bulbs 287
Backup lamps 280
Bulbs 280
BAS 71, 73, 325
Messages in display 248
Batteries, SmartKey
Changing 273
Check lamp 85
Checking 86
Batteries, vehicle 223
Battery box
Fuse box in 303
Battery discharged
Jump starting 297

334 IndexCHECK ENGINE malfunction indicator
lamp 243
Checking
Coolant level 215, 220
Oil level 215, 217, 218
Checklist
Off-road driving 205
Child safety 63
Infant and child restraint systems 54,
60, 63
LATCH child seat mounts 68
Child safety switch see Blocking of rear
door window operation 69
Cigarette lighter 181
Cleaning
Cup holder 235
Gear selector lever 235
Hard plastic trim items 236
Headlamps 148
Headliner 236
Illuminated door sill panels 236
Instrument cluster 235
Leather upholstery 236
Light alloy wheels 235
MB Tex upholstery 236
Plastic and rubber parts 236Rear Park Assist sensors* 234
Seat belts 236
Steering wheel 235
Windows 235
Windshield 47
Wiper blades 235
Climate control 150
Adjusting 153
Defogging windshield 153
Defrosting 154
Rear window defroster 155
Setting the temperature 152
Clock 25
Closing
Glove box 176
Hood 217
Side windows 158
Sliding/pop-up roof 160, 276
Sliding/pop-up roof
with SmartKey 161
Tailgate 88
Windows 158
Windows with SmartKey 159
Closing sliding/pop-up roof
In an emergency 276
Cockpit 22, 325Cockpit management and data system
(COMAND) 325
COMAND 325
COMAND see separate operating
instructions
Combination switch 23, 103
High beam flasher 46, 103
Turn signals 46
Windshield wipers 47
Consumer information 322
Control and operation of
radio transmitters 210
Control system 111, 325
AUDIO menu 116
Convenience submenu 128
Display digital speedometer 116
Functions 112, 115
Instrument cluster submenu 122
Lighting submenu 124
Malfunction memory menu 118
Menus 114, 115, 327
Multifunction display 111
Multifunction steering wheel 112
NAVI menu 118
Selecting radio system 117
Settings menu 119

335 Index
Standard display menu 116
Submenus 113, 115
TEL menu 132
Trip computer menu 130
Vehicle submenu 127
Convenience feature 159
Convenience submenu 128
Activating easy-entry/exit feature 128
Setting key dependency 129
Setting parking position for exterior
rear view mirror 130
Coolant 220, 319
Adding 221
Anticorrosion/antifreeze quantity 319
Capacities 316
Checking level 220
Messages in display 251, 252
Temperature 212
Temperature display 108
Warning lamp 251
Coolant level
Checking 215, 220
Crossing obstacles 208
Cruise control 162, 326
Canceling 163
Driving downhill 163Driving uphill 163
Fine adjustment 164
Saving current speed 163
Setting 164
Setting speed 164
Cruise control lever 162
Cup holder
Cleaning 235
In rear passenger footwell 179
Cup holders 178
In front passenger footwell 178
Next to the armrest 178
Customer Assistance Center (CAC) 325
D
Daytime running lamp mode 102
Setting 124
Deactivating
Air conditioning (cooling) 157
Air recirculation mode 154
Alarm 80
Anti-theft alarm system 80
Central locking (control system) 128
Cruise control 163
Defrost 154
ESP 76
Exterior lamps 101Exterior lamps delayed switch-off 125
Front fog lamps 125
Hazard warning flasher 104
Headlamps 51
Immobilizer 79
Interior lighting delayed switch-off 126
Rear window defroster 155
Seat heater, front 95
Seat heater, rear 96
Tow-away alarm 81
Deep water see Standing water 203
Defogging
Windshield 153
Defrosting 154
Delayed switch-off
Exterior lamps 125
Interior lighting 126
Dialing
A number (telephone) 133
Differential locks 143, 326
Switching off 146
Switching on 145
Difficulties
While driving see Problems while
driving 49
With starting 44
