61 Safety and Security
Occupant safety


independently of the side impact air-
bags
The airbags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.
The front passenger airbag will only be de-
ployed if:


the front passenger seat is occupied


the PASSENGER AIRBAG OFF indicator
lamp in the center console is not lit
(page 67)Side impact airbags, window curtain
airbags
1Side impact airbags
2Window curtain airbag
The side impact airbags and window cur-
tain airbags are deployed:


on the impacted side of the vehicle


in impacts exceeding a preset deploy-
ment threshold


independently of the front airbags
The front passenger side airbag will only
deploy if the system senses that the front
passenger seat is occupied.The side impact airbags are not deployed
in impacts which do not exceed the sys-
tem’s deployment threshold.
Seat belts
The seat belt nonusage warning lamp <
in the instrument cluster lights up and a
warning sounds for a short time when you
turn the key in the starter switch to
position2 or press the KEYLESS-GO* (if so
equipped) start/stop button twice and the
drivers seat belt is not fastened.
After starting the engine the seat belt non-
usage warning lamp blinks for a brief peri-
od to remind the driver and passengers to
fasten the seat belts.
The use of seat belts and infant and child
restraint systems is required by law in
most states and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.
ProCarManuals.com

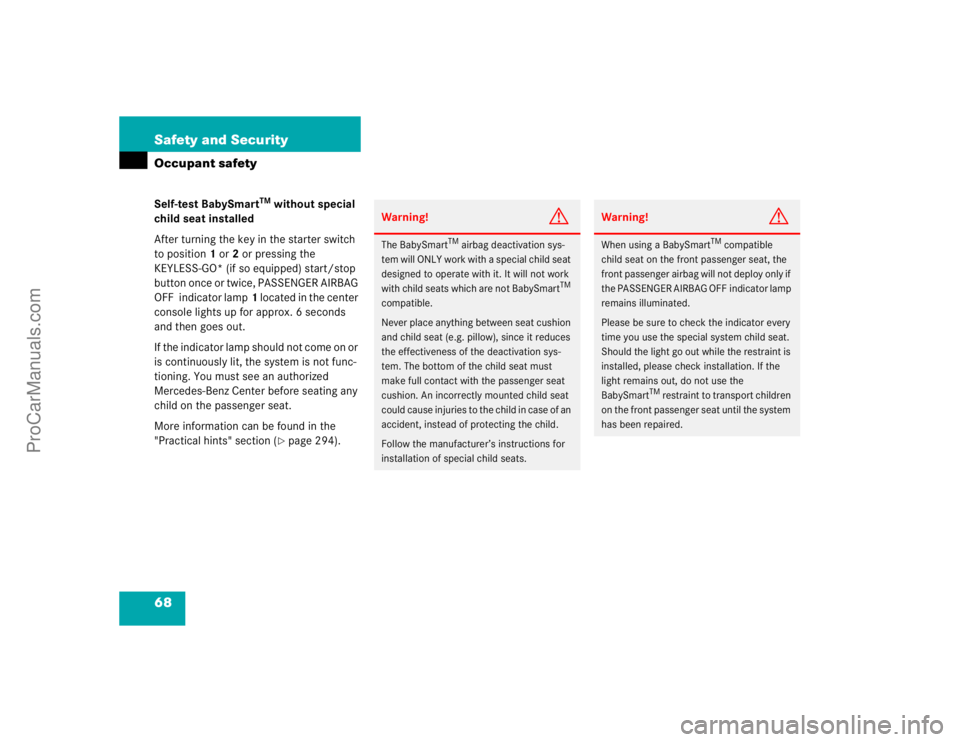

68 Safety and SecurityOccupant safetySelf-test BabySmart
TM without special
child seat installed
After turning the key in the starter switch
to position1 or2 or pressing the
KEYLESS-GO* (if so equipped) start/stop
button once or twice, PASSENGER AIRBAG
OFF indicator lamp1 located in the center
console lights up for approx. 6 seconds
and then goes out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the passenger seat.
More information can be found in the
"Practical hints" section (page 294).
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
Warning!
G
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
front passenger airbag will not deploy only if
the PASSENGER AIRBAG OFF indicator lamp
remains illuminated.
Please be sure to check the indicator every
time you use the special system child seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmart
TM restraint to transport children
on the front passenger seat until the system
has been repaired.
ProCarManuals.com

74 Safety and SecurityDriving safety systemsContinuos steady brake pedal pressure
yields the advantagesprovided by the ABS,
namely braking power and ability to steer
the vehicle.
The - warning lamp in the instrument
cluster lights up when you turn the key in
the starter switch to position2 or press
the KEYLESS-GO* (if so equipped)
start/stop button twice. It goes out when
the engine is running.
More information can be found in the
"Practical hints" section (
page 289).
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing the braking distance. Apply
continuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
iTo alert following vehicles to slippery
road conditions you discover, operate
your hazard warning flashers as appro-
priate.
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction. The
ABS cannot prevent accidents, including
those resulting from excessive speed in
turns, following another vehicle too closely,
or aquaplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ABS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.
ProCarManuals.com

75 Safety and Security
Driving safety systems
ESP
The Electronic Stability Program (ESP)
monitors the vehicle's traction (force of
adhesive friction between the tires and the
road surface) and handling.
The ESP recognizes when a wheel is spin-
ning or if the vehicle starts to skid. By ap-
plying brakes to the appropriate wheel and
by limiting engine output, the ESP works to
stabilize the vehicle. The ESP is especially
useful during take-off and on wet or slip-
pery road surfaces.
The ESP warning lamp v in the instru-
ment cluster flashes when the ESP is en-
gaged.
The ESP warning lamp v in the instru-
ment cluster lights up when you turn the
key in the starter switch to position2 or
press the KEYLESS-GO* (if so equipped)
start/stop button twice. It goes out when
the engine is running.
Warning!
G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction. The BAS cannot
prevent accidents, including those resulting
from excessive speed in turns, following an-
other vehicle too closely, or aquaplaning.
Only a safe, attentive, and skillful driver can
prevent accidents. The capabilities of a BAS
equipped vehicle must never be exploited in
a reckless or dangerous manner which
could jeopardize the user’s safety or the
safety of others.
Warning!
G
Never switch off the ESP when you see the
ESP warning lamp
v
flashing in the in-
strument cluster. In this case proceed as fol-
lows:


While driving off, apply as little throttle
as possible


While driving ease up on the accelerator


Adapt your speed and driving style to
the prevailing road conditions
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.
ProCarManuals.com

78 Safety and SecurityDriving safety systems
The SBC brake system is automatically ac-
tivated when you:

unlock the vehicle with the key or the
KEYLESS-GO*


open the driver’s or passenger door


turn the key in the starter switch to
position1


in vehicles with KEYLESS-GO*, press
start/stop button on selector lever
once


depress the brake pedal


release the parking brake
Warning!
G
The SBC brake system requires electrical
power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its
limp-home (emergency operation) mode. In
such a case, the red brake warning lamp
(page 291) and warning messages in the
instrument cluster (
page 305) light up
while driving. To brake, the driver must then
apply significantly greater brake pedal pres-
sure and depress the pedal much further to
obtain the expected braking effect. If neces-
sary, apply full pressure to the brake pedal.
Brakes are only applied to the front wheels.
Stopping distance is increased!
If there is a malfunction in the SBC brake
system, we recommend that the vehicle be
transported with all wheels off the ground
using flatbed or appropriate wheel lift/dolly
equipment. A tow bar must be used if cir-
cumstances do not permit the use of the
recommended towing methods and the ve-
hicle requires towing with all four wheels on
the ground. Towing the vehicle with all four
wheels on the ground is only permissible
for distances up to 30 miles (50 km) and at
a speed not to exceed 30 mph (50 km/h).
For more information, refer to "Towing the
vehicle" (
page 348).
ProCarManuals.com

81 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating

With the key: Removing the key from
the starter switch activates the immo-
bilizer.


With KEYLESS-GO*: Turning off the en-
gine by means of the KEYLESS-GO
start/stop button on the gear selector
lever activates the immobilizer.Deactivating


With the key: Inserting the key in the
starter switch deactivates the immobi-
lizer.


With KEYLESS-GO*: Starting the en-
gine by means of the KEYLESS-GO
start/stop button on the gear selector
lever deactivates the immobilizer.
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).
ProCarManuals.com

82 Safety and SecurityAnti-theft systemsAnti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk


the hood.
The alarm system will also be triggered
when


someone attempts to raise the vehicle


the vehicle is opened with the mechan-
ical keyArming the alarm system
The alarm system is armed within approx.
10 seconds after locking the vehicle. The
indicator lamp in the button for the
tow-away alarm will then blink.
Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the remote con-
trol or KEYLESS-GO*.
Canceling the alarm
With the key

Insert the key in the starter switch.
or

Press the Œ or ‹ button on the
key.With KEYLESS-GO*

Grasp the outside door handle.
or

Press the KEYLESS-GO* start/stop
button.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
iIf the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem* (
page 234), provided that the
Tele Aid service was subscribed to and
properly activated.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem* (
page 234), provided that the
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
ProCarManuals.com

90 Controls in detailLocking and unlocking
Important notes on using KEYLESS-GO

You can also use the SmartKey with
KEYLESS-GO like a normal key
(page 86).


You can combine KEYLESS-GO func-
tions with normal key functions (e.g.
unlocking with KEYLESS-GO and lock-
ing with the remote control).


Always carry the SmartKey with
KEYLESS-GO with you.


Never store the SmartKey with
KEYLESS-GO together with:

Electronic items such as a cellular
phone or another SmartKey with
KEYLESS-GO


Metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.


To lock or unlock the vehicle, the key
must be located outside the vehicle
within approximately 3 ft. (1 m) of a
door or the trunk.


In order to start the engine with the
SmartKey with KEYLESS-GO:

The SmartKey with KEYLESS-GO
must be located in the vehicle.


All the doors must be closed.


If you have started the engine with the
KEYLESS-GO start/stop button, you
can only turn it off again with this but-
ton, even if you have put the key in the
starter switch in the meantime.


This does not apply if, after starting, the
selector lever is still in positionP. The
SmartKey will then have priority over
the KEYLESS-GO function and the vehi-
cle’s electrical system will operate ac-
cording to the position of the key in the
starter switch, even stopping the en-
gine.


If the SmartKey with KEYLESS-GO is
positioned farther away from the vehi-
cle (e.g. inside clothing or briefcase)
and can no longer be recognized by the
Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO (if so equipped) with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause serious
personal injury.!To prevent possible malfunction, avoid
exposing the SmartKey with
KEYLESS-GO to high levels of electro-
magnetic radiation.
ProCarManuals.com
