2003 MERCEDES-BENZ CL600 coolant

Contents
Instrument cluster ............................. 114
Instrument cluster illumination .... 114

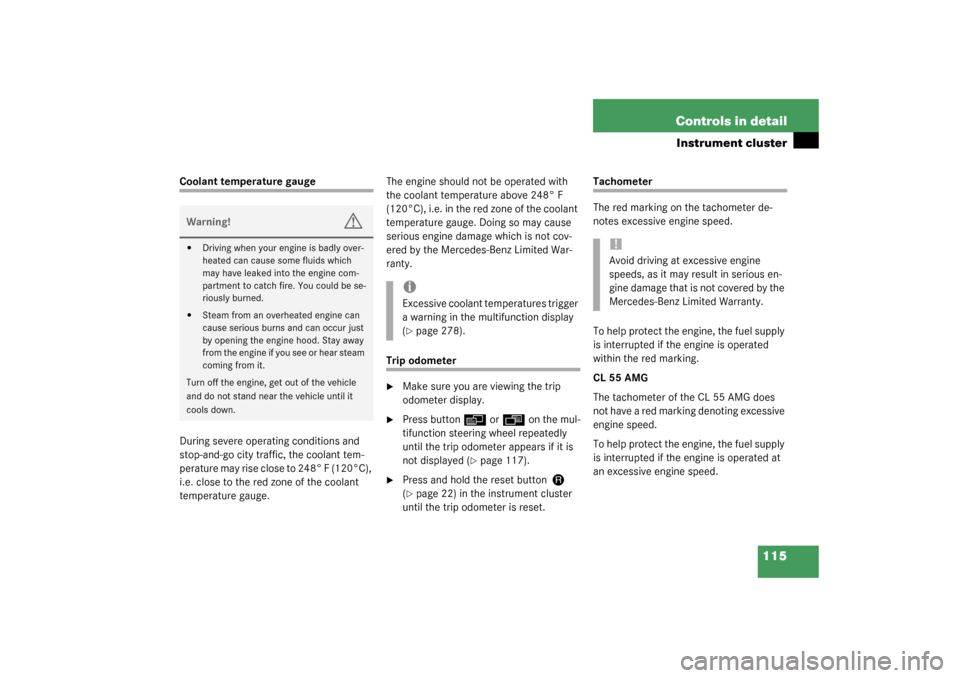

Coolant temperature gauge ......... 115
Trip odometer .............................. 115
Tachometer .................................. 115
Outside temperature indicator ..... 116
Control system .................................. 117
Multifunction display .................... 117
Multifunction steering wheel ........ 118
Menus .......................................... 120
Standard display menu ................ 122
AUDIO menu ................................ 122
CD changer operating mode ........ 123
TEL menu* ................................... 125
NAVI menu ................................... 127
Distronic* menu........................... 128
Trip computer menu..................... 129
Malfunction memory menu .......... 130
Settings menu .............................. 131Automatic transmission...................... 143
One-touch gearshifting ................. 144
Gear ranges .................................. 145
Gear selector lever position .......... 146
Program mode selector switch ..... 147
Accelerator position...................... 148
Emergency operation
(Limp home mode) ........................ 148
Steering wheel gearshift control
(Speedshift) and manual
shift program CL 55 AMG ............. 149
Good visibility ..................................... 151
Rear view mirror ........................... 151
Windshield wipers ......................... 154
Headlamp cleaning system ........... 154
Sun visors ..................................... 155
Rear window sunshade ................. 156Automatic climate control .................. 157
Setting the temperature ............... 160
Adjusting air distribution .............. 161
Adjusting air volume ..................... 162
Maximum cooling MAXCOOL ........ 162
Defrosting ..................................... 162
Air recirculation mode .................. 163
Charcoal filter ............................... 164
Rear window defroster.................. 165
Deactivating the climate
control system .............................. 166
Air conditioning ............................ 166

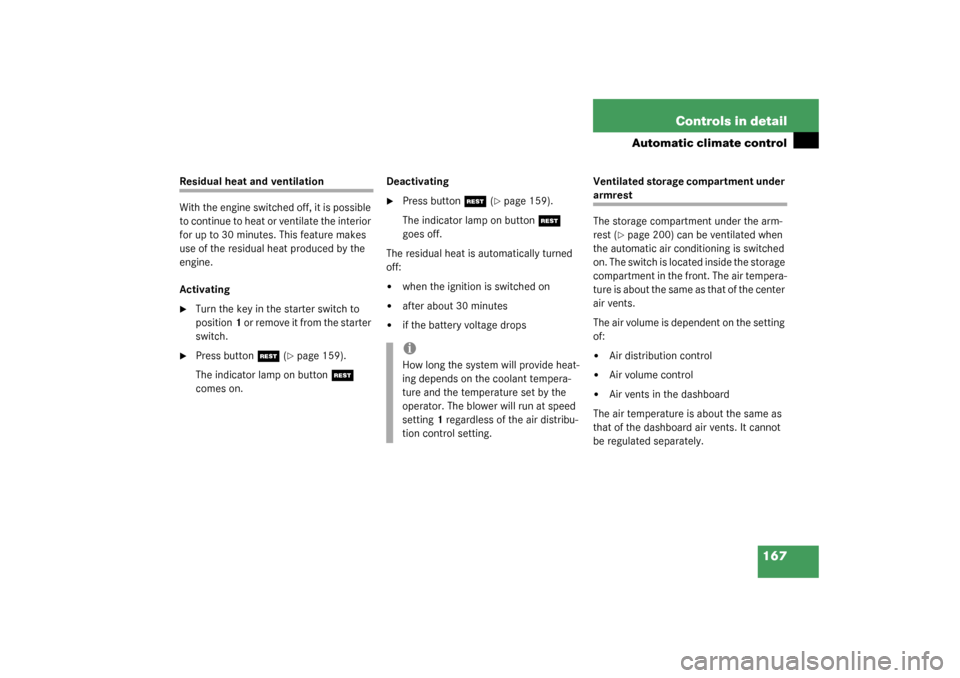

Residual heat and ventilation ........ 167
Ventilated storage compartment
under armrest ............................... 167
Rear passenger compartment
adjustable air vents ...................... 168

ContentsPower windows .................................. 169
Opening and closing
the windows ................................. 169
Synchronizing power windows ..... 172
Sliding / pop-up roof........................... 173
Opening and closing the
sliding / pop-up roof ..................... 173
Synchronizing the
sliding / pop-up roof ..................... 175
Driving systems ................................. 176
Cruise control............................... 176
Distronic* ..................................... 179
Active Body Control (ABC) ............ 190
Parktronic system*
(Parking assist) ............................. 193
Loading .............................................. 197
Roof rack* .................................... 197
Loading instructions ..................... 197
Cargo tie-down hooks .................. 198Useful features .................................. 199
Interior storage spaces ................ 199
Ashtrays ....................................... 206
Cigarette lighter ........................... 207
Heated steering wheel* ............... 208
Telephone* .................................. 208
Tele Aid ........................................ 209
Garage door opener ..................... 217
Infrared reflecting windshield ....... 221
Operation........................................ 223
The first 1000 miles (1500 km) ......... 224
Driving instructions............................ 225
Drive sensibly – save fuel ............. 225
Drinking and driving ..................... 225
Pedals .......................................... 225
Power assistance ......................... 225
Brakes .......................................... 226Driving off .................................... 227
Parking......................................... 227
Tires ............................................. 228
Hydroplaning................................ 229
Tire traction ................................. 229
Tire speed rating .......................... 229
Winter driving instructions ........... 230
Standing water............................. 231
Passenger compartment .............. 231
Driving abroad ............................. 231
Control and operation
of radio transmitters .................... 232
Catalytic converter....................... 232
Emission control .......................... 233
Coolant temperature.................... 234
At the gas station .............................. 235
Check regularly
and before a long trip................... 236

Contents
Engine compartment ......................... 237
Hood ............................................ 237
Engine oil ..................................... 238
Transmission fluid level ................ 242
Active Body Control (ABC)
fluid level...................................... 242
Coolant ........................................ 242
Battery ......................................... 243
Windshield washer system and
headlamp cleaning system ........... 244
Tires and wheels ................................ 246
Important guidelines .................... 246
Life of tires ................................... 247
Direction of rotation ..................... 247
Checking tire inflation pressure ... 247
Rotating wheels ........................... 251
Winter driving .................................... 252
Winter tires .................................. 252
Block heater* ............................... 253
Snow chains................................. 253Maintenance....................................... 254
Clearing the service indicator ....... 254
Service term exceeded ................. 254
Calling up the service indicator..... 255
Resetting the service indicator ..... 255
Vehicle care........................................ 256
Cleaning and care of vehicle ......... 256
Practical hints.................................. 263
What to do if …? ................................. 264
Lamps in instrument cluster ......... 264
Lamp in center console................. 269
Messages in the display ................ 270
Where will I find...? ............................. 295
First aid kit .................................... 295
Vehicle jack, vehicle tool kit,
luggage bowl, spare wheel ............ 295
Unlocking/locking in an emergency... 297
Unlocking the vehicle.................... 297
Locking the vehicle ....................... 298
Changing batteries........................ 299
Fuel filler flap ................................ 300Opening/closing in an emergency ..... 301
Sliding/pop-up roof ...................... 301
Replacing bulbs .................................. 302
Bulbs............................................. 302
Replacing bulbs for front lamps .... 304
Replacing bulbs for rear lamps ..... 305
Replacing wiper blades ...................... 307
Removing ...................................... 307
Installing ....................................... 307
Flat tire............................................... 308
Preparing the vehicle .................... 308
Mounting the spare wheel ............ 308
Battery ............................................... 313
Disconnecting the battery ............ 314
Removing the battery ................... 314
Charging and reinstalling
the battery .................................... 314
Reconnecting the battery ............. 315
Jump starting...................................... 316
Towing the vehicle.............................. 318
Installing towing eye bolt .............. 321

ContentsFuses ................................................. 322
Fuse boxes in passenger
compartment................................ 322
Fuse boxes in engine
compartment................................ 324
Emergency engine shut-down ...... 324Technical data.................................. 325
Spare parts service ............................ 326
Warranty coverage ............................. 327
Loss of Service and Warranty
Information Booklet...................... 327
Identification labels............................ 328
Layout of poly-V-belt drive ................. 329
CL 500 ......................................... 329
CL 55 AMG ................................... 329
CL 600 ......................................... 329Engine................................................ 330
Rims and Tires ................................... 331
Same size tires ............................. 332
Mixed size tires ............................ 333
Spare wheel ................................. 333
Electrical system ............................... 334
Main Dimensions ............................... 335
Weights.............................................. 336
Fuels, coolants, lubricants etc. .......... 337
Capacities .................................... 337
Engine oils.................................... 339
Engine oil additives ...................... 339
Air conditioning refrigerant .......... 339
Brake fluid .................................... 340
Premium unleaded gasoline ......... 340
Fuel requirements ........................ 340
Gasoline additives ........................ 341
Coolants....................................... 342
Windshield and headlamp
washer system ............................. 344Consumer information ....................... 345
Uniform tire quality grading ......... 345
Technical terms............................... 347Index................................................. 353

23 At a glance
Instrument cluster
Item
Page
1
Coolant temperature
gauge
115
2
Fuel gauge with:Fuel reserve warning lamp
268
3
L
Left turn signal
indicator lamp
K
Right turn signal
indicator lamp
46
46
4
Speedometer with:v
Electronic Stability
Program (ESP)
warning lamp
264
l
Distance warning
lamp
1
1Vehicles without Distronic*: Warning lamp without
function. It illuminates with SmartKey in starter
switch position2. It should go out when the engine
is running.
265
5
Tachometer
115
Item
Page
6
Right display with:-
Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
265
A
High beam head-
lamp indicator
111
<
Seat belt nonusage
warning lamp
266
7
J
Reset button
114
8
Display with:
Program mode
147
Gear range indicator
145
Digital clock (see
COMAND operating
instructions)
9
Multifunction display
with:
Trip odometer
117
Main odometer
117
Item
Page
Stored speed for:Cruise control or
176
Distronic*
179
10
Outside temperature indi-
cator
115
11
Left display with:1
Supplemental
restraint system
indicator lamp
266
;
Brake warning
lamp, except
Canada
267
3
Brake warning
lamp, Canada only
267
?
Engine malfunction
indicator lamp
268
12
Knob for instrument clus-
ter illumination
114

48 Getting startedDriving
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.
The coolant temperature is over 248°F
(120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 242).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and / or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount

Start the engine in the usual manner.
!If leaves, snow, etc. block the wind-
shield wipers, switch off the wipers.

For safety reasons, withdraw key
from starter switch. Remove block-
age.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI:


Set the combination switch to the
next highest wiper speed.


Have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center.

115 Controls in detail
Instrument cluster
Coolant temperature gauge
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248° F (120°C),
i.e. close to the red zone of the coolant
temperature gauge.The engine should not be operated with
the coolant temperature above 248° F
(120°C), i.e. in the red zone of the coolant
temperature gauge. Doing so may cause
serious engine damage which is not cov-
ered by the Mercedes-Benz Limited War-
ranty.
Trip odometer
Make sure you are viewing the trip
odometer display.

Press button
è
or
ÿ
on the mul-
tifunction steering wheel repeatedly
until the trip odometer appears if it is
not displayed (
page 117).

Press and hold the reset button
J

(
page 22) in the instrument cluster
until the trip odometer is reset.
Tachometer
The red marking on the tachometer de-
notes excessive engine speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
CL 55 AMG
The tachometer of the CL 55 AMG does
not have a red marking denoting excessive
engine speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated at
an excessive engine speed.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids which
may have leaked into the engine com-
partment to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the engine hood. Stay away
f r o m t h e e n g i n e i f y o u s e e o r h e a r s t e a m
coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.
iExcessive coolant temperatures trigger
a warning in the multifunction display
(page 278).
!Avoid driving at excessive engine
speeds, as it may result in serious en-
gine damage that is not covered by the
Mercedes-Benz Limited Warranty.

167 Controls in detail
Automatic climate control
Residual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the key in the starter switch to
position1 o r r e m o v e i t f r o m t h e s t a r t e r
switch.

Press button
T
(page 159).
The indicator lamp on button
T

comes on.Deactivating

Press button
T
(page 159).
The indicator lamp on button
T

goes off.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage dropsVentilated storage compartment under
armrest
The storage compartment under the arm-
rest (
page 200) can be ventilated when
the automatic air conditioning is switched
on. The switch is located inside the storage
compartment in the front. The air tempera-
ture is about the same as that of the center
air vents.
The air volume is dependent on the setting
of:


Air distribution control


Air volume control


Air vents in the dashboard
The air temperature is about the same as
that of the dashboard air vents. It cannot
be regulated separately.
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting1 regardless of the air distribu-
tion control setting.
