2003 MERCEDES-BENZ CL55AMG Owner's Manual

25 At a glance
Center console
Center console
Upper part
Item
Page
1
Rear window sunshade
156
2
Parking assist* (Parktronic
system) deactivation
switch
193
3
Active Body Control (ABC)
190
4
Level control switch
191
5
Central locking switch
95
Anti-theft alarm system in-
dicator lamp
77
6
Hazard warning flasher
on/off switch
111
7
Central unlocking switch
95
Item
Page
8
Electronic Stability Pro-
gram (ESP) control switch
75
9
Rear seat head restraints,
switch for folding down
97
10
Tow-away alarm switch
78
11
COMAND (see separate
operating instructions)
12
Automatic climate control
157
13
Ashtray
206
Lighter
207

26 At a glanceCenter consoleLower part
Item
Page
1
KEYLESS-GO* start / stop
button
33, 43
2
Selector lever for
automatic transmission
43,
145
3
PASSENGER AIRBAG OFF
indicator lamp
65
4
Thumbwheel for setting
distance in Distronic*
187
5
Distance warning func-
tion* on / off switch
187
6
Program mode selector for
automatic transmission
147

27 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Left reading lamp on / off
112
2
Rear interior lighting
on / off
112
3
Right reading lamp on / off
112
4
Interior lighting control
112
5
Sliding / pop-up roof
173
6
Hands-free microphone for
Tele Aid (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
7
Rear view mirror
38,
151
8
Garage door opener
217
9
Tele Aid (emergency call
system) button
209

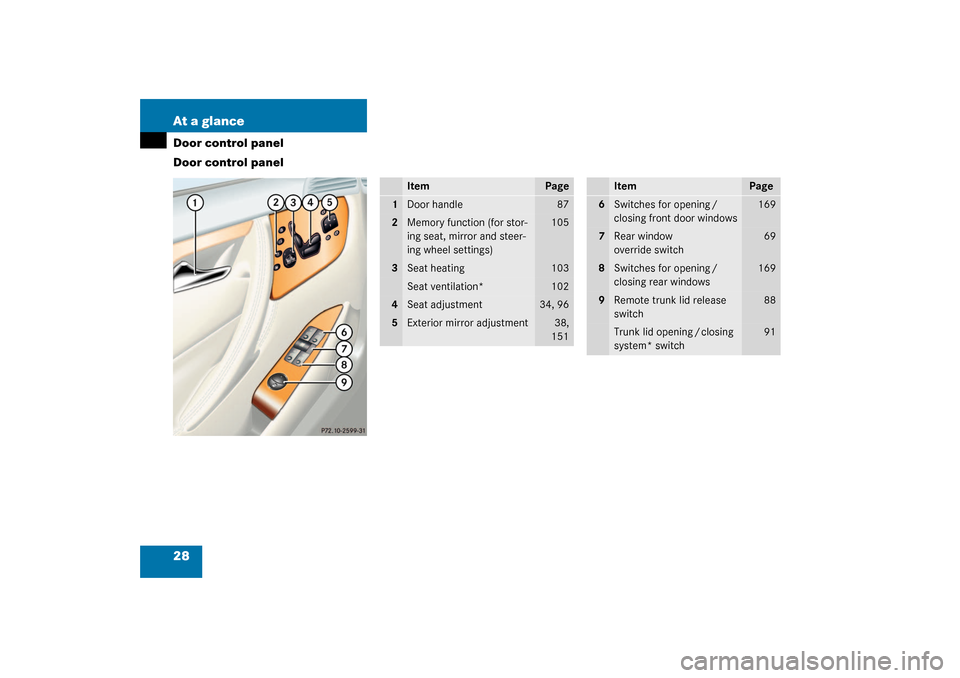

28 At a glanceDoor control panel
Door control panel
Item
Page
1
Door handle
87
2
Memory function (for stor-
ing seat, mirror and steer-
ing wheel settings)
105
3
Seat heating
103
Seat ventilation*
102
4
Seat adjustment
34, 96
5
Exterior mirror adjustment
38,
151
Item
Page
6
Switches for opening /
closing front door windows
169
7
Rear window
override switch
69
8
Switches for opening /
closing rear windows
169
9
Remote trunk lid release
switch
88
Trunk lid opening / closing
system* switch
91

29 Getting started
Unlocking
Adjusting
Driving
Parking and locking

30 Getting startedUnlockingThe“Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will help you with further in-
formation. The corresponding page refer-
ences are at the end of each segment.
UnlockingUnlocking with the SmartKey
Your vehicle comes equipped with two
SmartKeys with integrated remote con-
trols and removable mechanical key.
The locking tabs for the mechanical key
portion of the two keys are a different color
to help distinguish each key unit. SmartKey with remote control 1‹
Lock button
2
Š
Unlock button for trunk lid
3
Œ
Unlock button
4
Â
Panic button (
page 70)

Press unlock button
Œ
on the key.
All turn signal lamps blink once. The
locking knobs in the doors move up.

Get in the vehicle and insert the key in
the starter switch.iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.

31 Getting started
Unlocking
Starter switch positionsStarter switch0For removing key
1Power supply for some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, take the
KEYLESS-GO* card with you and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.
!If the key is left in starter switch posi-
tion 0 for an extended period of time, it
can no longer be turned in the starter
switch.

Remove the key from the starter
switch and reinsert.
If the key can still not be turned, the
battery may not be sufficiently
charged.

Check the battery and charge it
if necessary (
page 313).

Get a jump start (
page 316).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the key from the
starter switch.

32 Getting startedUnlockingUnlocking with KEYLESS-GO*
Vehicles with KEYLESS-GO*: in addition to
the two SmartKeys with remote controls
and removable mechanical key, your vehi-
cle comes equipped with two KEY-
LESS-GO* cards.
The function of the SmartKey overrules the
KEYLESS-GO function.If you have the KEYLESS-GO function, your
vehicle checks whether the KEYLESS-GO
card is valid when you grasp the door han-
dle. If your KEYLESS-GO card is valid, the
doors will unlock, and you can open them.

Grasp the door handle.
All turn signal lamps blink once. The
locking knobs on the doors move up.
Pressing the KEYLESS-GO start/stop but-
ton on the selector lever corresponds to
turning the key to the various starter
switch positions.
iTo unlock the vehicle, the KEYLESS-GO
card must be outside the vehicle, no
further than approx. 3 feet (1 meter)
away from the door.
Warning!
G
When leaving the vehicle, always take the
key and the KEYLESS-GO card with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
