2003 MERCEDES-BENZ C CLASS COUPE roof

Contents
Air recirculation mode .................. 154
Charcoal filter .............................. 156
Rear window defroster ................. 156
Air conditioning ............................ 157
Residual heat and ventilation* ..... 158
Rear passenger compartment
adjustable air vents ...................... 158
Audio system ..................................... 159 Audio and telephone, operation ... 159
Operating safety ........................... 159
Operating and display elements ... 160
Button and soft key operation ...... 162
Operation ..................................... 162
Radio mode .................................. 165
Cassette mode ............................. 168
CD changer* operating mode ...... 172
Telephone* operation .................. 176
Power windows .................................. 182 Opening and closing the windows 182
Synchronizing power windows ..... 184
Panorama sliding/pop-up roof* ......... 185 Opening and closing the
sunshades for the panorama
sliding/pop-up roof ...................... 185
Opening and closing the panorama
sliding/pop-up roof ...................... 186 Synchronizing the panorama
sliding / pop-up roof ..................... 188
Driving systems ................................. 189 Cruise control .............................. 189
Loading .............................................. 192 Roof rack* ................................... 192
Luggage cover ............................. 192
Split folding rear bench seat ......... 192
Loading instructions .................... 194
Useful features .................................. 195 Interior storage spaces ................ 195
Ashtrays ....................................... 198
Cigarette lighter ........................... 199
Telephone* ................................... 200
Tele Aid* ...................................... 201
Garage door opener ...................... 209
Operation ......................................... 213
The first 1000 miles (1500km) .......... 214
Driving instructions ........................... 215 Drive sensibly – save fuel ............. 215
Drinking and driving ..................... 215
Pedals .......................................... 215
Power assistance .......................... 216
Brakes........................................... 216 Driving off .....................................217
Parking .........................................217
Tires ..............................................218
Hydroplaning ................................ 219
Tire traction ..................................219
Tire speed rating ...........................219
Winter driving instructions ............220
Standing water .............................221
Passenger compartment ...............221
Driving abroad ..............................221
Control and operation of radio
transmitter ....................................222
Catalytic converter .......................222
Emission control ...........................223
Coolant temperature ....................223
At the gas station ...............................224 Check regularly and before a
long trip ........................................225
Engine compartment .......................... 226 Hood .............................................226
Engine oil ......................................227
Transmission fluid level ................229
Coolant level .................................229
Battery ..........................................231
Windshield washer system and
headlamp cleaning system ...........232

ContentsTires and wheels ................................ 233Important guidelines .................... 233
Life of tire ..................................... 234
Direction of rotation ..................... 234
Checking tire inflation pressure ... 234
Rotating wheels ............................ 235
Winter driving..................................... 236 Winter tires ................................... 236
Block heater (Canada only) .......... 237
Snow chains ................................. 237
Maintenance ...................................... 238 Clearing the service indicator....... 238
Service term exceeded ................. 238
Calling up the service indicator .... 239
Resetting the service indicator ..... 239
Vehicle care ....................................... 240 Cleaning and care of vehicle ........ 240
Practical hints .................................. 245
What to do if … .................................. 246 Lamps in instrument cluster ......... 246
Lamp in center console ................ 251
Messages in the display ............... 252
Where will I find ... ............................. 271 First aid kit ................................... 271
Spare wheel ................................. 271
Vehicle tool kit ............................. 272
Unlocking/locking in an emergency .. 274 Unlocking the vehicle ................... 274
Locking the vehicle ...................... 275
Changing batteries ....................... 276
Fuel filler flap ............................... 277
Manually unlocking the
transmission selector lever .......... 277
Opening/closing in an emergency ..... 278 Panorama sliding/pop-up roof ..... 278
Replacing bulbs ................................. 280 Bulbs ............................................ 280
Replacing bulbs for front lamps ... 282
Side marker lamp bulb ................. 285
Replacing bulbs for rear lamps ..... 285 Replacing wiper blades ...................... 287
Removing ..................................... 287
Installing ...................................... 287
Flat tire .............................................. 288 Preparing the vehicle ................... 288
Mounting the spare wheel ............ 288
Battery ............................................... 294 Disconnecting the battery ............ 295
Removing the batteries ................ 295
Charging and reinstalling
batteries ...................................... 295
Reconnecting the batteries .......... 295
Jump starting ..................................... 297
Towing the vehicle ............................. 299 Installing towing eye bolt ............. 302
Fuses ................................................. 303 Fuse box in passenger
compartment ............................... 303
Fuse box in engine compartment . 303
Auxiliary fuse box in trunk ............ 304

26 At a glanceOverhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
100
2
Panorama sliding/pop-up
roof*
186
3
Right reading lamp on/off
101
4
Interior lighting control
100
5
Hands-free microphone for
Tele Aid* (emergency call
system), telephone* and
voice control system* (see
separate operating instruc-
tions)
200
6
Rear view mirror
39,
138
7
Garage door opener
209
8
Left reading lamp on/off
101
9
Tele Aid* (emergency call
system) button
204

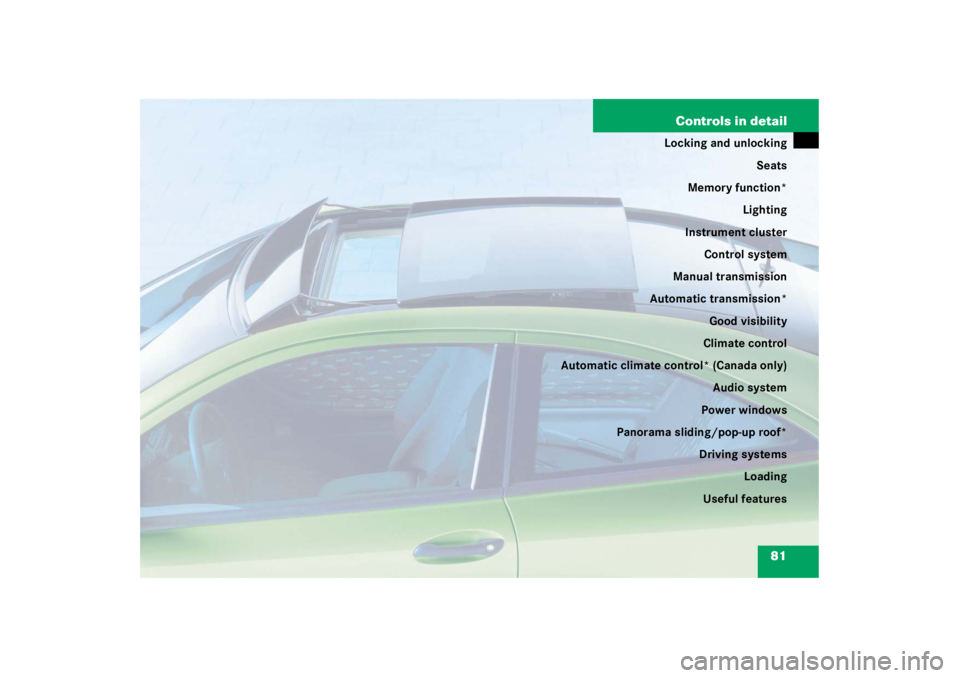

81
Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster Control system
Manual transmission
Automatic transmission*
Good visibility
Climate control
Automatic climate control* (Canada only) Audio system
Power windows
Panorama sliding/pop-up roof*
Driving systemsLoading
Useful features

83
Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press button
Œ
.
All turn signal lamps blink once. The
locking knobs in the doors move up.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if neither door nor trunk lid is
opened, the SmartKey is not inserted in
the starter switch, or the central locking
switch is not activated. Global locking

Press button
‹
.
All turn signal lamps blink three times.
The locking knobs in the doors move
down.
Selective setting
If you frequently travel alone, you may wish
to reprogram the key so that
pressing
Œ
only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttons
Œ
and
‹

simultaneously for about five seconds
until battery check lamp 4 blinks twice.
The key will then function as follows:
Unlocking driver’s door and fuel filler
flap

Press button
Œ
once.
Global unlocking

Press button
Œ
twice.
Global locking

Press button
‹
. Restoring to factory setting

Press and hold buttons
Œ
and
‹

simultaneously for about six seconds
until battery check lamp 4 blinks twice.
iYou can also open and close the power
windows (
page 183) and panorama
sliding/pop-up roof (
page 185) from
outside using the SmartKey.
!To prevent possible malfunction, avoid
exposing the key to high levels of elec-
tromagnetic radiation.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. It is possible for children to open a
locked door from the inside, which could re-
sult in an accident and/or serious injury.

146 Controls in detailClimate controlDefrosting
Activating
Press button
P
(page 143).
The indicator lamp on the button
comes on
or

Switch off air recirculation, if selected.
Press button
O
(page 143).
The indicator lamp on the button goes
out.

Close center air vents.

Open left and right side air vents and
adjust side air vents upwards. Deactivating

Press button
P
(page 143).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment. Activating

Press button
O
(page 143).
The indicator lamp on the button
comes on.
iThese settings should only be selected
for a short time.
Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.
iIf you keep button
O
pressed the
side windows and panorama slid-
ing/pop-up roof will be closed.
The air recirculation mode is activated
automatically at high outside tempera-
tures.
If you have turned off the air condition-
ing (
page 148) or the outside
temperature is below 41°F (5°C), the
air recirculation mode will not switch
on automatically.

147
Controls in detail
Climate control
Deactivating
Press button
O
(page 143)
The indicator lamp on the button goes
out.
The air recirculation mode is deactivated
automatically:


after five minutes if the outside temper-
ature is below approximately 41°F
(5 °C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside temper-
ature is above approximately 41°F
(5 °C) At outside temperatures above 79°F
(26 °C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press button
F
(page 143).
The indicator lamp on the button lights
up. Deactivating

Press button
F
(page 143) again.
The indicator lamp on the button goes
out.
iIf you keep button
O
pressed the
side windows and panorama slid-
ing/pop-up roof will be returned to
their previous position.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches
off too soon and the indicator lamp
starts blinking, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.

154 Controls in detailAutomatic climate control* (Canada only)Maximum cooling MAXCOOL
If the left and right air distribution controls
as well as the airflow volume control are
set to
U
and there is a high need for
cooling, the display “AUTO MAXCOOL” ap-
pears.
This provides the fastest possible cooling
of the vehicle interior (when windows and
panorama sliding/pop-up roof* are
closed).
Defrosting
Activating
Press button
P
(page 151).
The indicator lamp on the button lights
up

Switch off air recirculation, if selected.

Press button
O
(page 151).
The indicator lamp on the button goes
out.

Close center air vents.

Adjust side air vents upwards.
Deactivating

Press button
P
(page 151).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
Activating
Press button
O
(page 151).
The indicator lamp on the button lights
up.
iThese settings should only be selected
for a short time.
Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.
