2003 MERCEDES-BENZ C CLASS COUPE check engine

Contents
Air recirculation mode .................. 154
Charcoal filter .............................. 156
Rear window defroster ................. 156
Air conditioning ............................ 157
Residual heat and ventilation* ..... 158
Rear passenger compartment
adjustable air vents ...................... 158
Audio system ..................................... 159 Audio and telephone, operation ... 159
Operating safety ........................... 159
Operating and display elements ... 160
Button and soft key operation ...... 162
Operation ..................................... 162
Radio mode .................................. 165
Cassette mode ............................. 168
CD changer* operating mode ...... 172
Telephone* operation .................. 176
Power windows .................................. 182 Opening and closing the windows 182
Synchronizing power windows ..... 184
Panorama sliding/pop-up roof* ......... 185 Opening and closing the
sunshades for the panorama
sliding/pop-up roof ...................... 185
Opening and closing the panorama
sliding/pop-up roof ...................... 186 Synchronizing the panorama
sliding / pop-up roof ..................... 188
Driving systems ................................. 189 Cruise control .............................. 189
Loading .............................................. 192 Roof rack* ................................... 192
Luggage cover ............................. 192
Split folding rear bench seat ......... 192
Loading instructions .................... 194
Useful features .................................. 195 Interior storage spaces ................ 195
Ashtrays ....................................... 198
Cigarette lighter ........................... 199
Telephone* ................................... 200
Tele Aid* ...................................... 201
Garage door opener ...................... 209
Operation ......................................... 213
The first 1000 miles (1500km) .......... 214
Driving instructions ........................... 215 Drive sensibly – save fuel ............. 215
Drinking and driving ..................... 215
Pedals .......................................... 215
Power assistance .......................... 216
Brakes........................................... 216 Driving off .....................................217
Parking .........................................217
Tires ..............................................218
Hydroplaning ................................ 219
Tire traction ..................................219
Tire speed rating ...........................219
Winter driving instructions ............220
Standing water .............................221
Passenger compartment ...............221
Driving abroad ..............................221
Control and operation of radio
transmitter ....................................222
Catalytic converter .......................222
Emission control ...........................223
Coolant temperature ....................223
At the gas station ...............................224 Check regularly and before a
long trip ........................................225
Engine compartment .......................... 226 Hood .............................................226
Engine oil ......................................227
Transmission fluid level ................229
Coolant level .................................229
Battery ..........................................231
Windshield washer system and
headlamp cleaning system ...........232

ContentsTires and wheels ................................ 233Important guidelines .................... 233
Life of tire ..................................... 234
Direction of rotation ..................... 234
Checking tire inflation pressure ... 234
Rotating wheels ............................ 235
Winter driving..................................... 236 Winter tires ................................... 236
Block heater (Canada only) .......... 237
Snow chains ................................. 237
Maintenance ...................................... 238 Clearing the service indicator....... 238
Service term exceeded ................. 238
Calling up the service indicator .... 239
Resetting the service indicator ..... 239
Vehicle care ....................................... 240 Cleaning and care of vehicle ........ 240
Practical hints .................................. 245
What to do if … .................................. 246 Lamps in instrument cluster ......... 246
Lamp in center console ................ 251
Messages in the display ............... 252
Where will I find ... ............................. 271 First aid kit ................................... 271
Spare wheel ................................. 271
Vehicle tool kit ............................. 272
Unlocking/locking in an emergency .. 274 Unlocking the vehicle ................... 274
Locking the vehicle ...................... 275
Changing batteries ....................... 276
Fuel filler flap ............................... 277
Manually unlocking the
transmission selector lever .......... 277
Opening/closing in an emergency ..... 278 Panorama sliding/pop-up roof ..... 278
Replacing bulbs ................................. 280 Bulbs ............................................ 280
Replacing bulbs for front lamps ... 282
Side marker lamp bulb ................. 285
Replacing bulbs for rear lamps ..... 285 Replacing wiper blades ...................... 287
Removing ..................................... 287
Installing ...................................... 287
Flat tire .............................................. 288 Preparing the vehicle ................... 288
Mounting the spare wheel ............ 288
Battery ............................................... 294 Disconnecting the battery ............ 295
Removing the batteries ................ 295
Charging and reinstalling
batteries ...................................... 295
Reconnecting the batteries .......... 295
Jump starting ..................................... 297
Towing the vehicle ............................. 299 Installing towing eye bolt ............. 302
Fuses ................................................. 303 Fuse box in passenger
compartment ............................... 303
Fuse box in engine compartment . 303
Auxiliary fuse box in trunk ............ 304

50 Getting startedDrivingProblems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature is over 248°F
(120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 229).
In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount

Start the engine in the usual manner.

56 Safety and SecurityOccupant safety
Occupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts


Emergency tensioning device


Airbags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems their protective
effects work in conjunction with each oth-
er. The
1
warning lamp in the instrument
cluster lights up:


for about 4 seconds when you turn the
key in the starter switch to position 1.


for about 4 seconds when you start the
engine by turning the key. The warning lamp goes out shortly after
you start the engine.
This shows that the
restraint systems are operational.
A malfunction in the system has been de-
tected if the
1
warning lamp:


fails to extinguish after approximately
4seconds.


does not come on at all.


comes on after the engine was started
or while driving.
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
More information can be found in the
“Practical hints” section (
page 248).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 65).
iThe warning lamp remains lit if the key
is turned to position 2 and left there.
The warning lamp will go out when you
start the engine.

103
Controls in detail
Instrument cluster
Turn the SmartKey in the starter switch to
position
1 or 2.
Call up the trip odometer and main
odometer by pressing button
è

or
ÿ
on the multifunction steering
wheel (page 106).

Press button
j
or
k
until the
coolant temperature gauge appears. During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious en-
gine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Trip odometer
Check to see that the trip odometer
and main odometer (
page 105) ap-
pear in the multifunction display.

Press and hold the reset knob on the in-
strument cluster (
page 22) until the
trip odometer is reset.
Tachometer
The red marking on the tachometer de-
notes excessive engine speed.
To help protect the engine, the fuel supply
is interrupted if the engine is operated
within the red marking.
iExcessive coolant temperatures trigger
a warning in the multifunction display
!Avoid driving at excessive engine
speeds, as it may result in serious en-
gine damage that is not covered by the
Mercedes-Benz Limited Warranty.

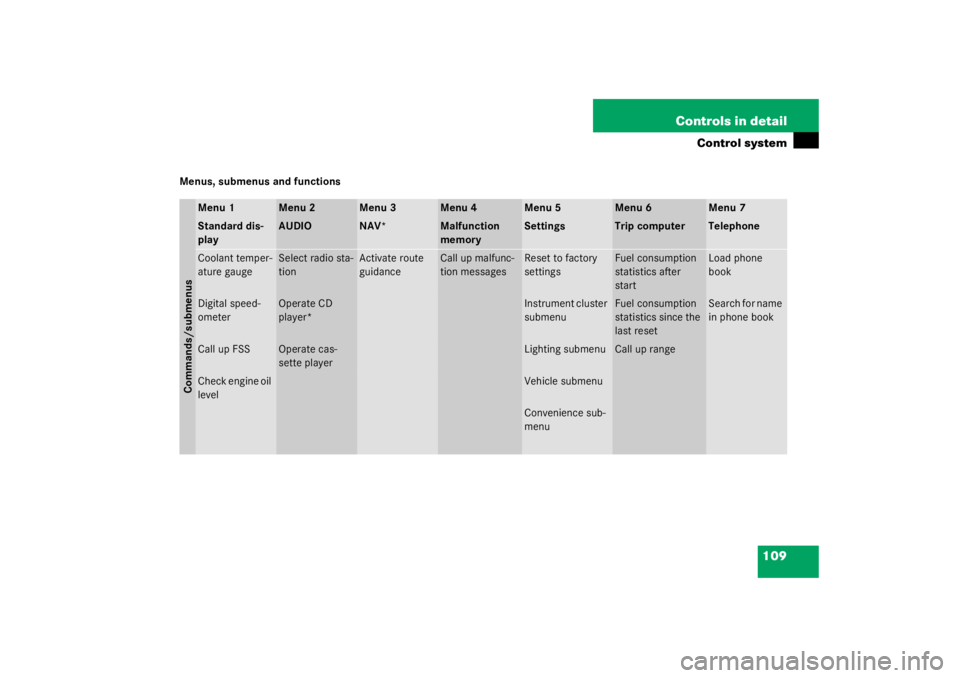

109
Controls in detail
Control system
Menus, submenus and functions
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Commands/submenusStandard dis-
play
AUDIO
NAV*
Malfunction
memory
Settings
Trip computer
Telephone
Coolant temper-
ature gauge
Select radio sta-
tion
Activate route
guidance
Call up malfunc-
tion messages
Reset to factory
settings
Fuel consumption
statistics after
start
Load phone
book
Digital speed-
ometer
Operate CD
player*
Instrument cluster
submenu
Fuel consumption
statistics since the
last reset
Search for name
in phone book
Call up FSS
Operate cas-
sette player
Lighting submenu
Call up range
Check engine oil
level
Vehicle submenuConvenience sub-
menu

110 Controls in detailControl system
Standard display menu
You can select the functions in the stan-
dard display menu with button
k

or
j
.
The following functions are available:
Display digital speedometer

Press button
j
twice.
The current vehicle speed is shown in
the multifunction display.
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO OFF
i s s h o w n i n t h e
display.
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Call up coolant temperature
gauge
102
Call up digital speedometer
see
below
Call up FSS
238
Check engine oil level
227
Function
Page
Select radio station
111
Operate CD player*
111
Operate cassette player
112

137
Controls in detail
Automatic transmission*
Accelerator position
Your driving style influences the transmis-
sion’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.

Ease on the accelera
tor when you have
reached the desired speed.
The transmission shifts up again. Emergency operation (Limp Home
Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
h o m e ( e m e r g e n c y o p e r a t i o n ) m o d e . I n t h i s
mode only 2nd gear and reverse gear can
be activated.
Stop the vehicle.

Move selector lever to
P.

Turn off the engine.

Wait at least ten seconds before re-
starting.

Restart the engine.

Move selector lever to position D (for
2nd gear) or R.

Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.
