2003 MERCEDES-BENZ C CLASS COUPE child lock

69
Safety and Security
Occupant safety
Installation of infant and child restraint
systems
Anchorage rings
1 are located on the back
side of the rear backrests and on the floor
behind rear seat.
Prior to installing a tether strap, note the
following steps:
Fold backrest forward.

Guide tether strap between head re-
straints and rear shelf.
Head restraint must be installed (if re-
movable) and positioned such that the
top tether strap can pass freely be-
tween the head restraint and top of
seat back.
Make sure that the tether strap is not
twisted.

Fold backrest back until it locks in
place.
Warning!
G
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such de-
vices may interfere with the BabySmart
TM
system. Such signal interference may cause
the
7
indicator lamp not to come on
during self-test or be continuously lit, indi-
cating that the system is not functioning.
Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the extended cargo area is not in
use. Check for secure locking by pushing
and pulling on the backrest.

70 Safety and SecurityOccupant safety
Fold up anchorage ring1.

Securely fasten hook 2, which is part of
the tether strap, to anchorage ring 1. Child seat anchors – “LATCH” type
This vehicle is equipped with two “LATCH”
(L
ower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the rear seats) for
the installation of a “LATCH” child seat
with the matching anchor fittings.
If a child seat is not installed, the “LATCH”
anchors can be folded back between the
seat cushion and the backrest.

Grip inner side of anchors 1 and fold
forward until they lock in place.

Install child seat according to the man-
ufacturer’s instructions. To fold mounts back

Press down button
2 on each anchor
and return anchor to its catch.
iFor safety, make sure that the hook has
attached to the ring beyond the safety
catch, as illustrated.
iThe child seat must be firmly attached
in the right and left side anchors.iNon-“LATCH” type child seats may also
be used and can be installed using the
vehicle’s seat belt system. Install child
seat according to the manufacturer’s
instructions.

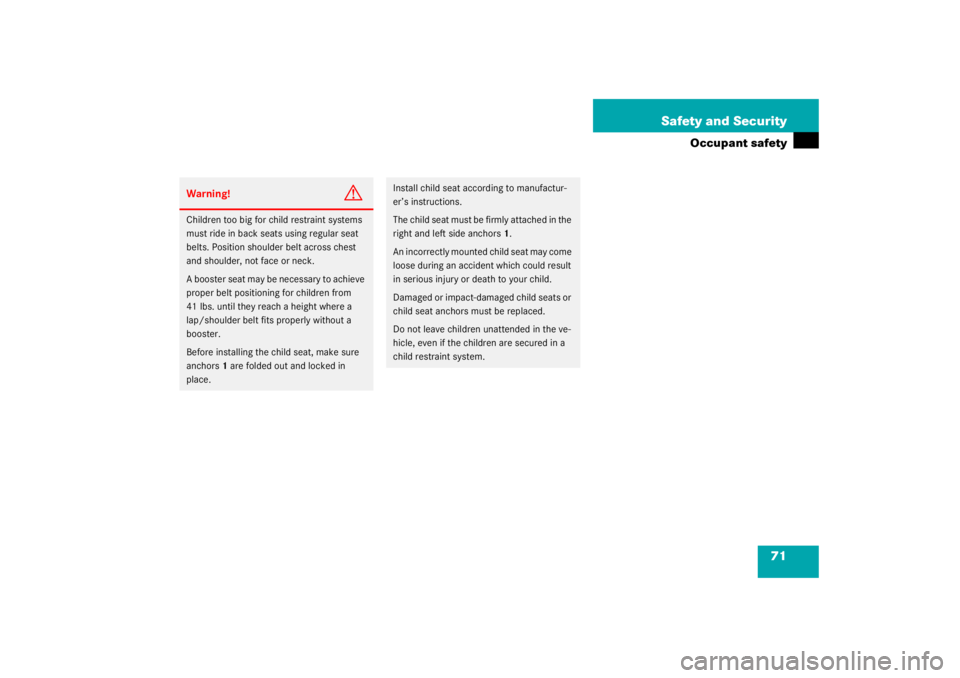

71
Safety and Security
Occupant safety
Warning!
G
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck.
A booster seat may be necessary to achieve
proper belt positioning for children from
41 lbs. until they reach a height where a
lap/shoulder belt fits properly without a
booster.
Before installing the child seat, make sure
anchors
1 are folded out and locked in
place.
Install child seat according to manufactur-
er’s instructions.
T h e c h i l d s e a t m u s t b e f i r m l y a t t a c h e d i n t h e
right and left side anchors 1.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to your child.
Damaged or impact-damaged child seats or
child seat anchors must be replaced.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system.

83
Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press button
Œ
.
All turn signal lamps blink once. The
locking knobs in the doors move up.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if neither door nor trunk lid is
opened, the SmartKey is not inserted in
the starter switch, or the central locking
switch is not activated. Global locking

Press button
‹
.
All turn signal lamps blink three times.
The locking knobs in the doors move
down.
Selective setting
If you frequently travel alone, you may wish
to reprogram the key so that
pressing
Œ
only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttons
Œ
and
‹

simultaneously for about five seconds
until battery check lamp 4 blinks twice.
The key will then function as follows:
Unlocking driver’s door and fuel filler
flap

Press button
Œ
once.
Global unlocking

Press button
Œ
twice.
Global locking

Press button
‹
. Restoring to factory setting

Press and hold buttons
Œ
and
‹

simultaneously for about six seconds
until battery check lamp 4 blinks twice.
iYou can also open and close the power
windows (
page 183) and panorama
sliding/pop-up roof (
page 185) from
outside using the SmartKey.
!To prevent possible malfunction, avoid
exposing the key to high levels of elec-
tromagnetic radiation.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. It is possible for children to open a
locked door from the inside, which could re-
sult in an accident and/or serious injury.

86 Controls in detailLocking and unlockingClosing the trunk lid1 Handle
Lower trunk lid by pulling firmly on
grip 1.

Close trunk lid with hands placed flat
on it.
Trunk lid emergency release
The emergency release button is located in
the trunk lid.
Illumination of the emergency release but-
ton:

The button will blink for 30 minutes af-
ter opening the trunk lid


The button will blink for 60 minutes af-
ter closing the trunk lid.

Briefly press the emergency release
button.
The trunk unlocks and the trunk lid
opens.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
lid opening when closing the trunk lid. Be es-
pecially careful when small children are
around.
Warning!
G
Only drive with the trunk closed as, among
other dangers such as visibility blockage,
exhaust fumes may enter the vehicle interi-
or.
!The emergency release button does
not open the trunk lid if the vehicle bat-
tery is discharged or disconnected.iIf the emergency release button is
pressed and the vehicle was centrally
locked, the exterior lamps will flash and
the alarm will sound as the trunk lid
opens.
To cancel the alarm, insert the key in
the starter switch or press button
Œ

or
‹
on the key.

87
Controls in detail
Locking and unlocking
Automatic central locking
The doors and the trunk lid automatically
lock when the ignition is switched on and
the wheels are turning at vehicle speeds of
approximately 9 mph (15 km/h) or more.
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
You can deactivate the automatic locking
using the control system (
page 122).
Locking and unlocking from the inside
You can lock or unlock the doors and the
trunk lid from inside using the central lock-
ing switch. This can be useful, for example,
if you want to lock the vehicle before start-
ing to drive.
The fuel filler flap cannot be locked or un-
locked with the central locking switch.
iThe doors unlock automatically after an
accident if the force of the impact ex-
ceeds a preset threshold.
The vehicle automatically locks when
the ignition is switched on and the
wheels are turning at vehicle speeds of
approximately 9 mph (15 km/h) or
more. You could therefore lock yourself
out when the vehicle

is pushed


is on a test stand
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.

89
Controls in detail
Seats
Seats
Information on seat adjustment can be
found in the “Getting started” section
(page 32).
Easy-entry/exit feature*
With the easy-entry/exit feature activated,
the steering wheel tilts upwards and the
driver’s seat moves to the rear.
This allows easier entry into and exit from
the vehicle when the driver’s door is
opened. However, the engine must be
turned off.
When the SmartKey is inserted in the start-
er switch and the driver’s door is closed,
the steering wheel and the driver’s seat re-
turn to their last set position. You can activate the following functions:


Steering column:
Only the steering column is adjusted.


Steering column and seat:
The steering column and the seat are
adjusted.
The easy-entry/exit feature can be
switched on or off in the individual setting
menu of the control system (
page 123).
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry / exit feature* is activated,
the driver’s door is being opened and the en-
gine is turned off or the SmartKey is re-
moved from the starter switch. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature*, which could result in an accident
and/or serious personal injury.

123
Controls in detail
Control system
Convenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you


remove the key from the starter switch


open the driver’s door
However, the engine must be turned off. After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when


the driver’s door is closed


you put the key in the starter switch
and


press the appropriate stored position
button on the memory switch
(page 94)

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
EASY-ENTRY FEATURE ACTIVATE
.
The selection marker is on the current
setting.
Function
Page
Activate easy-entry/exit feature
see
below
Set key dependency
124
Set parking position for exterior
rear view mirror
124
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry/exit feature is activated and
the driver’s door is being opened or the key
is removed from the starter switch. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/ or serious personal
injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press the seat adjustment
switch*(
page 34).


Move the steering column stalk*
(page 38).


Press the memory switch
(page 94).
