2003 LINCOLN LS navigation system

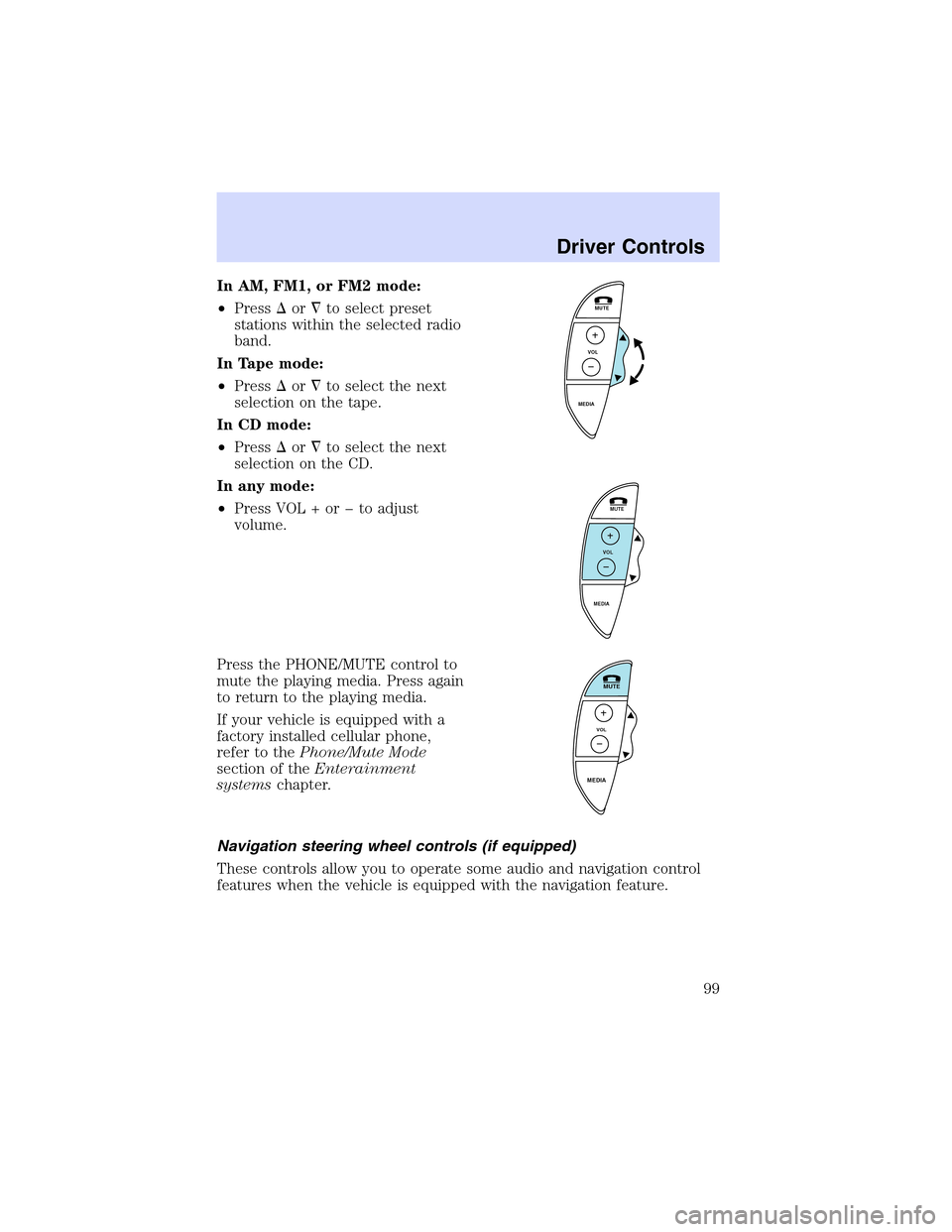

In AM, FM1, or FM2 mode:
•Press
orto select preset
stations within the selected radio
band.
In Tape mode:
•Press
orto select the next
selection on the tape.
In CD mode:
•Press
orto select the next
selection on the CD.
In any mode:
•Press VOL + or to adjust
volume.
Press the PHONE/MUTE control to
mute the playing media. Press again
to return to the playing media.
If your vehicle is equipped with a
factory installed cellular phone,
refer to thePhone/Mute Mode
section of theEnterainment
systemschapter.
Navigation steering wheel controls (if equipped)
These controls allow you to operate some audio and navigation control
features when the vehicle is equipped with the navigation feature.
MUTE
VOL
MEDIA
MUTE
VOL
MEDIA
MUTE
VOL
MEDIA
Driver Controls
99

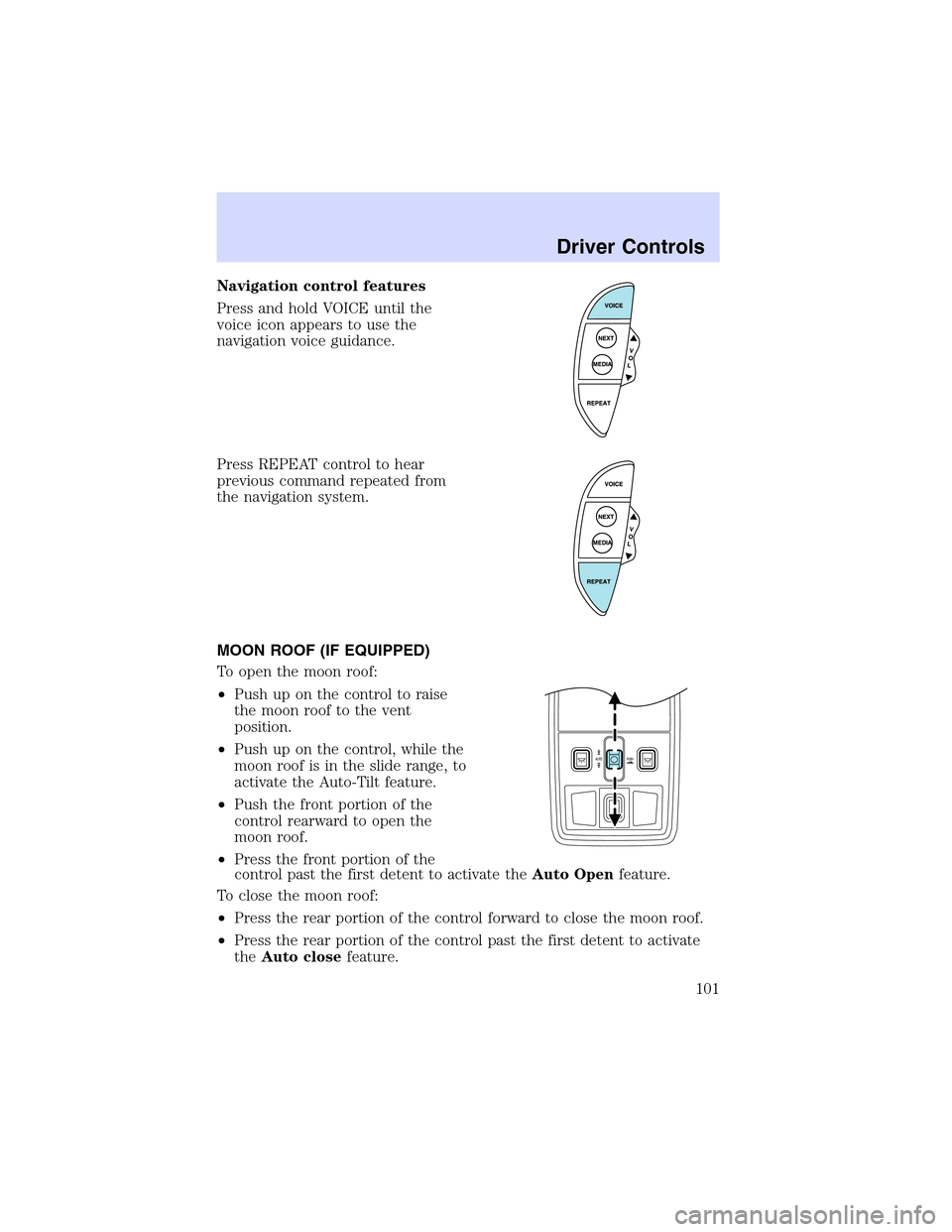

Navigation control features
Press and hold VOICE until the
voice icon appears to use the
navigation voice guidance.
Press REPEAT control to hear
previous command repeated from
the navigation system.
MOON ROOF (IF EQUIPPED)
To open the moon roof:
•Push up on the control to raise
the moon roof to the vent
position.
•Push up on the control, while the
moon roof is in the slide range, to
activate the Auto-Tilt feature.
•Push the front portion of the
control rearward to open the
moon roof.
•Press the front portion of the
control past the first detent to activate theAuto Openfeature.
To close the moon roof:
•Press the rear portion of the control forward to close the moon roof.
•Press the rear portion of the control past the first detent to activate
theAuto closefeature.
Driver Controls
101

J
Jack ............................................211
positioning ...............................211
storage .....................................211
Jump-starting your vehicle ......216
K
Keyless entry system ...............129
autolock ...................................128
Keys ...........................................120
positions of the ignition .........181
valet key ..................................120
L
Lamps
autolamp system .......................77
bulb replacement
specifications chart ..................81
cargo lamps ...............................79
daytime running light ...............78
fog lamps ...................................78
headlamps .................................77
headlamps, flash to pass ..........79
instrument panel, dimming .....79
interior lamps .....................81–82
replacing bulbs ...................81–85
Lane change indicator
(see Turn signal) ........................81
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........184
Load limits .................................198
GAWR ......................................198
GVWR ......................................198
trailer towing ..........................198
Locks
autolock ...................................128
childproof ................................122doors ........................................120
Lubricant specifications ...274–275
Lug nuts, anti-theft ...................215
Lumbar support, seats .............136
M
Message center .................106, 108
select button ...........................106
warning messages ...................110
Mirrors ...................................89, 92
automatic dimming
rearview mirror .........................92
fold away ...................................95
heated ........................................94
programmable memory ..........128
side view mirrors (power) .......94
Moon roof ..................................101
Motorcraft parts ................258, 271
N
Navigation system .......................24
cd functions ..............................35
destination mode ......................48
map mode .................................39
quick start .................................27
radio functions ..........................29
O
Octane rating ............................257
Oil (see Engine oil) ..................243
P
Parking brake ............................185
Parts (see Motorcraft parts) ....271
Index
284
