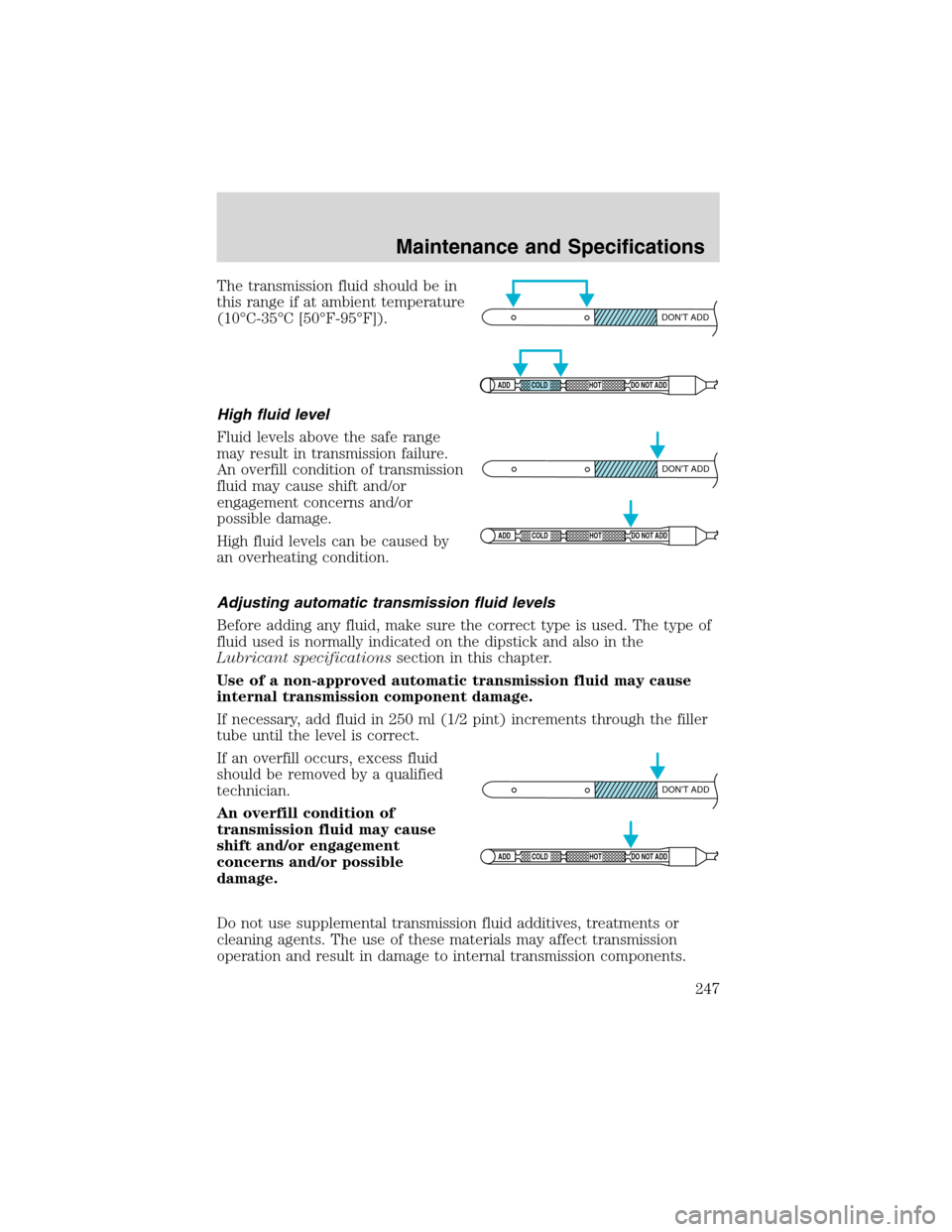

The transmission fluid should be in
this range if at ambient temperature
(10°C-35°C [50°F-95°F]).
High fluid level
Fluid levels above the safe range
may result in transmission failure.
An overfill condition of transmission
fluid may cause shift and/or
engagement concerns and/or
possible damage.
High fluid levels can be caused by
an overheating condition.
Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Lubricant specificationssection in this chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 250 ml (1/2 pint) increments through the filler
tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause
shift and/or engagement
concerns and/or possible
damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
DON’T ADD
ADD COLD HOT DO NOT ADD
DON’T ADD
ADD COLD HOT DO NOT ADD
DON’T ADD
ADD COLD HOT DO NOT ADD
Maintenance and Specifications
247
Fluid Ford Part Name Application Capacity
Engine oil
(includes
filter
change)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilAll 5.7L (6.0 quarts)
Fuel tank N/A 4x4 Reg. Cab
with short
wheelbase92.7L (24.5 gallons)
4x2 Regular
Cab,
SuperCab and
SuperCrew
with short
wheelbase94.6L (25.0 gallons)
All long
Wheelbase113.6L (30.0 gallons)
Power
steering
fluidMotorcraft
MERCONAT FAll Fill to between MIN
and MAX lines on
reservoir
Transfer
case fluidMotorcraft
MERCONAT F4x4 vehicles 1.9L (2.0 quarts)
2
Transmission
fluid3Motorcraft
MERCONAT F5-speed
manual3.5L (3.75 quarts)4
Automatic-
4R100 (4x2)16.1L (17.0 quarts)4
Automatic-
4R100 (4x4)16.7L (17.7 quarts)4
Motorcraft
MERCONVATFAutomatic-
4R70W13.2L (13.9 quarts)4
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
Lubricant4x4 vehicles 2.0L (3.7 pints)
Rear axle
5Motorcraft SAE
75W-140 Synthetic
Rear Axle
Lubricant8.8/9.75 inch
axle2.6L (5.5 pints)6
Maintenance and Specifications
257
Fluid Ford Part Name Application Capacity
Rear axle5Motorcraft SAE
75W-140 Synthetic
Rear Axle
Lubricant10.25 inch
axle3.3L (6.9 pints)7
Windshield
washer fluidMotorcraft
Premium
Windshield Washer
ConcentrateAll 4.0L (4.25 quarts)
1Add the coolant type originally equipped in your vehicle.2Service refill capacity is determined by filling the transfer case to the
bottom of the filler hole with the vehicle on a level surface.
3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
4Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
6Service refill capacity is determined by filling the axle to 6-14 mm
(1/4-9/16 inch) below the bottom of the filler hole with the vehicle on a
level surface.
Maintenance and Specifications
258
ItemFord part
name or
equivalentFord part
numberFord
specification
Automatic
transmission
(4R100)
2
Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R70W)
2
Motorcraft
MERCONV
AT FXT-5-QM
MERCONV
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Add 118 ml (4 oz) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of
Traction-Lok axles. Add 236 ml (8 oz.) of Additive Friction Modifier XL-3
or equivalent meeting Ford specification EST-M2C118-A for complete
refill of 10.25 and 10.5 inch Traction-Lok axles.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
Maintenance and Specifications
