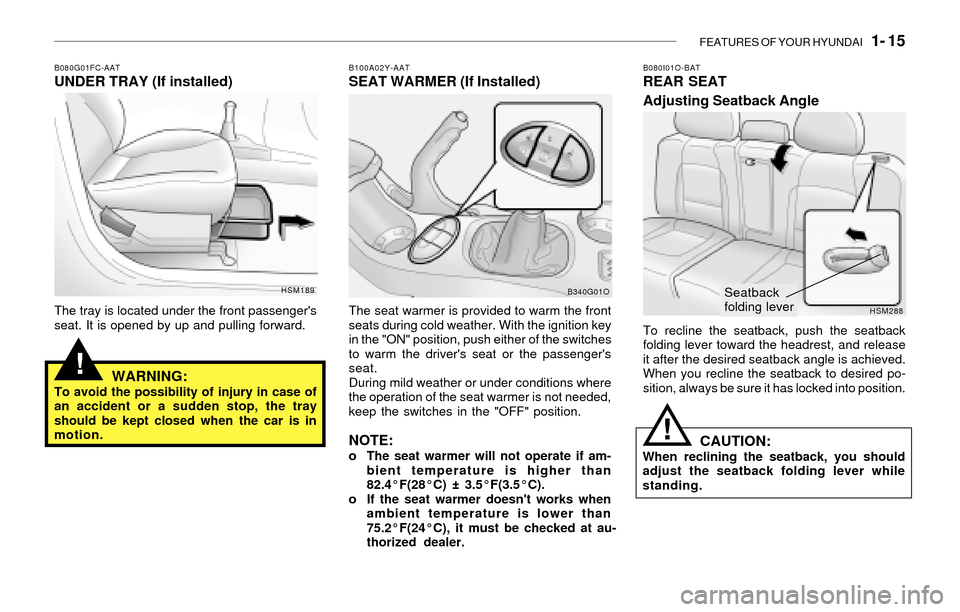

FEATURES OF YOUR HYUNDAI 1- 15
!
B080G01FC-AATUNDER TRAY (If installed)
The tray is located under the front passenger's
seat. It is opened by up and pulling forward.
WARNING:To avoid the possibility of injury in case of
an accident or a sudden stop, the tray
should be kept closed when the car is in
motion.
HSM189
B100A02Y-AATSEAT WARMER (If Installed)
The seat warmer is provided to warm the front
seats during cold weather. With the ignition key
in the "ON" position, push either of the switches
to warm the driver's seat or the passenger's
seat.
During mild weather or under conditions where
the operation of the seat warmer is not needed,
keep the switches in the "OFF" position.
NOTE:o The seat warmer will not operate if am-
bient temperature is higher than
82.4°F(28°C) ± 3.5°F(3.5°C).
o If the seat warmer doesn't works when
ambient temperature is lower than
75.2°F(24°C), it must be checked at au-
thorized dealer.
B080I01O-BATREAR SEAT
Adjusting Seatback Angle
To recline the seatback, push the seatback
folding lever toward the headrest, and release
it after the desired seatback angle is achieved.
When you recline the seatback to desired po-
sition, always be sure it has locked into position.
CAUTION:When reclining the seatback, you should
adjust the seatback folding lever while
standing.
B340G01O
HSM288
!
Seatback
folding lever
