2003 Hyundai Grandeur lights

YOUR VEHICLE AT A GLANCE
Turn Signal Indicator Lights ABS Service Reminder Indicator Traction Control Indicator Light Seat Belt Warning LightHigh Beam Indicator Light Trunk Lid Open Warning Light Front Fog Indicator LightLow Oil Pressure Warning LightParking Brake/Low Brake Fluid Level Warning Light Charging System Warning Light Door Ajar Warning Light and Chime Low Fuel Level Warning Light SRS (Airbag) Service Reminder Indicator Cruise Indicator Light Stop/Tail Light Failure Warning Light Malfunction Indicator Light
B255A01L-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * More detailed explanations of these items will be found beginning on page 1-42

1. FEATURES OF YOUR HYUNDAIFuel Recommendations .................................................................. 1-2
Breaking In Your New Hyundai ...................................................... 1-3
Keys (Immobilizer System) ...................................................... 1-3, 1-4
Door Locks (Theft-Alarm System) ........................................... 1-6, 1-8
Power Windows ............................................................................ 1-10
Seat (Power Seat) ............................................................... 1-11, 1-14
I.M.S (Integrated Memory System) ............................................... 1-16
Seat Belt ....................................................................................... 1-19
Child Restraint System ................................................................. 1-24
Supplemental Restraint (AIRBAG) System .................................. 1-32
Instrument Cluster and Indicator Lights ........................................ 1-40
Warning Light and Indicator ......................................................... 1-42
Multi-function Light Switch ............................................................ 1-49
Windshield Wiper/Washer Switch ................................................. 1-51
Trip Computer ............................................................................... 1-54
Sunroof ......................................................................................... 1-58
Mirror ............................................................................................. 1-63
Hood Release ............................................................................... 1-69
Cruise Control ............................................................................... 1-74
Audio Remote Control Switch ....................................................... 1-76
Heating and Cooling Control ........................................................ 1-78
Stereo Sound System ................................................................... 1-93
Audio System ................................................................................ 1-95
Antenna ...................................................................................... 1-117
1

1- 8 FEATURES OF YOUR HYUNDAI
B070A01S-AAT THEFT-ALARM SYSTEM (If installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm siren. B070B03Y-AAT Armed Stage Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and trunk lid are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
o When pushing the rear portion of
the switch, all vehicle doors will unlock.
!
After completion of the steps above, the turn signal light will blink once to indicate that the system is armed. NOTE:
1) If any door, trunk lid or engine
hood remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
CAUTION:
Do not arm the system until all passengers have left the car. If thesystem is armed while a passenger(s) remains in the car, the alarm may be activated whenthe remaining passenger(s) leaves the car.HXGS123
B070C03L-GAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The trunk lid is opened without us-
ing the transmitter.
3) The engine hood is opened.The turn signal lights will blink continu- ously and the siren will sound for 27 seconds. (EC only/Except E.C: 3times). To turn off the system, unlock the door or trunk lid with the transmit- ter.

FEATURES OF YOUR HYUNDAI 1- 9
HXG117
UNLOCK
LOCK
TRUNKCAUTION:
Avoid trying to start the engine while the system is armed. B070D04L-AAT Disarmed Stage
The system will be disarmed when the following step is taken: The driver's or passenger's door is unlocked by depressing the " " button on the transmitter.After completion of the steps above, the turn signal lights will blink twice to indicate that the system is disarmed. Keyless Entry System Locking doors
1. Close all doors.
2. Push the " " button on the
transmitter.
3. All doors will lock and the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the " " button on the transmitter.
2. All doors will unlock and the turn
signal lights will blink twice to indi- cate that the system is disarmed.
Releasing the trunk lid Push the " " button on the trans- mitter for longer than 1 second.
! CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter doesnot disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.!

1- 40 FEATURES OF YOUR HYUNDAI
B260A03L-GAT INSTRUMENT CLUSTER AND INDICATOR LIGHTS (Conventional type)
1. Cruise Indicator Light (If installed)
2. Tachometer
3. Turn Signal Indicator Light
4. Speedometer
5. High Beam Indicator Light
6. Fuel Gauge
7. Traction Control Indicator Light (If installed)
8. Front Fog Indicator Light
9. Stop/Tail Light Failure Warning Light 10.Parking Brake/Low Brake Fluid
Level Warning Light
11.Seat Belt Warning Light
12.Charging System Warning Light
13.Door Ajar Warning Light
14.Low Oil Pressure Warning Light
15.Trunk Lid Open Warning Light
16.SRS (Airbag) Warning Light
17.Odometer/Trip Odometer 18.Odometer/ Trip Odometer Reset
Switch
19.Malfunction Indicator Light(MIL)
(If installed)
20.Coolant Temperature Gauge
21.Automatic Transaxle Position Indi-
cator Light (If installed)
22.Low Fuel Warning Light
23.Anti-Lock Brake Warning Light B260A03L
1
2
3435
67
89 1 011
1213
1415
16 17 18 19 20 21 22
23

FEATURES OF YOUR HYUNDAI 1- 41

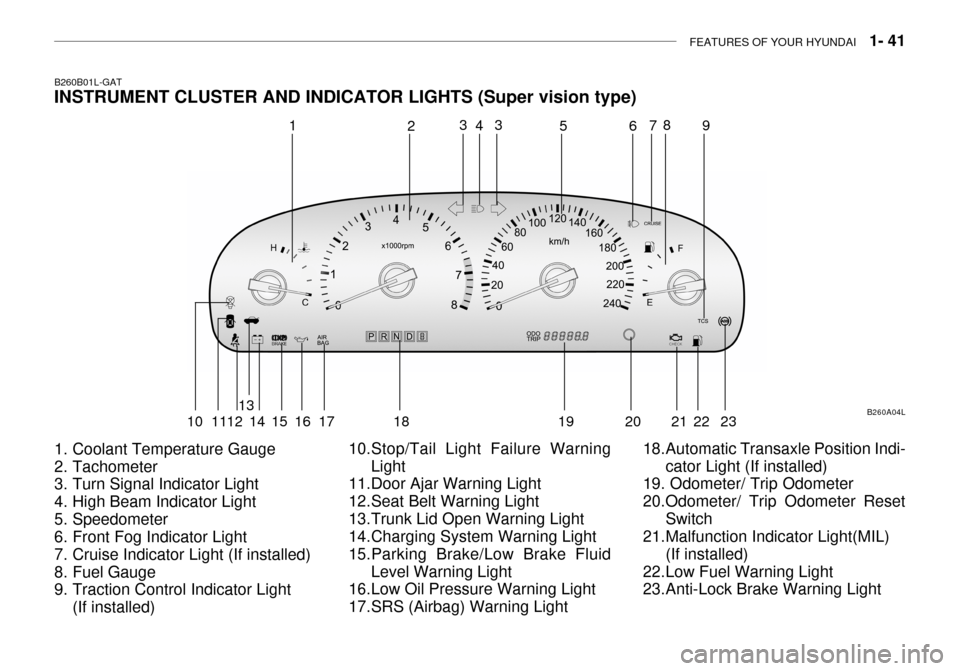

B260B01L-GAT INSTRUMENT CLUSTER AND INDICATOR LIGHTS (Super vision type)
1. Coolant Temperature Gauge
2. Tachometer
3. Turn Signal Indicator Light
4. High Beam Indicator Light
5. Speedometer
6. Front Fog Indicator Light
7. Cruise Indicator Light (If installed)
8. Fuel Gauge
9. Traction Control Indicator Light
(If installed) 10.Stop/Tail Light Failure Warning
Light
11.Door Ajar Warning Light
12.Seat Belt Warning Light
13.Trunk Lid Open Warning Light
14.Charging System Warning Light
15.Parking Brake/Low Brake Fluid
Level Warning Light
16.Low Oil Pressure Warning Light
17.SRS (Airbag) Warning Light 18.Automatic Transaxle Position Indi-
cator Light (If installed)
19. Odometer/ Trip Odometer
20.Odometer/ Trip Odometer Reset
Switch
21.Malfunction Indicator Light(MIL)
(If installed)
22.Low Fuel Warning Light
23.Anti-Lock Brake Warning Light B260A04L
1
2
4
3 3
56 78
9
10 1112 13
14 15 16 17 18 19 20 21 22 23

1- 42 FEATURES OF YOUR HYUNDAI
B260C02L-GAT
TRACTION CONTROL INDICATOR LIGHT(If installed)
The traction control indicators change operations according to the switch conditions and whether the system is in operation or not. They will also illu-minate when the ignition key is turned to the "ON" or "START" position, but should go out after three seconds. Ifthe TCS indicator stays on, take your car to your authorized Hyundai dealer and have the system checked. Seesection 2 for more information about the TCS system.
B260D01A-AAT TURN SIGNAL INDICATOR LIGHTS
The blinking green arrows on the in- strument panel show the direction indi- cated by the turn signals. If the arrowcomes on but does not illuminate, blinks more rapidly than normal, or does not illuminate at all, a malfunction in theturn signal system is indicated. Your dealer should be consulted for repairs. B260F01A-AAT
HIGH BEAM INDICATOR LIGHT
The high beam indicator light comes on whenever the headlights areswitched to the high beam or flash position.
B260E01L-GAT
SEAT BELT WARNING LIGHT
The seat belt warning light blinks for about 6 seconds when the ignition key is turned from the "OFF" position to"ON" or "START". B260K01S-AAT TRUNK LID OPEN WARNING LIGHT
This light remains on unless the trunk lid is completely closed.
B260P01L-GAT
ABS SERVICE REMINDER INDICATOR
When the key is turned to the "ON" position, the Anti-Lock Brake System SRI will come on and then go off in a few seconds. If the ABS SRI remainson, comes on while driving, or does not come on when the key is turned to the "ON" position, this indicates that theremay be a problem with the ABS. If this occurs, have your vehicle checked by your Hyundai dealer assoon as possible. The normal braking system will still be operational, but without the assistance of the anti-lockbrake system. WARNING:
If the both ABS SRI and ParkingBrake/Brake fluid level warninglights remain "ON" or come on while driving, there may be a problem
with E.B.D. (Electronic Brake ForceDistribution). If this occurs, avoid sudden stops and have your vehicle checked byyour Hyundai dealer as soon as possible.
!

1- 48 FEATURES OF YOUR HYUNDAI

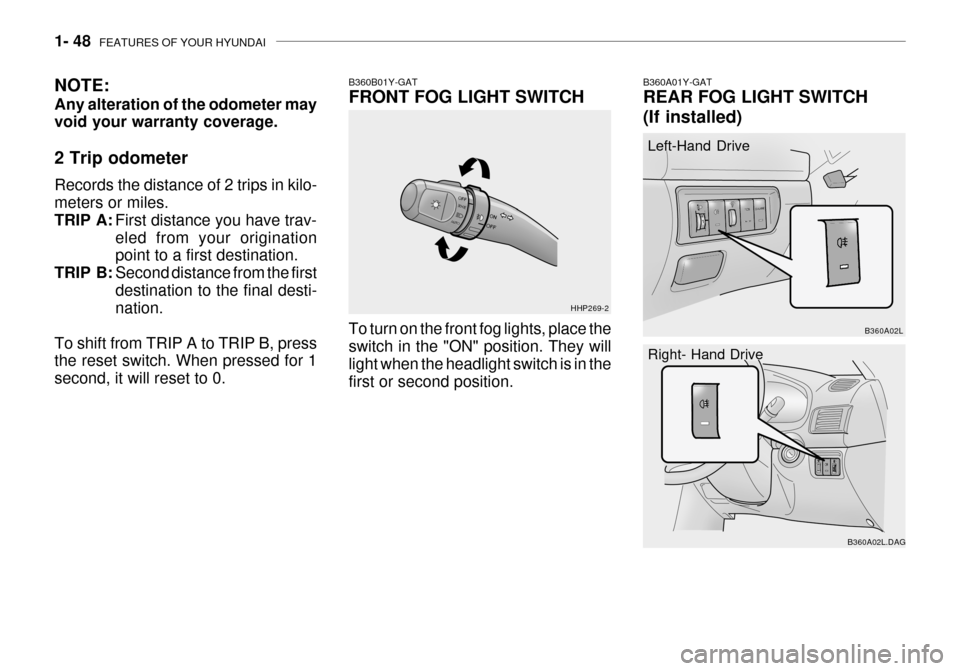

B360B01Y-GAT FRONT FOG LIGHT SWITCH To turn on the front fog lights, place the switch in the "ON" position. They will light when the headlight switch is in the first or second position. HHP269-2B360A01Y-GAT REAR FOG LIGHT SWITCH (If installed)
Left-Hand Drive Right- Hand Drive
B360A02L.DAGB360A02L
NOTE: Any alteration of the odometer may void your warranty coverage. 2 Trip odometer Records the distance of 2 trips in kilo- meters or miles. TRIP A:
First distance you have trav-eled from your origination point to a first destination.
TRIP B: Second distance from the first destination to the final desti- nation.
To shift from TRIP A to TRIP B, pressthe reset switch. When pressed for 1 second, it will reset to 0.
