2003 HONDA S2000 Owners Manual

µThe tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the f rame or suspension and
the cables lif t that end of the car of f
the ground. Your car’s suspension
and body can be seriously damaged.Sling-t ype Equipment
T his method of towing is
unacceptable.
Emergency T owing
T aking Care of t he Unexpect ed246

Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers . 248
................................
Specif ications .250
DOT Tire Quality Grading ......................
(U.S. Vehicles) .252
.................................
Treadwear .252
......................................
Traction .252
.............................
Temperature .253
...........................
Tire Inf ormation .254 .........................
Oxygenated Fuels .255
......
Driving in Foreign Countries . 256
.......................
Emissions Controls .257
.....................
The Clean Air Act .257
Crankcase Emissions Control ....................................
System .257
Evaporative Emissions Control ....................................
System .257
...
Exhaust Emissions Controls . 258
....................
PGM-FI System .258
Ignition Timing Control ................................
System .258
Secondary Air Injection ................................
System .258
Three Way Catalytic ...........................
Converter .258
....................
Replacement Parts . 258
..
Three Way Catalytic Converter . 259
..............
State Emissions Testing . 260
T echnical Inf ormat ion
T echnical Inf ormation247

Your car has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
car f or warranty purposes. It is also
necessary f or licensing and insuring
your car. The easiest place to find
the VIN is on a plate fastened to the
top of the dashboard. You can see it
by looking through the windshield
on the driver’s side. It is also on the
Certification label attached to the
driver’s doorjamb, and is stamped on
the engine compartment bulkhead.
The VIN is also provided in bar code
on the Certification label.
Identif ication Numbers
T echnical Inf ormation248
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

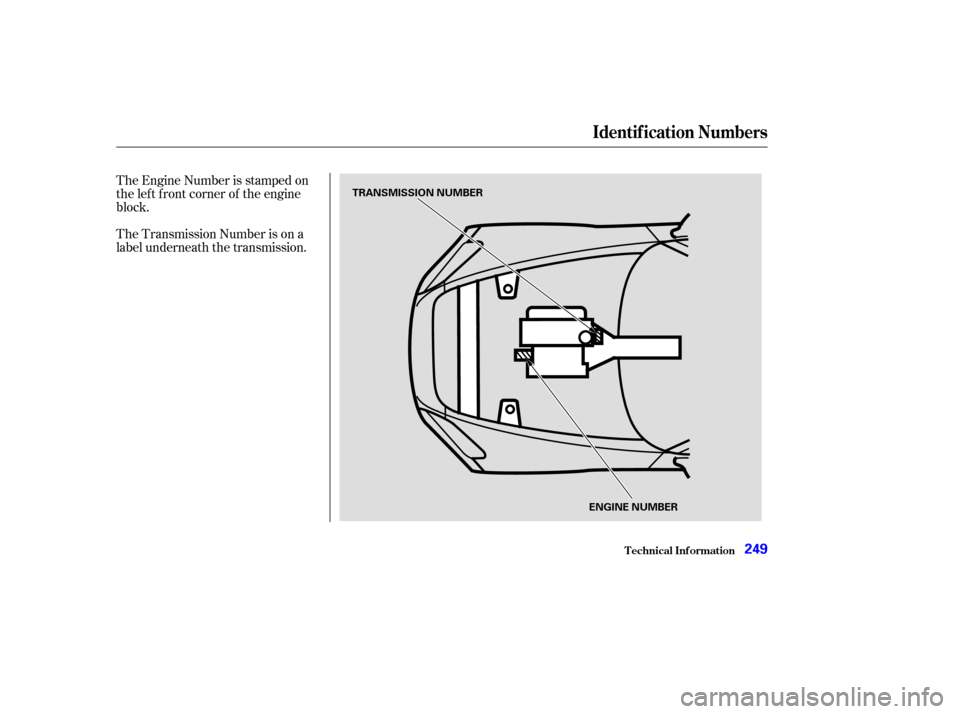

The Engine Number is stamped on
the lef t f ront corner of the engine
block.
The Transmission Number is on a
label underneath the transmission.
T echnical Inf ormation
Identif ication Numbers
249
TRANSMISSION NUMBERENGINE NUMBER

Î
Î
Î
Î
T echnical Inf ormation
Specif ications
250
Engine Dimensions
WeightsCapacities
162.0 in (4,115 mm)
68.9 in (1,750 mm)
50.6 in (1,285 mm)
94.5 in (2,400 mm)
57.9 in (1,470 mm)
59.4 in (1,510 mm) 13.2 US gal (50
)
Water cooled 4-stroke DOHC
VTEC 4-cylinder gasoline engine
Type
BorexStroke
Displacement
Compression ratio
Spark plugs 121.8 cu-in (1,997 cm
)
11.0 : 1 1.72 US gal (6.5
)
2.01 US gal (7.6)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb. Fuel tank
Engine coolant
Engine oil
Manual
transmission
fluid
Differential
oil
Windshield
washer
reservoir5.1 US qt (4.8
)
4.8 US qt (4.5)
5.9 US qt (5.6)
1.6 US qt (1.5)
1.7 US qt (1.6)
0.78 US qt (0.74
)
0.81 US qt (0.77)
2.7 US qt (2.6)
4.4 US qt (4.2)
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
0.16 US gal (0.6
)
Excluding the oil remaining in the engine.
3.43 x 3.31 in (87.0 x 84.0 mm)
See the spark plug maintenance
section, page 180 .
Front
Rear
1:
2:Change
Total
Change
Total
Change
Total
Change
Total
U.S. Cars
Canadian Cars
1
2
Including filter
Without filter

µ
µ
µµ µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
T echnical Inf ormation
Specif ications
251
Tires Battery
Alignment Fuses
Air conditioning Lights 55 W
12 V 12 V 36 AH/5 HR
0.00 in (0.0 mm)
0.24 in (6.0 mm)0°30’
6°
205/55R16 89W
225/50R16 92W
32 psi (220 kPa , 2.2 kgf/cm
)
Size
Pressure
32 psi (220 kPa , 2.2 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm)
Capacity
Toe
Camber
Caster Under-hood
Interior
T125/70D16 96M1°30’
Refrigerant type
Charge quantity
Lubricant type SP-10
19.4 21.2 oz (550 600 g) HFC-134a (R-134a)
12 V 5 W 12 V 5 W
12 V 5 W
12 V 21 W
12 V 5 W
12 V 5 W
12 V 21 W/5 W
12 V 21 W
12 V 21 W
12 V 55 W(H1)
35 W
12 V 5 W 12 V
Headlights
Daytime running lights
Front turn signal lights
Rear turn signal lights
Stop/Taillights
Side marker lights
Back-up lights
License plate light
Interior light
Trunk light
Side turn signal lights See page
242or the fuse box
cover.
See page 241or the fuse label
attached to the inside of the fuse
box door under the dashboard.
Front
Rear
Front
Rear
Front
Rear
Frontin
Front
Rear
Spare Tire
Front
Rear
Spare Tire
High
Low

µ
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
T echnical Inf ormation
DOT T ire Quality Grading (U.S. Vehicles)
T readwear
Unif orm T ire Quality Grading T readwear 200
Traction AA
Temperature A Traction AA, A, B, C
252

µWarning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law.
T echnical Inf ormation
DOT T ire Quality Grading (U.S. Vehicles)
Temperature A,B,C
253
