2003 HONDA CR-V Owners Manual

CONT INUED
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
Look f or a burned wire inside the
f use. If it is burned, replace it with
oneof thesparefusesof thesame
rating or lower.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each f use with the f use
puller provided in the under-hood
fuse box. 5.
4.
Fuses
T aking Care of t he Unexpect ed333
FUSE PULLER BLOWN

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualif ied mechanic.
6.
T aking Care of t he Unexpect ed
Fuses
334
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a replace-
ment f use with the proper rating f or the
circuit, install one with a lower rating.

µµ
µ
Î Î
Î
No. No.
CONT INUED
Amps. Circuits ProtectedAmps. Circuits Protected
1
2
3
4
5 6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
15 A
10 A
10 A
10 A
Ignition Coil
Daytime running lights
ACG
Not Used 7.5 A
20 A
7.5 A
7.5 A
7.5 A
7.5 A 10 A
10 A
20 A
20 A
15 A
15 A
7.5 A 20 A
20 A
20 A
20 A
20 A Power Window Relay
Moonroof
Accessory, Radio
Rear Wiper
Meter
Not Used
Daytime running lights
SRS
Remote Control Mirrors
LAF Heater
Heated Seat
Fuel Pump
Turn Signal Lights
Front Wiper
Not Used
Front Right Power Window
Front Left Power Window
Rear Lef t Power Window
Rear Right Power Window
: On Canadian models
Rear Accessory Power Socket Front Accessory Power Socket
Fuses
T aking Care of t he Unexpect ed335
INTERIOR FUSE BOX

µ
µ
µ
No. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 20 A
15 A
15 A
20 A
15 A
15 A
15 A
10 A
30 A
20 A
40 A
40 A
40 A
15 A
20 A
15 A
30 A
100 A 50 A Condenser Fan
Small Light
Interior Light
Cooling Fan
Hazard
FI ECU
Horn, Stop
Not Used
Back Up
ABS Motor
Rear Defroster
Heater Motor
Power Window
Option
Lef t Headlight
Door Lock
Right Headlight
ABS F/S
Battery
Ignition 1
Spare Fuses
21 257.5A 30A
T aking Care of t he Unexpect ed
Fuses
336
UNDER-HOOD FUSE BOX

µ
µ
µ
If your vehicle needs to be towed,
call a prof essional towing service or,
if youbelongtoone,anorganization
that provides roadside assistance.
Never tow your vehicle behind
another vehicle with just a rope or
chain. It is very dangerous.
The tow
truck uses two pivoting arms that go
under the tires (f ront or rear) and lif t
them of f the ground. The other two
tires remain on the ground.
The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the f rame or suspension and
cables lif t that end of the vehicle of f
the ground. Your vehicle’s
suspension and body can be
seriously damaged.
There are three popular types of
prof essional towing equipment.
The operator
loads your vehicle on the back of a
truck. Any other
method of towing will damage the
drive system. When you contact the
towing agency, inf orm them that a
f lat-bed is required. Refer to
on page
for non-emergency towing
inf ormation. 224Wheel L if t Equipment
Sling-t ype Equipment
Flat -bed Equipment
Never tow your vehicle with
wheel lif t equipment.
T his method of
towing your CR-V is unacceptable.
T his is the only way to
transport your vehicle. Towing Your Vehicle
Behind a Motorhome
Emergency T owing
T aking Care of t he Unexpect ed337
Towing a 4WD CR-V with only two
tires on the ground will damage parts
of the 4WD system. It should be
transported on a f lat-bed truck or
trailer.

338

Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers . 340
................................
Specif ications .342
DOT Tire Quality Grading ......................
(U.S. Vehicles) .344
Unif orm Tire Quality ..................................
Grading .344
.................................
Treadwear .344
......................................
Traction .344
.............................
Temperature .345
...........................
Tire Inf ormation .346
.........................
Oxygenated Fuels .347
......
Driving in Foreign Countries . 348.......................
Emissions Controls .349
.....................
The Clean Air Act .349
Crankcase Emissions Control ....................................
System .349
Evaporative Emissions Control ....................................
System .349
Onboard Ref ueling Vapor ................................
Recovery .349
...
Exhaust Emissions Controls . 350
....................
PGM-FI System .350
Ignition Timing Control ................................
System .350
Three Way Catalytic ...........................
Converter .350
....................
Replacement Parts . 350
..
Three Way Catalytic Converter . 351
..............
State Emissions Testing . 352
T echnical Inf ormat ion
T echnical Inf ormation339

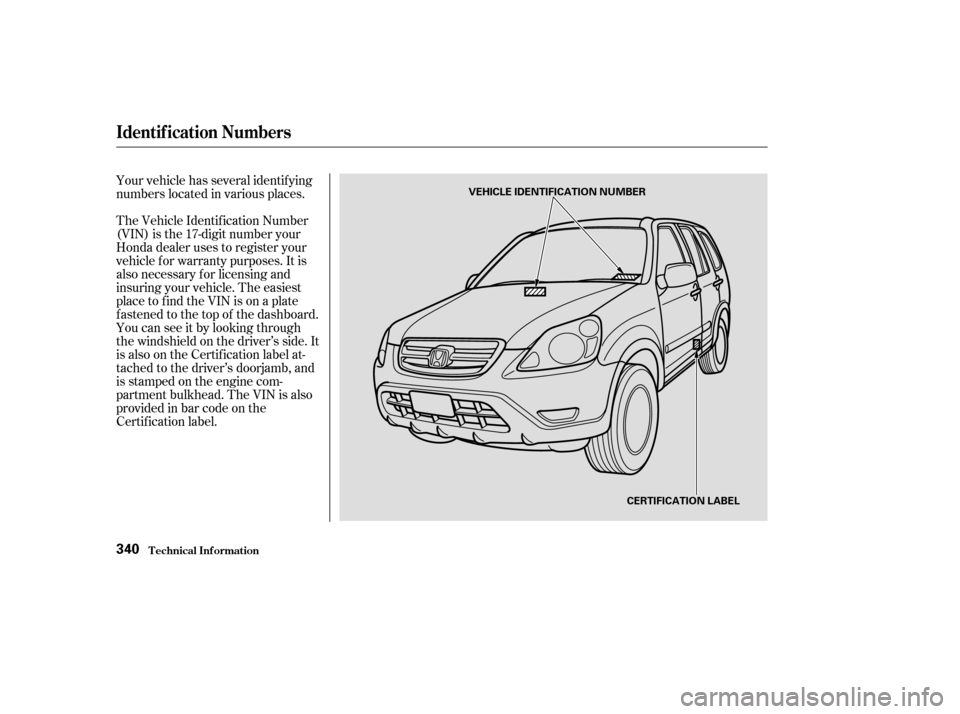

Your vehicle has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certif ication label.
Identif ication Numbers
T echnical Inf ormation340
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
