Your car has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
car f or warranty purposes. It is also
necessary f or licensing and insuring
your car. The easiest place to find
the VIN is on a plate fastened to the
top of the dashboard. You can see it
by looking through the windshield
on the driver’s side. It is also on the
Certification label attached to the
driver’s doorjamb, and is stamped on
the engine compartment bulkhead.
The VIN is also provided in bar code
on the Certification label.
Identif ication Numbers
T echnical Inf ormation286
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

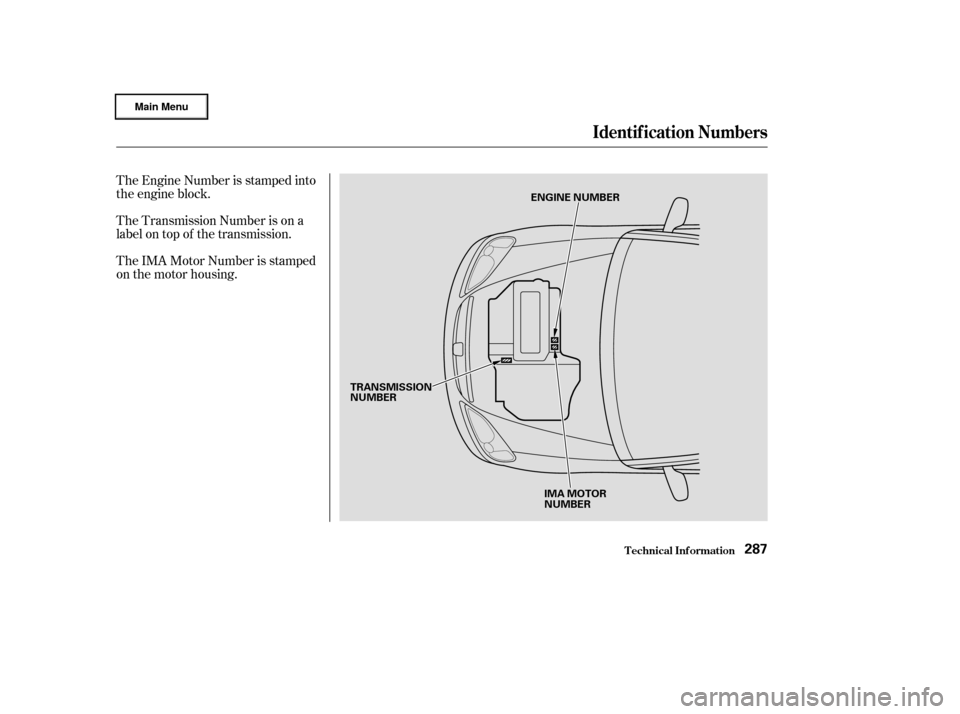

The Engine Number is stamped into
the engine block.
The Transmission Number is on a
label on top of the transmission.
The IMA Motor Number is stamped
on the motor housing.
Identif ication Numbers
T echnical Inf ormation287
ENGINE NUMBER
TRANSMISSION
NUMBER IMA MOTOR
NUMBER

Î
Î
Î
Î
Specif ications
T echnical Inf ormation288
Dimensions
WeightsCapacities
Engine 174.8 in (4,440 mm)
67.5 in (1,715 mm)
56.3 in (1,430 mm)
103.1 in (2,620 mm)
57.9 in (1,470 mm)
57.9 in (1,470 mm)
13.2 US gal (50
, 11.0 Imp gal)
1.06 US gal (4.0
, 0.88 Imp gal)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb. 1.08 US gal (4.1, 0.90 Imp gal)
1.40 US gal (5.3
, 1.17 Imp gal)
1.37 US gal (5.2, 1.14 Imp gal)
3.4 US qt (3.2
, 2.8 Imp qt)
3.2 US qt (3.0, 2.6 Imp qt)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid (CVT)
4.0 US qt (3.8, 3.3 Imp qt)
1.6 US qt (1.5, 1.3 Imp qt)
1.7 US qt (1.6, 1.4 Imp qt)
3.4 US qt (3.2, 2.8 Imp qt)
5.7 US qt (5.4, 4.8 Imp qt)
2.6 US qt (2.5
, 2.2 Imp qt)
4.8 US qt (4.5, 4.0 Imp qt)
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Excluding the oil remaining in the engine. 0.11 US gal (0.4
, 0.09 Imp gal)
2.87 x 3.15 in (73.0 x 80.0 mm)
82 cu-in (1.339 cm
)
10.8
See spark plug maintenance
section page 215 .
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Water cooled 4-stroke SOHC VTEC
4-cylinder gasoline engine
Front
Rear
Approx.
1:
2: Change
Manual
CVT
Total Manual
CVT
Change
Without filter
Total
Change
Total
Change
Total
U.S. Cars
Canada Cars
Manual trans-
mission fluid Including filter
Windshield
washer reservoir
1
2

µµµ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î
Î
Î
Î
Specif ications
T echnical Inf ormation289
Fuses
Alignment
Air Conditioning
Lights
Battery
Tires
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g) SP-10
12 V
12 V 60/55 W (HB2)
21/5 W
12 V 8 W 12 V 3 CP
12 V 21 W
12 V 3 CP
12 V 21 W 12 V 21/5 W 12 V 21 W
12 V 3 CP Interior
Under-hood
Toe-in
Camber
Caster
2°20’1°
0°12’
0.00 in (0.0 mm)
P185/70R14 87S
Refrigerant type
Charge quantity
Lubricant oil type
0.08 in (2.0 mm)
12 V
12 V 8W
5W
Headlights (HI/LO)
Front turn signal/side marker
lights
Front parking light
Rear turn signal lights
Stop/Taillights/Rear side
marker lights
Back-up lights
Taillights
High-mount brake light
License plate lights
Ceiling light
Spotlights
Trunk light
Capacity
12 V 35 AH/20 HR See page
281or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 280or the fuse box
cover.
T115/70D14 88M
30 psi (210 kPa , 2.1 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
Size
Pressure
T125/70D15 95M
Front
Rear
Front
Rear
Front
Front/Rear
Spare
Front/Rear
Spare
1 : Without ABS
2 : With ABS
1
2

µ
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate. The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
The tires on your car meet all U.S.
Federal Saf ety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform-
ance according to Department of
Transportation (DOT) standards.
The f ollowing explains these
gradings.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT T ire Quality Grading (U.S. Cars)
T echnical Inf ormation
Treadwear
Traction AA, A, B, C
T readwear 200
Traction AA
Temperature A
Unif orm T ire Quality Grading
290

µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
DOT T ire Quality Grading (U.S. Cars)
T echnical Inf ormation
Temperature A,B,C
291

Some conventional gasolines are
being blended with alcohol or an
ether compound. These gasolines
are collectively ref erred to as
oxygenated f uels. To meet clean air
standards, some areas of the United
States and Canada use oxygenated
f uels to help reduce emissions.
If you use an oxygenated f uel, be
sure it is unleaded and meets the
minimum octane rating requirement.
Bef ore using an oxygenated f uel, try
to conf irm the f uel’s contents. Some
states/provinces require this
informationtobepostedonthe
pump.If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
Fuel system damage or perf ormance
problems resulting f rom the use of
an oxygenated f uel containing more
than the percentages of oxygenates
given above are not covered under
warranty.
(ethyl or grain alcohol)
You may use gasoline containing up
to 10 percent ethanol by volume.
Gasoline containing ethanol may be
marketed under the name ‘‘Gasohol.’’ The f ollowing are the U.S. EPA and
Canadian CGSB approved
percentages of oxygenates:
(Methyl Tertiary Butyl
Ether)
You may use gasoline containing up
to 15 percent MTBE by volume.
(methyl or wood
alcohol)
Your vehicle was not designed to use
fuel that contains methanol.
Methanol can corrode metal parts in
the fuel system, and also damage
plastic and rubber components. This
damage would not be covered by
your warranties.
T echnical Inf ormation
Oxygenated Fuels
ET HA NOL
MT BE
MET HA NOL
292

If you are planning to take your
Honda outside the U.S. or Canada,
contact the tourist bureaus in the
areas you will be traveling in to f ind
out about the availability of unleaded
gasoline with the proper octane
rating.
If unleaded gasoline is not available,
be aware that using leaded gasoline
in your Honda will af f ect perf or-
mance and fuel mileage, and damage
its emissions controls. It will no
longer comply with U.S. and
Canadian emissions regulations, and
will be illegal to operate in North
America. To bring your car back into
compliance will require the replace-
ment of several components, such as
theoxygensensorsandthethree
way catalytic converter. These re-
placements are not covered under
warranty.
Driving in Foreign Countries
T echnical Inf ormation293
