2003 FORD MUSTANG automatic transmission

Main Controls
·
No. 6 shuttle ball, manual
valve, main regulator valve, low
servo modulator valve stuck,
damaged or assembled
incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Low Reverse Servo
·
Seals (piston and cover)
damaged ·
Inspect for damage. Repair as required. ·
Servo cover retaining ring assembled incorrectly. ·
Anchor pins (case) damaged.
Shift Concerns: No Manual 2nd Gear Possible Component Reference/Action
217 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
PCM, shift solenoids, digital
TR sensor ·
Carry out Self- Test. Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test A or
Go To Pinpoint Test C . Repair as required. Clear DTCs, road test
and repeat Self- Test. 317 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Cable, Digital TR
Sensor
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable,
verify that the digital TR sensor is correctly adjusted. Adjust the
digital TR sensor as necessary. Main Controls
·
3- 4 shift valve, 1- 2 and 2-3
shift valve, 3- 4 capacity
modulator valve stuck,
damaged or assembled
incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Gaskets damaged ·
Inspect for damage and install a new gasket.
Shift Concerns: 1-2 Shift (Automatic) Possible Component Reference/Action
220 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, ·
Carry out Self- Test. Refer to the Powertrain Control/Emissions Klj . 16 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

piston
·
Springs damaged or
broken ·
Inspect for damage. Repair as required. ·
Case bore scored ·
Inspect for damage. Repair as required.
Shift Concerns: 2-3 Shift (Automatic) Possible Component Reference/Action
221 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
PCM, shift solenoids, OSS ·
Carry out Self-Test. Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test A or
Go To Pinpoint Test E . Repair as required. Clear DTCs, road test
and repeat Self- Test. ·
Engine driveability concerns ·
Refer to Routine 253. 321 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment. Refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable,
verify that the digital TR sensor is correctly adjusted. Adjust the
digital TR sensor as necessary. Incorrect Pressures
·
Direct clutch pressure ·
Check pressure at direct clutch tap; refer to Line Pressure
Chart for specifications. If not OK, check the main controls. Main Controls
·
2- 3 shift valve, check ball No.
9 or No. 3, solenoid pressure
regulator valve, damaged or
assembled incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Shift solenoid SSB
malfunction ·
Activate solenoid using scan tool. If solenoid operation cannot
be felt when placing hand on solenoid, install a new solenoid.
Inspect O- rings for damage. Repair as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. ·
Output shaft seals damaged
or cup plug leaking or missing ·
Inspect for damage and repair as required. ·
2- 3 accumulator damaged or
stuck ·
Inspect piston seal and bore for damage. Repair as required. ·
Solenoid screen (in main
control) blocked or damaged ·
Clean or install a new screen. Intermediate One-
Way Clutch
Assembly ·
Not overrunning or damaged ·
Inspect for damage. Repair as required. Output Shaft
·
Seal rings damaged ·
Inspect for damage. Repair as required. ·
Cup plug damaged or missing Klj . 18 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Direct Clutch Assembly
·
Seals or piston damaged ·
Inspect for damage. Repair as required. ·
Friction elements worn or
damaged ·
Inspect for damage. Repair as required. ·
Check ball not seating ·
Inspect for damage. Repair as required. ·
Return spring assembly
damaged ·
Inspect for damage. Repair as required. Case
·
Output shaft rear seals
leaking or damaged ·
Inspect for damage. Repair as required. Inspect case for
damaged seal area. If damaged, install a new case. 2-
3 Accumulator ·
Damaged accumulator piston ·
Inspect for damage. Repair as required. ·
Springs damaged or broken ·
Inspect for damage. Repair as required. ·
Case bore scored ·
Inspect for damage. Repair as required.
Shift Concerns: 3-4 Shift (Automatic) Possible Component Reference/Action
222 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle
wiring harnesses, PCM, shift
solenoids, OSS, transmission
control switch (TCS) ·
Carry out Self- Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for
diagnosis and testing of the Powertrain Control System.
Go To Pinpoint Test A or
Go To Pinpoint Test E . Repair
as required. Clear DTCs, road test and repeat Self- Test. ·
Engine driveability concerns ·
Refer to Routine 253. 322 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR Sensor
·
Damaged or incorrectly adjusted ·
Inspect and repair as required. Verify transmission shift
cable adjustment; refer to Section 307 - 05 . Adjust
transmission shift cable as necessary. After repairing
transmission shift cable, verify that the digital TR sensor
is correctly adjusted. Adjust the digital TR sensor as
necessary. Incorrect Pressures
·
Forward clutch pressure, direct
clutch pressure, line pressure ·
Check line, direct and forward clutch pressures at
appropriate taps; refer to Line Pressure Chart for
specifications. If pressures are out of specification, check
main controls. Main Controls
·
3- 4 shift valve, solenoid pressure
regulator valve, OD servo regulator,
3- 4 capacity modulator valve, 1- 2
and 2- 3 shift valves stuck, damaged
or assembled incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to specifications ·
Tighten bolts to specifications. ·
SSA or SSB malfunction ·
Activate solenoid using scan tool. If solenoid operation
cannot be felt when placing hand on solenoid, install a
new solenoid. Inspect O- rings for damage. Repair as Klj . 19 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

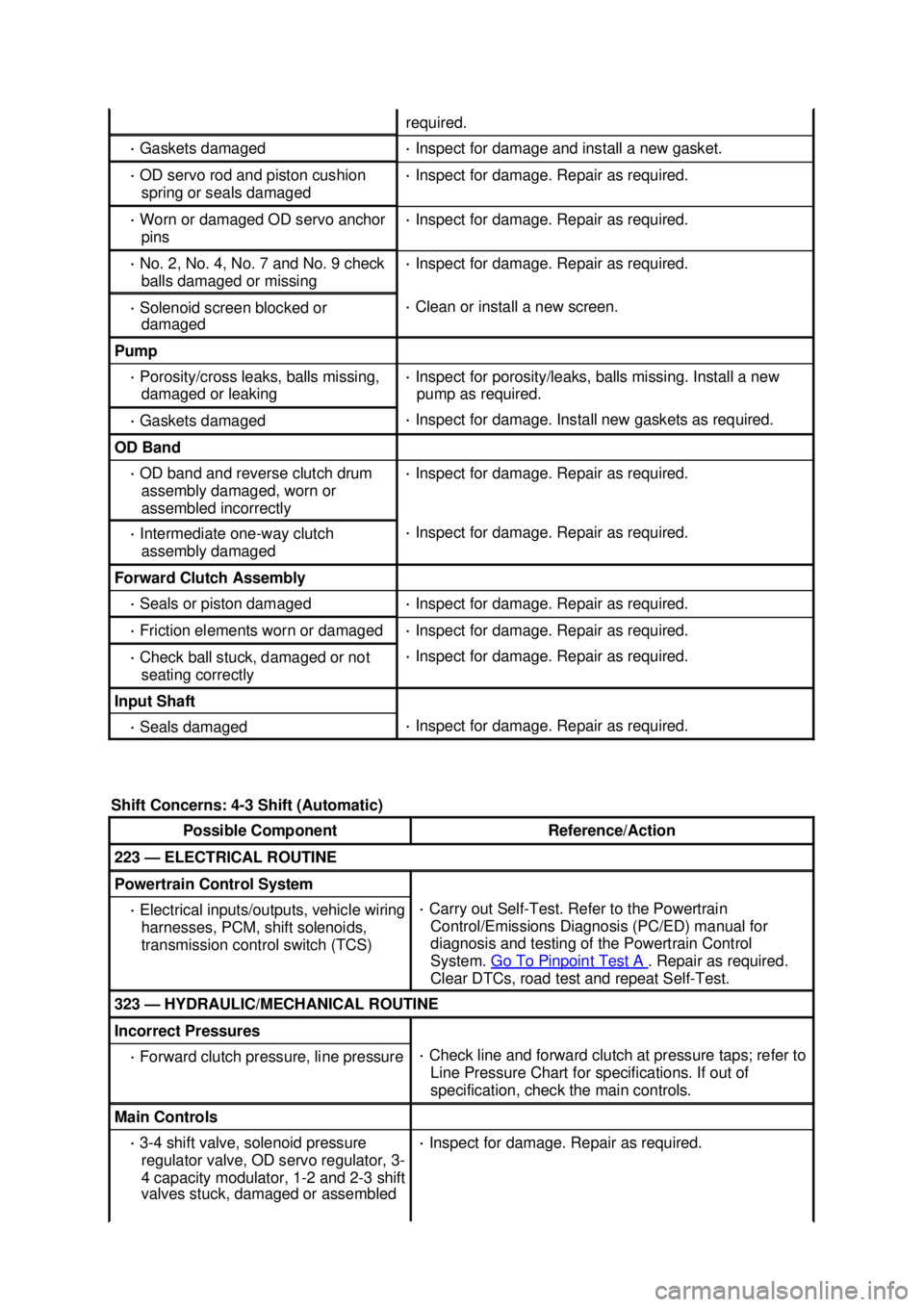

required.
·
Gaskets damaged ·
Inspect for damage and install a new gasket. ·
OD servo rod and piston cushion
spring or seals damaged ·
Inspect for damage. Repair as required. ·
Worn or damaged OD servo anchor
pins ·
Inspect for damage. Repair as required. ·
No. 2, No. 4, No. 7 and No. 9 check
balls damaged or missing ·
Inspect for damage. Repair as required. ·
Solenoid screen blocked or
damaged ·
Clean or install a new screen. Pump
·
Porosity/cross leaks, balls missing,
damaged or leaking ·
Inspect for porosity/leaks, balls missing. Install a new
pump as required. ·
Gaskets damaged ·
Inspect for damage. Install new gaskets as required. OD Band
·
OD band and reverse clutch drum
assembly damaged, worn or
assembled incorrectly ·
Inspect for damage. Repair as required. ·
Intermediate one- way clutch
assembly damaged ·
Inspect for damage. Repair as required. Forward Clutch Assembly
·
Seals or piston damaged ·
Inspect for damage. Repair as required. ·
Friction elements worn or damaged ·
Inspect for damage. Repair as required. ·
Check ball stuck, damaged or not
seating correctly ·
Inspect for damage. Repair as required. Input Shaft
·
Seals damaged ·
Inspect for damage. Repair as required.
Shift Concerns: 4-3 Shift (Automatic) Possible Component Reference/Action
223 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle wiring
harnesses, PCM, shift solenoids,
transmission control switch (TCS) ·
Carry out Self- Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for
diagnosis and testing of the Powertrain Control
System. Go To Pinpoint Test A . Repair as required.
Clear DTCs, road test and repeat Self- Test. 323 —
HYDRAULIC/MECHANICAL ROUTINE Incorrect Pressures
·
Forward clutch pressure, line pressure ·
Check line and forward clutch at pressure taps; refer to
Line Pressure Chart for specifications. If out of
specification, check the main controls. Main Controls
·
3- 4 shift valve, solenoid pressure
regulator valve, OD servo regulator, 3-
4 capacity modulator, 1- 2 and 2-3 shift
valves stuck, damaged or assembled ·
Inspect for damage. Repair as required. Klj . 20 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

GENERAL PROCEDURES
Transmission Fluid Cooler —
Backflushing and Cleaning
1. CAUTION: Do not use any supplemental transmission fluid additives or cleaning
agents. The use of these products could cause internal transmission components to fail;
this will effect the operation of the transmission.
Conduct backflushing with a suitable torque converter/fluid cooler cleaner. Test your equipment
to make sure that a vigorous fluid flow is present before proceeding. Install a new filter in the
flush equipment if flow is weak or contaminated.
2. To aid in attaching the cleaner to the transmission steel cooler lines, connect two additional rubber hoses to the transmission end of the steel transmission cooler lines as described below.
zConnect the cleaner tank pressure line to the steel transmission cooler return line
(longest line).
z Connect a tank return hose to the steel transmission cooler pressure line (shorter line).
Place the outlet end of this hose in the solvent tank reservoir.
3. Turn on solvent pump and allow the solvent to circulate a minimum of 5 minutes (cycling switch on and off will help dislodge contaminants in cooler system).
4. Switch off the solvent pump and disconnect the solvent pressure hose from the transmission cooler return line.
5. Use compressed air to blow out the cooler(s) and lines (blow air into the transmission cooler return line) until all solvent is removed.
6. Remove the rubber return hose from the remaining steel cooler line.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

GENERAL PROCEDURES
Transmission Fluid Drain and Refill
Draining
CAUTION: Always refer to the instructions supplied with the flush and fill machine.
NOTE: Draining fluid from the transmission by removing only the fluid pan is acceptable for vehicles
that do not have a torque converter drain plug, for normal or severe duty fluid maintenance.
NOTE: A new procedure for draining and adding transmission fluid using a suitable transmission flush
and fill machine has been added. The following procedure has different methods for draining and
refilling the listed vehicles:
zAll vehicles using a suitable flush and fill machine.
z Vehicles equipped with a torque converter drain plug.
z Vehicles without a torque converter drain plug.
Use the method that is applicable to your vehicle.
All vehicles using a suitable flush and fill machine 1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to Section 100 - 02 .
2. Use a suitable flush and fill machine to change the fluid.
3. When connecting the flush and fill machine, connect the machine to the fluid cooler tube after the fluid cooler on the cooler return line. This will help remove any foreign material trapped in
the fluid coolers. Refill SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Automatic Transmission Flush
and Fill Machine
211-
00018
Automatic Transmission Flush
and Fill Machine
199- 00010 or equivalent
Material Item Specification
MERCON® V Automatic
Transmission Fluid
XT
-5-QM MERCON®
V Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

4. Use only clean automatic transmission fluid.
5. Once the fluid exchange has been completed, disconnect the flush and fill machine. Reconnect
any disconnected fluid cooler tubes.
6. With the engine running and the transmission at normal operating temperature 66- 77°C (150-
170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed,
add fluid in increments of 0.24- liter (0.5-pint) until the correct level is achieved (fluid should be in
the cross- hatched area of the fluid level indicator).
Draining
Vehicles equipped with a torque converter drain plug 1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to Section 100 - 02 .
2. Loosen the transmission fluid pan bolts and allow the fluid to drain.
3. After the fluid has drained, remove the transmission fluid pan.
4. Do not remove the fluid filter. It is not necessary to change the fluid filter during a normal maintenance fluid change.
5. Remove the torque converter drain plug cover. Klj . 2 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

10. Install the torque converter drain plug cover.
11. Position the magnet into the transmission fluid pan.
12.
NOTE: The fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the
gasket should be reused.
Install the fluid pan and gasket. 1. Position the fluid pan with the gasket in place.
2. Install the bolts.
13. CAUTION: The use of any other transmission fluid can result in the transmission
failing to operate in a normal manner or transmission failure.
Fill the transmission.
zAdd 4.7 liters (5 qts) of clean automatic transmission fluid to the transmission through the
fluid filler tube.
14. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
15. With the engine running and the transmission at normal operating temperature 66- 77°C (150- Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
