2003 FORD MUSTANG relay

normal operation.

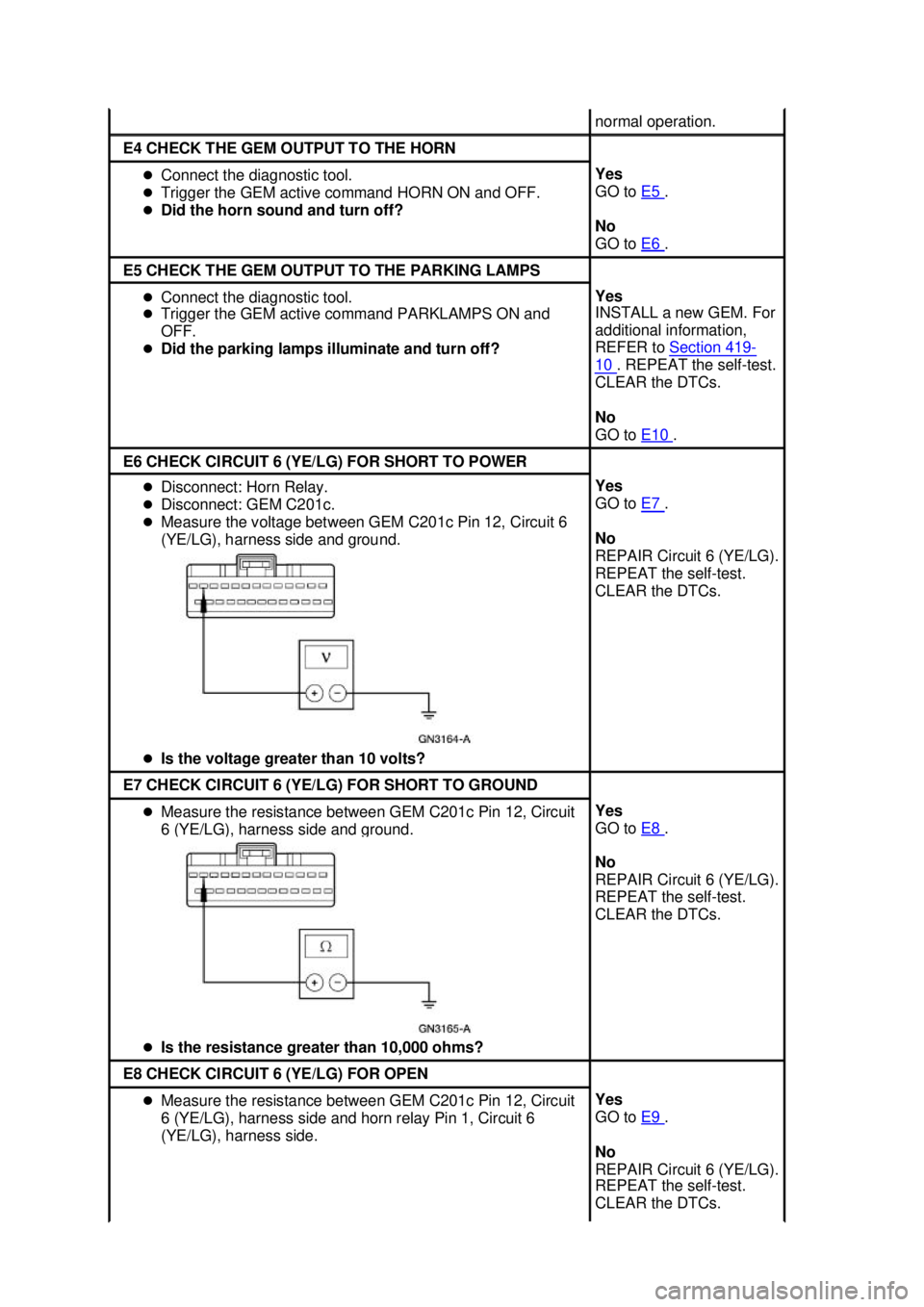

E4 CHECK THE GEM OUTPUT TO THE HORN
z
Connect the diagnostic tool.
z Trigger the GEM active command HORN ON and OFF.
z Did the horn sound and turn off? Yes
GO to
E5 .
No
GO to E6 .
E5 CHECK THE GEM OUTPUT TO THE PARKING LAMPS
z
Connect the diagnostic tool.
z Trigger the GEM active command PARKLAMPS ON and
OFF.
z Did the parking lamps illuminate and turn off? Yes
INSTALL a new GEM. For
additional information,
REFER to
Section 419 -
10 . REPEAT the self-
test.
CLEAR the DTCs.
No
GO to E10 .
E6 CHECK CIRCUIT 6 (YE/LG) FOR SHORT TO POWER
z
Disconnect: Horn Relay.
z Disconnect: GEM C201c.
z Measure the voltage between GEM C201c Pin 12, Circuit 6
(YE/LG), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
E7 .
No
REPAIR Circuit 6 (YE/LG).
REPEAT the self- test.
CLEAR the DTCs. E7 CHECK CIRCUIT 6 (YE/LG) FOR SHORT TO GROUND
z
Measure the resistance between GEM C201c Pin 12, Circuit
6 (YE/LG), harness side and ground.
z Is the resistance greater than 10,000 ohms? Yes
GO to
E8 .
No
REPAIR Circuit 6 (YE/LG).
REPEAT the self- test.
CLEAR the DTCs. E8 CHECK CIRCUIT 6 (YE/LG) FOR OPEN
z
Measure the resistance between GEM C201c Pin 12, Circuit
6 (YE/LG), harness side and horn relay Pin 1, Circuit 6
(YE/LG), harness side. Yes
GO to
E9 .
No
REPAIR Circuit 6 (YE/LG).
REPEAT the self- test.
CLEAR the DTCs. Klj . 19 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z

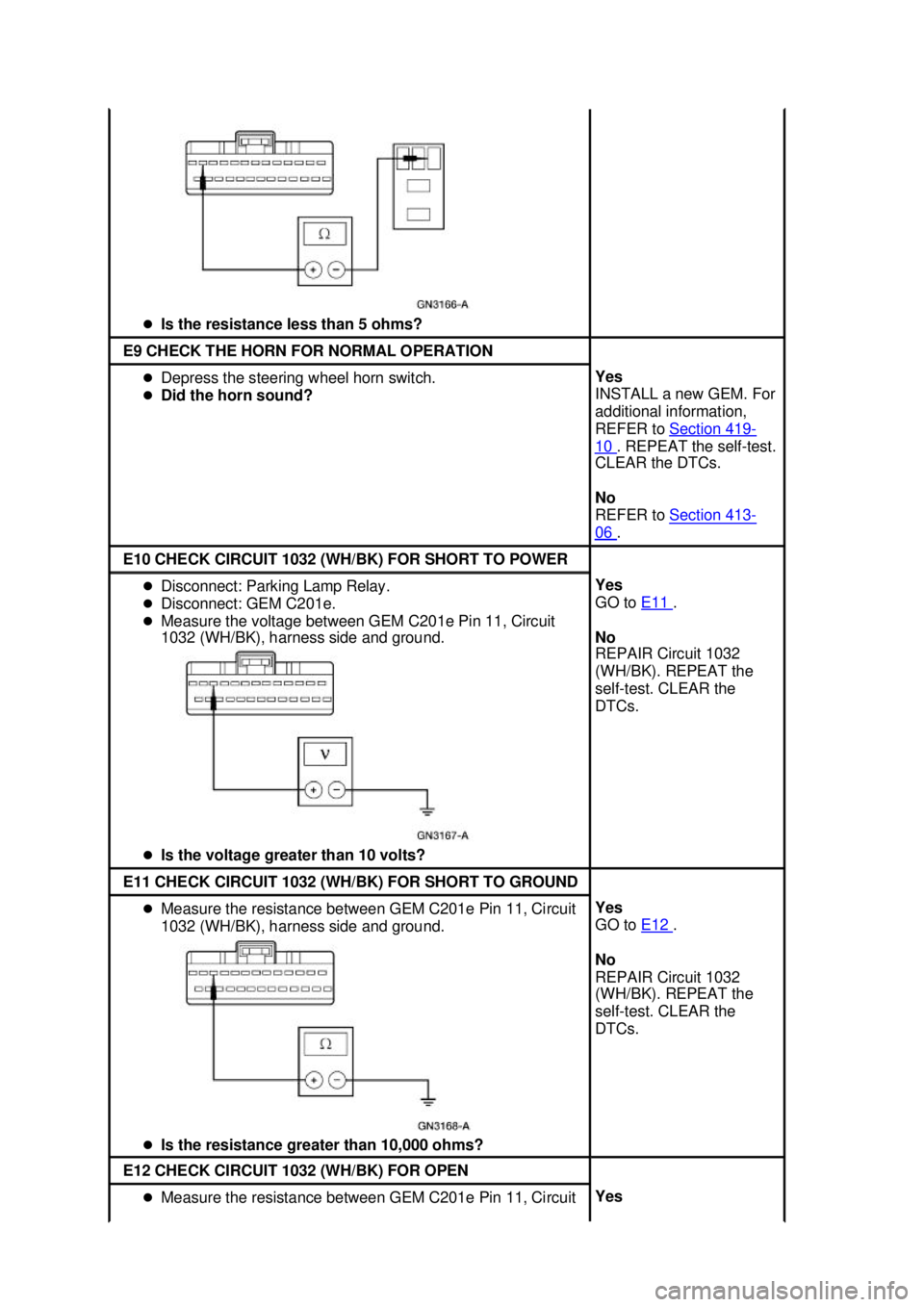

Is the resistance less than 5 ohms? E9 CHECK THE HORN FOR NORMAL OPERATION
z
Depress the steering wheel horn switch.
z Did the horn sound? Yes
INSTALL a new GEM. For
additional information,
REFER to
Section 419 -
10 . REPEAT the self-
test.
CLEAR the DTCs.
No
REFER to Section 413 -
06 .
E10 CHECK CIRCUIT 1032 (WH/BK) FOR SHORT TO POWER
z
Disconnect: Parking Lamp Relay.
z Disconnect: GEM C201e.
z Measure the voltage between GEM C201e Pin 11, Circuit
1032 (WH/BK), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
E11 .
No
REPAIR Circuit 1032
(WH/BK). REPEAT the
self- test. CLEAR the
DTCs. E11 CHECK CIRCUIT 1032 (WH/BK) FOR SHORT TO GROUND
z
Measure the resistance between GEM C201e Pin 11, Circuit
1032 (WH/BK), harness side and ground.
z Is the resistance greater than 10,000 ohms? Yes
GO to
E12 .
No
REPAIR Circuit 1032
(WH/BK). REPEAT the
self- test. CLEAR the
DTCs. E12 CHECK CIRCUIT 1032 (WH/BK) FOR OPEN
z
Measure the resistance between GEM C201e Pin 11, Circuit Yes Klj . 20 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

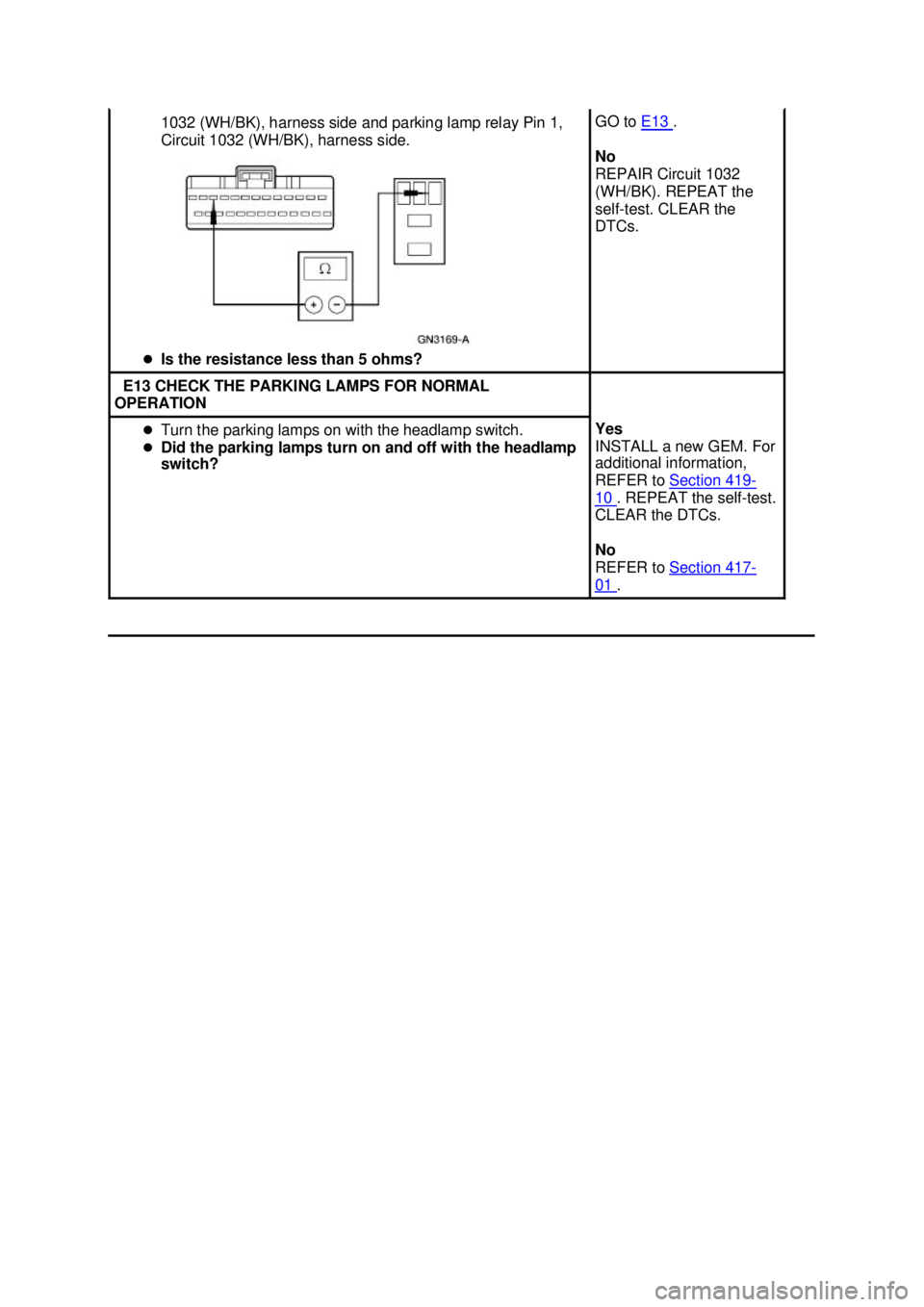

1032 (WH/BK), harness side and parking lamp relay Pin 1,
Circuit 1032 (WH/BK), harness side.
z Is the resistance less than 5 ohms? GO to
E13 .
No
REPAIR Circuit 1032
(WH/BK). REPEAT the
self- test. CLEAR the
DTCs. E13 CHECK THE PARKING LAMPS FOR NORMAL
OPERATION z
Turn the parking lamps on with the headlamp switch.
z Did the parking lamps turn on and off with the headlamp
switch? Yes
INSTALL a new GEM. For
additional information,
REFER to
Section 419 -
10 . REPEAT the self-
test.
CLEAR the DTCs.
No
REFER to Section 417 -
01 . Klj . 21 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

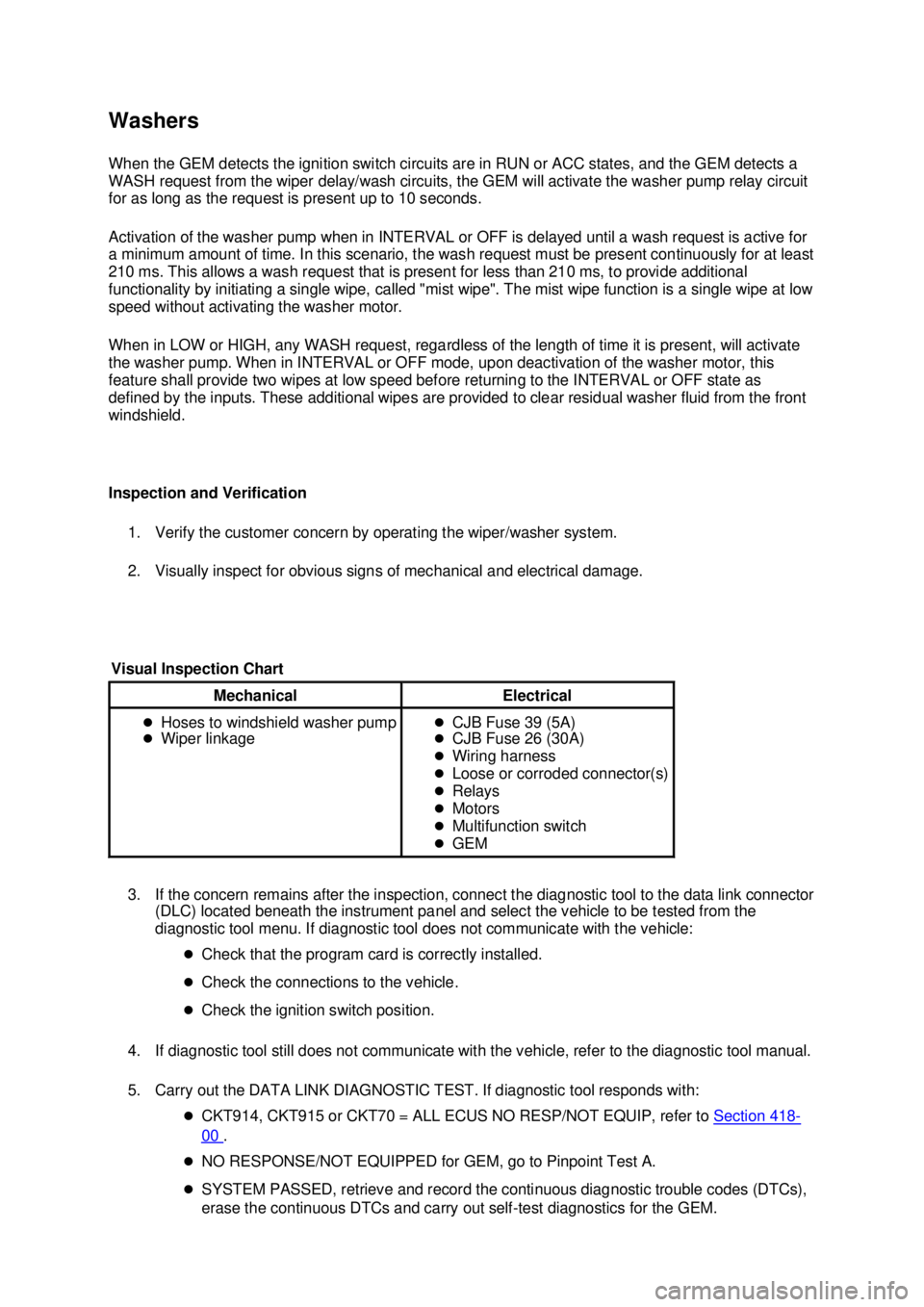

Washers
When the GEM detects the ignition switch circuits are in RUN or ACC states, and the GEM detects a
WASH request from the wiper delay/wash circuits, the GEM will activate the washer pump relay circuit
for as long as the request is present up to 10 seconds.
Activation of the washer pump when in INTERVAL or OFF is delayed until a wash request is active for
a minimum amount of time. In this scenario, the wash request must be present continuously for at least
210 ms. This allows a wash request that is present for less than 210 ms, to provide additional
functionality by initiating a single wipe, called "mist wipe". The mist wipe function is a single wipe at low
speed without activating the washer motor.
When in LOW or HIGH, any WASH request, regardless of the length of time it is present, will activate
the washer pump. When in INTERVAL or OFF mode, upon deactivation of the washer motor, this
feature shall provide two wipes at low speed before returning to the INTERVAL or OFF state as
defined by the inputs. These additional wipes are provided to clear residual washer fluid from the front
windshield.
Inspection and Verification
1. Verify the customer concern by operating the wiper/washer system.
2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If diagnostic tool does not communicate with the vehicle:
zCheck that the program card is correctly installed.
z Check the connections to the vehicle.
z Check the ignition switch position.
4. If diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If diagnostic tool responds with: zCKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESPONSE/NOT EQUIPPED for GEM, go to Pinpoint Test A.
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out self- test diagnostics for the GEM.
Visual Inspection Chart Mechanical Electrical
z
Hoses to windshield washer pump
z Wiper linkage z
CJB Fuse 39 (5A)
z CJB Fuse 26 (30A)
z Wiring harness
z Loose or corroded connector(s)
z Relays
z Motors
z Multifunction switch
z GEM Klj . 2 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

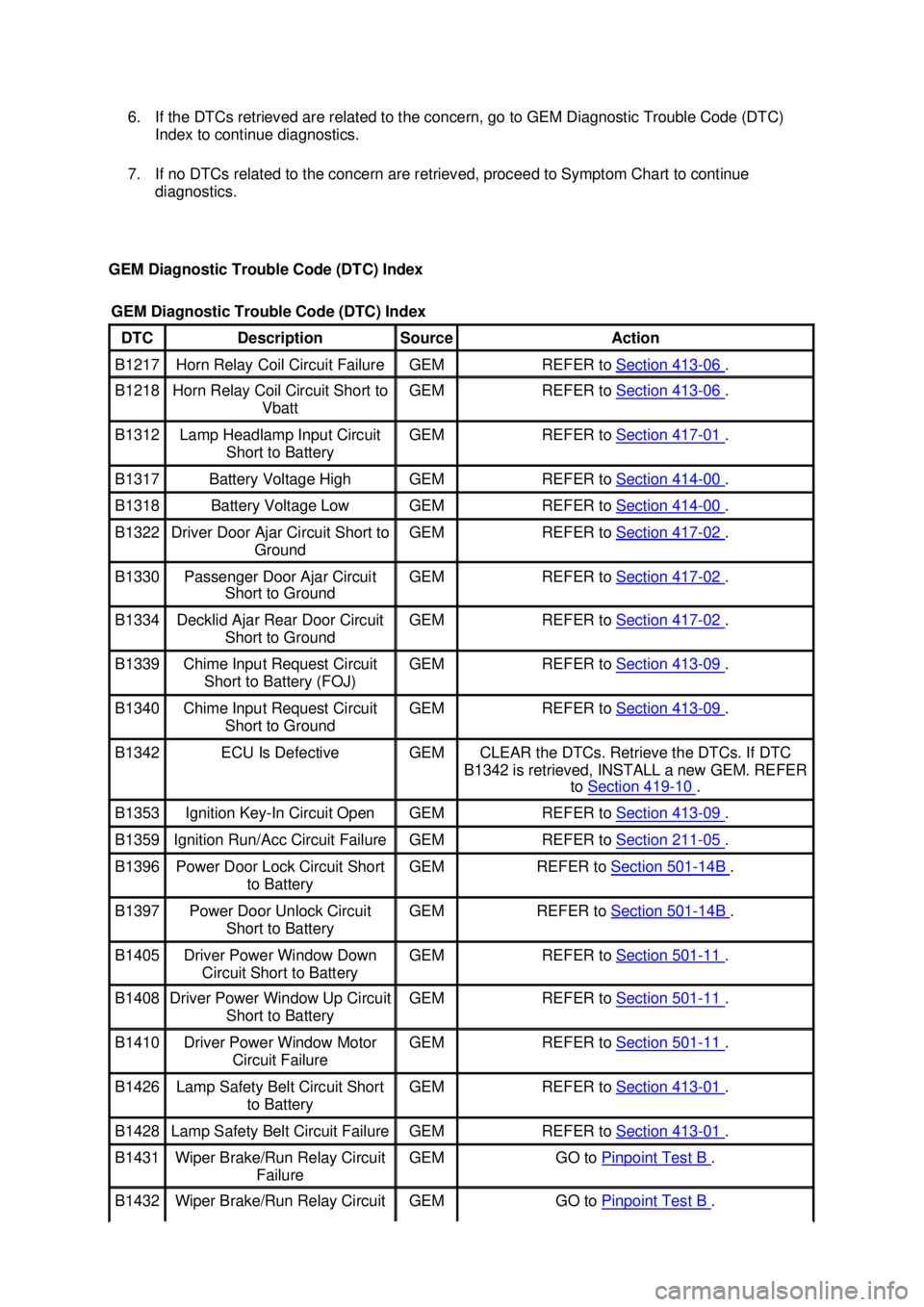

6. If the DTCs retrieved are related to the concern, go to GEM Diagnostic Trouble Code (DTC)
Index to continue diagnostics.
7. If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.
GEM Diagnostic Trouble Code (DTC) Index GEM Diagnostic Trouble Code (DTC) Index DTC Description Source Action
B1217 Horn Relay Coil Circuit Failure GEM REFER to
Section 413 - 06 .
B1218 Horn Relay Coil Circuit Short to
Vbatt GEM REFER to
Section 413 - 06 .
B1312 Lamp Headlamp Input Circuit
Short to Battery GEM REFER to
Section 417 - 01 .
B1317 Battery Voltage High GEM REFER to
Section 414 - 00 .
B1318 Battery Voltage Low GEM REFER to
Section 414 - 00 .
B1322 Driver Door Ajar Circuit Short to
Ground GEM REFER to
Section 417 - 02 .
B1330 Passenger Door Ajar Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1334 Decklid Ajar Rear Door Circuit
Short to Ground GEM REFER to
Section 417 - 02 .
B1339 Chime Input Request Circuit
Short to Battery (FOJ) GEM REFER to
Section 413 - 09 .
B1340 Chime Input Request Circuit
Short to Ground GEM REFER to
Section 413 - 09 .
B1342 ECU Is Defective GEM CLEAR the DTCs. Retrieve the DTCs. If DTC
B1342 is retrieved, INSTALL a new GEM. REFER to Section 419 - 10 .
B1353 Ignition Key-
In Circuit Open GEM REFER to
Section 413 - 09 .
B1359 Ignition Run/Acc Circuit Failure GEM REFER to
Section 211 - 05 .
B1396 Power Door Lock Circuit Short
to Battery GEM REFER to
Section 501 - 14B .
B1397 Power Door Unlock Circuit
Short to Battery GEM REFER to
Section 501 - 14B .
B1405 Driver Power Window Down
Circuit Short to Battery GEM REFER to
Section 501 - 11 .
B1408 Driver Power Window Up Circuit
Short to Battery GEM REFER to
Section 501 - 11 .
B1410 Driver Power Window Motor
Circuit Failure GEM REFER to
Section 501 - 11 .
B1426 Lamp Safety Belt Circuit Short
to Battery GEM REFER to
Section 413 - 01 .
B1428 Lamp Safety Belt Circuit Failure GEM REFER to
Section 413 - 01 .
B1431 Wiper Brake/Run Relay Circuit
Failure GEM GO to
Pinpoint Test B .
B1432 Wiper Brake/Run Relay Circuit GEM GO to
Pinpoint Test B . Klj . 3 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

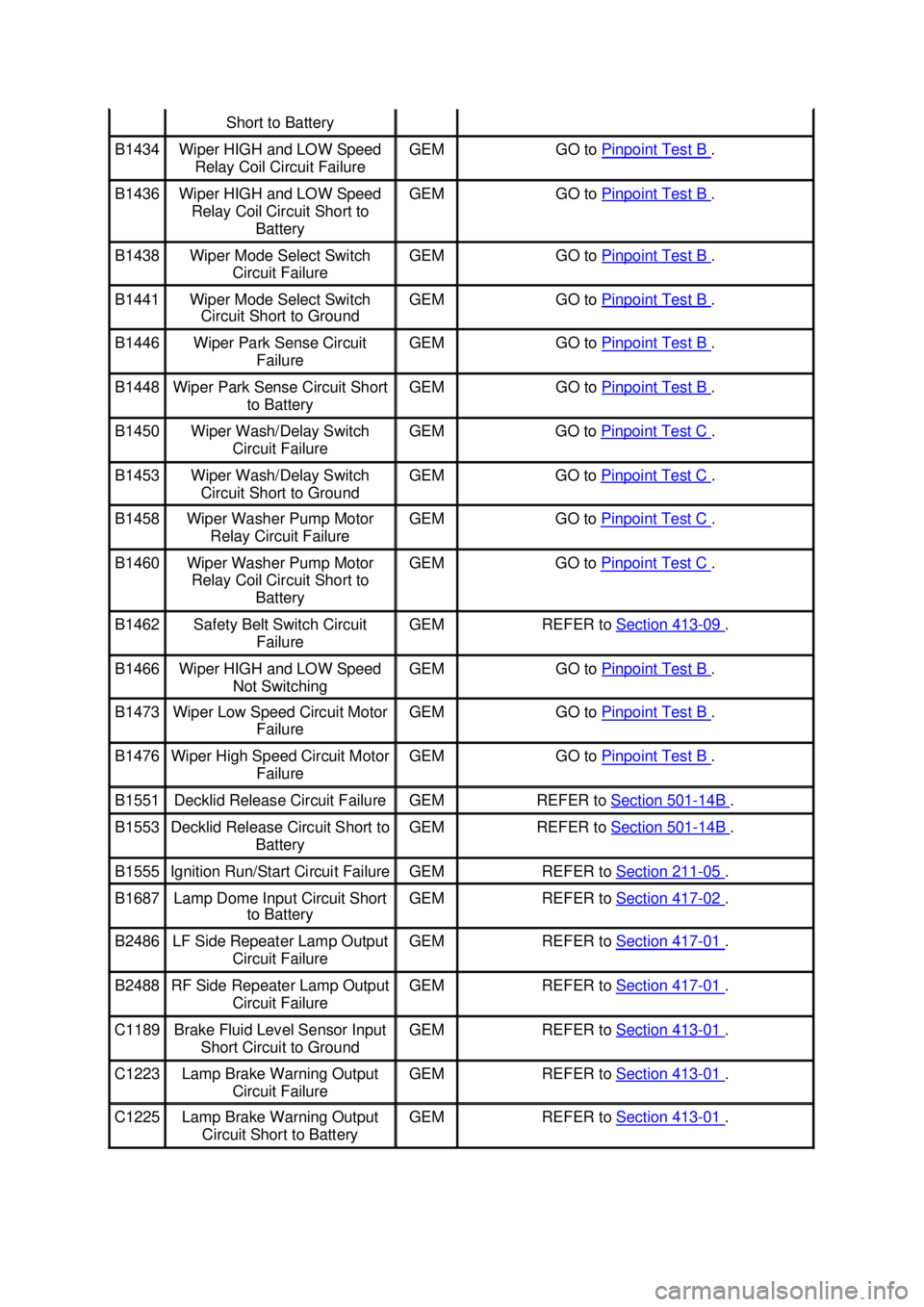

Short to Battery
B1434 Wiper HIGH and LOW Speed
Relay Coil Circuit Failure GEM GO to
Pinpoint Test B .
B1436 Wiper HIGH and LOW Speed
Relay Coil Circuit Short to Battery GEM GO to
Pinpoint Test B .
B1438 Wiper Mode Select Switch
Circuit Failure GEM GO to
Pinpoint Test B .
B1441 Wiper Mode Select Switch
Circuit Short to Ground GEM GO to
Pinpoint Test B .
B1446 Wiper Park Sense Circuit
Failure GEM GO to
Pinpoint Test B .
B1448 Wiper Park Sense Circuit Short
to Battery GEM GO to
Pinpoint Test B .
B1450 Wiper Wash/Delay Switch
Circuit Failure GEM GO to
Pinpoint Test C .
B1453 Wiper Wash/Delay Switch
Circuit Short to Ground GEM GO to
Pinpoint Test C .
B1458 Wiper Washer Pump Motor
Relay Circuit Failure GEM GO to
Pinpoint Test C .
B1460 Wiper Washer Pump Motor
Relay Coil Circuit Short to
Battery GEM GO to
Pinpoint Test C .
B1462 Safety Belt Switch Circuit
Failure GEM REFER to
Section 413 - 09 .
B1466 Wiper HIGH and LOW Speed
Not Switching GEM GO to
Pinpoint Test B .
B1473 Wiper Low Speed Circuit Motor
Failure GEM GO to
Pinpoint Test B .
B1476 Wiper High Speed Circuit Motor
Failure GEM GO to
Pinpoint Test B .
B1551 Decklid Release Circuit Failure GEM REFER to
Section 501 - 14B .
B1553 Decklid Release Circuit Short to
Battery GEM REFER to
Section 501 - 14B .
B1555 Ignition Run/Start Circuit Failure GEM REFER to
Section 211 - 05 .
B1687 Lamp Dome Input Circuit Short
to Battery GEM REFER to
Section 417 - 02 .
B2486 LF Side Repeater Lamp Output
Circuit Failure GEM REFER to
Section 417 - 01 .
B2488 RF Side Repeater Lamp Output
Circuit Failure GEM REFER to
Section 417 - 01 .
C1189 Brake Fluid Level Sensor Input
Short Circuit to Ground GEM REFER to
Section 413 - 01 .
C1223 Lamp Brake Warning Output
Circuit Failure GEM REFER to
Section 413 - 01 .
C1225 Lamp Brake Warning Output
Circuit Short to Battery GEM REFER to
Section 413 - 01 . Klj . 4 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

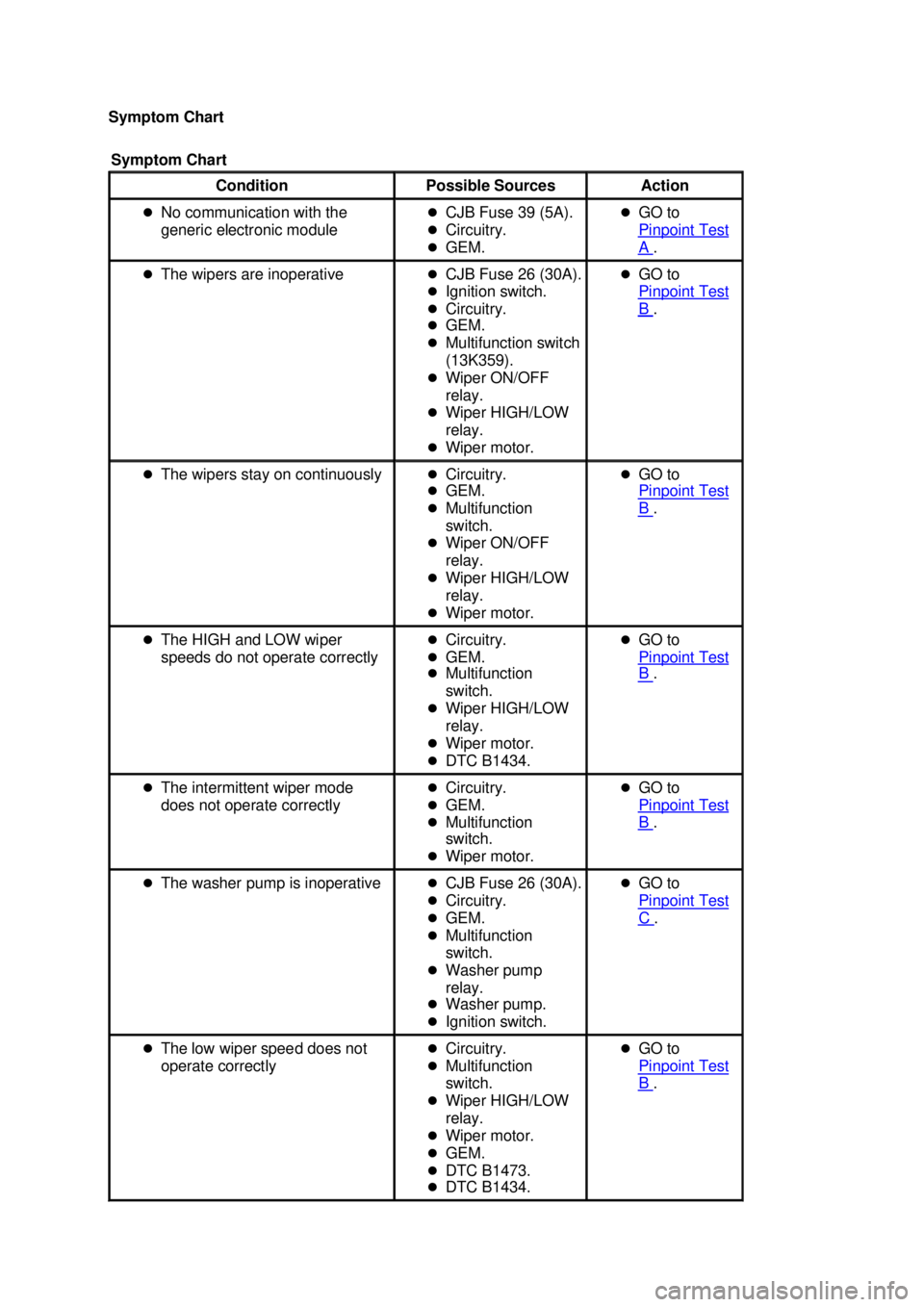

Symptom Chart
Symptom Chart Condition
Possible Sources Action
z No communication with the
generic electronic module z
CJB Fuse 39 (5A).
z Circuitry.
z GEM. z
GO to
Pinpoint Test A .
z The wipers are inoperative zCJB Fuse 26 (30A).
z Ignition switch.
z Circuitry.
z GEM.
z Multifunction switch
(13K359).
z Wiper ON/OFF
relay.
z Wiper HIGH/LOW
relay.
z Wiper motor. z
GO to
Pinpoint Test B .
z The wipers stay on continuously zCircuitry.
z GEM.
z Multifunction
switch.
z Wiper ON/OFF
relay.
z Wiper HIGH/LOW
relay.
z Wiper motor. z
GO to
Pinpoint Test B .
z The HIGH and LOW wiper
speeds do not operate correctly z
Circuitry.
z GEM.
z Multifunction
switch.
z Wiper HIGH/LOW
relay.
z Wiper motor.
z DTC B1434. z
GO to
Pinpoint Test B .
z The intermittent wiper mode
does not operate correctly z
Circuitry.
z GEM.
z Multifunction
switch.
z Wiper motor. z
GO to
Pinpoint Test B .
z The washer pump is inoperative zCJB Fuse 26 (30A).
z Circuitry.
z GEM.
z Multifunction
switch.
z Washer pump
relay.
z Washer pump.
z Ignition switch. z
GO to
Pinpoint Test C .
z The low wiper speed does not
operate correctly z
Circuitry.
z Multifunction
switch.
z Wiper HIGH/LOW
relay.
z Wiper motor.
z GEM.
z DTC B1473.
z DTC B1434. z
GO to
Pinpoint Test B . Klj . 5 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

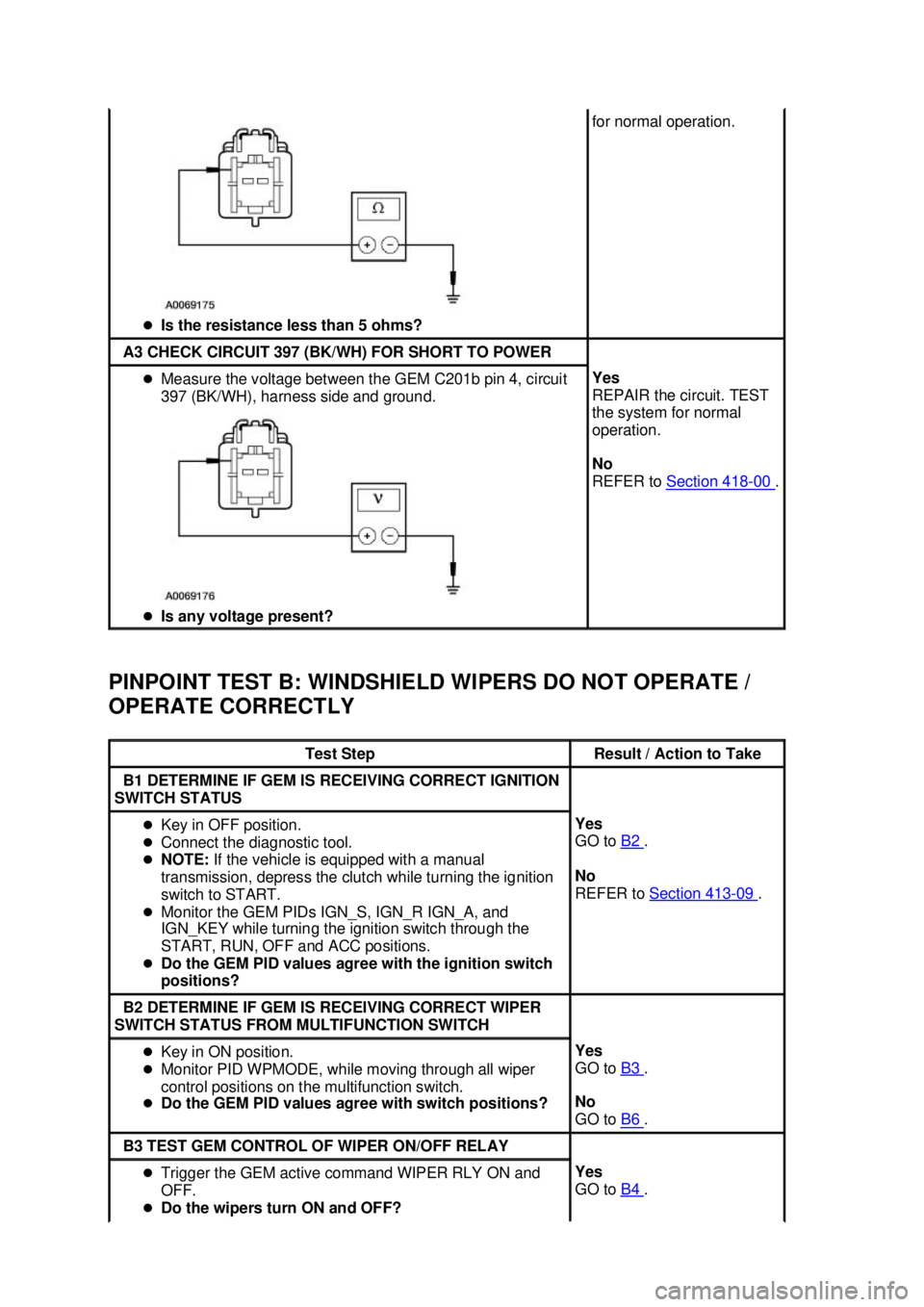

PINPOINT TEST B: WINDSHIELD WIPERS DO NOT OPERATE /
OPERATE CORRECTLY z
Is the resistance less than 5 ohms? for normal operation.
A3 CHECK CIRCUIT 397 (BK/WH) FOR SHORT TO POWER
z
Measure the voltage between the GEM C201b pin 4, circuit
397 (BK/WH), harness side and ground.
z Is any voltage present? Yes
REPAIR the circuit. TEST
the system for normal
operation.
No
REFER to
Section 418 - 00 .
Test Step Result / Action to Take
B1 DETERMINE IF GEM IS RECEIVING CORRECT IGNITION
SWITCH STATUS z
Key in OFF position.
z Connect the diagnostic tool.
z NOTE: If the vehicle is equipped with a manual
transmission, depress the clutch while turning the ignition
switch to START.
z Monitor the GEM PIDs IGN_S, IGN_R IGN_A, and
IGN_KEY while turning the ignition switch through the
START, RUN, OFF and ACC positions.
z Do the GEM PID values agree with the ignition switch
positions? Yes
GO to
B2 .
No
REFER to Section 413 - 09 .
B2 DETERMINE IF GEM IS RECEIVING CORRECT WIPER
SWITCH STATUS FROM MULTIFUNCTION SWITCH z
Key in ON position.
z Monitor PID WPMODE, while moving through all wiper
control positions on the multifunction switch.
z Do the GEM PID values agree with switch positions? Yes
GO to
B3 .
No
GO to B6 .
B3 TEST GEM CONTROL OF WIPER ON/OFF RELAY
z
Trigger the GEM active command WIPER RLY ON and
OFF.
z Do the wipers turn ON and OFF? Yes
GO to
B4 . Klj . 7 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
