PINPOINT TEST B: UNABLE TO ENTER SELF-
TEST
PINPOINT TEST C: DTC B1318, BATTERY VOLTAGE LOW Test Step Result / Action to Take
B1 CHECK THE COMMUNICATIONS TO THE
ANTI- LOCK BRAKE CONTROL MODULE z
Check the communications to the anti- lock
brake control module.
z Does the scan tool communicate with the
anti-lock brake control module? Yes
INSTALL a new anti-
lock brake control
module; REFER to Module . REPEAT the
self- test.
No
Go To Pinpoint Test A .
Test Step Result / Action to
Take C1 CHECK BATTERY VOLTAGE
z
Measure the battery voltage between the positive and negative
battery posts with the key ON engine OFF (KOEO), and with the
engine running.
z Is the battery voltage between 10 and 13 volts with KOEO, and
between 11 and 17 volts with the engine running? Yes
GO to
C2 .
No
REFER to Section 414 - 00 .
C2 CHECK THE VOLTAGE TO THE ANTI-
LOCK BRAKE CONTROL
MODULE z
Key in OFF position.
z Disconnect: Anti- Lock Brake Control Module C135.
z Key in ON position.
z Measure the voltage between anti- lock brake control module C135
Pin 8, Circuit 601 (LB/PK), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
C3 .
No
REPAIR the circuit.
CLEAR the DTCs.
REPEAT the self-
test. C3 CHECK THE ANTI-
LOCK BRAKE CONTROL MODULE GROUNDS Klj . 6 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Anti-
Lock Control — Traction Control
Refer to Wiring Diagrams Cell 42 , Anti-
Lock Brake System for schematic and connector information.
Principles of Operation
The anti- lock-brake control module receives wheel speed readings from each anti- lock brake sensor
and processes this information to determine if an ABS event is necessary. The anti- lock brake sensor
electrically senses each tooth of the anti- lock brake sensor indicators as it passes through the anti- lock
brake sensor's magnetic field.
The anti- lock brake control module continuously monitors and compares the rotational speed of each
wheel and, when it detects an impending wheel lock, modulates brake pressure to the appropriate
brake caliper. This is accomplished by triggering the hydraulic control unit (HCU) to open and close the
appropriate solenoid valves. Once the affected wheel returns to normal speed, the anti- lock brake
control module returns the solenoid valves to their normal position, and normal (base) braking
resumes.
The anti- lock brake control module is self- monitoring. When the ignition switch is turned to the RUN
position, the anti- lock brake control module will do a preliminary electrical check, and at approximately
12 km/h (8 mph) the pump motor is turned on for approximately one half- second. Also during all
phases of operation the anti- lock brake control module (after the vehicle is in motion) checks for
correct operation of the anti- lock brake sensors. Any malfunction of the ABS will cause the ABS to shut
off and ABS warning indicator to illuminate; normal power assisted braking, however, remains.
The ABS control module has the ability to store multiple DTCs in memory.
The traction control system controls wheelspin by modulating the engine torque by communicating to
the powertrain control module (PCM) and by applying, then releasing, the appropriate brake to restore
traction when one or both drive wheels lose traction and begin to spin during acceleration.
The traction control system can be disabled by depressing the traction control switch. The traction
control system will reset and return to normal traction assist when the ignition switch is cycled or when
the traction control switch is depressed again. SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool 73 Digital Multimeter or
equivalent
105-
R0051 Klj . 1 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index
DTC Description Source Action
B1318 Battery Voltage Low ABS/TC Go To Pinpoint Test C .
B1342 ECU Is Defective ABS/TC INSTALL a new anti-
lock brake control
module; REFER to Module . REPEAT the
self- test. B1484 Brake Pedal Input Open Circuit ABS/TC Go To Pinpoint Test D .
B1596 Repair Continuous Codes ABS/TC REPAIR the DTCs retrieved.
C1095 ABS Hydraulic Pump Motor Circuit
Failure ABS/TC Go To Pinpoint Test E .
C1145 RF Anti-
Lock Brake Sensor Input
Circuit Failure ABS/TC Go To Pinpoint Test F .
C1155 LF Anti-
Lock Brake Sensor Input
Circuit Failure ABS/TC Go To Pinpoint Test F .
C1165 RR Anti-
Lock Brake Sensor Input
Circuit Failure ABS/TC Go To Pinpoint Test F .
C1175 LR Anti-
Lock Brake Sensor Input
Circuit Failure ABS/TC Go To Pinpoint Test F .
C1222 Anti-
Lock Brake Sensor Mismatch ABS/TC Go To Pinpoint Test G .
C1233 LF Anti-
Lock Brake Sensor Input
Signal Missing ABS/TC Go To Pinpoint Test H .
C1234 RF Anti-
Lock Brake Sensor Input
Signal Missing ABS/TC Go To Pinpoint Test H .
C1235 RR Anti-
Lock Brake Sensor Input
Signal Missing ABS/TC Go To Pinpoint Test H .
C1236 LR Anti-
Lock Brake Sensor Input
Signal Missing ABS/TC Go To Pinpoint Test H .
C1266 ABS Valve Power Relay Circuit
Failure ABS/TC INSTALL a new anti-
lock brake control
module; REFER to Module . REPEAT the
self- test. C1805 Mismatched PCM and/or Anti-Lock
Brake Control Module ABS/TC CLEAR the DTCs. RETRIEVE the DTCs. If
DTC C1805 is retrieved, check the PCM
and Anti- Lock Brake Control Module is for
the correct vehicle. INSTALL a new PCM or
anti-lock brake control module as
necessary. CLEAR the DTCs. REPEAT the self-test. U1009 SCP (J1850) Invalid or Missing Data
for Engine Torque ABS/TC CARRY OUT the PCM self-
test. U1027 SCP (J1850) Invalid or Missing Data
for Engine RPM ABS/TC CARRY OUT the PCM self-
test. U1059 SCP (J1850) Invalid or Missing Data
for Transmission/Transaxle/PRNDL ABS/TC CARRY OUT the PCM self-
test. U1083 SCP (J1850) Invalid or Missing Data
for Engine Systems ABS/TC CARRY OUT the PCM self-
test. U1262 SCP (J1850) Communication Bus
Fault ABS/TC REFER to
Section 418 - 00 . Klj . 3 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

PINPOINT TEST B: UNABLE TO ENTER SELF-
TEST
PINPOINT TEST C: DTC B1318, BATTERY VOLTAGE LOW z
Is the voltage greater than 10 volts? REPEAT the self-
test.
A2 CHECK THE ANTI-
LOCK BRAKE CONTROL MODULE GROUNDS z
Measure the resistance between anti- lock brake control module
C141 Pin 12, Circuit 1205 (BK), harness side and ground; and
between anti- lock brake control module C141 Pin 15, Circuit 397
(BK/WH), harness side and ground.
z Are the resistances less than 5 ohms? Yes
INSTALL a new
anti-
lock brake
control module;
REFER to Module .
REPEAT the self-
test.
No
REPAIR the circuit
in question.
REPEAT the self-
test. Test Step Result / Action to Take
B1 CHECK THE COMMUNICATIONS TO THE
ANTI- LOCK BRAKE CONTROL MODULE z
Check the communications to the anti- lock
brake control module.
z Does the scan tool communicate with the
anti-lock brake control module? Yes
INSTALL a new anti-
lock brake control
module; REFER to Module . REPEAT the
self- test.
No
Go To Pinpoint Test A .
Test Step Result / Action to
Take C1 CHECK BATTERY VOLTAGE
z
Measure the battery voltage between the positive and negative
battery posts with the key ON engine OFF (KOEO), and with the
engine running. Yes
GO to
C2 .
No
REFER to Section Klj . 7 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

PINPOINT TEST D: DTC B1484, BRAKE PEDAL INPUT OPEN
CIRCUIT z
Is the battery voltage between 10 and 13 volts with KOEO, and
between 11 and 17 volts with the engine running? 414 - 00 .
C2 CHECK THE VOLTAGE TO THE ANTI-
LOCK BRAKE CONTROL
MODULE z
Key in OFF position.
z Disconnect: Anti- Lock Brake Control Module C141.
z Key in ON position.
z Measure the voltage between anti- lock brake control module C141
Pin 8, Circuit 601 (LB/PK), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
C3 .
No
REPAIR the circuit.
CLEAR the DTCs.
REPEAT the self-
test. C3 CHECK THE ANTI-
LOCK BRAKE CONTROL MODULE GROUNDS z
Measure the resistance between anti- lock brake control module
C141 Pin 12, Circuit 1205 (BK), harness side and ground; and
between anti- lock brake control module C141 Pin 15, Circuit 397
(BK/WH), harness side and ground.
z Are the resistances less than 5 ohms? Yes
INSTALL a new
anti-
lock brake
control module;
REFER to Module .
REPEAT the self-
test.
No
REPAIR the circuit
in question.
CLEAR the DTCs.
REPEAT the self-
test. Test Step Result / Action to Take
D1 CHECK THE STOPLAMPS FOR CORRECT OPERATION Klj . 8 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

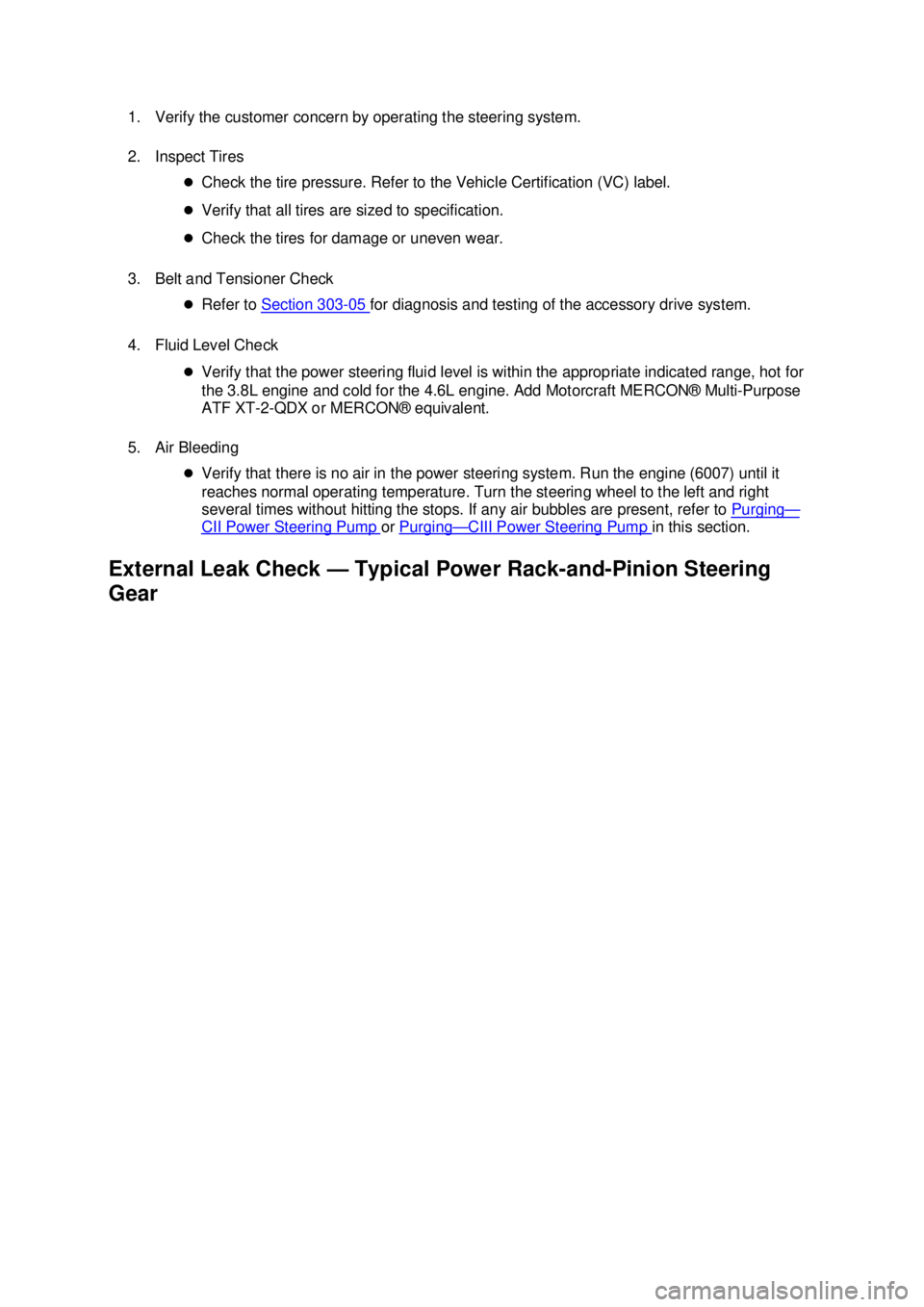

1. Verify the customer concern by operating the steering system.
2. Inspect Tires
zCheck the tire pressure. Refer to the Vehicle Certification (VC) label.
z Verify that all tires are sized to specification.
z Check the tires for damage or uneven wear.
3. Belt and Tensioner Check zRefer to Section 303 - 05 for diagnosis and testing of the accessory drive system.
4. Fluid Level Check zVerify that the power steering fluid level is within the appropriate indicated range, hot for
the 3.8L engine and cold for the 4.6L engine. Add Motorcraft MERCON® Multi- Purpose
ATF XT -2-QDX or MERCON® equivalent.
5. Air Bleeding zVerify that there is no air in the power steering system. Run the engine (6007) until it
reaches normal operating temperature. Turn the steering wheel to the left and right
several times without hitting the stops. If any air bubbles are present, refer to Purging —
CII Power Steering Pump or
Purging — CIII Power Steering Pump in this section.
External Leak Check — Typical Power Rack-and-Pinion Steering Gear Klj . 2 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

6. External Leak Check
zWith the ignition switch at OFF, wipe off the power steering pump, power steering hoses,
power steering fluid cooler (3D746) and steering gear (3504).
z With the engine running, turn the steering wheel from stop- to-stop several times. Do not
hold steering wheel at stops. Check for leaks. Repair as necessary if leaks are observed.
7. Turning Effort Check zRefer to Turning Effort Test under Component Tests in this section.
8. Visually inspect for obvious signs of mechanical damage; refer to the following chart. Klj . 3 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Component Tests
Steering Linkage
1. NOTE: Excessive vertical motion of the studs relative to the sockets may indicate excessive
wear.
With the parking brake applied, perform the following:
zHave an assistant rotate the steering wheel back and forth 360 degrees and watch for
relative motion of the studs in the tie- rod end ball sockets.
z Watch for loose steering gear mounting.
2. Another method is to raise the front wheels (1007) off the ground, grasp the wheel at the front and rear and watch for excessive play or binding in the joints while trying to steer the wheels.
3. Install new steering components as necessary. For additional information, refer to the appropriate Group 2 steering section.
Turning Effort Test
NOTE: Make sure that the front wheels are properly aligned and the tire pressure is correct before
checking the effort.
1. Park the vehicle on dry concrete and set the parking brake.
2. Insert a thermometer into the power steering pump reservoir.
3. CAUTION: Do not hold the steering wheel against the stops for more than three to
five seconds at a time. Damage to the power steering pump will occur.
Idle the engine for two to three minutes. Turn the steering wheel from stop- to-stop several times
to warm the fluid to 50- 60°C (122-140°F).
4. With the engine running, attach special tool 211- 034 (T74P-3504-Y) to the rim of the steering
wheel.
5. Measure the pull required to turn the steering wheel one complete revolution in each direction. Refer to Steering Wheel Turning Effort under General Specifications in this section.
Pump Flow and Pressure Test WARNING: Do not touch the flowmeter during the test procedure, or severe burns and
serious injury may occur.
1. CAUTION: Make sure that the connection point will not interfere with any of the
engine accessory drive components or drive belts.
Install special tool 211- F001 (014-00207) at the high pressure port of the power steering pump.
Make sure the power steering analyzer gate valve is fully open. Klj . 8 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
