2003 FORD MUSTANG climate control

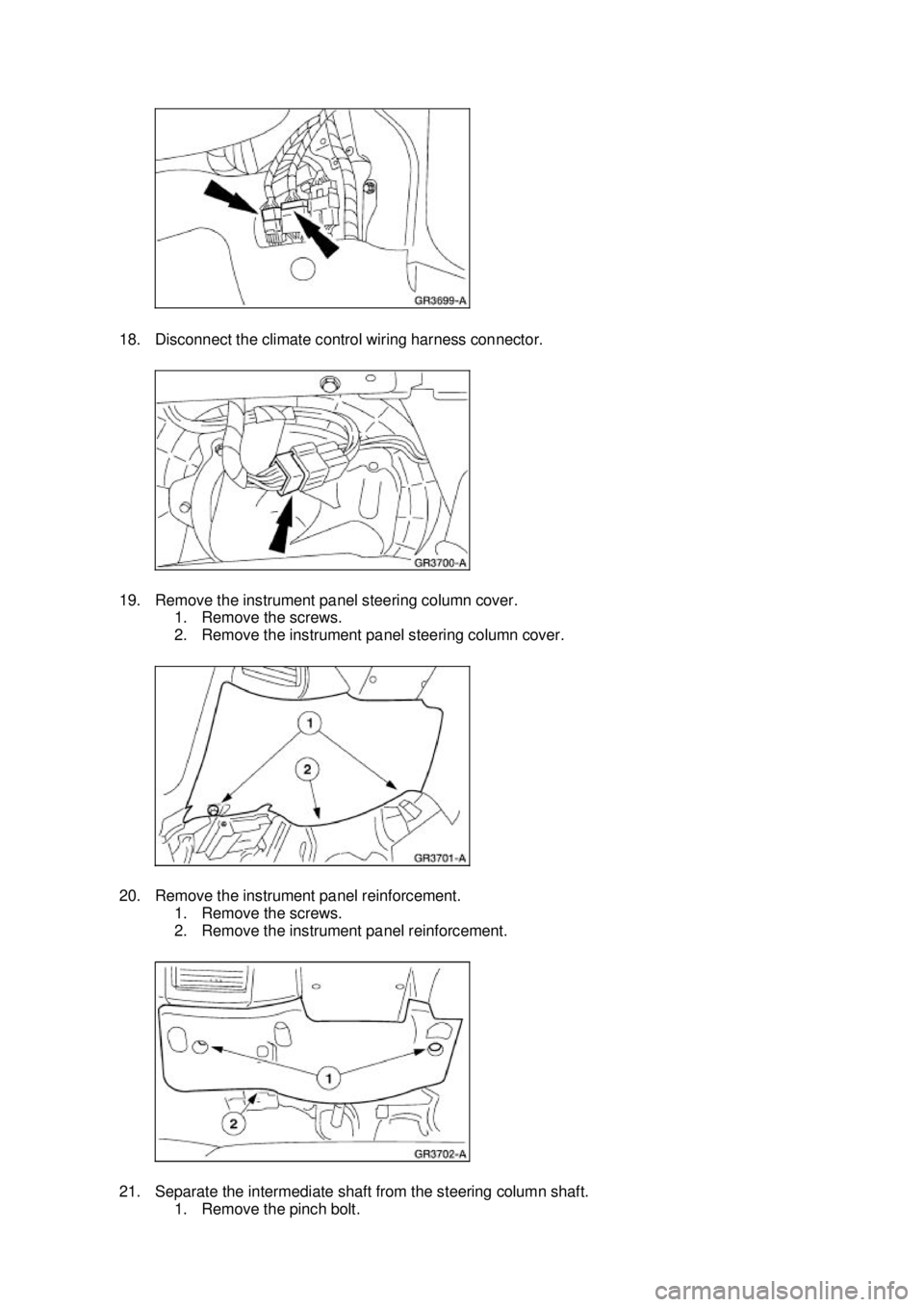

18. Disconnect the climate control wiring harness connector.
19. Remove the instrument panel steering column cover.
1. Remove the screws.
2. Remove the instrument panel steering column cover.
20. Remove the instrument panel reinforcement. 1. Remove the screws.
2. Remove the instrument panel reinforcement.
21. Separate the intermediate shaft from the steering column shaft. 1. Remove the pinch bolt. Klj . 4 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

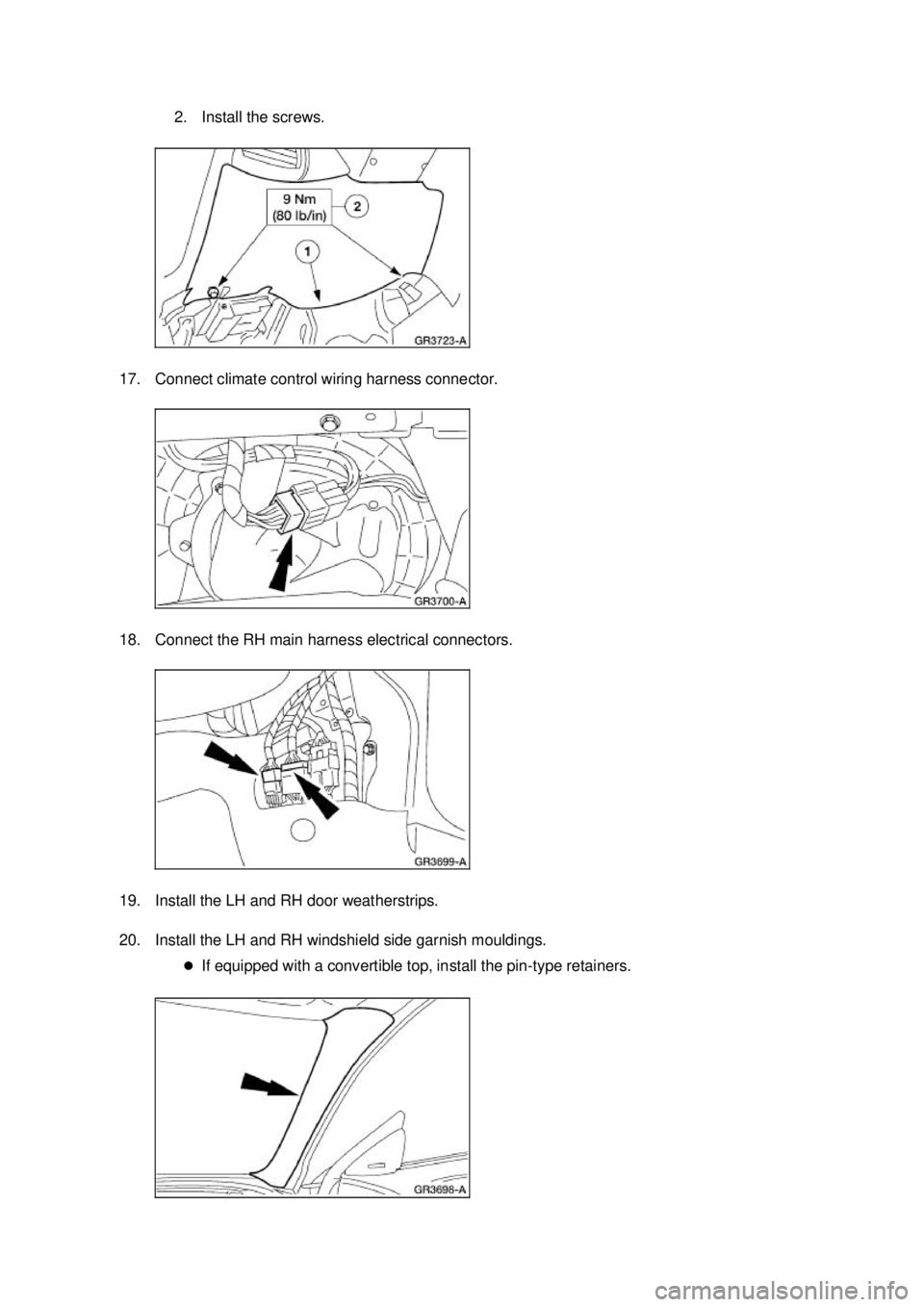

2. Install the screws.
17. Connect climate control wiring harness connector.
18. Connect the RH main harness electrical connectors.
19. Install the LH and RH door weatherstrips.
20. Install the LH and RH windshield side garnish mouldings. zIf equipped with a convertible top, install the pin- type retainers. Klj . 12 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

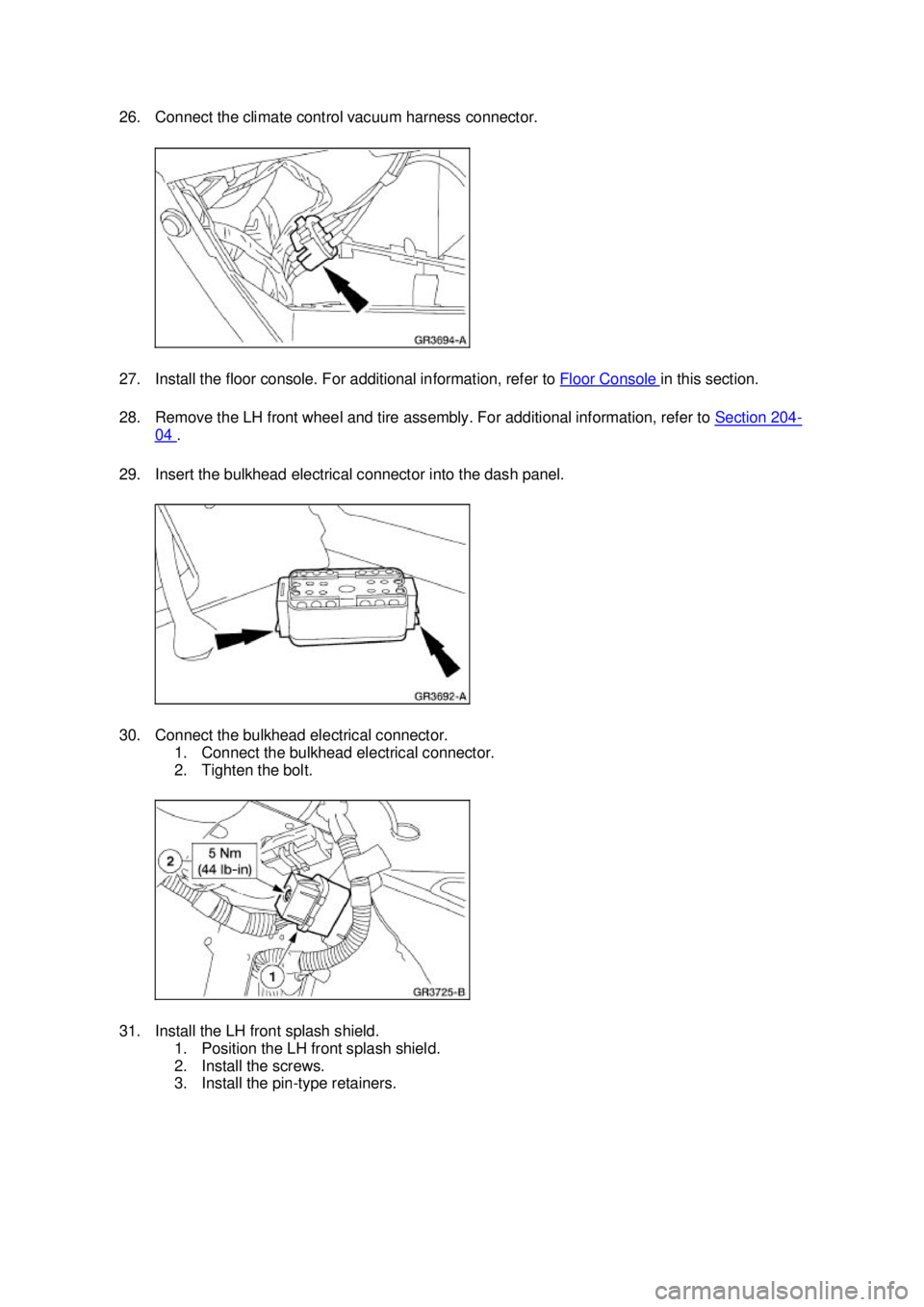

26. Connect the climate control vacuum harness connector.
27. Install the floor console. For additional information, refer to
Floor Console in this section.
28. Remove the LH front wheel and tire assembly. For additional information, refer to Section 204 -
04 .
29. Insert the bulkhead electrical connector into the dash panel.
30. Connect the bulkhead electrical connector. 1. Connect the bulkhead electrical connector.
2. Tighten the bolt.
31. Install the LH front splash shield. 1. Position the LH front splash shield.
2. Install the screws. 3. Install the pin - type retainers. Klj . 14 ba
