2003 FORD MUSTANG engine coolant

SPECIFICATIONS
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants and Sealants
Motorcraft Premium Engine Coolant VC-4-
A
(In Oregon VC- 5, In Canada CXC- 10) ESE-
M97B44- A Motorcraft Premium Gold Engine Coolant VC-7-
A
(In Oregon VC-7- B) WSS-
M97B51- A1 SAE 5W-
20 Engine Premium Synthetic Blend Engine Oil
XO- 5W20- QSP WSS-
M2C153- H Metal Surface Cleaner
F4AZ-
19A536- RA WSE-
M5B392- A Silicone Gasket and Sealant F7AZ-19554-
EA WSE-
M4G323- A4 Pipe Sealant with Teflon® D8AZ-19554-
A WSK-
M2G350- A2 Threadlock 262 E2FZ-19554-
B WSK-
M2G351- A6 Engine
Displacement 4.6L (4V) (281 CID)
Number of cylinders 8
Bore 90.2 mm (3.55 in)
Stroke 90.0 mm (3.54 in)
Firing order 1-3-7-2-6-5-4-
8 Oil pressure 138-310 kPa
Oil capacity
6 ±
0.25 a Compression ratio 8.5:1
Cylinder Head and Valve Train
Cylinder head gasket surface flatness 0.10 mm (0.004 inch) max. overall
Combustion chamber volume 52.6 ±
0.5 cm Valve arrangement (front to rear)
b
Intake (left hand): S-P-S-P-S-P-S-P
Valve arrangement (front to rear)
Exhaust (left hand): E-E-E-E-E-E-E-E
Valve arrangement (front to rear)
Intake (right hand): P-S-P-S-P-S-P-S
Valve arrangement (front to rear)
Exhaust (right hand): E-E-E-E-E-E-E-E
Valve guide bore diameter 7.015-
7.044 mm (0.2762- 0.2773 in) Valve stem diameter—
intake 6.975-
6.995 mm (0.2754- 0.2746 inch) Valve stem diameter—
exhaust 6.949-
6.970 mm (0.2744- 0.2736 inch) Valve stem-
to-guide clearance— intake 0.020-
0.069 mm (0.00078- 0.00272 inch) Valve stem-
to-guide clearance— exhaust 0.046-
0.094 mm (0.0018- 0.0037 in) Valve head diameter—
intake 37 mm (1.46 inch) Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

b
P=Primary, S=Secondary, E=Exhaust
c Time necessary for plunger to leak down 1.6 mm of travel with 222 N force and leak down fluid in
tappet.

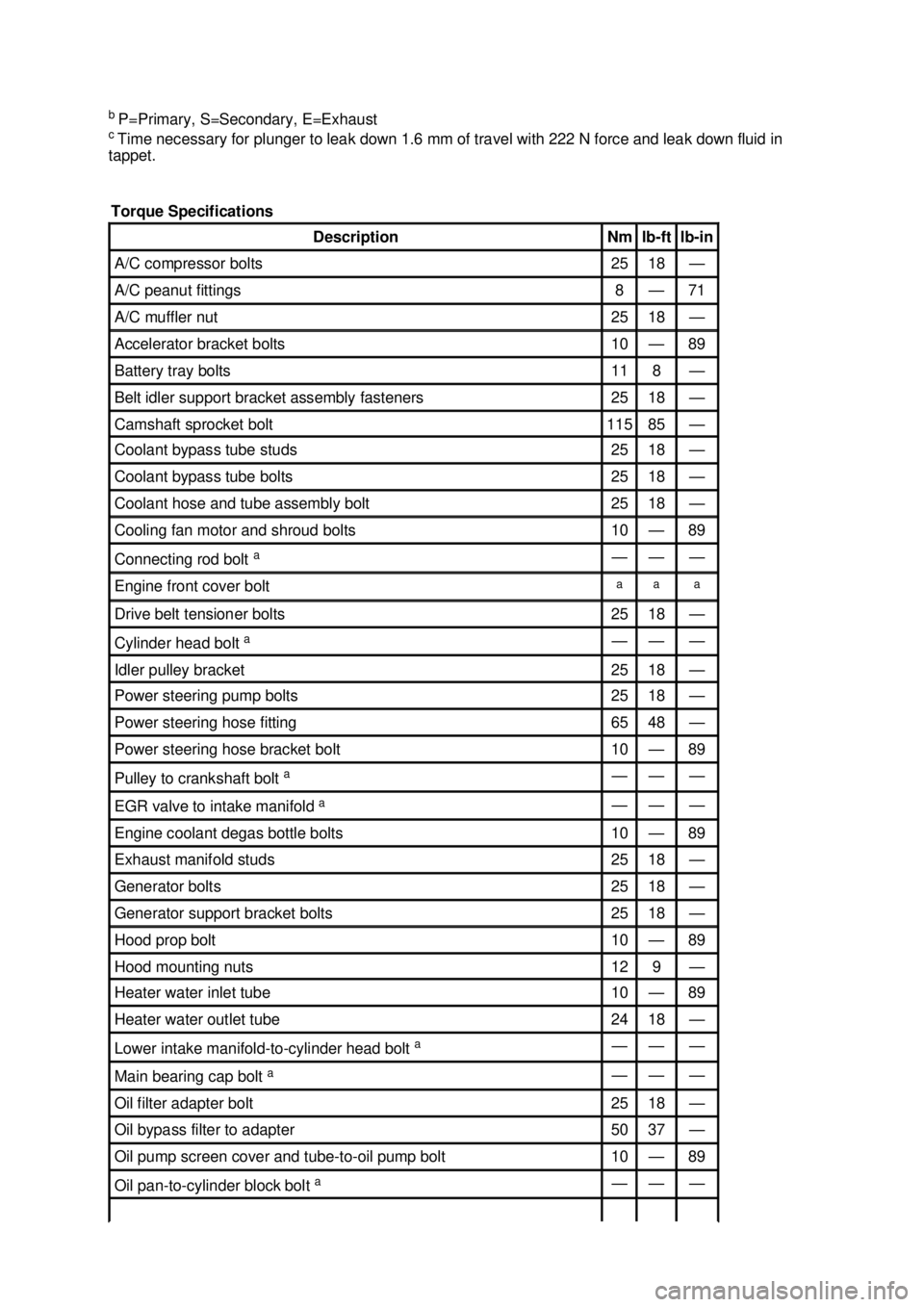

Torque Specifications Description Nm lb-
ft lb-
in A/C compressor bolts 25 18 —
A/C peanut fittings 8 — 71
A/C muffler nut 25 18 —
Accelerator bracket bolts 10 — 89
Battery tray bolts 11 8 —
Belt idler support bracket assembly fasteners 25 18 —
Camshaft sprocket bolt 115 85 —
Coolant bypass tube studs 25 18 —
Coolant bypass tube bolts 25 18 —
Coolant hose and tube assembly bolt 25 18 —
Cooling fan motor and shroud bolts 10 — 89
Connecting rod bolt
a — — —
Engine front cover bolt a a a
Drive belt tensioner bolts 25 18 —
Cylinder head bolt
a — — —
Idler pulley bracket 25 18 —
Power steering pump bolts 25 18 —
Power steering hose fitting 65 48 —
Power steering hose bracket bolt 10 — 89
Pulley to crankshaft bolt
a — — —
EGR valve to intake manifold
a — — —
Engine coolant degas bottle bolts 10 — 89
Exhaust manifold studs 25 18 —
Generator bolts 25 18 —
Generator support bracket bolts 25 18 —
Hood prop bolt 10 — 89
Hood mounting nuts 12 9 —
Heater water inlet tube 10 — 89
Heater water outlet tube 24 18 —
Lower intake manifold-
to-cylinder head bolt a — — —
Main bearing cap bolt
a — — —
Oil filter adapter bolt 25 18 —
Oil bypass filter to adapter 50 37 —
Oil pump screen cover and tube-
to-oil pump bolt 10 — 89
Oil pan-to-
cylinder block bolt a — — — Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z

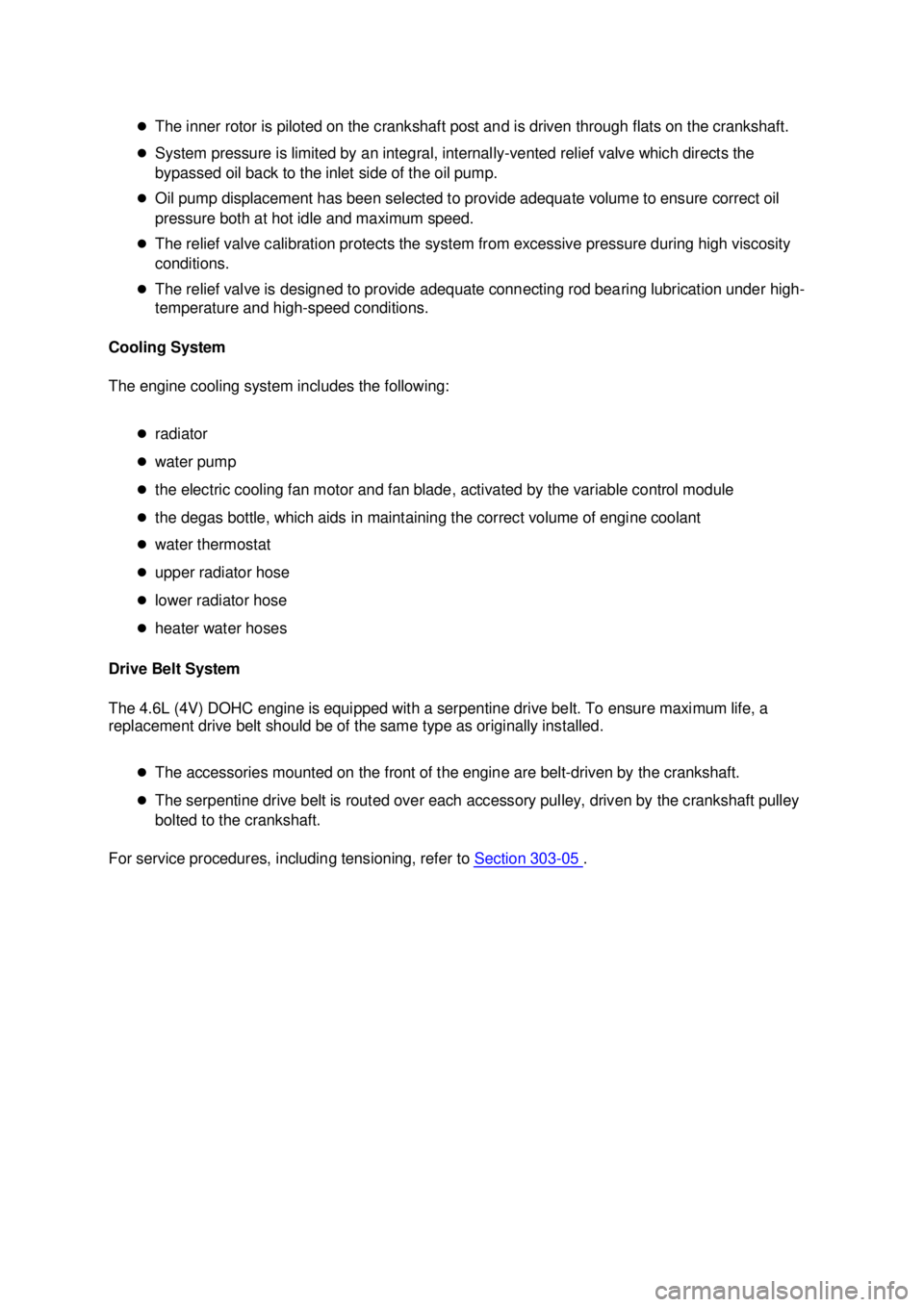

The inner rotor is piloted on the crankshaft post and is driven through flats on the crankshaft.
z System pressure is limited by an integral, internally- vented relief valve which directs the
bypassed oil back to the inlet side of the oil pump.
z Oil pump displacement has been selected to provide adequate volume to ensure correct oil
pressure both at hot idle and maximum speed.
z The relief valve calibration protects the system from excessive pressure during high viscosity
conditions.
z The relief valve is designed to provide adequate connecting rod bearing lubrication under high-
temperature and high- speed conditions.
Cooling System
The engine cooling system includes the following:
zradiator
z water pump
z the electric cooling fan motor and fan blade, activated by the variable control module
z the degas bottle, which aids in maintaining the correct volume of engine coolant
z water thermostat
z upper radiator hose
z lower radiator hose
z heater water hoses
Drive Belt System
The 4.6L (4V) DOHC engine is equipped with a serpentine drive belt. To ensure maximum life, a
replacement drive belt should be of the same type as originally installed.
zThe accessories mounted on the front of the engine are belt- driven by the crankshaft.
z The serpentine drive belt is routed over each accessory pulley, driven by the crankshaft pulley
bolted to the crankshaft.
For service procedures, including tensioning, refer to Section 303 - 05 . Klj . 3 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR

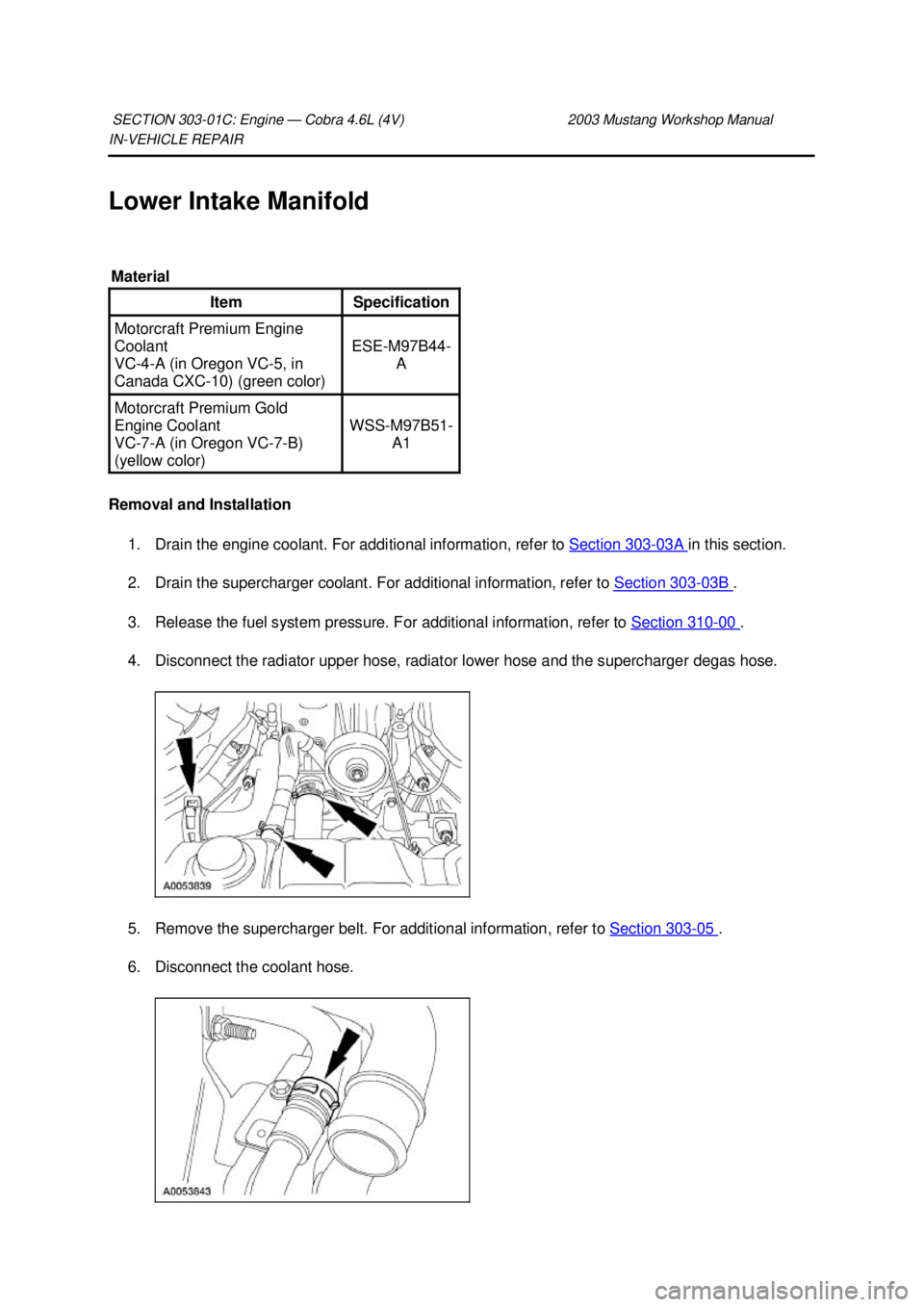

Lower Intake Manifold
Removal and Installation 1. Drain the engine coolant. For additional information, refer to Section 303 - 03A in this section.
2. Drain the supercharger coolant. For additional information, refer to Section 303 - 03B .
3. Release the fuel system pressure. For additional information, refer to Section 310 - 00 .
4. Disconnect the radiator upper hose, radiator lower hose and the supercharger degas hose.
5. Remove the supercharger belt. For additional information, refer to Section 303 - 05 .
6. Disconnect the coolant hose.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft Premium Engine
Coolant
VC
-4-A (in Oregon VC- 5, in
Canada CXC- 10) (green color) ESE-
M97B44-
A Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

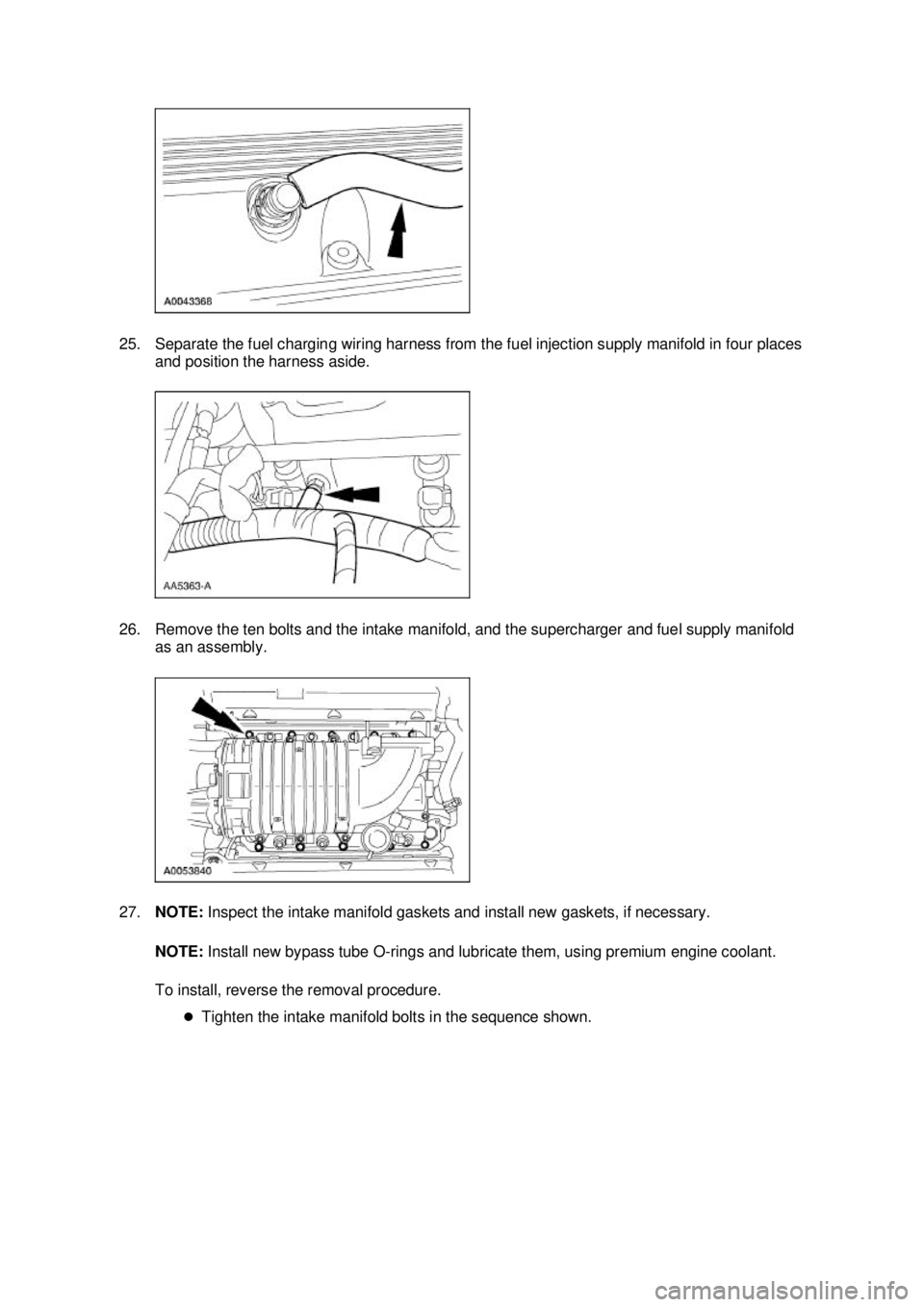

25. Separate the fuel charging wiring harness from the fuel injection supply manifold in four places
and position the harness aside.
26. Remove the ten bolts and the intake manifold, and the supercharger and fuel supply manifold as an assembly.
27. NOTE: Inspect the intake manifold gaskets and install new gaskets, if necessary.
NOTE: Install new bypass tube O- rings and lubricate them, using premium engine coolant.
To install, reverse the removal procedure. zTighten the intake manifold bolts in the sequence shown. Klj . 6 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Valve Cover LH
Removal and Installation 1. Remove the Hydro Boost brake booster. For additional information, refer to Section 206 - 07 .
2. Remove the LH ignition coils. For additional information, refer to Section 303 - 07C .
3. Disconnect the engine coolant temperature (ECT) sensor and unclip the wiring harness from the stud.
4. Unclip the wiring harness from the power steering bracket.
5. Disconnect the electrical connectors from the fuel pulse damper, EGR vacuum regulator solenoid, supercharger bypass vacuum solenoid, and the differential pressure feedback EGR
system.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Material
Item Specification
Silicone Gasket and Sealant
F7AZ-
19554- EA WSE-
M4G323- A4 Metal Surface Cleaner
F4AZ-
19A536- RA WSE-
M5B392- A Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR

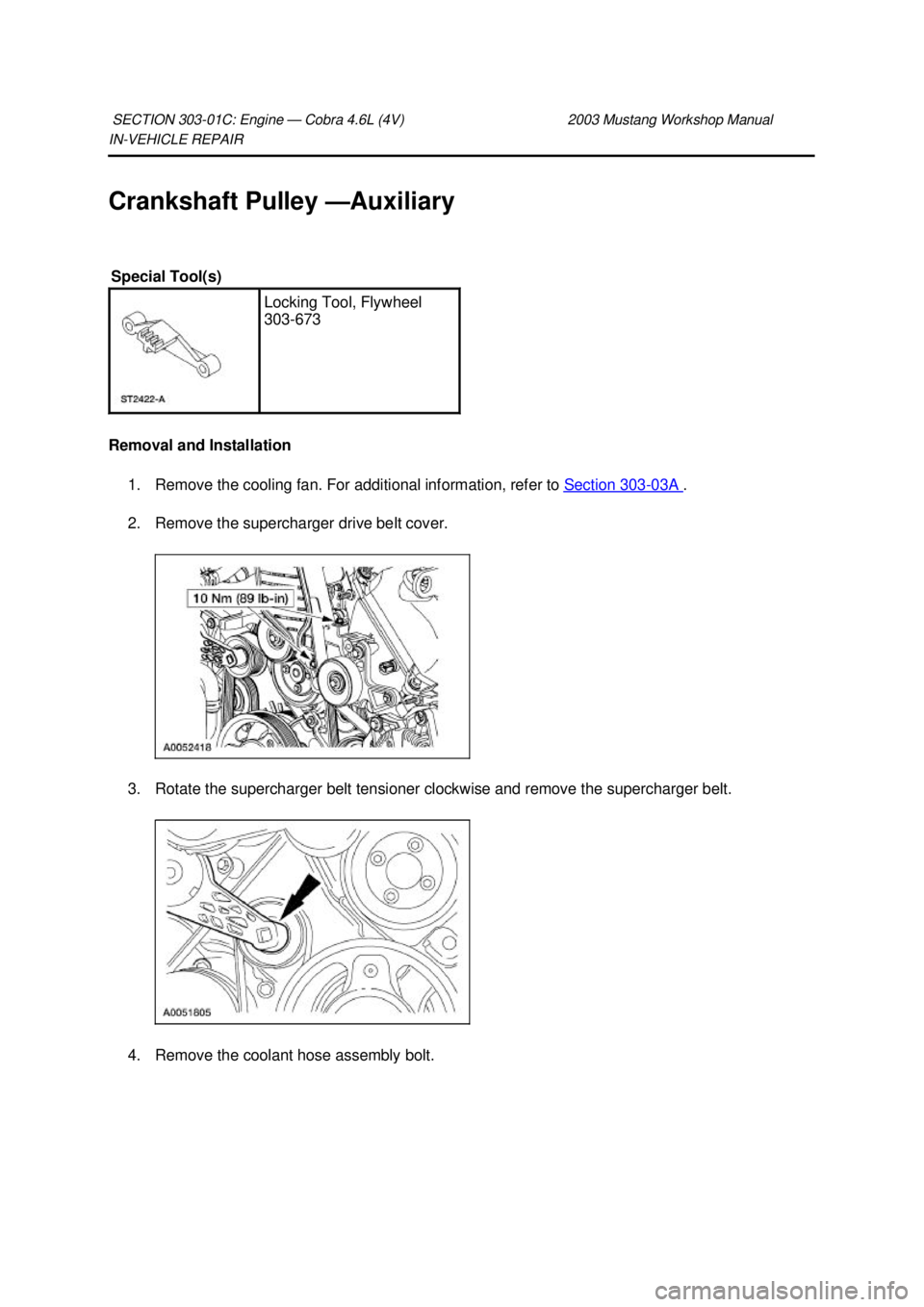

Crankshaft Pulley — Auxiliary
Removal and Installation 1. Remove the cooling fan. For additional information, refer to Section 303 - 03A .
2. Remove the supercharger drive belt cover.
3. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt. 4. Remove the coolant hose assembly bolt. SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Locking Tool, Flywheel
303-
673 Klj . 1 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

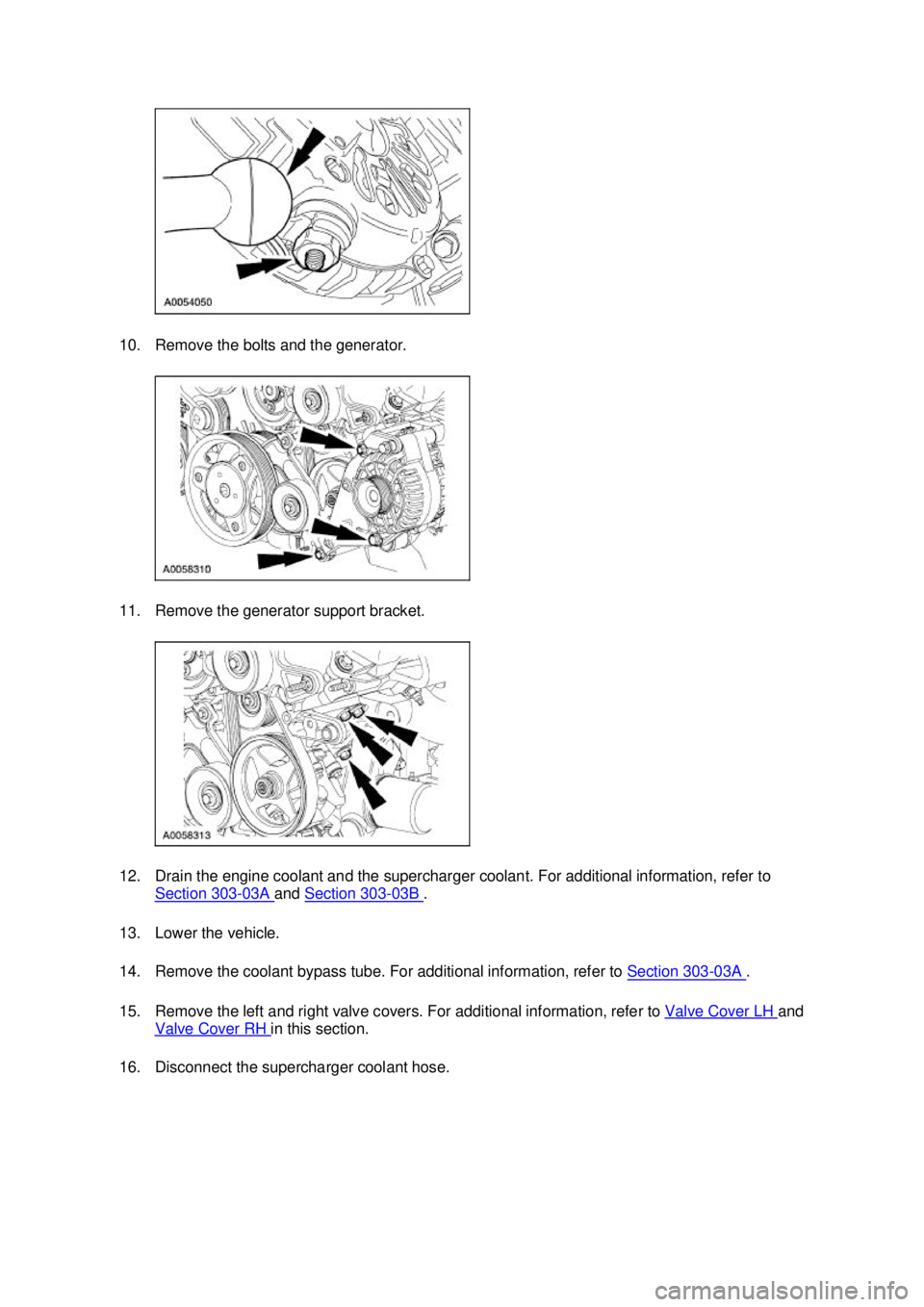

10. Remove the bolts and the generator.
11. Remove the generator support bracket.
12. Drain the engine coolant and the supercharger coolant. For additional information, refer to
Section 303 - 03A and
Section 303 - 03B .
13. Lower the vehicle.
14. Remove the coolant bypass tube. For additional information, refer to Section 303 - 03A .
15. Remove the left and right valve covers. For additional information, refer to Valve Cover LH and
Valve Cover RH in this section.
16. Disconnect the supercharger coolant hose. Klj . 3 ba
