2003 FORD MUSTANG mirror

REMOVAL AND INSTALLATION
Mirror —Motor
Removal
1. Push in the upper edge of the mirror glass to the maximum travel.
2. Grasp the bottom of the mirror glass, pull outward and remove the mirror glass.
3. Remove the mirror motor screws.
4. Disconnect the mirror motor electrical connector.
5. Remove the mirror motor.
Installation 1. NOTE: When installing the mirror glass, make sure it snaps completely into the mirror motor.
SECTION 501-
09: Rear View Mirrors 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Switch —
Exterior Rear View Mirror Control
Removal
1. CAUTION: Use a shop towel or similar material between the tool and the front door
trim panel or damage to the front door trim panel may occur.
Position the window regulator switch plate aside. 1. Pull at service notch.
2. Lift to release the clip at the rear edge.
2. Remove the power exterior rear view mirror control switch. zDisconnect the electrical connector.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
09: Rear View Mirrors 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Windshield Glass
Removal
All vehicles
WARNING: To prevent glass splinters from entering eyes or cutting hands, wear safety
glasses and heavy gloves when cutting glass from the vehicle.
1. Remove the RH and LH windshield side garnish mouldings. zIf equipped with a convertible top, remove the pin- type retainers.
2. Remove the interior rear view mirror.
Convertible
3. Remove the visor trim moulding.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Special Tool(s)
Rotunda Pneumatic Knife with
Offset Blade
107-
R1511 or equivalent The Pumper
164-
R2459 or equivalent Rotunda Interior Auto Glass
Cut-
Out Knife Kit
164- R2450 or equivalent Klj . 1 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

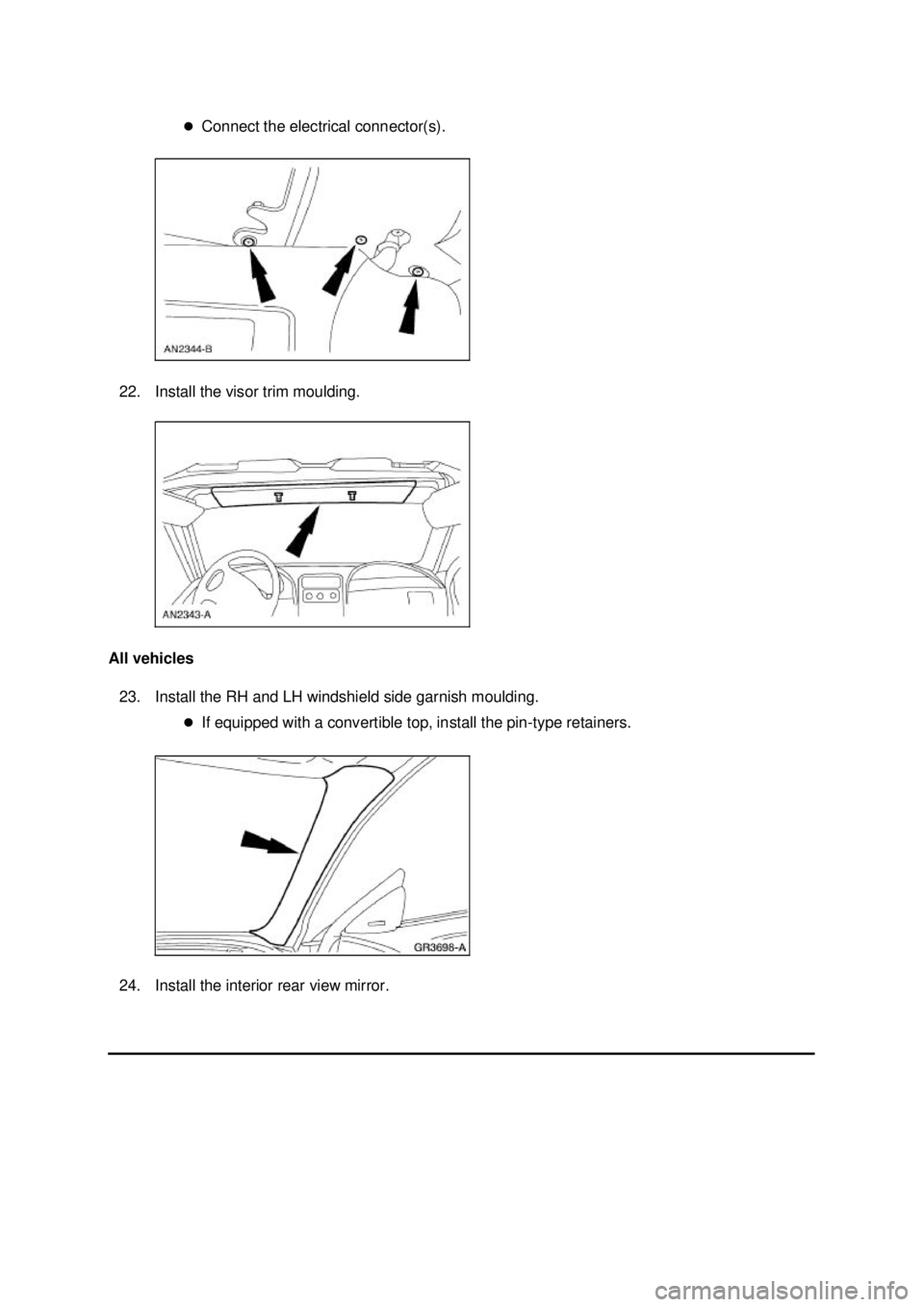

z
Connect the electrical connector(s).
22. Install the visor trim moulding.
All vehicles 23. Install the RH and LH windshield side garnish moulding. zIf equipped with a convertible top, install the pin- type retainers.
24. Install the interior rear view mirror. Klj . 9 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Camshaft Position (CMP) SensorEngine Performance
Central Control ModuleAnti-Theft System
ClockspringAir Bag Restraint System; Cruise Control
Systems; Steering Column Switches
Clutch Pedal Position SwitchStarters
Clutch Start SwitchStarters
Combination MeterAnalog Instrument Panels
Constant Control Relay Module (CCRM)Engine Performance; Electric Cooling Fans
Convenience CenterPower Distribution; Illu mination/Interior Lights
Convertible Top MotorPower Convertible Top
Convertible Top SwitchPower Convertible Top
Crankshaft Position (CKP) SensorEngine Performance
Cruise Control ModuleCruise Control Systems
Cruise Control SwitchCruise Control Systems
Condenser Fan Relay(s)Electric Cooling Fans
Data Link Connector (DLC)Engine Performance
Daytime Running Lights ModuleDaytime Running Lights; Exterior Lights
Defogger RelayRear Window Defogger
Diagnostic Energy Reserve Module (DERM)Air Bag Restraint System
Discriminating Sensor (Air Bag)Air Bag Restraint System
DistributorEngine Performance
Door Lock ActuatorsPower Door Locks; Remote Keyless Entry
Door Lock Relay(s)Power Door Locks
Electrochromic MirrorPower Mirrors
Electronic Level Control (ELC) Height SensorElectronic Suspension
Electronic Level Control (ELC) ModuleElectronic Suspension
Engine Coolant Temper ature (ECT) Sending UnitAnalog Instrument Panels
Engine Coolant Temperature (ECT) SensorEngine Performance
Engine Control ModuleEngine Performance; Ge nerators & Regulators;
Starters
ETACS ECUWarning Systems; Power Windows; Remote Keyless Entry
Evaporative (EVAP) Emissions CanisterEngine Performance
EVAP Canister Purge SolenoidEngine Performance
EVAP Canister Vent SolenoidEngine Performance
Exhaust Gas Recirculation (EGR) ValveEngine Performance
Fuel Tank Vacuum SensorEngine Performance
Fog LightsHeadlight Systems; Daytime Running Lights
Fog Light RelayHeadlight Systems; Daytime Running Lights
Fuel Door Release SolenoidPower Fuel Door Release
Fuel Gauge Sending UnitAnalog Instrument Panels
Fuel InjectorsEngine Performance
Fuel PumpEngine Performance
Fuel Pump RelayEngine Performance; Power Distribution


111
15 ноября 2011 г. 20:18:43Page 6 © 2006 Mitchell Repair Information Company, LLC.

Mega FuseGenerators & Regulators
Memory Seat/Mirror ModuleMemory Systems
Mirror DefoggerRear Window Defogger
Moon Roof MotorPower Moon Roof
Moon Roof RelayPower Moon Roof
Multi-Function Control ModuleWarning Systems
Neutral Safety SwitchStarters
Oil Level SwitchEngine Performance
Oil Pressure Switch/Sending UnitAnalog Instrument Panels; Engine Performance
Overhead ConsoleOverhead Console
Oxygen Sensor(s) (O2S)Engine Performance
Parking Brake SwitchAnalog Instrument Panels
Park LightsExterior Lights
Park/Neutral Position SwitchStarters; Engine Performance; Anti-Theft System;
Body Control Module
Perimeter Lighting Control RelayExterior Lights
Power AmplifierPower Antennas
Power Antenna ModulePower Antennas
Power Antenna MotorPower Antennas
Power Distribution CenterPower Distribution; Gene rators & Regulators;
Starters
Power Door Lock MotorsPower Door Locks
Power Mirror MotorsPower Mirrors; Memory Systems
Power Sliding Door ControllerPower Sliding Side Door
Power Seat MotorsPower Seats; Memory Systems
Power Steering Pressure SwitchEngine Performance
Power Top MotorPower Convertible Top
Power Top Relay(s)Power Convertible Top
Powertrain Control ModuleEngine Performance; Analog Instrument Panels; Cruise Control Systems; Data Link Connectors;
Generators & Regulators; Starters
Power Window MotorsPower Windows
Power Window Relay(s)Power Windows
Radiator Fan Motor(s)Electric Cooling Fans
Radiator Fan Relay(s)Engine Performance; Electric Cooling Fans;
Rainsense ModuleWiper/Washer Systems
Raise RelayPower Convertible Top
Remote Anti-Theft Personality (RAP) ModuleAnti-Theft System; Starters; Warning Systems
Seat Belt PretensionersAir Bag Restraint System
Seat Belt Retractor SolenoidPassive Restraints
Seat Belt SwitchAir Bag Restraint System; Passive Restraints
Shift Interlock SolenoidShift Interlock Systems
Shift Lock ActuatorShift Interlock Systems
Side Marker LightsExterior Lights


111
15 ноября 2011 г. 20:18:43Page 8 © 2006 Mitchell Repair Information Company, LLC.

Fig. 35: Power Door Locks Circuit
POWER MIRRORS

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 36 © 2006 Mitchell Repair Information Company, LLC.

Fig. 36: Power Mirrors Circuit
POWER SEATS

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 37 © 2006 Mitchell Repair Information Company, LLC.
