2003 FORD MUSTANG heater

40. Connect the heater water hoses.
41. Connect the climate control vacuum supply lines.
42. Position the cables and install the bracket.
43. Connect the throttle cable, speed control actuator cable and the return spring. Klj . 11 ba
132003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

b
P=Primary, S=Secondary, E=Exhaust
c Time necessary for plunger to leak down 1.6 mm of travel with 222 N force and leak down fluid in
tappet.
Torque Specifications Description Nm lb-
ft lb-
in A/C compressor bolts 25 18 —
A/C peanut fittings 8 — 71
A/C muffler nut 25 18 —
Accelerator bracket bolts 10 — 89
Battery tray bolts 11 8 —
Belt idler support bracket assembly fasteners 25 18 —
Camshaft sprocket bolt 115 85 —
Coolant bypass tube studs 25 18 —
Coolant bypass tube bolts 25 18 —
Coolant hose and tube assembly bolt 25 18 —
Cooling fan motor and shroud bolts 10 — 89
Connecting rod bolt
a — — —
Engine front cover bolt a a a
Drive belt tensioner bolts 25 18 —
Cylinder head bolt
a — — —
Idler pulley bracket 25 18 —
Power steering pump bolts 25 18 —
Power steering hose fitting 65 48 —
Power steering hose bracket bolt 10 — 89
Pulley to crankshaft bolt
a — — —
EGR valve to intake manifold
a — — —
Engine coolant degas bottle bolts 10 — 89
Exhaust manifold studs 25 18 —
Generator bolts 25 18 —
Generator support bracket bolts 25 18 —
Hood prop bolt 10 — 89
Hood mounting nuts 12 9 —
Heater water inlet tube 10 — 89
Heater water outlet tube 24 18 —
Lower intake manifold-
to-cylinder head bolt a — — —
Main bearing cap bolt
a — — —
Oil filter adapter bolt 25 18 —
Oil bypass filter to adapter 50 37 —
Oil pump screen cover and tube-
to-oil pump bolt 10 — 89
Oil pan-to-
cylinder block bolt a — — — Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
The inner rotor is piloted on the crankshaft post and is driven through flats on the crankshaft.
z System pressure is limited by an integral, internally- vented relief valve which directs the
bypassed oil back to the inlet side of the oil pump.
z Oil pump displacement has been selected to provide adequate volume to ensure correct oil
pressure both at hot idle and maximum speed.
z The relief valve calibration protects the system from excessive pressure during high viscosity
conditions.
z The relief valve is designed to provide adequate connecting rod bearing lubrication under high-
temperature and high- speed conditions.
Cooling System
The engine cooling system includes the following:
zradiator
z water pump
z the electric cooling fan motor and fan blade, activated by the variable control module
z the degas bottle, which aids in maintaining the correct volume of engine coolant
z water thermostat
z upper radiator hose
z lower radiator hose
z heater water hoses
Drive Belt System
The 4.6L (4V) DOHC engine is equipped with a serpentine drive belt. To ensure maximum life, a
replacement drive belt should be of the same type as originally installed.
zThe accessories mounted on the front of the engine are belt- driven by the crankshaft.
z The serpentine drive belt is routed over each accessory pulley, driven by the crankshaft pulley
bolted to the crankshaft.
For service procedures, including tensioning, refer to Section 303 - 05 . Klj . 3 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

9 9278 Oil pressure sender
10 6884 Oil filter adapter
11 6A636 Oil filter adapter gasket
12 N620482 Dowel
13 87836 Plug
Item Part Number Description
1 N807198 Dowel pin (2 req'd)
2 N807309 Bolt
3 N807959 Bolt
4 18663 Heater water hose
5 W500110 Bolt (2 req'd)
6 12A699 Knock sensor (2 req'd)
7 N807309 Bolt (2 req'd)
8 18696 Heater water hose
9 7120 Pilot bearing
10 6K318 Crankshaft rear retainer
11 N806155 Bolt (6 req'd)
12 6310 Crankshaft oil slinger
13 6375 Flywheel
14 N808139 Bolt (8 req'd)
15 7550 Clutch disc
16 7563 Clutch pressure plate
17 N808969 Bolt (6 req'd)
18 6701 Crankshaft rear oil seal Klj . 14 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

20. Disconnect the 16-
pin and the 42-pin connectors.
21. Disconnect the vacuum hoses.
22. Separate the wiring harness from the dash panel.
23. Disconnect the heater hoses.
24. Disconnect the radiator upper hose, radiator lower hose and the supercharger degas hose. Klj . 5 ba
172003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

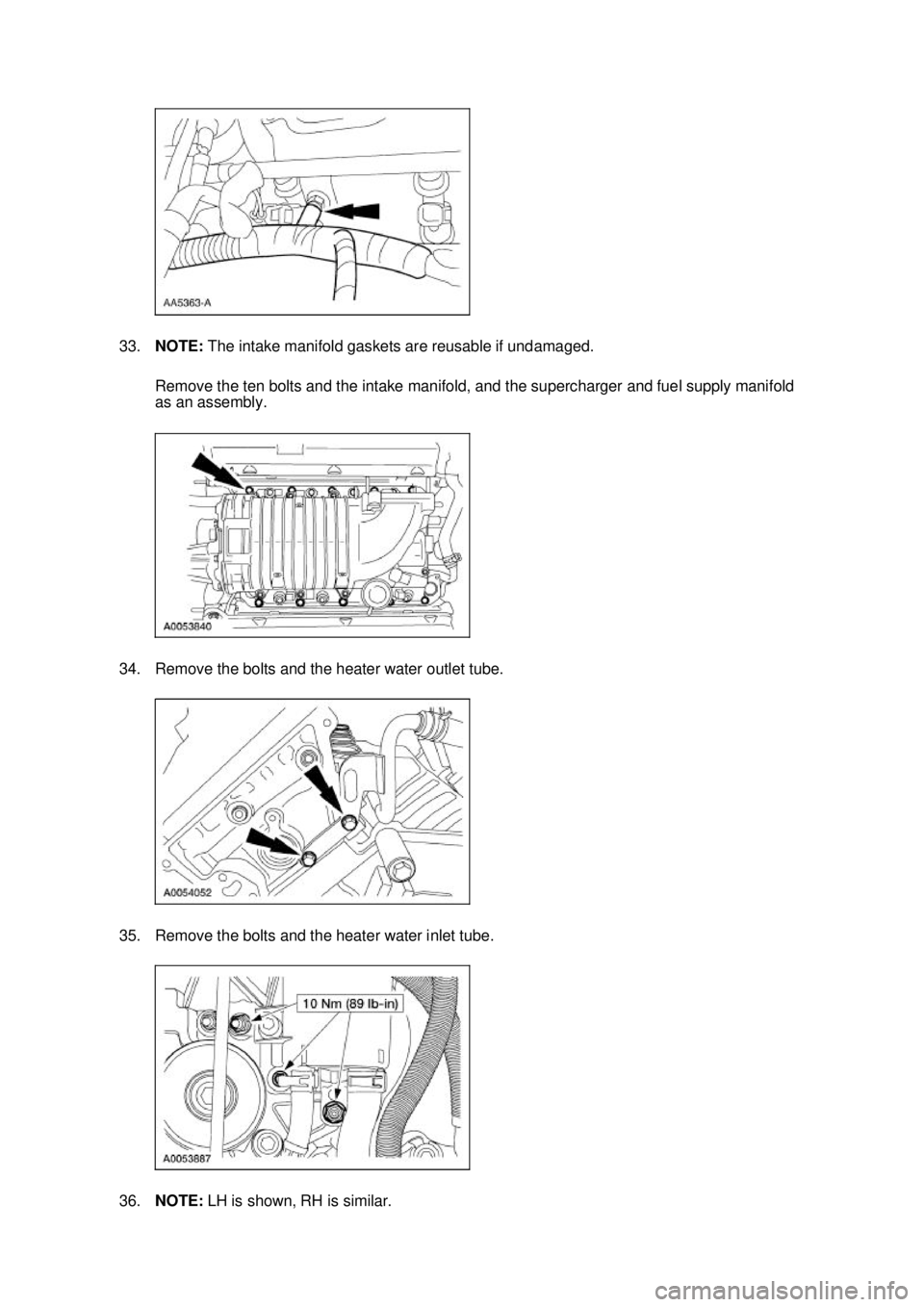

33.
NOTE: The intake manifold gaskets are reusable if undamaged.
Remove the ten bolts and the intake manifold, and the supercharger and fuel supply manifold
as an assembly.
34. Remove the bolts and the heater water outlet tube.
35. Remove the bolts and the heater water inlet tube.
36. NOTE: LH is shown, RH is similar. Klj . 10 ba
232003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Remove the coolant bypass studs.
37. NOTE: LH is shown, RH is similar.
Remove the bolts and the coolant bypass tube.
38. Remove the bolts and the heater water inlet tube.
39. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other
abrasive means to clean the sealing surfaces. These tools cause scratches and gouges
which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
NOTE: LH is shown, RH is similar.
Remove the fasteners and the LH and RH valve covers. zRemove and discard the gasket, clean and inspect the sealing surfaces. Klj . 11 ba
232003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

68.
NOTE: Lubricate the O- ring with clean engine coolant.
Install the heater water inlet tube.
69. NOTE: Lubricate the O- rings with clean engine coolant.
Install the heater water outlet tube and the mounting bolts.
70. NOTE: Inspect the intake manifold gaskets and install new gaskets, if necessary.
Install the intake manifold, supercharger and fuel supply manifold as an assembly, and tighten
the bolts to 10 Nm (89 lb- in) in the sequence shown. Klj . 25 ba
352003 Mustang Workshop Manual
