90. Connect the EGR tube to the EGR valve.
91. Install the EGR vacuum regulator solenoid.
1. Install the vacuum hoses.
2. Install the electrical connector.
3. Install the bolts.
92. Connect the hoses from the differential pressure feedback EGR transducer.
93. Connect the differential pressure feedback EGR electrical connector. Klj . 32 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

96. Install the RH and LH special tools.
97. Using the special tool, remove the engine from the stand.
98. Using the special tool, install the crankshaft rear main seal.
zLubricate the oil seal using clean engine oil. 5 — To ignition coils (8)
6 — To engine coolant temperature sensor
7 — To throttle position sensor
8 — To idle air control valve
9 — To EGR vacuum regulator
10 — To differential pressure feedback EGR
11 — To fuel pressure regulator
12 — Fuel injection ground
13 — To generator
14 — To camshaft position sensor
15 — To body
16 — To heated oxygen sensor (2)
17 — Engine bulkhead connector
18 — To low coolant sensor
19 — To body
20 — To power distribution box
21 — To body Klj . 34 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

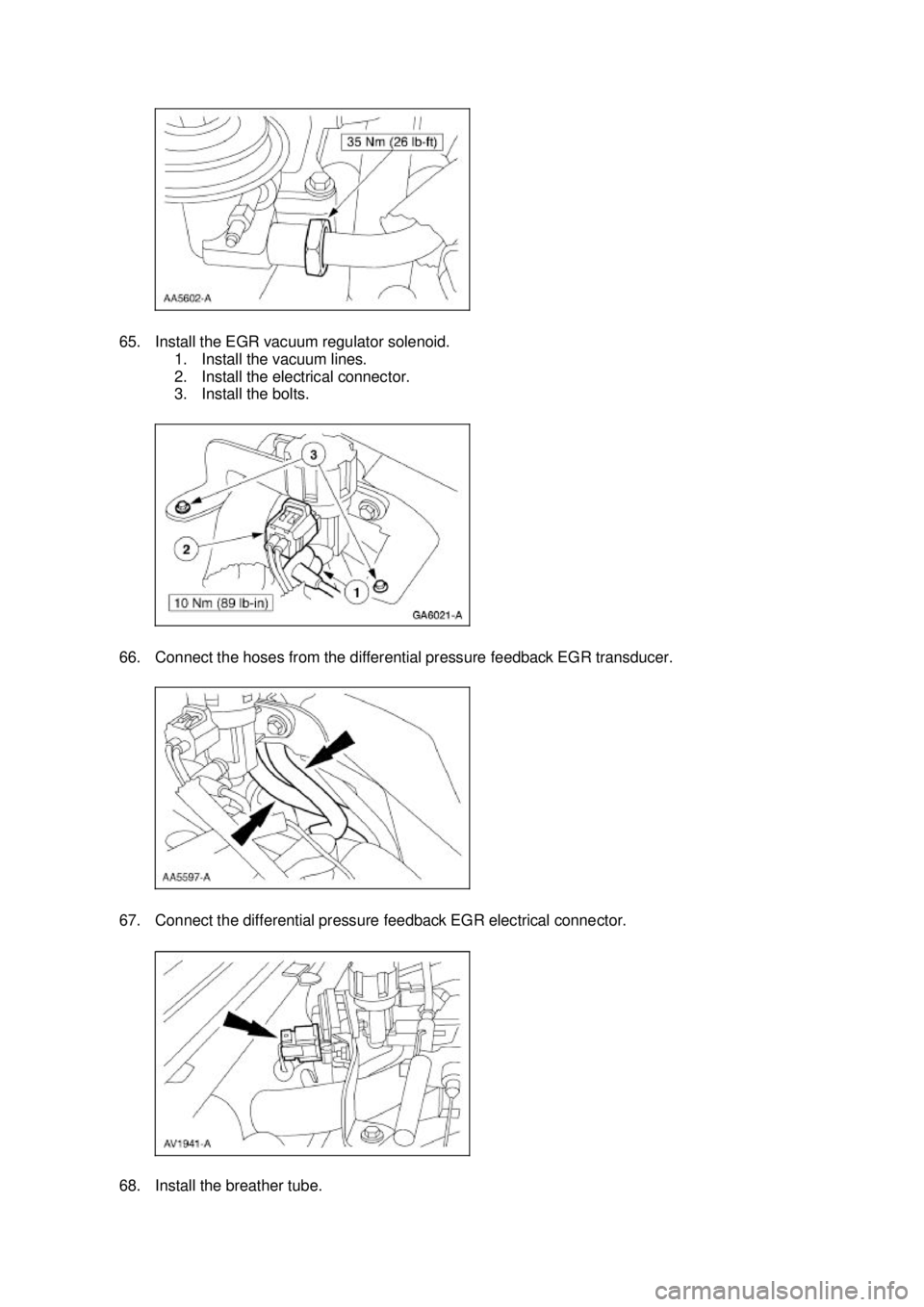

65. Install the EGR vacuum regulator solenoid.
1. Install the vacuum lines.
2. Install the electrical connector.
3. Install the bolts.
66. Connect the hoses from the differential pressure feedback EGR transducer.
67. Connect the differential pressure feedback EGR electrical connector.
68. Install the breather tube. Klj . 22 ba
252003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

69. Install the engine control sensor wiring.
Item Part Number Description
1 — To crankshaft position sensor
2 — To A/C compressor
3 — To radio ignition interference capacitor (2)
4 — To fuel injectors (8)
5 — To ignition coils (8)
6 — To engine coolant temperature sensor
7 — To throttle position sensor
8 — To idle air control valve
9 — To EGR vacuum regulator
10 — To differential pressure feedback EGR
11 — To fuel pressure regulator
12 — Fuel injection ground
13 — To generator
14 — To camshaft position sensor Klj . 23 ba
252003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Item Part Number Description
1 6F066 Supercharger assembly
2 N806154 Screws (2 req'd)
3 9F715 Idle air control valve
4 — Idle air control valve gasket
5 9P697 Spacer assembly
6 9E936 Throttle body gasket
7 9E926 Throttle body
8 — Bolts (4 req'd)
9 — Bolts (2 req'd)
10 9E926 Throttle position sensor
11 N804178 Nuts (4 req'd)
12 — Studs (4 req'd)
13 — Spacer assembly gasket
14 9D475 Exhaust gas recirculation valve
15 — Stud
16 9D477 Exhaust gas recirculation tube
17 — Manifold absolute pressure sensor
18 9J460 Differential pressure feedback EGR system
19 9J459 Exhaust gas recirculation vacuum regulator
20 9J472 Vacuum accessory bracket Klj . 4 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

13. Release the clip and position the accelerator cable bracket and the cables aside.
14. Disconnect the electrical connectors from the fuel pulse damper, exhaust gas recirculation
(EGR) vacuum regulator solenoid, supercharger bypass vacuum solenoid, and the differential
pressure feedback EGR system.
15. Disconnect the vacuum hoses from the differential pressure feedback EGR system.
16. Disconnect the vacuum hoses from the supercharger bypass vacuum solenoid and the actuator. Klj . 3 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Valve Cover LH
Removal and Installation 1. Remove the Hydro Boost brake booster. For additional information, refer to Section 206 - 07 .
2. Remove the LH ignition coils. For additional information, refer to Section 303 - 07C .
3. Disconnect the engine coolant temperature (ECT) sensor and unclip the wiring harness from the stud.
4. Unclip the wiring harness from the power steering bracket.
5. Disconnect the electrical connectors from the fuel pulse damper, EGR vacuum regulator solenoid, supercharger bypass vacuum solenoid, and the differential pressure feedback EGR
system.
SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Material
Item Specification
Silicone Gasket and Sealant
F7AZ-
19554- EA WSE-
M4G323- A4 Metal Surface Cleaner
F4AZ-
19A536- RA WSE-
M5B392- A Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

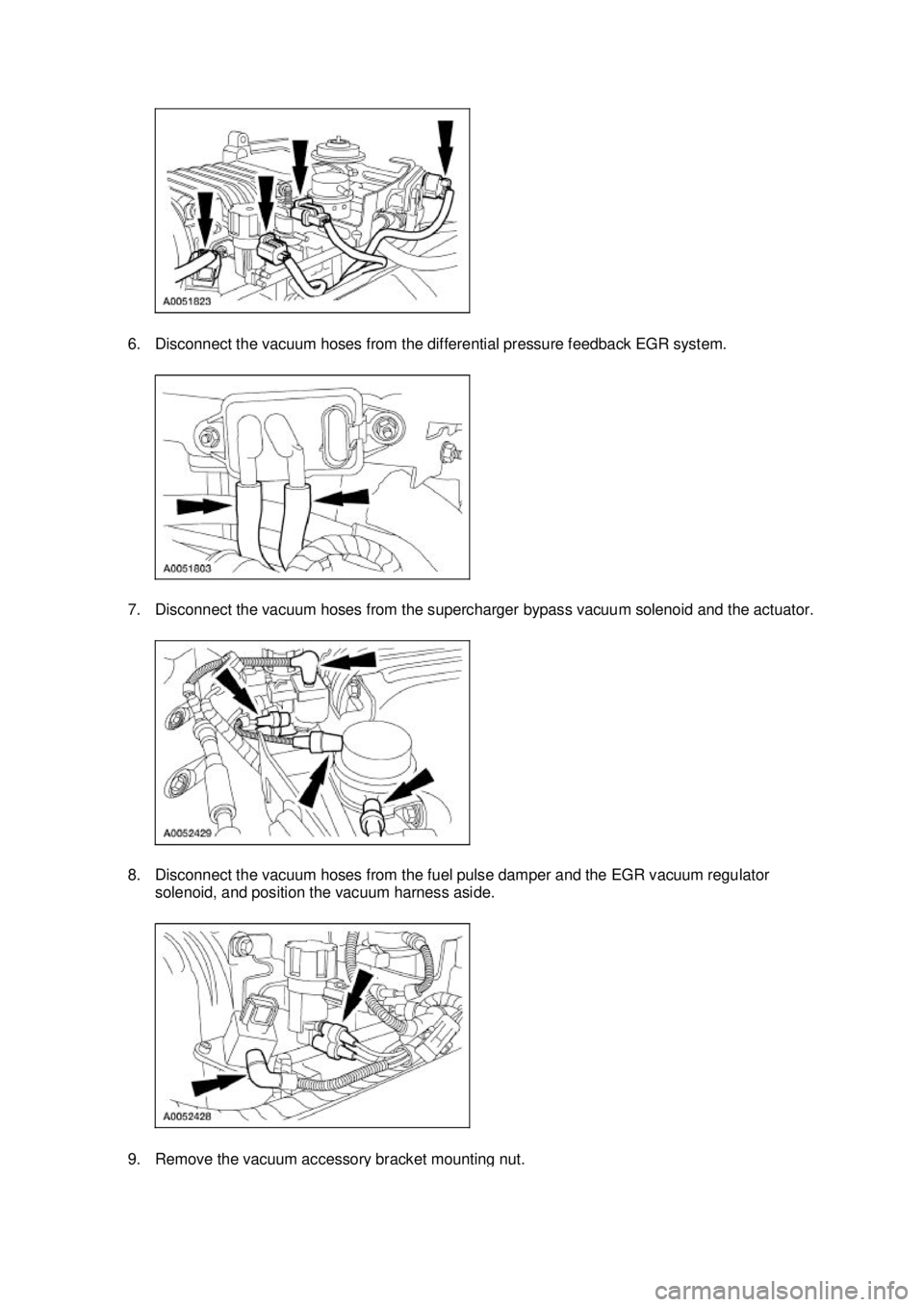

6. Disconnect the vacuum hoses from the differential pressure feedback EGR system.
7. Disconnect the vacuum hoses from the supercharger bypass vacuum solenoid and the actuator.
8. Disconnect the vacuum hoses from the fuel pulse damper and the EGR vacuum regulator
solenoid, and position the vacuum harness aside. 9. Remove the vacuum accessory bracket mounting nut. Klj . 2 ba
