2003 FORD MUSTANG odometer

To exit the instrument cluster self-
diagnostic mode, turn the ignition switch to the OFF position or press
and hold the SELECT/RESET button for three or more seconds and release. z
93- 102 = 6.9- 9.1 volts (low voltage)
z 115- 124 = 8.5- 10.7 volts (norm band start)
z 215- 225 = 15.8- 18 volts (norm band end)
z 230- 241 = 16.9- 19.1 volts (high voltage) rhEo Displays the present decimal rheostat dimming input, 0-
255 (used when requesting
assistance from the hotline). rhi
rhS rho Not used.
Cr Displays the present RUN/START sense input. Display will show -
h for high input with
the ignition switch in the START position and - L for low input with the ignition switch in
the RUN position. PA-
PE7 Not used.
GAGE Repeats test display cycle.
Instrument Cluster Diagnostic Trouble Code (DTC) Index Diagnostic
Tool
Displayed DTC Self-
Diagnostic
Mode Displayed DTC Description Source Action
B1202 9202 Fuel Sender
Open Circuit Instrument
Cluster Go To Pinpoint Test B .
B1204 9204 Fuel Sender
Short to Ground Instrument
Cluster Go To Pinpoint Test B .
B1317 9317 Battery Voltage
High Instrument
Cluster Section 414 - 00 .
B1318 9318 Battery Voltage
Low Instrument
Cluster Section 414 - 00 .
B1342 9342 ECU is Defective Instrument
Cluster INSTALL a new instrument
cluster; REFER to Instrument Cluster in this section. TEST the
system for normal operation. B1343 9343 Heated Backlight
Input Circuit Failure Instrument
Cluster Section 501 - 11 .
B1356 9356 Ignition Run
Circuit Open Instrument
Cluster Go To Pinpoint Test A .
B1364 9364 Ignition Start
Circuit Open Instrument
Cluster Go To Pinpoint Test A .
B2143 A143 Odometer NVM
Mmory Failure Instrument
Cluster Go To Pinpoint Test J .
C1284 5284 Oil Pressure
Switch Failure Instrument
Cluster Go To Pinpoint Test C .
P1197 1197 Mileage Switch
Circuit Failure Instrument
Cluster Go To Pinpoint Test J . Klj . 7 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

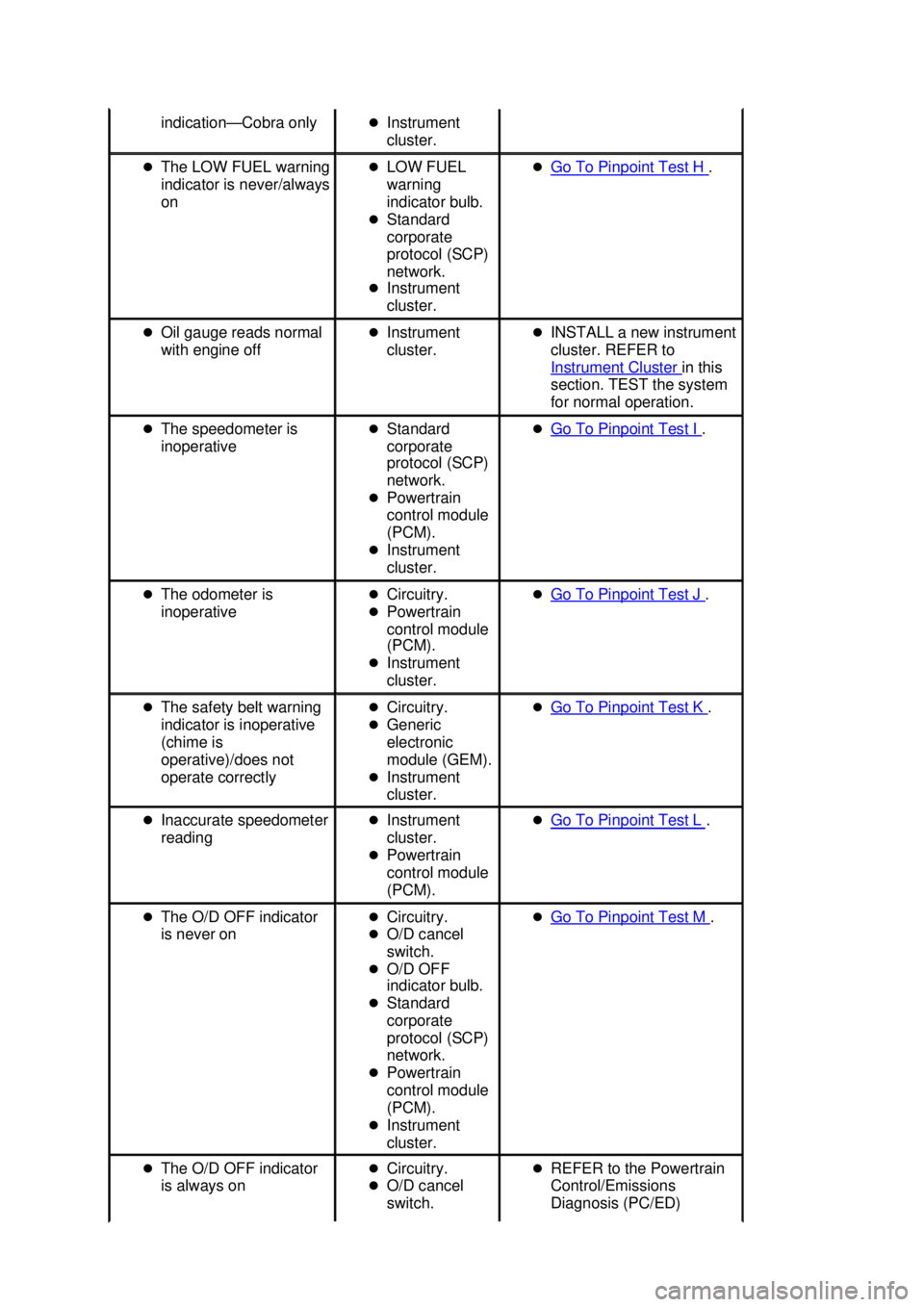

indication—
Cobra only zInstrument
cluster.
z The LOW FUEL warning
indicator is never/always
on z
LOW FUEL
warning
indicator bulb.
z Standard
corporate
protocol (SCP)
network.
z Instrument
cluster. z
Go To Pinpoint Test H .
z Oil gauge reads normal
with engine off z
Instrument
cluster. z
INSTALL a new instrument
cluster. REFER to
Instrument Cluster in this
section. TEST the system
for normal operation.
z The speedometer is
inoperative z
Standard
corporate
protocol (SCP)
network.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test I .
z The odometer is
inoperative z
Circuitry.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test J .
z The safety belt warning
indicator is inoperative
(chime is
operative)/does not
operate correctly z
Circuitry.
z Generic
electronic
module (GEM).
z Instrument
cluster. z
Go To Pinpoint Test K .
z Inaccurate speedometer
reading z
Instrument
cluster.
z Powertrain
control module
(PCM). z
Go To Pinpoint Test L .
z The O/D OFF indicator
is never on z
Circuitry.
z O/D cancel
switch.
z O/D OFF
indicator bulb.
z Standard
corporate
protocol (SCP)
network.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test M .
z The O/D OFF indicator
is always on z
Circuitry.
z O/D cancel
switch. z
REFER to the Powertrain
Control/Emissions
Diagnosis (PC/ED) Klj . 11 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST J: THE ODOMETER IS INOPERATIVE
PINPOINT TEST K: THE SAFETY BELT INDICATOR IS INOPERATIVE
(CHIME IS OPERATIVE)/DOES NOT OPERATE CORRECTLY GO to
I2 .
I2 CHECK FOR CORRECT
INSTRUMENT CLUSTER
OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they
seat correctly.
z Operate the system and verify
the concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the system for
normal operation.
No
The system is operating correctly at this time. Concern
may have been caused by a loose or corroded
connector. CLEAR the DTCs. REPEAT the self- test. Test Step Result / Action to Take
J1 CHECK THE ODOMETER
DISPLAY z
Key in ON position.
z Is the odometer displaying all
dashes? Yes
REFER to the Powertrain Control/Emissions Diagnosis
(PC/ED) manual.
No
GO to
J2 .
J2 CHECK FOR CORRECT
INSTRUMENT CLUSTER
OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they
seat correctly.
z Operate the system and verify
the concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the system for
normal operation.
No
The system is operating correctly at this time. Concern
may have been caused by a loose or corroded
connector. CLEAR the DTCs. REPEAT the self- test. Test Step Result / Action to Take
K1 CHECK IF THE GEM IS RECEIVING THE CORRECT
IGNITION SWITCH STATUS CAUTION: Use the correct probe adapter(s) when
making measurements. Failure to use the correct probe
adapter(s) may damage the connector.
z Connect the diagnostic tool. Yes
GO to
K2 .
No
REFER to Section 211 - 05 . Klj . 23 ba
