2003 FORD MUSTANG light

Battery—
Drain Tests
NOTE: No production vehicle should have more than a 50 mA (0.050 amp) continuous draw.
Check for current drains on the battery in excess of 50 milliamps (0.050 amp) with all the electrical
accessories off and the vehicle at rest. Current drains can be tested with the following procedure:
WARNING: Do not attempt this test on a lead- acid battery that has recently been
recharged. Explosive gases can cause personal injury.
CAUTION: To prevent damage to the meter, do not crank the engine or operate
accessories that draw more than 10A.
NOTE: Many modules draw 10 mA (0.010 amp) or more continuously.
NOTE: Use an in- line ammeter between the battery positive or negative post and its respective cable.
NOTE: Typically, a drain of approximately one amp can be attributed to an engine compartment lamp,
glove compartment lamp, or luggage compartment lamp staying on continually. Other component
failures or wiring shorts may be located by selectively pulling fuses to pinpoint the location of the
current drain. When the current drain is found, the meter reading will fall to an acceptable level. If the
drain is still not located after checking all the fuses, it may be due to the generator.
NOTE: To accurately test the drain on a battery, an in- line digital ammeter must be used. Use of a test
lamp or voltmeter is not an accurate method due to the number of electronic modules.
1. Make sure the junction box/fuse panels are accessible without turning on interior and underhood lights.
2. Drive the vehicle at least five minutes and over 48 km/h (30 mph) to turn on and exercise vehicle systems.
3. Allow the vehicle to sit with the key off for at least 40 minutes to allow modules to time out/power down.
4. Connect a fused jumper wire between the negative battery cable and the negative battery post to prevent modules from resetting and to catch capacitive drains.
5. Disconnect the negative battery cable from the post without breaking the connection of the jumper wire.
6. NOTE: It is very important that continuity is not broken between the battery and the negative
battery cable when connecting the meter. If this happens, the entire procedure must be
repeated.
Connect the tester between the negative battery cable and the post. The meter must be capable
of reading milliamps and should have a 10 amp capability.
7. NOTE: If the meter settings need to be switched or the test leads need to be moved to another
jack, the jumper wire must be reinstalled to avoid breaking continuity.
Remove the jumper wire.
NOTE: Amperage draw will vary from vehicle to vehicle depending on the equipment package.
Compare to a comparable vehicle for reference.
NOTE: No production vehicle should have more than a 50 mA (0.050 amp) draw. Klj . 11 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Battery and Cables
Vehicles are equipped with a 12 volt maintenance-
free battery that contains a built-in hydrometer. The
hydrometer eye indication is as follows:
zA green dot means the battery is OK.
z A yellow dot, red dot, or when the green dot is not visible, means the battery needs to be
charged.
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery. When
charging or working near a battery, always shield your face and protect your eyes. Always
provide ventilation.
WARNING: When lifting a battery, excessive pressure on the end walls could cause acid
to leak out through the vent caps, resulting in personal injury, damage to the vehicle or the
battery.
WARNING: Keep out of the reach of children. Batteries contain sulfuric acid. Avoid
contact with skin, eyes, or clothing. Also, shield your eyes when working near the battery to
protect against possible splashing of the acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical
attention. If acid is swallowed, call a physician immediately.
Ford Motor Company strongly recommends that lead- acid batteries be returned to an authorized
recycling facility for disposal. SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

GENERAL PROCEDURES
Battery Disconnect
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery, always
shield your face and protect your eyes. Always provide ventilation. Failure to follow these
instructions may result in personal injury.
WARNING: To avoid accidental deployment and possible injury, the backup power supply
must be depleted before repairing or installing any front or side air bag supplemental restraint
system (SRS) components and before repairing, installing, adjusting or striking components
near the front or side air bag sensors, such as doors, instrument panel, console, door latches,
strikers, seats and hood latches. Failure to follow these procedures may result in personal
injury.
Refer to the appropriate vehicle shop manual to determine location of the front air bag sensors.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at
least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Failure to follow these instructions may result in personal injury.
WARNING: When lifting a battery, excessive pressure on the end walls could cause acid
to spew through the vent caps, resulting in personal injury. Lift with a battery carrier or with
your hands on opposite corners. Failure to follow these instructions may result in personal
injury.
WARNING: Keep out of the reach of children. Batteries contain sulfuric acid. Avoid
contact with skin, eyes or clothing. Also, shield your eyes when working near the battery to
protect against possible splashing of the acid solution. In case of acid contact with the skin or
eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical
attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions
may result in personal injury.
1. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms
may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to
relearn its strategy.
Disconnect the battery ground cable.
2. Disconnect the positive battery cable.
3. To install, reverse the removal procedure.
SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Battery
Removal and Installation
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery. When
charging or working near a battery, always shield your face and protect your eyes. Always
provide ventilation. Failure to follow these instructions may result in personal injury.
WARNING: Keep out of the reach of children. Batteries contain sulfuric acid. Avoid
contact with skin, eyes, or clothing. Also, shield your eyes when working near the battery to
protect against possible splashing of the acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical
attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions
may result in personal injury.
1. Loosen the bolt and disconnect the battery ground cable.
2. Loosen the bolt and disconnect the positive battery cable.
3. Remove the bolt and the battery hold- down.
SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Battery Tray
Removal and Installation
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery. When
charging or working near a battery, always shield your face and protect your eyes. Always
provide ventilation. Failure to follow these instructions may result in personal injury.
WARNING: Keep out of the reach of children. Batteries contain sulfuric acid. Avoid
contact with skin, eyes, or clothing. Also, shield your eyes when working near the battery to
protect against possible splashing of the acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical
attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions
may result in personal injury.
1. Remove the battery. For additional information, refer to Battery in this section.
2. Remove the battery tray bolts and washers.
3. Remove the battery tray.
4. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms
may occur while the vehicle relearns its adaptive strategy. The vehicle needs to be driven to
relearn the strategy.
To install, reverse the removal procedure.
SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Battery Cables
Removal
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery. When
charging or working near a battery, always shield your face and protect your eyes. Always
provide ventilation. Failure to follow these instructions may result in personal injury.
WARNING: Keep out of the reach of children. Batteries contain sulfuric acid. Avoid
contact with skin, eyes, or clothing. Also, shield your eyes when working near the battery to
protect against possible splashing of the acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical
attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions
may result in personal injury.
All vehicles
1. Remove the battery. For additional information, refer to Battery in this section.
2. If equipped, unplug the engine heater intermediate connection.
3. Remove the battery ground cable harness bolt from the radiator support and release the cable harness locators.
4. Disconnect the battery cable harness electrical connectors.
5. CAUTION: The square terminal from the battery must be installed first, followed by
SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests speakers
zSubwoofer
amplifier.
z Circuitry. E .
z Poor quality sound from one or
more speakers (not all
speakers) z
Speaker(s).
z Circuitry.
z Audio unit.
z Subwoofer
amplifier. z
Go To Pinpoint Test F .
z Poor quality sound from all
speakers z
Audio unit.
z Speaker(s).
z Circuitry. z
Go To Pinpoint Test G .
z The subwoofer is inoperative zSubwoofer.
z Subwoofer
amplifier.
z Circuitry. z
Go To Pinpoint Test H .
z Loud popping when cycling the
ignition switch z
Audio unit.
z Circuitry. z
Go To Pinpoint Test I .
z One or more audio control
buttons (such as volume, seek,
tune and scan) are not
functional in either radio, tape,
or CD mode or all modes z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z When the headlamp switch is in
park or headlamp position and
the ignition switch is in the RUN
or ACC position, the audio unit
back lighting is inoperative — all
other I/P lighting functions are
normal z
Circuitry.
z Audio unit. z
REFER to Section 413 - 00 .
z The audio unit has two items
that can be dimmed— the audio
unit display and the control
buttons; one dims and the other
does not z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z Irregular operation of display
and indicator LEDs z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z Response time between
pressing any of the audio
control buttons and system
response is more than two
seconds z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation. Klj . 3 ba
242003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

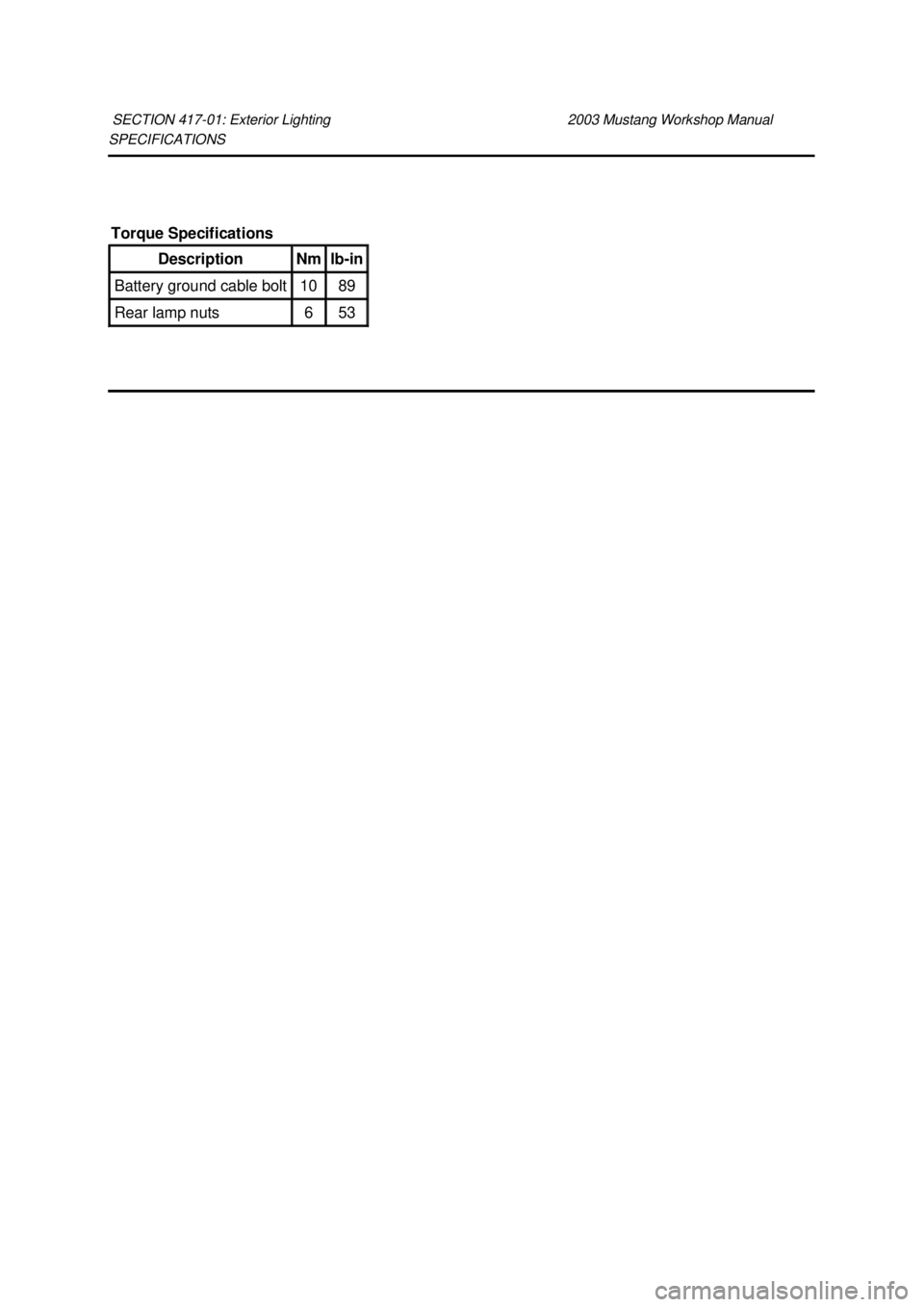

SPECIFICATIONS
SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Battery ground cable bolt 10 89
Rear lamp nuts 6 53 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
