2003 FORD MUSTANG ignition

6. Lower the vehicle.
7. Remove the two screws and position the clutch release cable aside.
All vehicles 8. Remove the LH ignition coil cover bolts and the cover.
9. Disconnect the ignition coil electrical connectors.
10. Remove the ignition coils. Klj . 2 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

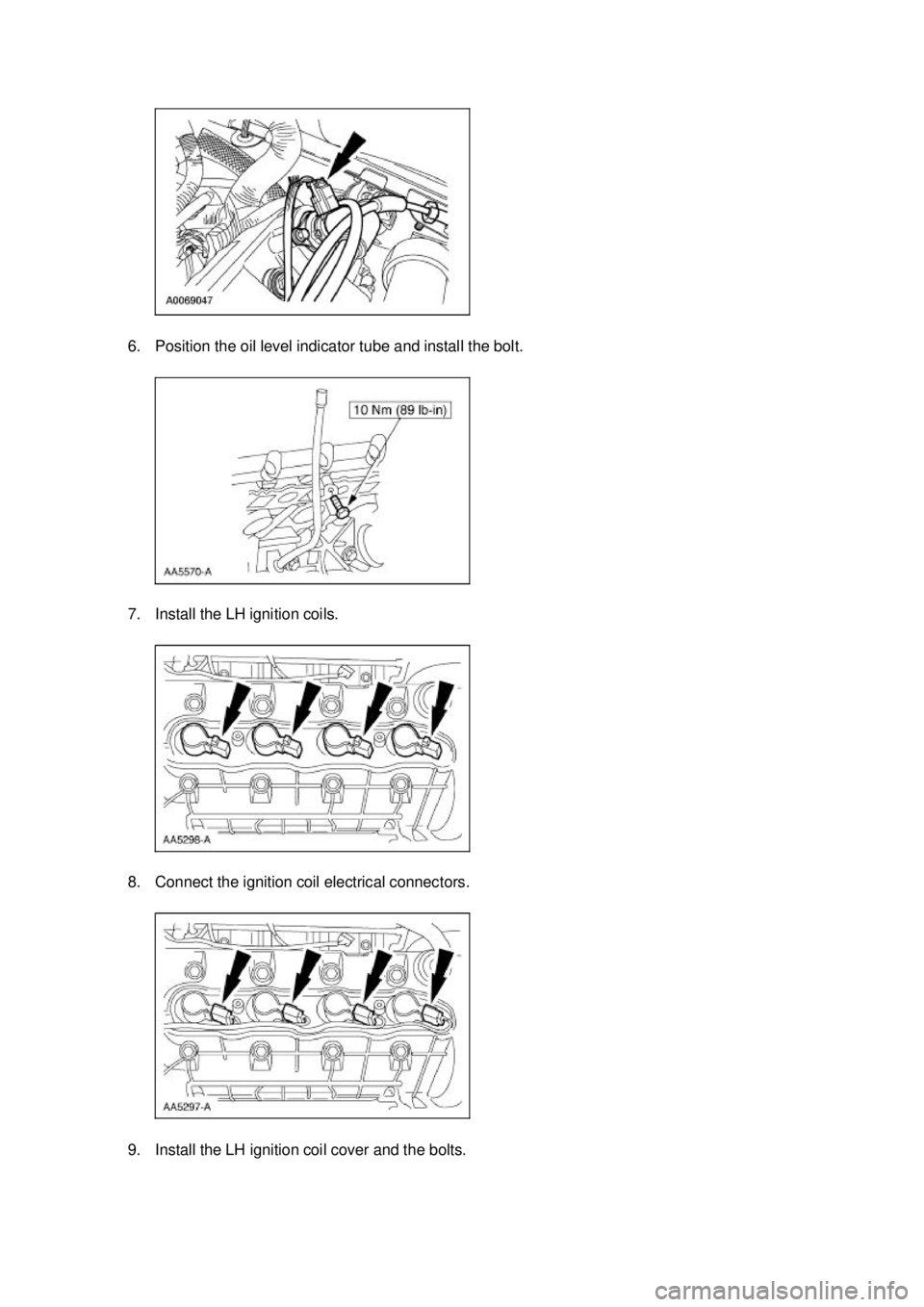

6. Position the oil level indicator tube and install the bolt.
7. Install the LH ignition coils.
8. Connect the ignition coil electrical connectors.
9. Install the LH ignition coil cover and the bolts. Klj . 6 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Engine Front Cover
Removal
All vehicles 1. Remove the air intake scoop bracket. For additional information, refer to Section 303 - 12 .
2. Remove the RH valve cover. For additional information, refer to Valve Cover RH in this section.
3. Remove the Hydro- Boost brake booster. For additional information, refer to Section 206 - 07 .
Manual transmission vehicles
4. Remove the two clutch release cable retaining screws.
All vehicles 5. Remove the LH ignition coil cover bolts and the cover.
SECTION 303-
01D: Engine — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Material
Item Specification
Metal Surface Cleaner
F4AZ-
19A536- RA or equivalent WSE-
M5B392-
A Silicone Gasket and Sealant
F7AZ-
19554- EA or equivalent WSE-
M4G323-
A4 SAE 5W-
30 Premium Synthetic
Blend Motor Oil
XO- 5W30-QSP or equivalent WSS-
M2C153-
G Klj . 1 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

6. Disconnect the ignition coil electrical connectors.
7. Remove the ignition coils.
8. Remove the bolt and position the oil level indicator tube aside.
9. Remove the positive crankcase ventilation (PCV) valve hose and disconnect the electrical
connector. Klj . 2 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

32. Position the oil level indicator tube and install the bolt.
33. Install the LH ignition coils.
34. Connect the LH ignition coil electrical connectors.
35. Install the LH coil cover and install the bolts. Klj . 19 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

21. Remove the upper intake manifold gasket.
zClean and inspect the sealing surfaces.
22. Remove the RH coil cover.
23. Disconnect the LH ignition coils. Klj . 7 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

24. Disconnect the four RH fuel injector electrical connectors.
25. Disconnect the engine coolant temperature (ECT) sensor.
26. Disconnect the RH ignition coils.
27. Remove the eight ignition coils. Klj . 8 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

62. Install the upper generator support bracket and coolant bypass tube.
zInstall the upper generator support bracket.
z Install the coolant bypass tube.
z Install the bolts.
63. Install the eight ignition coils.
64. Connect the eight ignition coils. Klj . 22 ba
